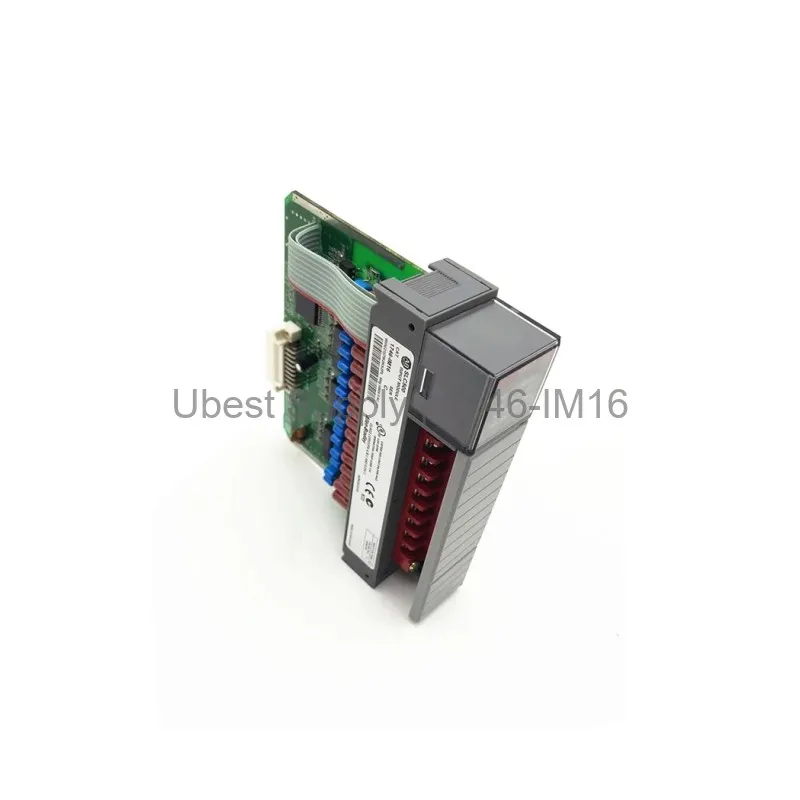

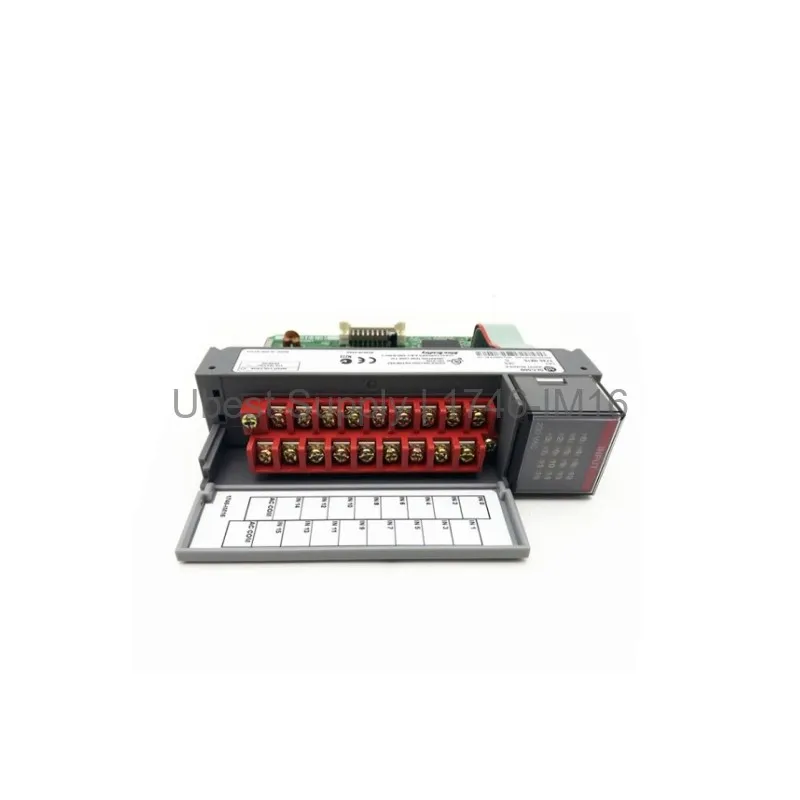

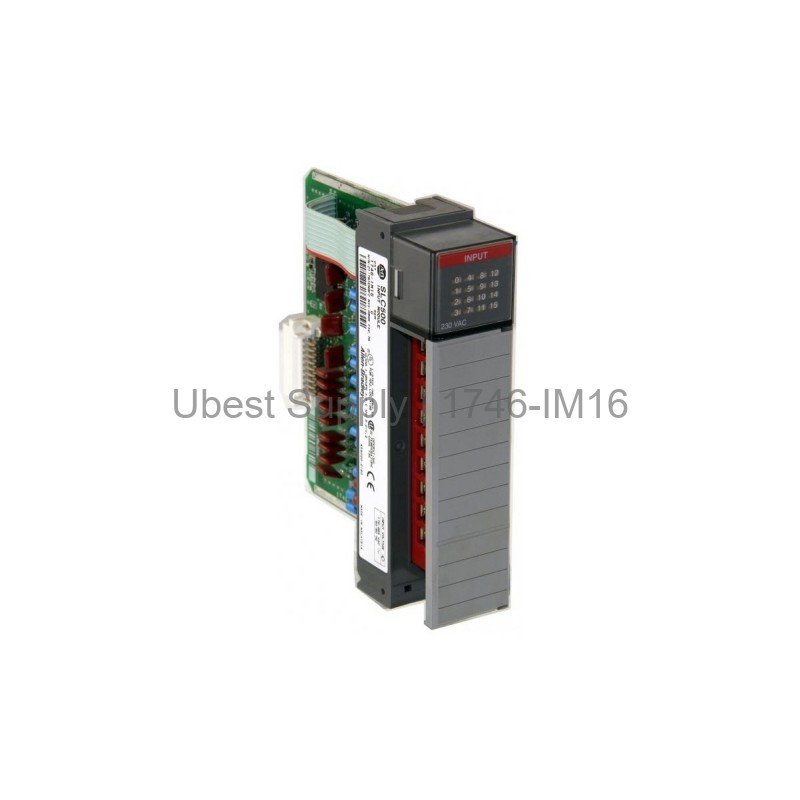

SLC 500 AC Input Module 1746-IM16 by Allen-Bradley

Product Overview

The Allen-Bradley 1746-IM16 is a discrete AC input module for the SLC 500 platform. It offers sixteen input channels. Each channel accepts 170-265 Volts AC at 47-63 Hertz. This module fits into any SLC 500 chassis. It works in local, expansion, or distributed I/O racks. The backplane draws only 85 milliamps at 5 Volts DC. Signal delays are 35 ms for ON and 45 ms for OFF. This ensures accurate signal processing.

Application Scenarios

Use the 1746-IM16 for high-voltage AC sensing. It connects to push buttons, limit switches, and proximity sensors. It works well in industrial automation for motor control. It suits packaging, material handling, and process control. The module handles 200-240V AC signals from field devices. It is ideal for factory floors and heavy machinery.

Technical Specifications

Input voltage range: 170-265 VAC, 47-63 Hz. Off-state voltage max: 30V AC. Off-state current max: 2 mA. Input current: 12 mA at 120V AC nominal. Inrush current max: 0.8 A for 0.5 ms. Operating temperature: 0 to +60 °C. Storage temperature: -40 to +85 °C. Humidity: 5 to 95% non-condensing. Backplane current: 85 mA at 5V DC. Power dissipation: 0.35 W per point. Total heat dissipation: 6 W. Isolation: 1500V between input and logic.

Installation & Maintenance Guide

Install the module into any SLC 500 chassis slot. Use a Removable Terminal Block (RTB) for wiring. Connect AC power to the input terminals. Ensure voltage is within 170-265V AC. Check wiring for correct polarity. No special maintenance is needed. Keep the module clean and dry. Replace it if signal errors occur.

Packing List

1 x Allen-Bradley 1746-IM16 AC Input Module
1 x Removable Terminal Block (RTB)
1 x Installation Manual
Shipping via FedEx, UPS, or DHL.
