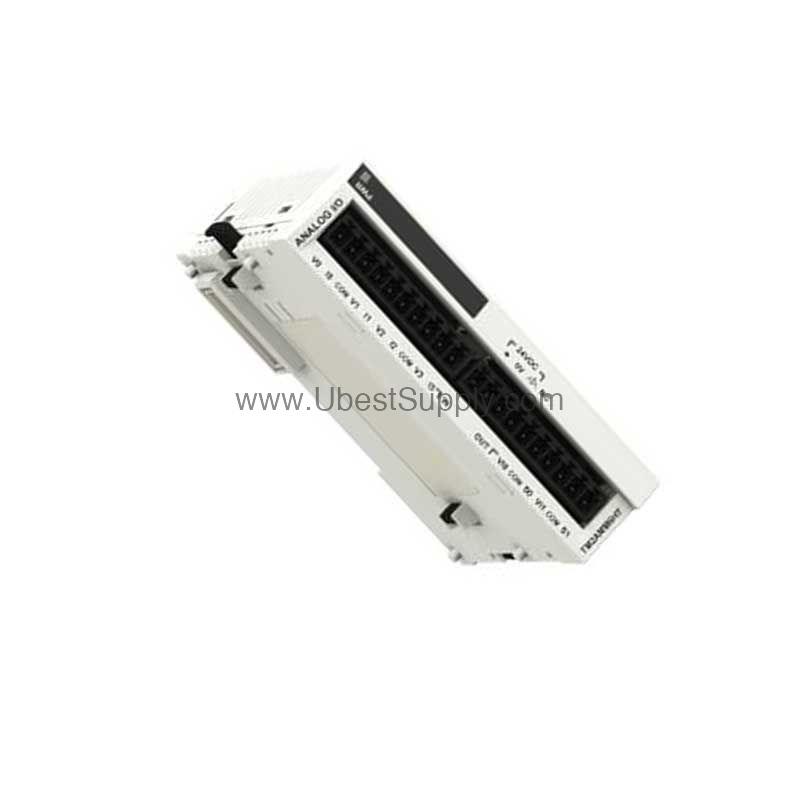

TM2AMM6HT | Schneider Analog I/O Module for Modicon M238

Solving Precision Signal Challenges with the TM2AMM6HT

When a manufacturing line requires accurate monitoring of 4-20 mA or 0-10 V signals from sensors and actuators, the TM2AMM6HT input/output analog module delivers reliable performance. Part of the Modicon M238 logic controller family, this module handles four high-level analog inputs and two analog outputs with 12-bit resolution. Engineers working with Advantys OTB or Twido systems can integrate the TM2AMM6HT to capture current and voltage data without signal degradation.

Key Features & Technical Specs of the TM2AMM6HT

• Four analog inputs support 4-20 mA current and 0-10 V voltage, non-differential.
• Two analog outputs provide 4-20 mA current or 0-10 V voltage signals.
• 12-bit resolution on both inputs and outputs ensures fine granularity.
• LSB value is 2.5 mV for voltage and 4 µA for current.
• Cross talk between channels is limited to ≤ 2 LSB, minimizing interference.
• Input impedance is ≤ 250 MOhm for current and ≥ 1 Ohm for voltage.
• Stabilization time is 20 ms, with conversion time of 20 ms plus one controller cycle.
• Measurement error is ±0.5% of full scale at 25 °C for both 0-10 V and 4-20 mA ranges.
• Supply voltage range is 19.2 to 30 V DC, with rated supply of 24 V DC.
• Current consumption is 60 mA at 5 V DC internal and 80 mA at 24 V DC external.

Real-World Applications for the TM2AMM6HT

In process control environments, the TM2AMM6HT excels at reading level transmitters, pressure sensors, and flow meters that output standard analog signals. For example, a water treatment facility can use the module to monitor tank levels via 4-20 mA loops while simultaneously controlling a valve positioner with the analog output. The module's 12-bit resolution provides the precision needed for closed-loop regulation. Additionally, its 20 ms conversion time supports fast response in packaging or material handling systems where analog feedback is critical.

Installation & Setup Guide

Mount the TM2AMM6HT onto a Modicon M238 base using the provided removable screw terminal block. Use shielded cable for all analog connections to reduce electrical noise. Connect an external 24 V DC supply within the 19.2 to 30 V range to power the module. Wire current inputs in series with the loop, and voltage inputs in parallel with the source. Ensure the load impedance for current outputs is ≤ 300 Ohm resistive, and for voltage outputs is ≥ 2000 Ohm. After wiring, configure the input and output ranges in the controller software to match your sensor and actuator specifications.

Maintenance & Reliability

Regularly inspect the TM2AMM6HT for signs of dust or moisture on the terminal block. Verify that the external power supply stays within the 19.2-30 V DC limits to avoid measurement drift. The module's photocoupler insulation between channel and internal logic provides galvanic isolation, reducing the risk of ground loops. Periodic calibration checks against a known reference can help maintain the ±0.5% full-scale accuracy over time. For long-term reliability, operate the module within its specified temperature and humidity ranges as defined in the official Schneider documentation.

Compatibility & Integration

The TM2AMM6HT is designed for the Modicon M238 logic controller series and also works with Advantys OTB and Twido systems. It connects via a removable screw terminal block and requires an external 24 V DC supply. The module communicates with the controller through the internal bus, and its analog values are accessible in the controller's memory map. No additional communication protocols are needed for basic operation. For advanced integration, refer to the Schneider Electric programming guide for the M238 platform.

Frequently Asked Questions about the TM2AMM6HT

What is the resolution of the TM2AMM6HT analog inputs?

The analog inputs have a resolution of 12 bits.

What supply voltage does the TM2AMM6HT require?

The module requires a 24 V DC external supply, with limits of 19.2 to 30 V DC.

Can the TM2AMM6HT handle both current and voltage signals?

Yes, inputs accept 4-20 mA current or 0-10 V voltage, and outputs provide the same ranges.

What is the conversion time for the TM2AMM6HT?

The conversion time is 20 ms plus one controller cycle time.

Does the TM2AMM6HT provide isolation between channels?

Yes, it uses photocoupler insulation between the channel and internal logic, with dielectric strength of 800 V between I/O channels.

Product Support & Availability

The TM2AMM6HT is in stock and ready to ship from Petro Auto Tech. As a trusted supplier of industrial automation parts, Petro Auto Tech offers competitive pricing and fast delivery. Contact our team for assistance with ordering or to verify compatibility with your existing Modicon M238 system.
