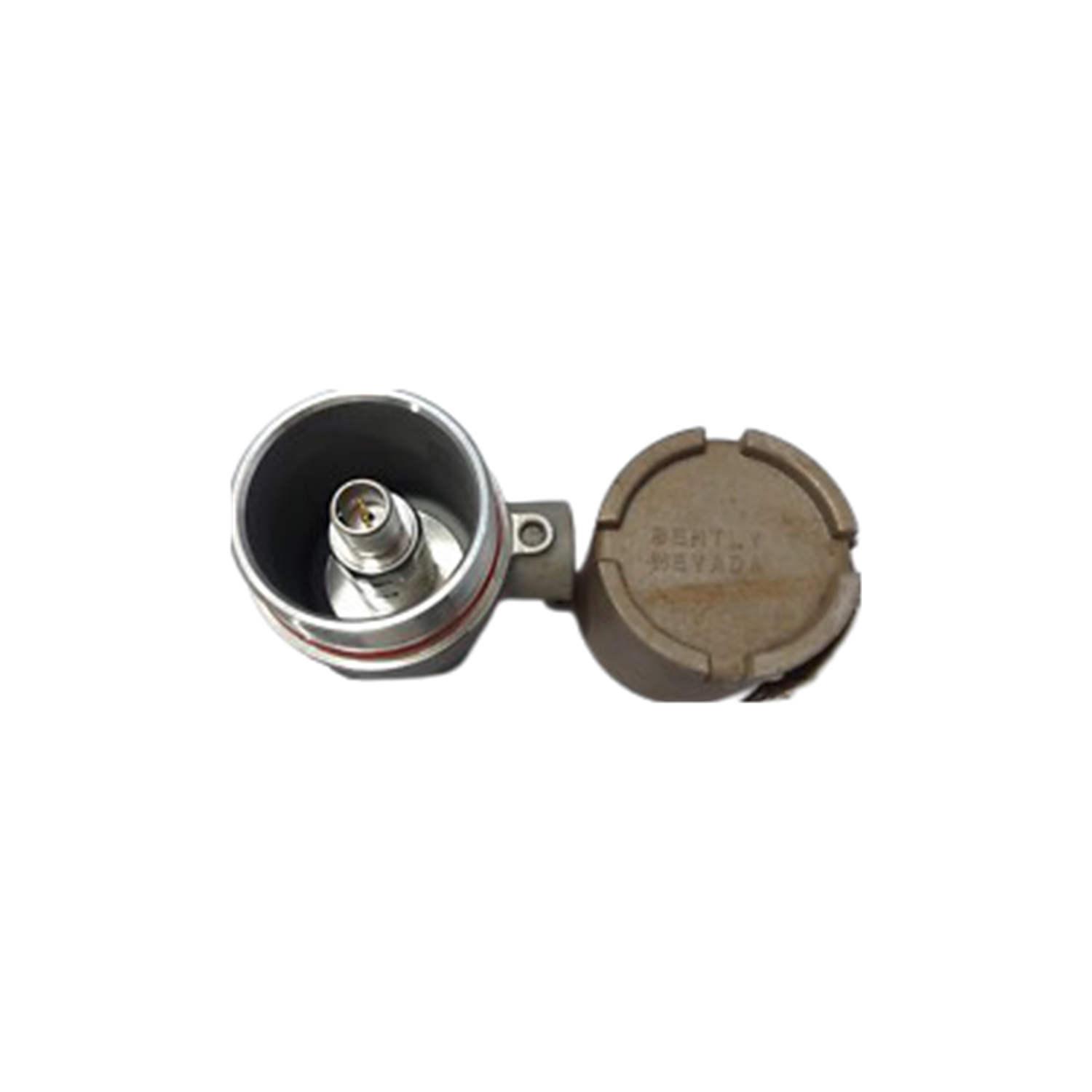

107770-04-03 Bently Nevada Velocity Transducer Housing — Threaded Mount

Solving Hazardous Area Vibration Monitoring with the 107770-04-03

When engineers face the challenge of measuring machinery vibration in CENELEC Zone 1, Group IIC hazardous areas, the 107770-04-03 from Bently Nevada offers a factory-preassembled solution. This velocity transducer housing combines a 330500 Velomitor Sensor with a 21128 Housing, ensuring reliable operation in explosive environments. With its 1/2-14 BSP mounting thread and 1/2-14 NPT explosion-proof cable gland seal, it simplifies installation while meeting strict safety standards.

Key Features & Technical Specs of the 107770-04-03

• Model: 107770 - Velocity Transducer Housing – CENELEC approved
• Mounting Thread Option: 04 = 1/2-14 BSP
• Cable Exit Fitting Option: 03 = 1/2-14 NPT explosion-proof with cable gland seal
• Hazardous Area Rating: CENELEC Zone 1, Group IIC
• Compliance: RoHS Directive 2011/65/EU
• ATEX/IECEx: Zone 0/1 and Zone 2 conditions of safe use specified

One distinctive spec is the factory-preassembled combination of the 330500 Velomitor Sensor and 21128 Housing. This reduces field assembly errors and ensures consistent performance in critical safety applications.

Real-World Applications for the 107770-04-03

In petrochemical plants, the 107770-04-03 monitors pump and compressor vibrations in Zone 1 areas. Similarly, it is ideal for gas turbine vibration monitoring in offshore platforms. Because it is CENELEC approved, engineers can deploy it in Group IIC environments without additional enclosure modifications. As a result, it streamlines predictive maintenance programs in hazardous zones.

Installation Guide for the 107770-04-03

Mount the transducer housing using the 1/2-14 BSP thread option. Ensure the cable exit uses the 1/2-14 NPT explosion-proof fitting with the provided cable gland seal. For Zone 0/1 installations, connect the equipment using cable type A or B as per EN 60079-25, respecting the entity parameters. For Zone 2, verify that supply electrical parameters do not exceed the values in the tables above.

Maintenance & Reliability Tips

Inspect the cable gland seal periodically for signs of wear or corrosion. Verify that the mounting thread remains tight to avoid vibration-induced loosening. Because the housing is factory-sealed, no internal adjustments are needed. Regular inspection per the manufacturer's safety manual ensures long-term reliability in harsh environments.

FAQ about the 107770-04-03

Q: What is the mounting thread option for the 107770-04-03?

A: The mounting thread option is 1/2-14 BSP.

Q: What cable exit fitting does the 107770-04-03 use?

A: It uses a 1/2-14 NPT explosion-proof fitting with a cable gland seal.

Q: Is the 107770-04-03 suitable for Zone 0 hazardous areas?

A: Yes, it is rated for CENELEC Zone 1 and meets ATEX/IECEx Zone 0/1 conditions when connected with proper cable type A or B per EN 60079-25.

Q: What sensor is preinstalled in the 107770-04-03 housing?

A: The housing comes with a 330500 Velomitor Sensor preinstalled at the factory.

Q: Does the 107770-04-03 comply with RoHS?

A: Yes, it complies with RoHS Directive 2011/65/EU.
