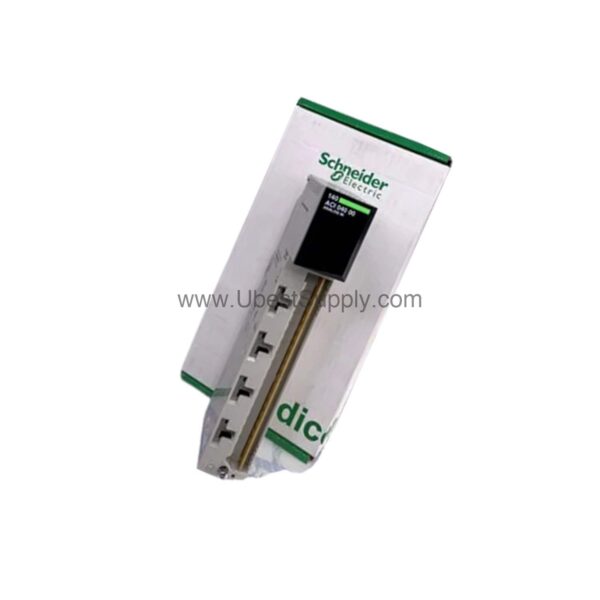

140ACI05100SC | Schneider 32-Point Input Module 12/16-Bit

Introduction to the 140ACI05100SC

When your control system demands precise signal acquisition, the 140ACI05100SC from Schneider Electric provides a reliable solution. This 32-point input module belongs to the Modicon Quantum series, engineered for high-performance automation environments.

The module offers selectable 12-bit or 16-bit resolution, allowing you to match measurement fidelity to your application's needs. With an accuracy range of ±0.1% to ±0.2% of full scale, it ensures dependable data for critical processes.

Key Features & Technical Specifications

• 32-point input capacity for multi-channel monitoring.
• 12-bit or 16-bit resolution for flexible precision.
• Accuracy ±0.1% to ±0.2% of full scale for reliable measurements.
• Channel-to-channel isolation typically 500V DC reduces interference.
• Channel-to-backplane isolation typically 1500V DC enhances safety.
• Operating temperature 0°C to 60°C suits industrial environments.
• Storage temperature -40°C to 85°C for robust durability.
• Relative humidity 5% to 95% non-condensing for moisture resistance.
• DIN rail or panel mount offers flexible installation.
• Weight 2.00 lbs (0.91 kg) for lightweight integration.

Notably, the 1500V DC channel-to-backplane isolation is a standout feature, providing robust protection against electrical noise and ground loops, which is essential in high-interference industrial settings.

Applications & Use Cases

The 140ACI05100SC is well-suited for process control, manufacturing automation, and data acquisition systems. Its high accuracy and isolation make it ideal for monitoring analog signals in harsh electrical environments. For example, in a chemical plant, the module can reliably capture sensor data despite nearby high-voltage equipment, ensuring process stability.

Installation & Setup

Mounting the 140ACI05100SC is straightforward with DIN rail or panel options. Ensure the module is securely attached and that wiring follows Schneider's guidelines to maintain isolation integrity. Always power down the system before installation or removal to prevent damage.

Maintenance & Reliability

Regular inspection of the module's connections and environmental conditions helps maintain performance. Because the module operates within 0°C to 60°C and 5% to 95% humidity, verify that your cabinet stays within these limits. Periodic checks of isolation integrity can prevent unexpected failures, reducing downtime and maintenance costs.

Compatibility & Integration

As part of the Modicon Quantum series, the 140ACI05100SC integrates seamlessly with Quantum backplanes and controllers. It is designed for use in Schneider Electric's Quantum automation platforms, ensuring compatibility with existing systems.

Troubleshooting & Common Issues

If you encounter signal inaccuracies, first verify that the resolution setting matches your application. Check for proper grounding and isolation, as inadequate isolation can lead to noise-induced errors. If problems persist, consult the official Schneider documentation or contact Petro Auto Tech for technical support.

FAQ about 140ACI05100SC

Q: What is the resolution of the 140ACI05100SC?

A: The module supports 12-bit or 16-bit resolution, selectable based on your application needs.

Q: What is the accuracy of the 140ACI05100SC?

A: It offers accuracy ranging from ±0.1% to ±0.2% of full scale, ensuring precise measurements.

Q: What is the operating temperature range?

A: The module operates from 0°C to 60°C, with storage from -40°C to 85°C.

Q: Can the 140ACI05100SC be mounted on a DIN rail?

A: Yes, it supports both DIN rail and panel mounting for flexible installation.

Q: What isolation does the 140ACI05100SC provide?

A: It provides channel-to-channel isolation typically at 500V DC and channel-to-backplane isolation at 1500V DC.

Product Support & Availability

The 140ACI05100SC is available through Petro Auto Tech, an industrial automation parts supplier. In stock and ready to ship, this module can be ordered with confidence. Please verify current lifecycle status and availability with Petro Auto Tech before ordering.
