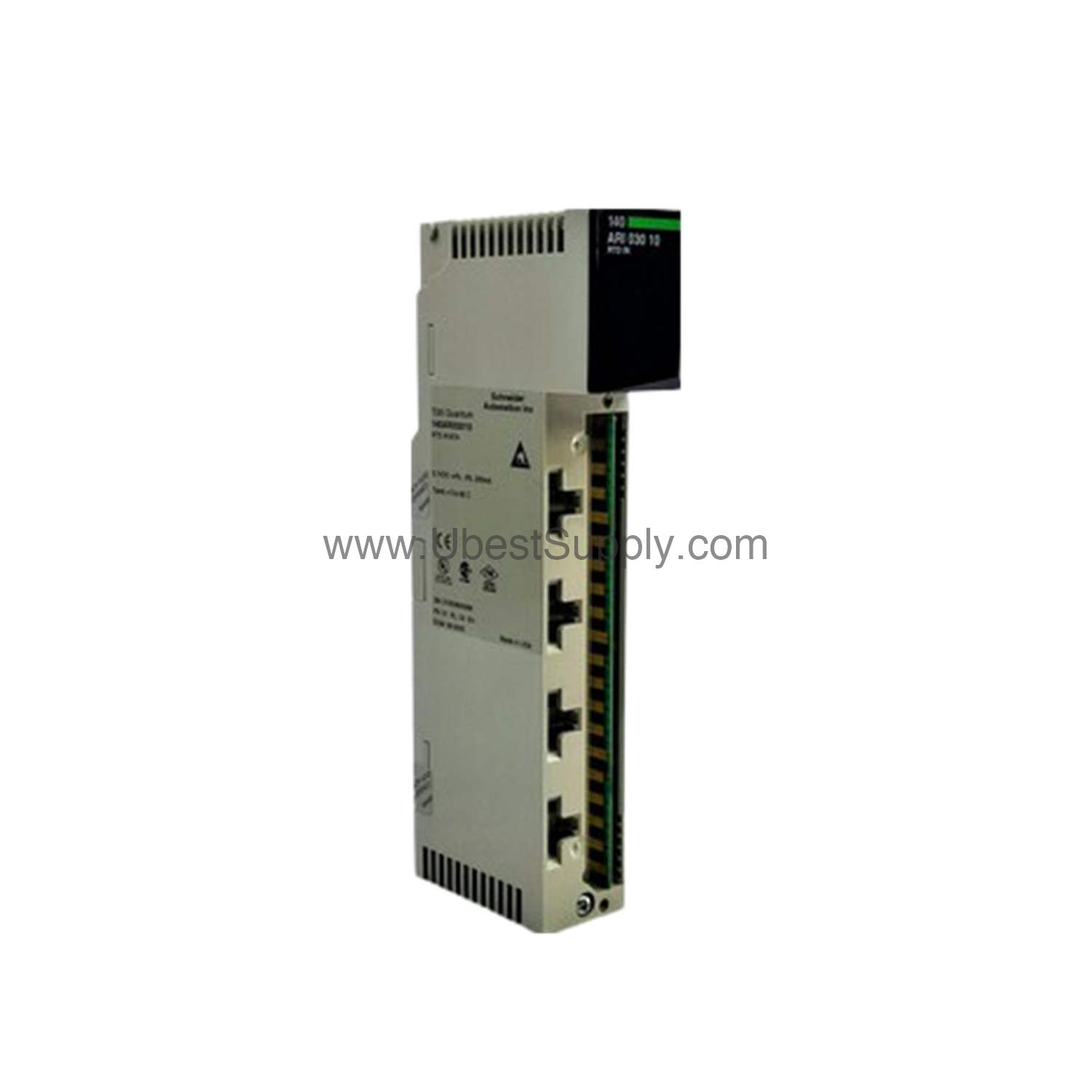

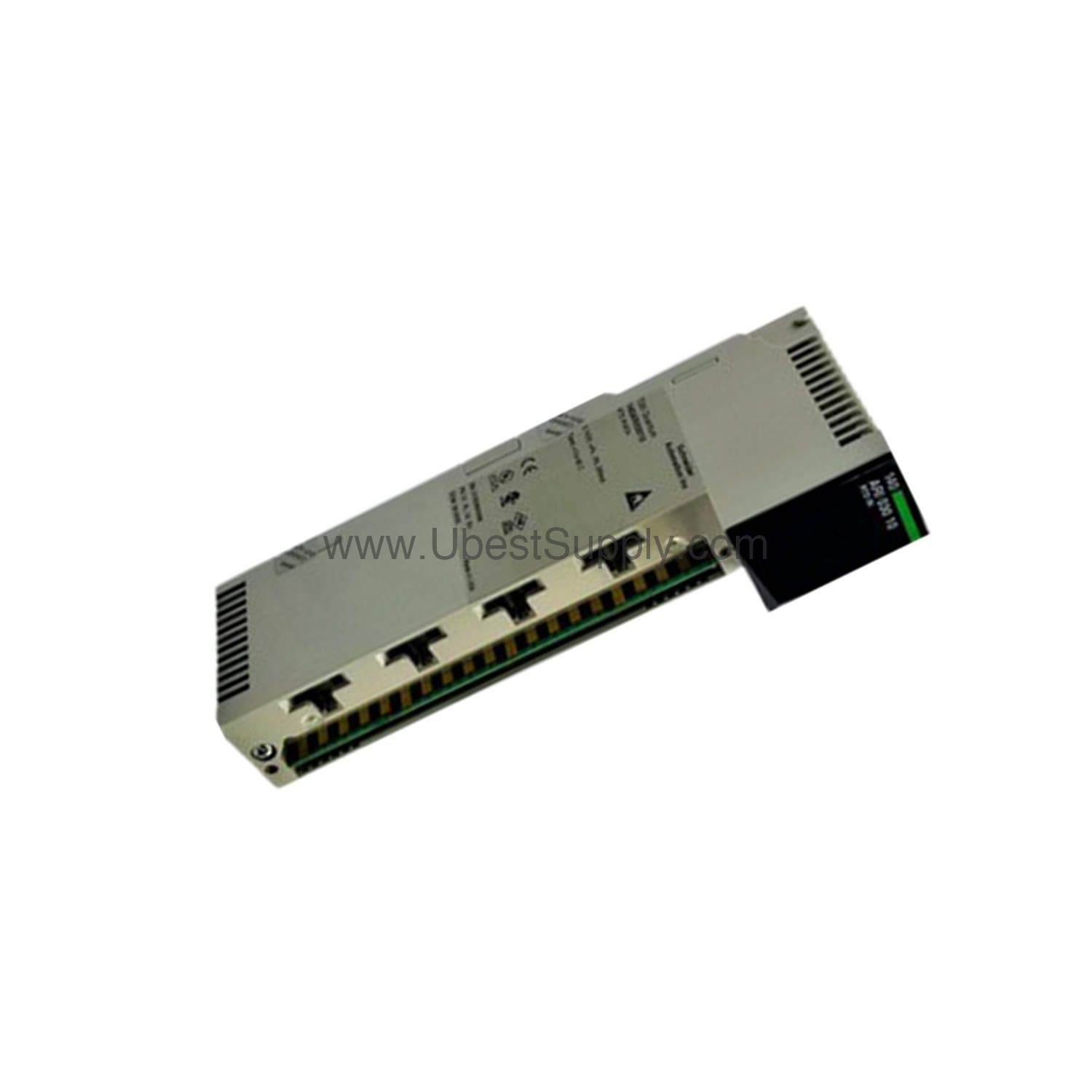

140ARI03010C | Schneider 8-Channel Analog Input Module

Introduction to the 140ARI03010C

When your control system demands accurate analog signal acquisition, the 140ARI03010C from Schneider Electric's Modicon Quantum series is a dependable choice. This analog input module is engineered to handle multiple temperature probes and voltage signals, making it a versatile component for industrial automation.

Part of the Modicon Quantum platform, the 140ARI03010C provides eight differential analog inputs with a 13-bit resolution. This ensures that your process data is captured with high fidelity, supporting precise monitoring and control.

Key Features & Technical Specifications

• 8 differential analog inputs for accurate signal acquisition.
• 13-bit resolution delivers fine measurement detail.
• Input impedance of ≥10 MOhm minimizes loading on sensors.
• Absolute accuracy error of 0.1 °C ensures reliable temperature readings.
• Linearity error of ±0.01% full scale and ±0.5 °C maintains signal integrity.
• Isolation between channels and bus rated at 1780 V AC (47–63 Hz) for 60 s and 2500 V DC for 60 s.
• Channel-to-channel isolation of 300 Vrms AC prevents interference.
• Update time of 1200 ms for 3-wire connections, 640 ms for 2-wire/4-wire.
• Power dissipation of only 1 W enhances energy efficiency.
• Local signaling via LEDs for bus communication, external faults, and channel status.

These specifications make the 140ARI03010C a robust solution for demanding analog input applications.

Applications & Use Cases

The 140ARI03010C is well-suited for temperature monitoring in industrial processes, thanks to its support for Pt100, Pt200, Pt500, Pt1000, and Ni100, Ni200, Ni500, Ni1000 probes. It also handles voltage signals, offering flexibility across different sensor types.

In manufacturing plants, this module can be used for real-time data acquisition from multiple sensors, enabling precise control of heating or cooling systems. Its differential inputs reject common-mode noise, making it reliable in electrically noisy environments.

Additionally, the module's high input impedance and low power consumption make it ideal for remote or battery-powered installations where energy efficiency is critical.

Installation & Setup

Installing the 140ARI03010C is straightforward. The standard module format fits easily into Modicon Quantum racks. Before mounting, ensure the bus current requirement of 200 mA is within your system's capacity.

For wiring, use shielded twisted-pair cables for analog signals to minimize electromagnetic interference. Connect temperature probes according to the 2-wire, 3-wire, or 4-wire configuration, and set the addressing requirement of 9 input words in your control program.

After installation, verify that the input impedance (≥10 MOhm) is not being exceeded by the sensor. Also, ensure that the update time (1200 ms for 3-wire, 640 ms for 2-wire/4-wire) aligns with your process requirements.

Maintenance & Reliability

Routine maintenance of the 140ARI03010C is minimal but important. Periodically inspect the module for dust accumulation or loose connections, and verify that the LEDs indicate proper operation. The conformal coating (Humiseal 1A33) protects against moisture and contaminants, enhancing reliability in harsh environments.

With an operating temperature range of 32…140 °F (0…60 °C) and storage range of -40…185 °F (-40…85 °C), this module is built for demanding industrial settings. Its resistance to electrostatic discharge (4 kV contact, 8 kV on air per IEC 801-2) and electromagnetic fields (9.1 V/m at 80…1000 MHz per IEC 801-3) ensures stable performance.

By following the manufacturer's guidelines, you can maximize the service life of the module and reduce unplanned downtime.

Compatibility & Integration

The 140ARI03010C is designed for the Modicon Quantum automation platform, ensuring seamless integration with Schneider Electric's programmable logic controllers (PLCs). It communicates over the backplane, requiring 200 mA from the bus.

This module is compatible with various temperature probes, including Pt100, Pt200, Pt500, Pt1000, and Ni100, Ni200, Ni500, Ni1000, as well as voltage signals. The 13-bit resolution and differential inputs make it suitable for high-precision applications.

For system expansion, the module's standard format allows easy installation alongside other Quantum I/O modules.

Troubleshooting & Common Issues

If you encounter signal inaccuracies, first check the wiring connections and ensure that the sensor is properly grounded. The module's high input impedance (≥10 MOhm) reduces loading errors, but incorrect wiring can still cause issues.

Broken wire detection is a built-in fault type, indicated by the red channel fault LEDs. If a fault occurs, inspect the corresponding sensor and its connections. The module also provides an external fault LED for system-level alerts.

For persistent issues, consult the Schneider Electric documentation or contact Petro Auto Tech for technical support.

FAQ about 140ARI03010C

Q: What is the resolution of the 140ARI03010C?

A: The 140ARI03010C provides a 13-bit resolution for accurate analog input readings.

Q: How many analog inputs does the 140ARI03010C have?

A: It has 8 differential analog inputs, suitable for various sensor types.

Q: What is the input impedance of the 140ARI03010C?

A: The input impedance is ≥10 MOhm, minimizing sensor loading.

Q: What temperature probes are supported?

A: It supports Pt100, Pt200, Pt500, Pt1000, and Ni100, Ni200, Ni500, Ni1000 probes.

Q: What is the power dissipation of the 140ARI03010C?

A: The module dissipates only 1 W, contributing to energy efficiency.

Product Support & Availability

The 140ARI03010C is available from Petro Auto Tech, an industrial automation parts supplier. In stock and ready to ship, this module can be ordered with confidence. Contact Petro Auto Tech for current lifecycle status and availability before ordering.

Customer Case Scenario

Consider a food processing plant that needs to monitor temperatures in multiple ovens. By installing the 140ARI03010C in their Modicon Quantum PLC, they can connect eight Pt100 probes and achieve precise temperature control, improving product quality and reducing energy waste.
