GE IS200EROCH1A Data Transmission Board for Regulator Rack

Product Overview

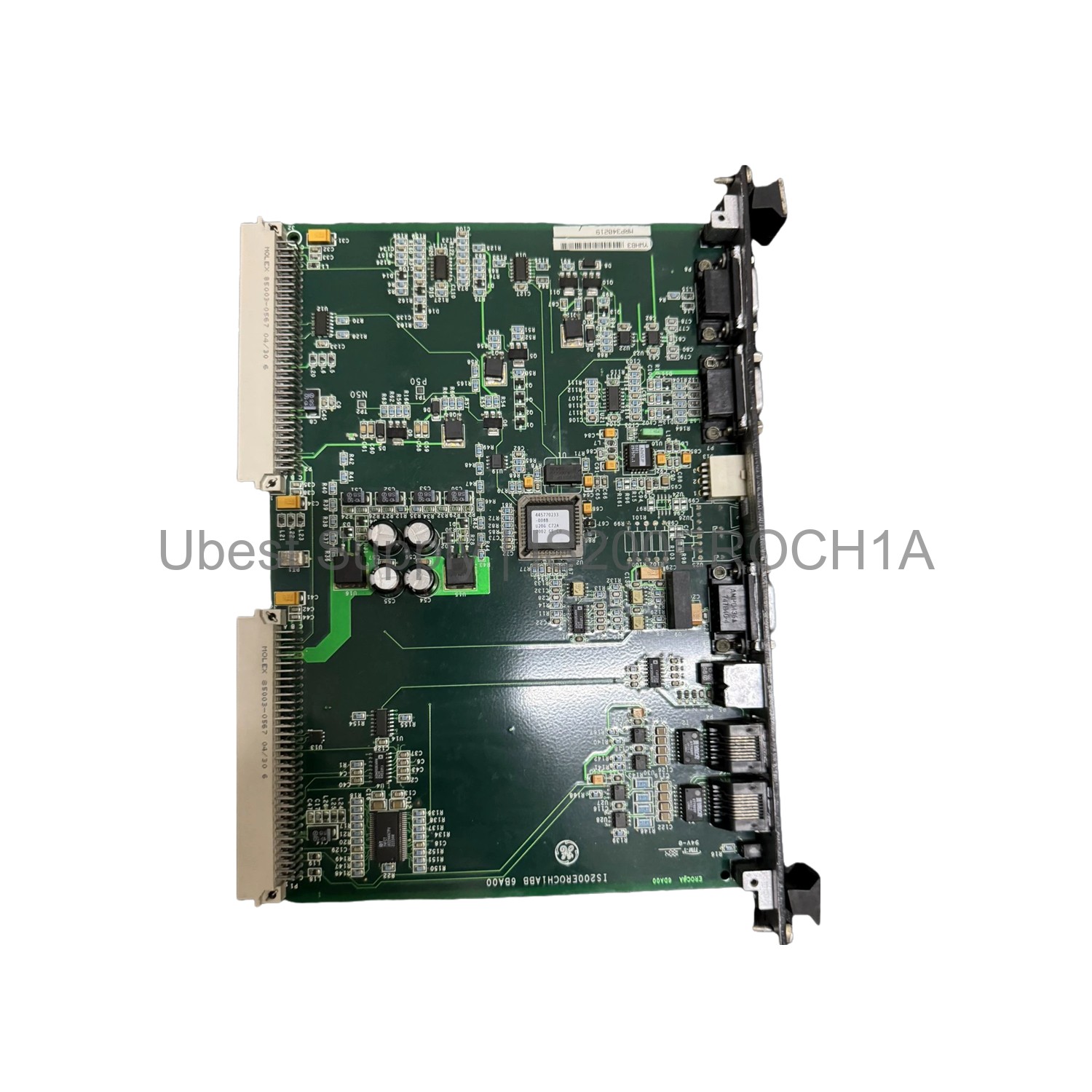

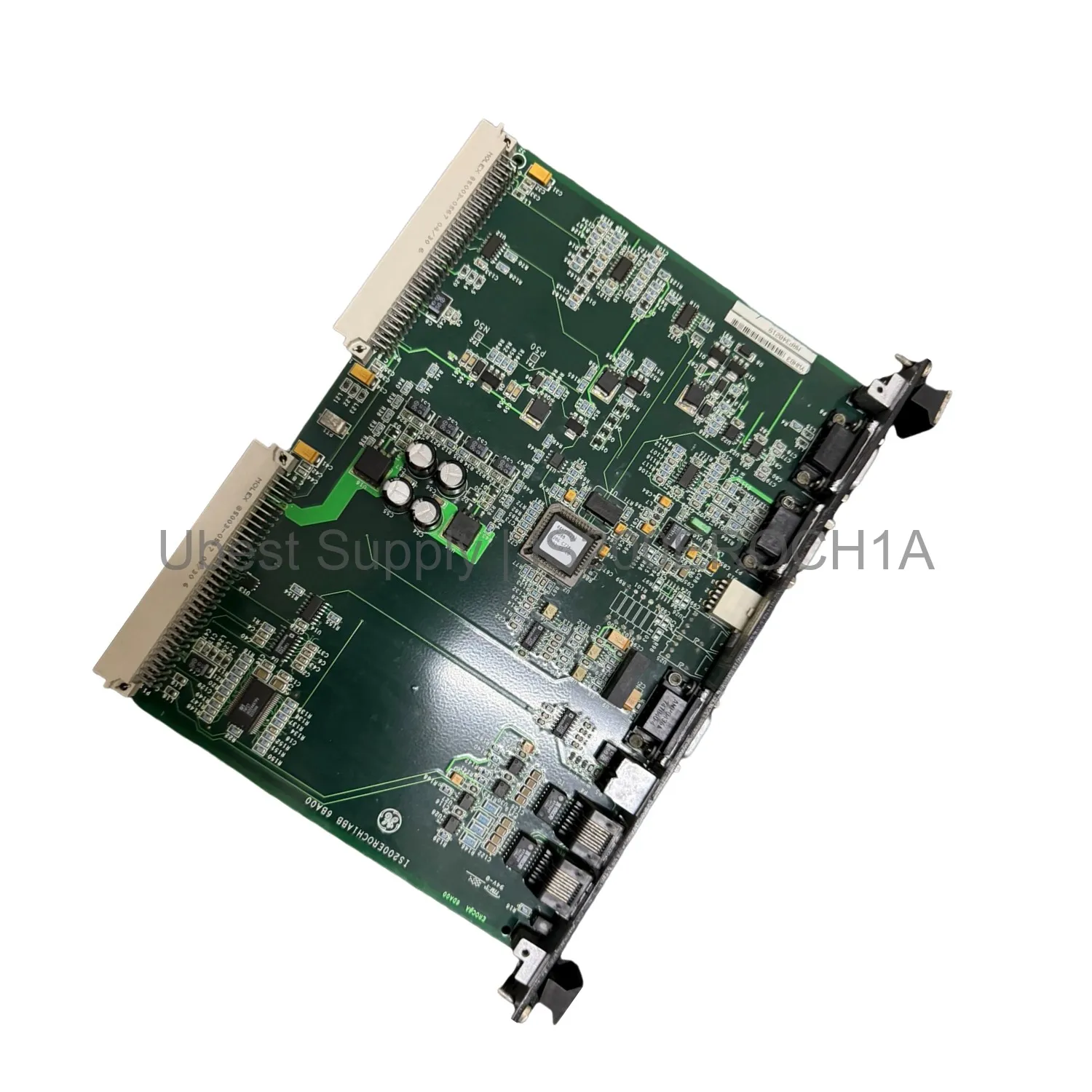

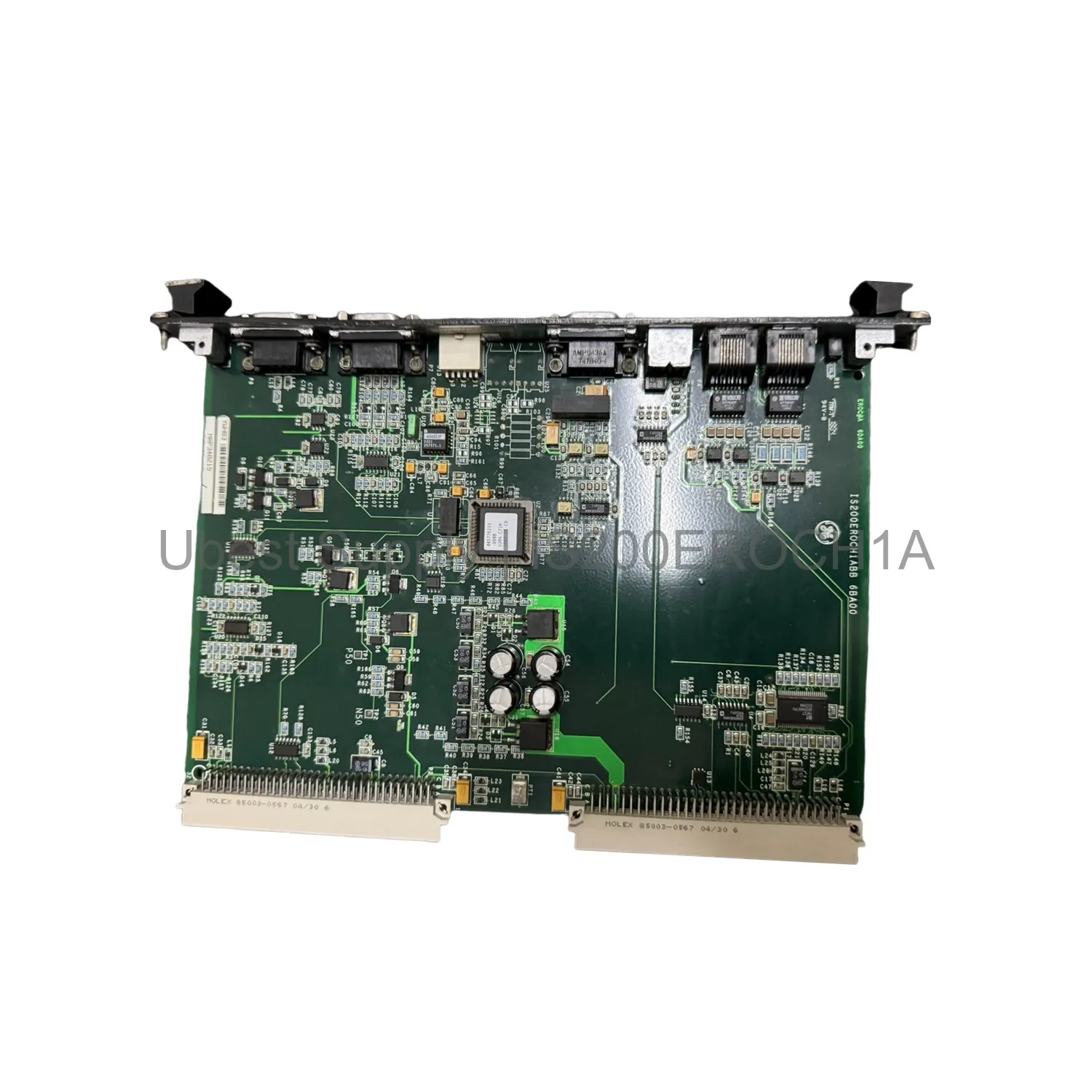

The GE IS200EROCH1A is a data transmission board. It moves data between two locations on a regulator rack. The board has a power LED at the top. This LED is near the GE Energy plate. Below the LED, you find two ISBUS connectors. A tool d-pin connector is also present. Several circuits are integrated into this model. It ensures reliable data flow in the system.

Application Scenarios

This board works in industrial control systems. It fits into GE regulator racks. Use it for data transfer between rack sections. It suits power generation and manufacturing plants. The board handles critical data links. It supports automation processes in harsh environments. Operators use it for system monitoring and control.

Technical Specifications

The board uses ISBUS for communication. It has a dedicated power LED indicator. The faceplate shows the GE Energy branding. A tool d-pin connector aids in setup. The board integrates multiple circuits for data handling. It operates within standard industrial voltage ranges. The design focuses on durability and performance.

Installation & Maintenance Guide

Install the board in a GE regulator rack. Align it with the backplane connectors. Secure it with the provided fasteners. Connect the ISBUS cables to the two ports. Use a tool for the d-pin connector. Check the power LED after installation. It should light up to confirm power. Perform regular visual inspections. Keep the board free from dust and debris. Ensure all connections remain tight.

Packing List

One GE IS200EROCH1A board. No additional accessories are included. The board ships in an anti-static bag. Use FedEx, UPS, or DHL for shipping. Handle the board with care during transport.
