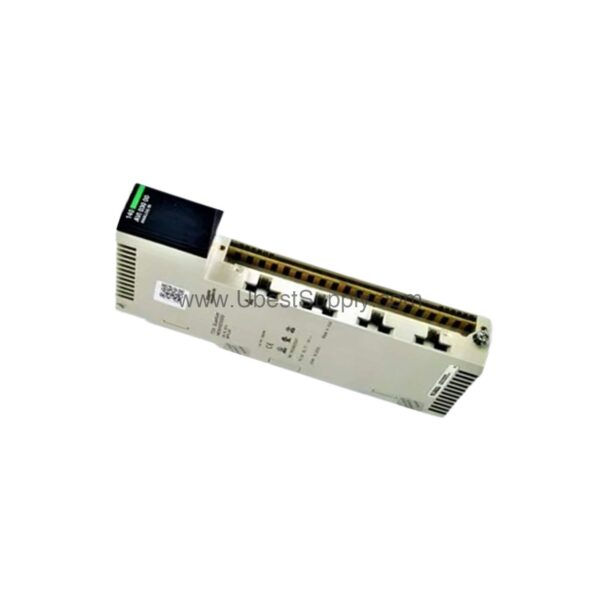

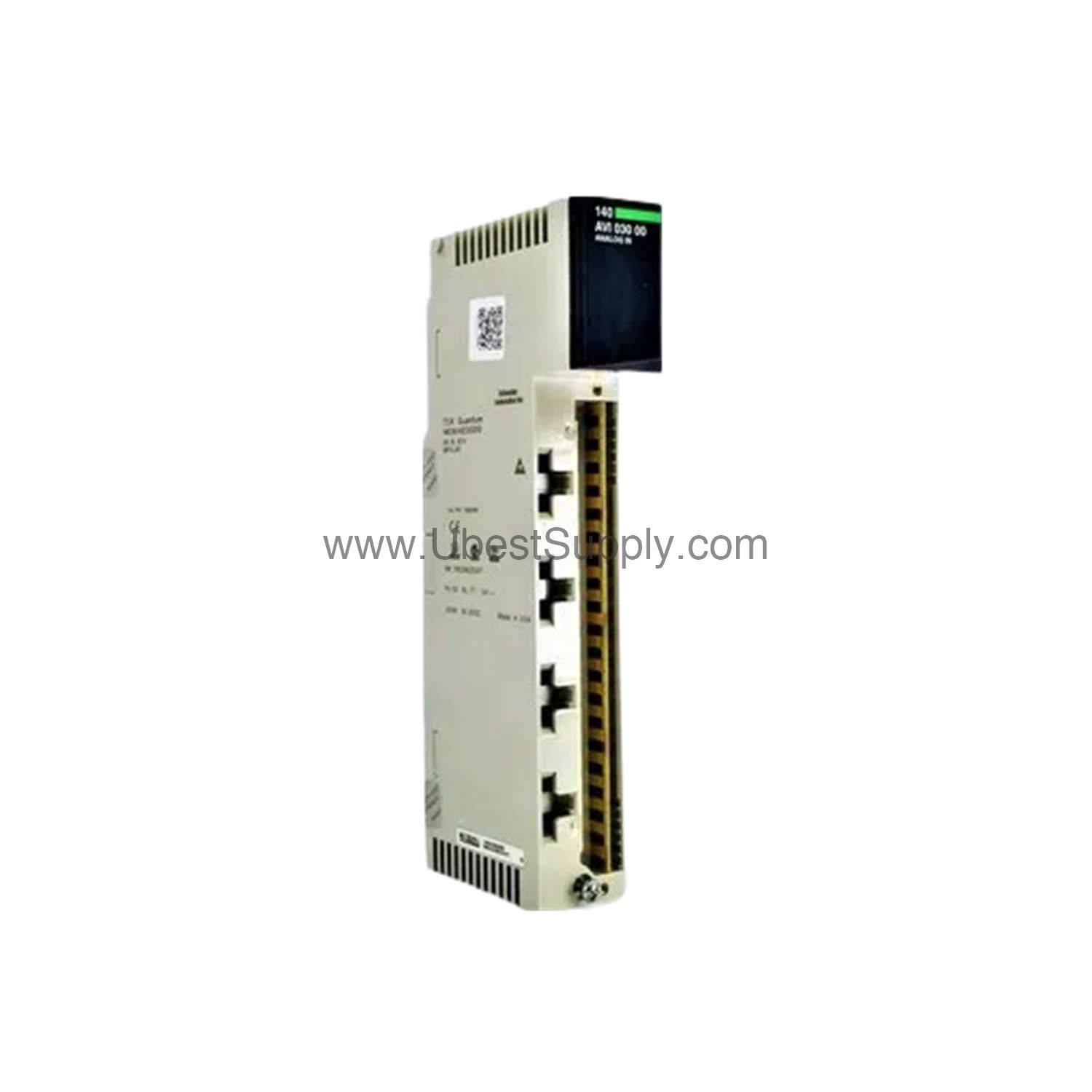

140AVI03000C | Schneider 8-Channel Analog Input Module

Introduction to the 140AVI03000C

When your process demands accurate voltage and current measurement, the 140AVI03000C from Schneider Electric delivers. This analog input module is part of the Modicon Quantum series, engineered for reliable data acquisition in industrial automation. With eight differential inputs, it ensures precise signal capture even in electrically noisy environments.

Key Features & Technical Specs

• Eight differential analog inputs for accurate measurement.
• Input impedance greater than 20 Ohm for voltage signals.
• Absolute maximum input of 50 V DC and 25 mA.
• Isolation between channels and bus rated at 500 Vrms AC for 60 seconds.
• Update time of 10 ms for real-time applications.
• Bus current requirement of 280 mA.
• Power dissipation of 2.2 W.
• Resistance to electrostatic discharge: 4 kV contact and 8 kV on air.
• Resistance to electromagnetic fields: 9.1 V/m (10 V/m) at 80–1000 MHz.

One distinctive spec is the input impedance of >20 Ohm for voltage, which minimizes signal loading and preserves measurement accuracy. This is critical when connecting to high-impedance sensors.

Applications & Use Cases

The 140AVI03000C is ideal for process automation, machine control, and data acquisition systems. For example, in a packaging line, it can monitor multiple temperature or pressure sensors simultaneously. Its differential inputs reject common-mode noise, ensuring stable readings. Moreover, the module's fast update time supports closed-loop control applications.

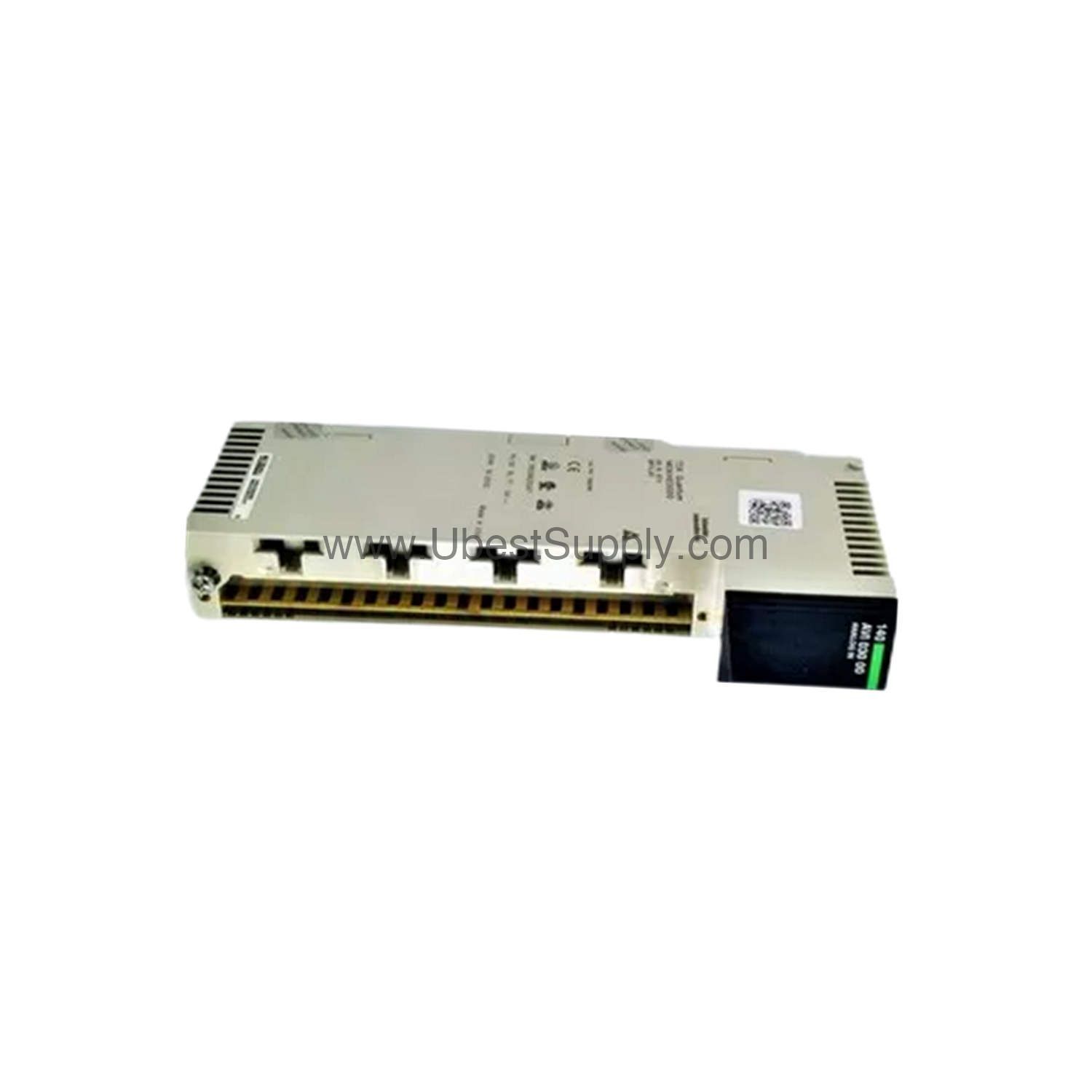

Installation & Setup

Mount the 140AVI03000C in a Modicon Quantum rack. Connect field wiring to the terminal block, ensuring proper polarity for differential inputs. The module requires 9 input words for addressing, so configure your PLC accordingly. Refer to the user manual for detailed wiring diagrams.

Maintenance & Reliability

Regularly inspect the module for dust or moisture buildup. The conformal coating protects against harsh environments. Verify LED status indicators to ensure proper operation. Periodic testing of input channels helps catch issues early.

Compatibility & Integration

The 140AVI03000C integrates seamlessly with Modicon Quantum PLCs. It supports various input types, including bipolar current 20 mA, bipolar voltage ±10 V, ±5 V, and unipolar ranges. This flexibility makes it suitable for diverse industrial sensors.

Troubleshooting & Common Issues

If a channel reads incorrectly, check wiring and input range settings. A red LED indicates a channel fault; use the diagnostic tools to identify the issue. For broken wire detection (4–20 mA), ensure proper termination.

FAQ

Q: What is the update time of the 140AVI03000C?

A: The update time is 10 ms, providing efficient response for real-time applications.

Q: What is the input impedance for voltage signals?

A: The input impedance is greater than 20 Ohm for voltage inputs.

Q: Can the module handle both current and voltage inputs?

A: Yes, it supports bipolar/unipolar current and voltage ranges.

Q: What is the isolation rating between channels and bus?

A: It is rated at 500 Vrms AC for 60 seconds.

Q: How many input words are required for addressing?

A: The module requires 9 input words.

Product Support & Availability

The 140AVI03000C is available from Petro Auto Tech. Contact us for current availability and lifecycle status. We are ready to assist with your automation needs.
