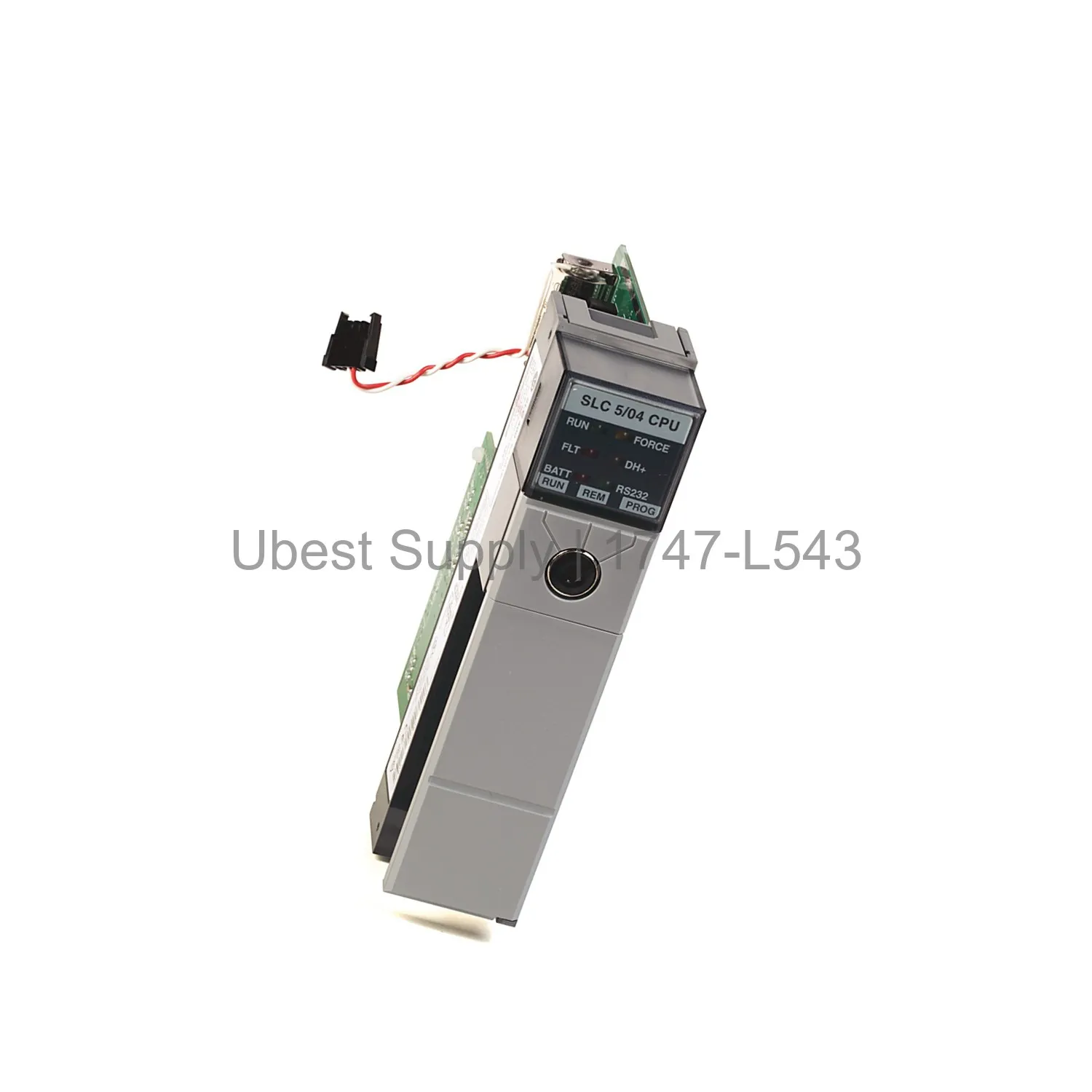

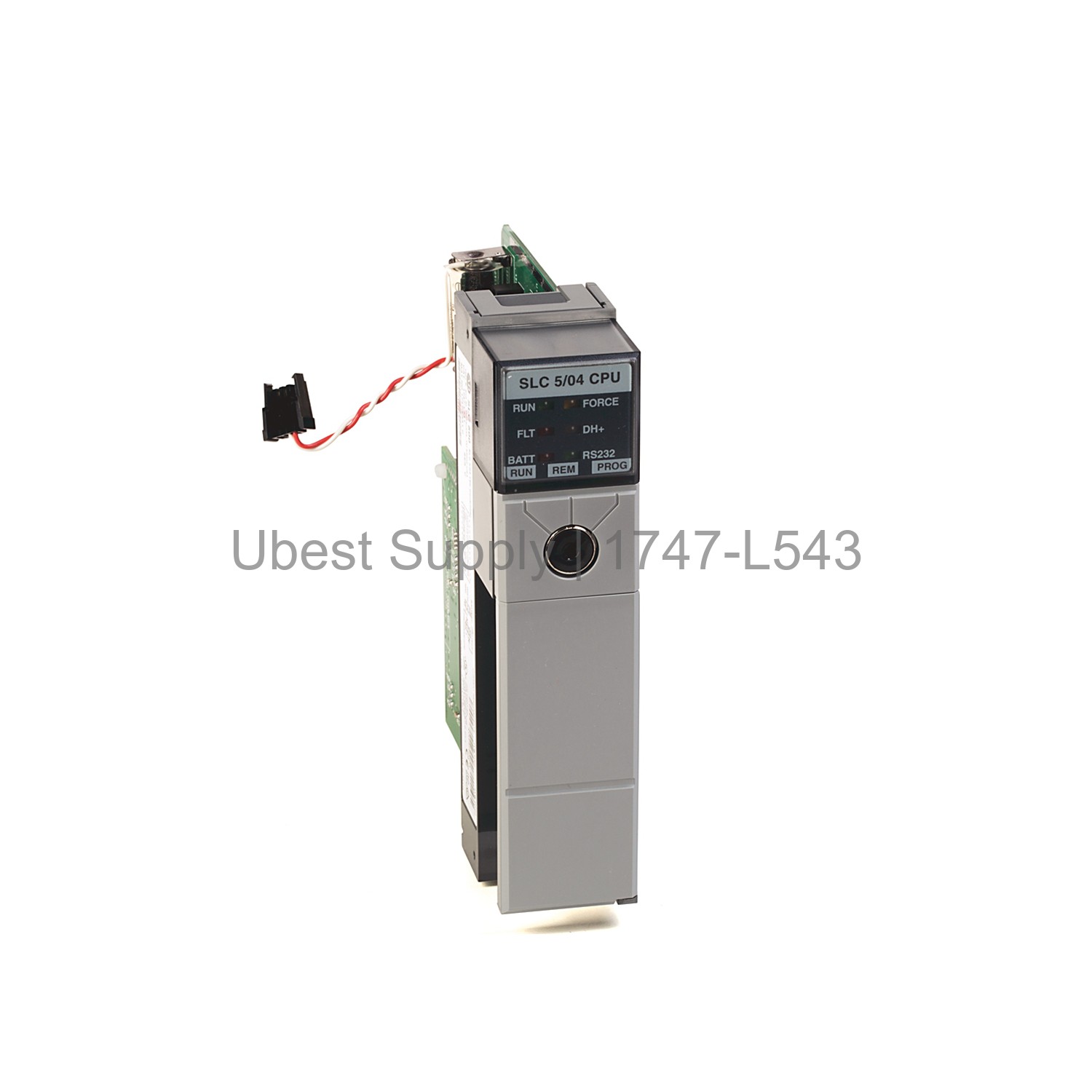

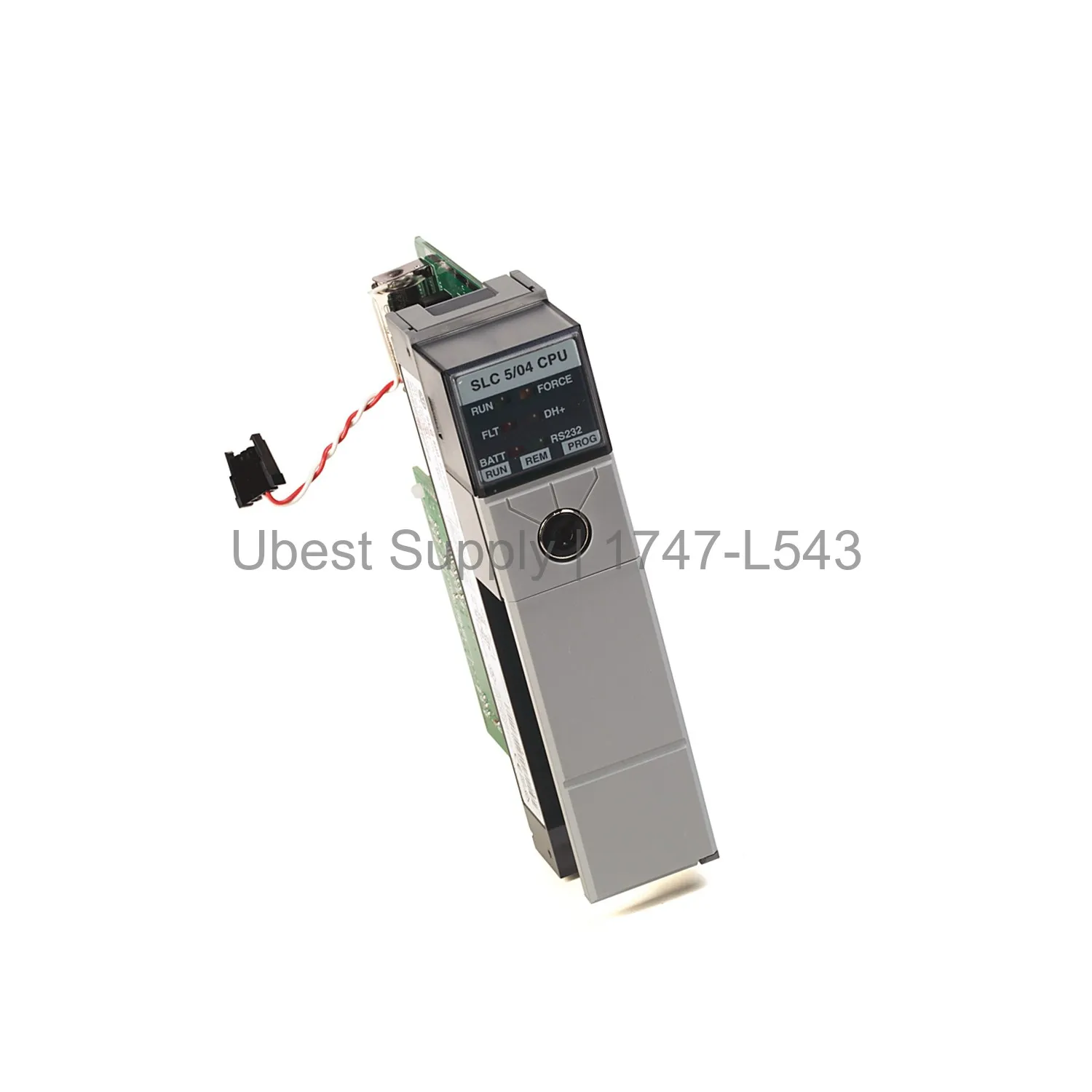

PLC Controller Allen-Bradley 1747-L543 SLC 5/04 Processor

Product Overview

The Allen-Bradley 1747-L543 is a powerful SLC 5/04 processor. It belongs to the SLC 500 family. This module offers 64 KB of battery-backed RAM. It handles 4096 inputs and 4096 outputs. The processor includes a built-in DH+ port and an RS-232 port. It supports up to 30 I/O slots across 3 chassis. This unit is ideal for medium to large applications.

Application Scenarios

This processor works well in distributed I/O systems. It controls signals spread over a large area. You can place SLC racks near field devices. This setup reduces long cable runs. The 1747-L543 excels in process control. It handles PID loops and motion control. It also manages complex control strategies. Common uses include manufacturing and material handling.

Technical Specifications

The processor has a program scan time of 0.9 ms per K. Its I/O scan time is 0.225 milliseconds. Bit execution speed is 0.37 microseconds. It draws 1 A at 5 V DC from the backplane. It also draws 125 mA at 24 V DC. The operating temperature range is 0 to 60 degrees Celsius. Storage temperature is -40 to 85 degrees Celsius. It withstands 30 G of shock. It handles vibration up to 2.5 G.

Installation & Maintenance Guide

Install the module into an SLC 500 chassis. Connect the DH+ and RS-232 cables. Use a 1747-BA battery for memory backup. Replace the battery every year. Keep the unit in a clean, dry area. Ensure proper airflow around the chassis. Do not exceed 95 percent humidity. Use the status LEDs for quick diagnostics.

Packing List

Each order includes one Allen-Bradley 1747-L543 processor. It does not include a battery or cables. We ship via FedEx, UPS, or DHL. Contact us for bulk orders.
