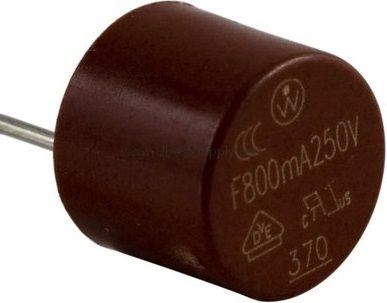

140CFU08000 | Schneider 0.8A Fuse Kit for Modicon Quantum

Introduction: The Evolution of Industrial Protection

Industrial automation has evolved from simple relay panels to sophisticated programmable logic controllers (PLCs). As systems grew more complex, the need for reliable circuit protection became critical. The 140CFU08000 from Schneider Electric represents this evolution, offering a dedicated fuse kit for the Modicon Quantum series. It ensures that your control system remains protected against overcurrent conditions, minimizing downtime and safeguarding valuable equipment.

In today's fast-paced manufacturing environment, every minute of unplanned stoppage costs money. The 140CFU08000 helps prevent such disruptions by providing a robust protective barrier. Its design reflects decades of Schneider's expertise in industrial automation, delivering performance you can trust.

What Is the 140CFU08000?

The 140CFU08000 is a fuse kit designed specifically for Modicon Quantum automation platforms. It carries a rated current of 0.8 A and a voltage rating of 250 V, with a maximum current capacity of 630 mA. This component is essential for protecting sensitive electronic circuits from overcurrent damage.

Weighing just 1 kg, the kit features compact dimensions: 0.2 inches in height, 8.3 inches in length, and 5.5 inches in width. These dimensions allow for easy integration into existing Quantum racks without requiring additional space. The fuse kit operates reliably within an ambient temperature range of 0 to 40 degrees Celsius, making it suitable for most industrial environments.

Key Features and Technical Specifications

• Rated Current: 0.8 A – ensures precise protection for low-power circuits.
• Voltage Rating: 250 V – compatible with standard industrial control voltages.
• Maximum Current Capacity: 630 mA – handles typical load currents without nuisance trips.
• Ambient Temperature Range: 0 to 40 °C – reliable operation in controlled environments.
• Maximum Operating Humidity: 80% non-condensing – maintains performance in humid conditions.
• Maximum Storage Humidity: 80% non-condensing – preserves integrity during storage.
• Maximum Operating Altitude: 1000 m – no derating required at typical plant elevations.

One distinctive aspect of the 140CFU08000 is its dual current ratings. While the rated current is 0.8 A, the maximum current capacity is 630 mA. This distinction allows the fuse to handle brief inrush currents while providing steady-state protection. Engineers appreciate this nuance because it prevents nuisance blowing during startup while still safeguarding against sustained overloads.

Applications and Use Cases

The 140CFU08000 finds application in various industries, including automotive manufacturing, food processing, and material handling. In these sectors, Modicon Quantum PLCs control critical processes, and the fuse kit ensures that power supply circuits remain protected. For example, in a bottling plant, the fuse kit safeguards the control circuit that manages conveyor motors and sensors.

Additionally, the fuse kit is ideal for retrofit projects where older systems are upgraded to modern Quantum platforms. Its compact size and straightforward installation make it a practical choice for maintenance teams. Furthermore, the wide operating temperature range supports deployment in climates ranging from temperate to tropical, provided humidity stays within the specified limits.

Installation and Setup

Installing the 140CFU08000 is straightforward for technicians familiar with Modicon Quantum systems. First, ensure the power is disconnected to avoid electrical hazards. Then, mount the fuse kit securely in the designated slot within the Quantum rack. Verify that all connections are tight and that the fuse is properly seated.

After installation, perform a continuity test to confirm correct wiring. It is also advisable to label the fuse kit with its rating to facilitate future maintenance. Always follow the guidelines in the Schneider Electric user manual for your specific Quantum configuration.

Maintenance and Reliability

Routine maintenance of the 140CFU08000 involves periodic visual inspections for signs of wear, corrosion, or damage. Check that the fuse is not blown and that the contacts remain clean. The fuse kit's design minimizes maintenance needs, but regular checks are recommended to ensure long-term reliability.

Given its robust construction and adherence to environmental limits, the 140CFU08000 offers extended service life. By replacing fuses only when necessary, you reduce operational costs and avoid unnecessary downtime. This proactive approach aligns with best practices in industrial maintenance.

Compatibility and Integration

The 140CFU08000 is purpose-built for the Modicon Quantum series, ensuring seamless integration with Quantum racks and power supplies. It is compatible with various Quantum CPUs and I/O modules, making it a versatile protective component. When upgrading or expanding your system, this fuse kit maintains consistent protection across the entire platform.

For systems that require additional protection, consult Schneider's documentation to determine the appropriate fuse kit for your specific module. The 140CFU08000 is an integral part of a comprehensive protection strategy.

Common Questions About the 140CFU08000

Q: What is the rated current of the 140CFU08000?

A: The rated current is 0.8 A, as specified by Schneider Electric.

Q: Can the 140CFU08000 be used in high-humidity environments?

A: Yes, it can operate in up to 80% non-condensing humidity, making it suitable for many industrial settings.

Q: What is the maximum operating altitude for this fuse kit?

A: It is rated for operation up to 1000 meters above sea level without derating.

Q: Is the 140CFU08000 compatible with all Modicon Quantum systems?

A: It is designed for Modicon Quantum series, but always verify compatibility with your specific rack configuration.

Product Support and Availability

The 140CFU08000 is available through Petro Auto Tech, a trusted industrial automation parts supplier. We maintain a ready inventory to support your maintenance and upgrade needs. Contact Petro Auto Tech for current pricing and availability.
