170AMM09000 | Schneider 24 VDC Analog & Discrete I/O Base Module

Introduction to the Schneider 170AMM09000

When your automation process demands reliable analog and discrete signal handling, the 170AMM09000 from Schneider Electric delivers a compact, integrated solution. As part of the Modicon Momentum platform, this base module combines four analog differential inputs, four discrete inputs, two analog outputs, and two discrete outputs in a single unit. Consequently, it simplifies wiring and reduces panel space while providing the flexibility needed for a wide range of industrial applications.

Engineered for low-voltage control systems, the module operates on a rated supply voltage of 24 Volts DC and consumes between 200 and 350 milliamperes. This efficiency makes it suitable for installations where power budgets are tight. Moreover, with a maximum power dissipation of 6 Watts, the 170AMM09000 helps maintain a cooler control cabinet, which can extend the life of surrounding components.

Key Features and Technical Specifications

The 170AMM09000 offers a robust set of features that support precise measurement and control. Its analog inputs accept multiple ranges, including ±10 V, ±5 V, 1...5 V, ±20 mA, and 4...20 mA, allowing you to interface with a variety of sensors and transmitters. The analog outputs provide ±10 V at 12-bit resolution and 0...20 mA at 12-bit resolution, ensuring accurate signal generation for actuators and drives.

• Analog Inputs: 4 differential inputs with selectable voltage and current ranges.
• Discrete Inputs: 4 inputs rated for 24 VDC, compatible with IEC 1131-2 Type 1 sensors.
• Analog Outputs: 2 outputs supporting ±10 V and 0...20 mA with 12-bit resolution.
• Discrete Outputs: 2 transistor outputs with overload and short-circuit protection.
• Conversion Time: 10 ms for analog input, 1 ms for analog output.
• Isolation Voltage: 500 V between analog I/O and operating voltage, and between operating voltage and I/O from ground.

One distinctive specification is the common mode rejection of >54 dB on the analog input circuit. This high rejection ratio minimizes the effect of electrical noise, which is critical in industrial environments where motors and variable frequency drives can introduce interference. As a result, you can trust the accuracy of your analog measurements even in electrically noisy settings.

Applications and Use Cases

The 170AMM09000 is well-suited for applications that require both analog and discrete signal processing. For example, in a packaging machine, the analog inputs can monitor pressure or temperature sensors, while the discrete inputs handle limit switches and proximity sensors. The analog outputs can then control proportional valves or variable speed drives, and the discrete outputs can actuate solenoids or indicator lights.

Another common use case is in HVAC systems, where the module can read temperature sensors (via 4...20 mA loops) and control damper actuators (via 0...20 mA outputs). The discrete inputs can monitor filter status or fan operation, and the discrete outputs can trigger alarms or start backup fans. Because the module supports multiple analog ranges, it adapts to different sensor types without requiring additional signal conditioners.

Installation and Setup

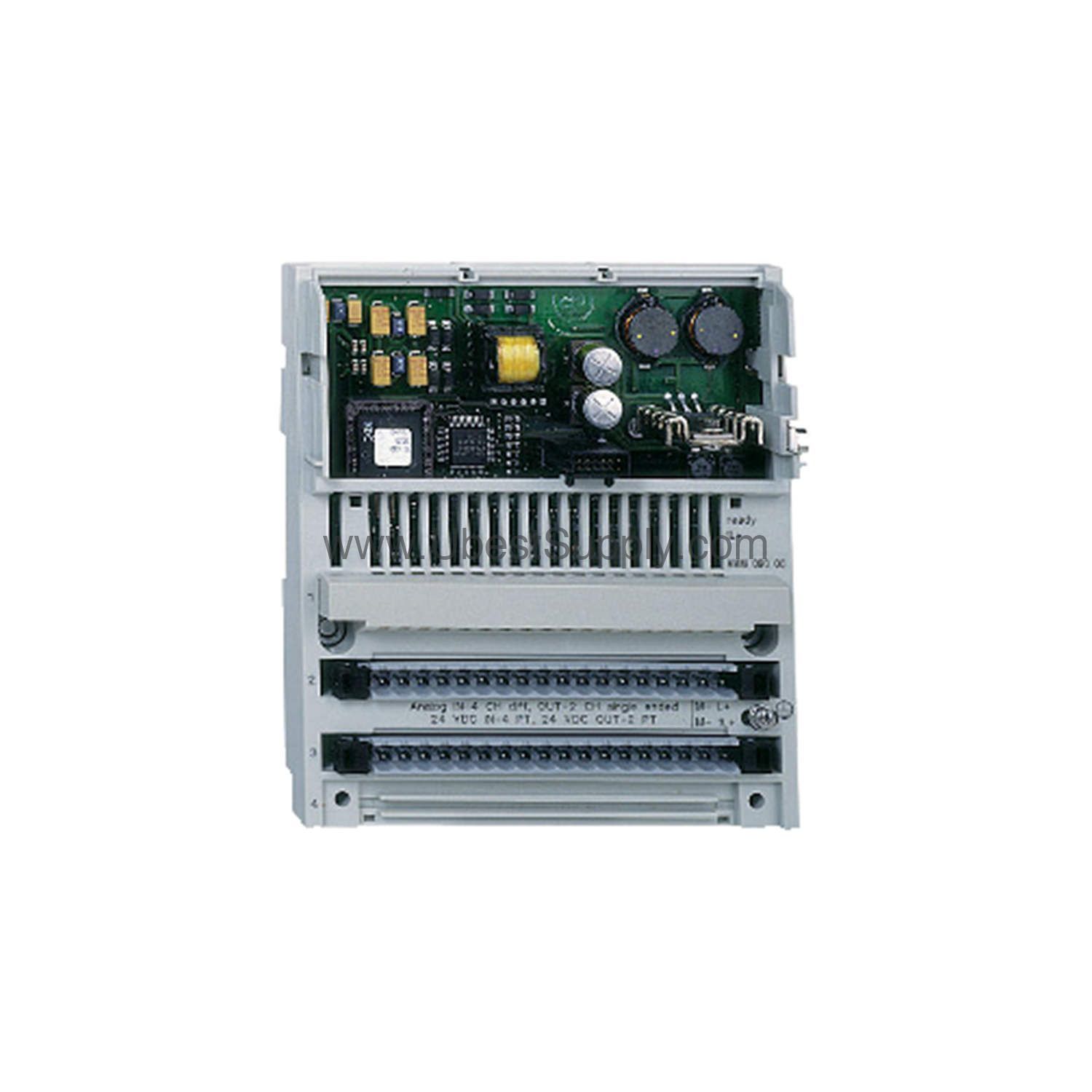

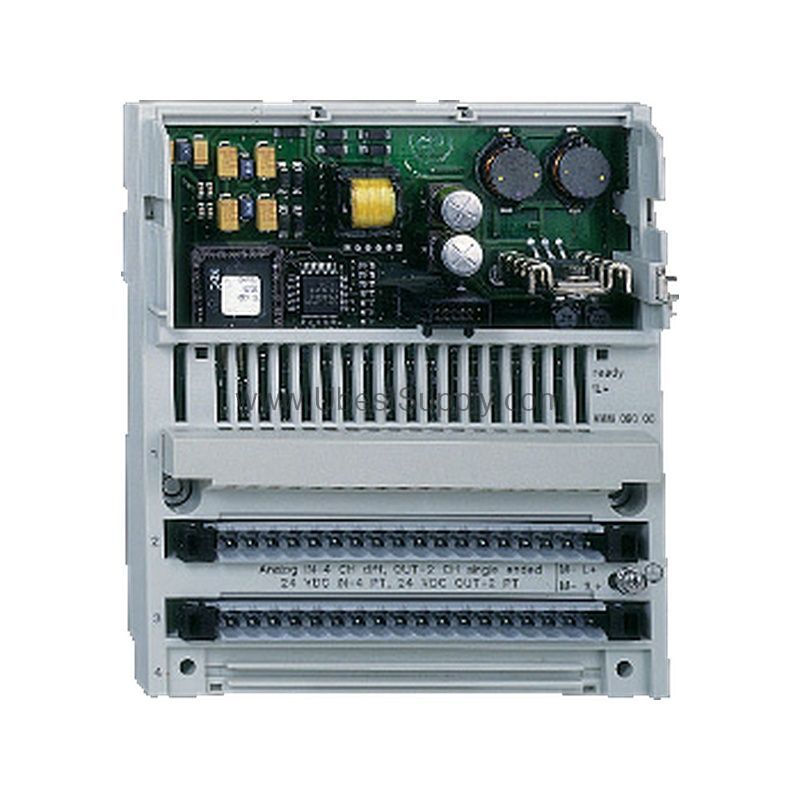

Installing the 170AMM09000 is straightforward, thanks to its two connectors for removable terminal blocks. This design allows you to pre-wire the module before mounting it, reducing installation time and minimizing the risk of wiring errors. The module's dimensions—5.6 inches wide, 4.9 inches high, and 1.9 inches deep—make it easy to fit into standard control panels.

When wiring, ensure that the supply voltage is within the rated 24 VDC range and that the current consumption does not exceed 350 mA. For analog inputs, use shielded twisted-pair cables to maintain signal integrity, especially in noisy environments. Also, verify that the output load for analog outputs is within the specified limits: ≤600 Ohms for 0...20 mA and ≥3 kOhms for ±10 V. Following these guidelines will help you achieve optimal performance.

Maintenance and Reliability

The 170AMM09000 is designed for reliable operation in ambient temperatures from 0 to 60°C (non-condensing). To ensure long-term performance, periodically inspect the module for dust accumulation and ensure that ventilation around the unit is not obstructed. Since the module includes overload and short-circuit protection on the discrete outputs, it can withstand fault conditions without damage, reducing downtime and maintenance costs.

Regularly check the status LEDs on the module—there are 8 LEDs for channel status—to quickly identify any abnormal conditions. If an output fault occurs, the protection circuitry will activate, and you can use the LEDs to pinpoint the affected channel. This proactive approach helps maintain system availability and minimizes unplanned maintenance.

Compatibility and Integration

As part of the Modicon Momentum platform, the 170AMM09000 integrates seamlessly with Schneider Electric's automation ecosystem. It is designed to work with Momentum I/O bases and processors, allowing you to build a scalable control system. The module's analog and discrete channels can be configured to match your specific process requirements, providing flexibility for future changes.

While the provided data does not specify communication protocols, the module's base unit is intended for use with Momentum processors that handle network communication. Therefore, you can integrate the 170AMM09000 into a larger control network, such as Modbus or Ethernet, depending on the processor you choose. For detailed compatibility information, refer to the official Schneider documentation or contact Petro Auto Tech.

Common Questions and Troubleshooting

Q: What is the maximum current consumption of the 170AMM09000?

A: The module consumes between 200 and 350 mA at 24 VDC, depending on the load.

Q: Can the analog inputs accept both voltage and current signals?

A: Yes, the analog inputs support ±10 V, ±5 V, 1...5 V, ±20 mA, and 4...20 mA ranges.

Q: What is the conversion time for the analog input circuit?

A: The conversion time is 10 milliseconds for the analog input circuit and 1 millisecond for the analog output.

Q: Are the discrete outputs protected against short circuits?

A: Yes, the discrete outputs include overload and short-circuit protection.

Q: What is the isolation voltage rating of the module?

A: The isolation voltage is 500 V between analog I/O and operating voltage, and between operating voltage and I/O from ground.

Availability and Support

The 170AMM09000 is available from Petro Auto Tech, an industrial automation parts supplier. We stock this module and can provide fast shipping to minimize downtime. If you have questions about the module's specifications or compatibility, our team is ready to assist you. Contact Petro Auto Tech today for pricing and availability.

Please verify the current lifecycle status and availability with Petro Auto Tech before ordering, as product availability may change.
