Digital Combination I/O Module Allen-Bradley 1794-IB10XOB6 Flex I/O

Product Overview

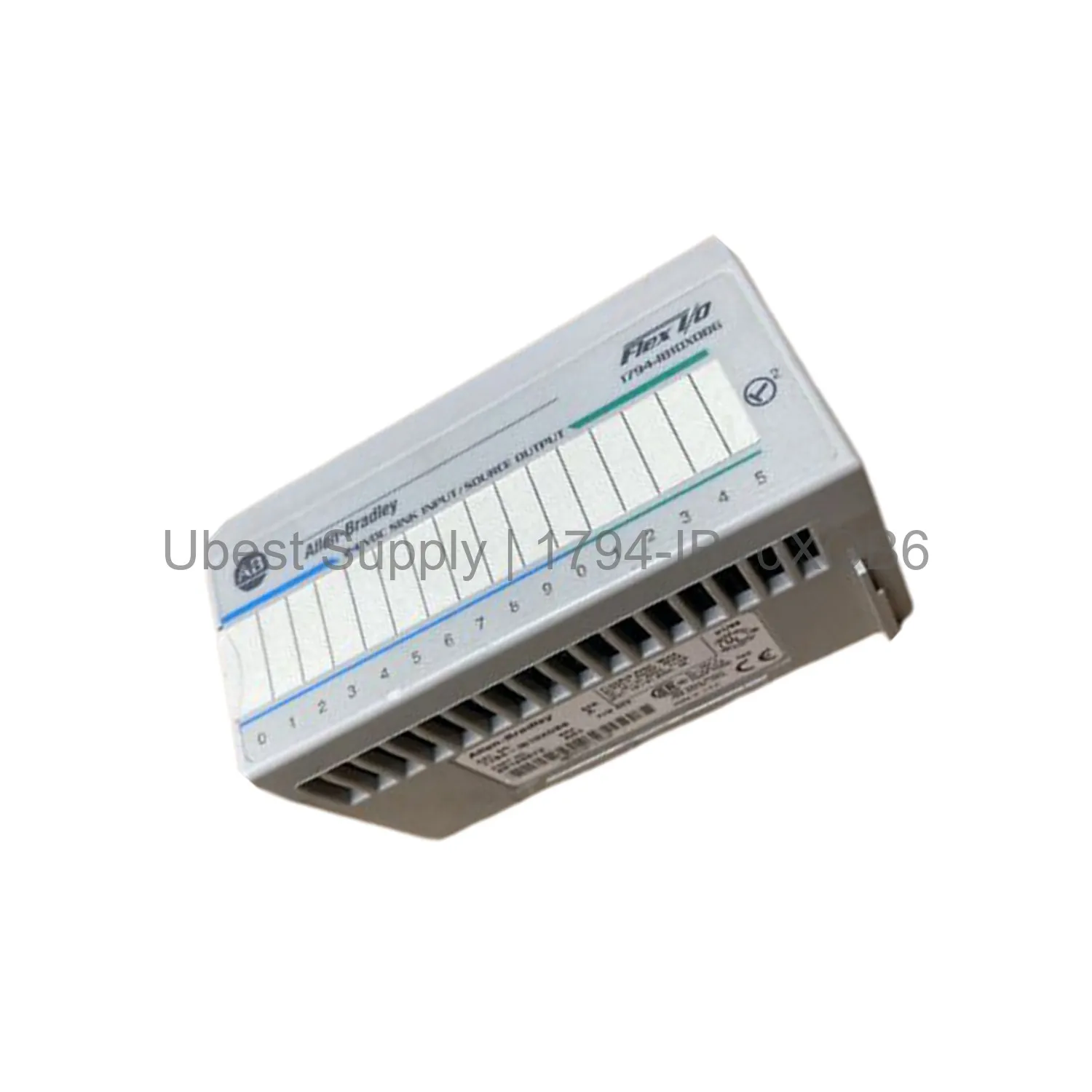

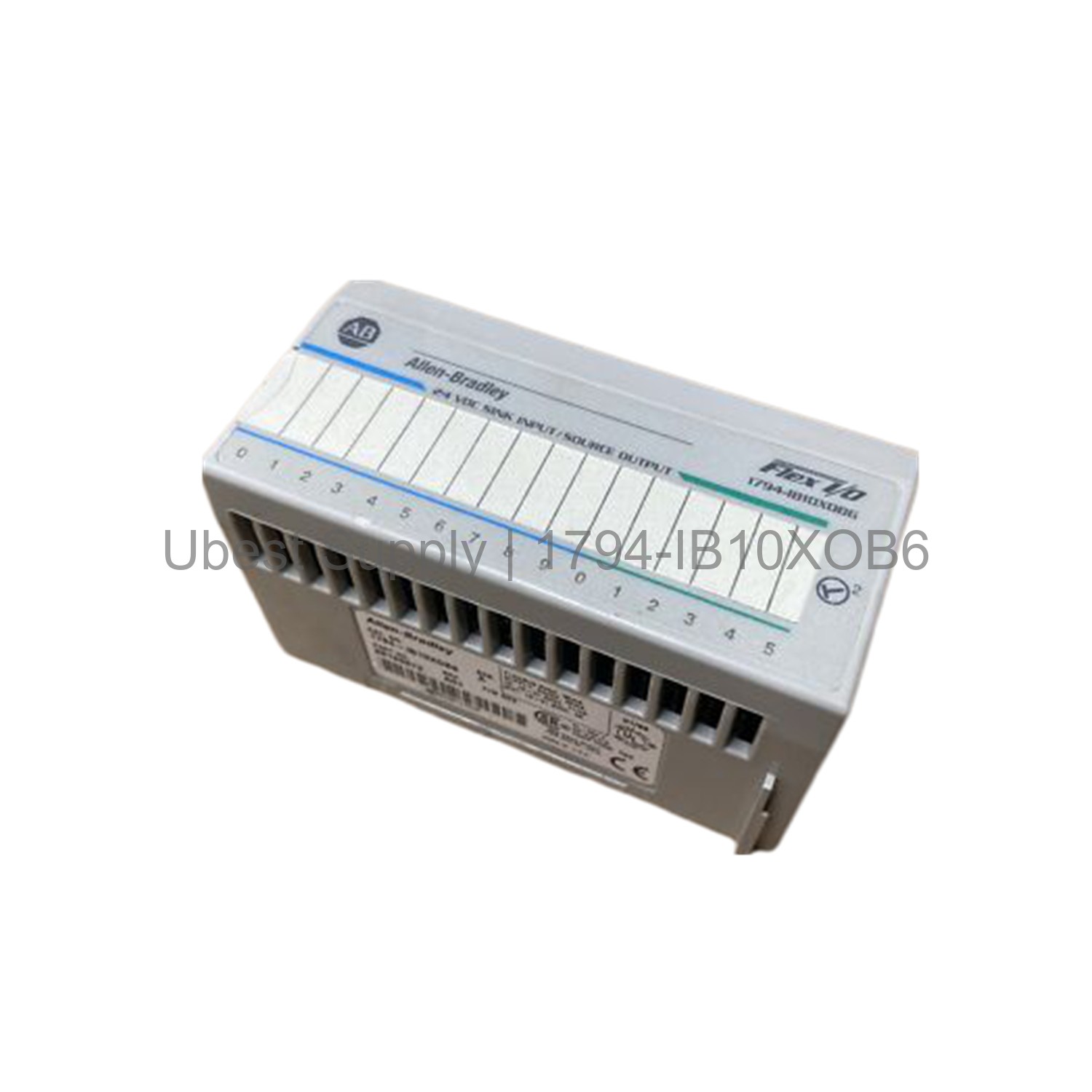

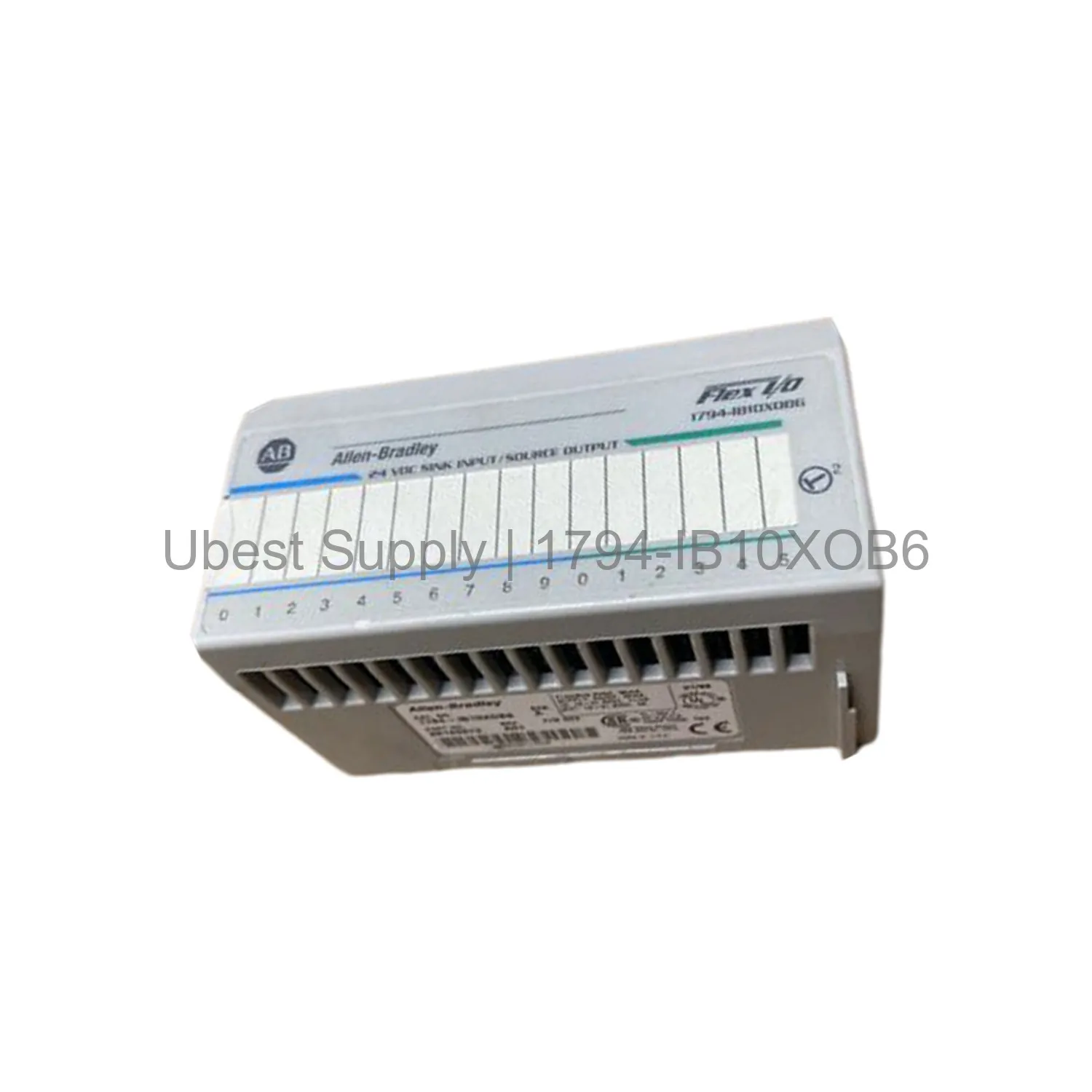

The Allen-Bradley 1794-IB10XOB6 is a digital combination I/O module. It belongs to the Flex I/O 1794 series. This module manages both inputs and outputs. It has 10 current sink inputs. It also has 6 current source outputs. The nominal input voltage is 24 VDC. The nominal output voltage is also 24 VDC. This module provides a versatile solution for industrial control.

Application Scenarios

This I/O module works in many factory environments. It controls sensors and actuators. It handles discrete signals from push buttons and limit switches. It also drives small relays and indicators. The module suits machine control and process automation. It is ideal for distributed I/O systems.

Technical Specifications

The 1794-IB10XOB6 has 10 inputs and 6 outputs. Input type is current sink. Output type is current source. Nominal on-state input current is 8 mA at 24 VDC. Input impedance is 4.8 kilohms. Output current is 2 A per channel. Flexbus current draw is 50 mA. Operating temperature range is -20°C to 55°C. The module has no IP rating. It is open to the environment.

Installation & Maintenance Guide

Mount the module on a DIN rail. Use a compatible terminal base like the 1794-TB3. Connect the FlexBus cable to the adapter. Wire input devices to the top terminals. Wire output loads to the appropriate terminals. Do not exceed voltage or current ratings. Keep the module away from moisture and dust. Check connections regularly.

Packing List

One Allen-Bradley 1794-IB10XOB6 module. One product manual. No terminal base is included. Use a separate terminal base for installation.
