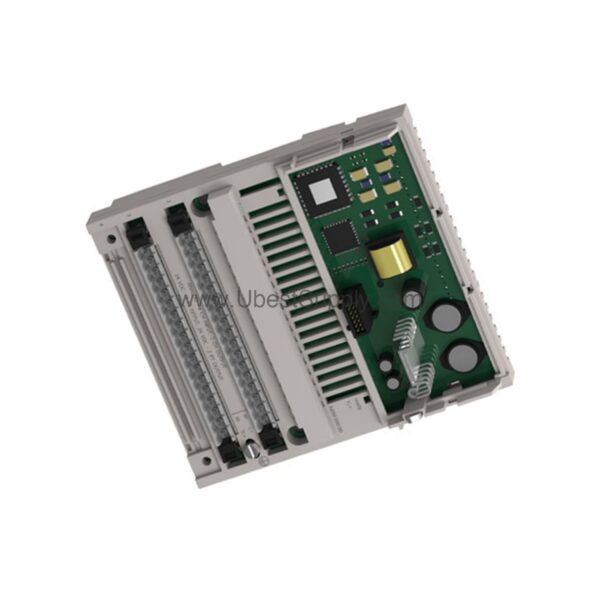

170ANR12091 | Schneider 8DI/8DO/6AI/4AO I/O Base Unit

Product Overview

When your control system demands both digital and analog signal handling in a single module, the 170ANR12091 from Schneider Electric delivers a practical solution. This I/O base unit, part of the Modicon Momentum series, integrates 8 discrete inputs, 8 discrete outputs, 6 analog inputs, and 4 analog outputs. Consequently, it reduces the need for multiple separate modules, simplifying panel layout and wiring.

Designed for clean indoor environments, the 170ANR12091 operates reliably within a temperature range of 0 to 60 degrees Celsius. Moreover, it can be stored safely between -40 and 85 degrees Celsius, which makes it resilient during transport or off-season storage. With a maximum operating humidity of 95% relative humidity (non-condensing), this unit suits many industrial settings without requiring special enclosures.

Key Features & Technical Specifications

• Discrete inputs: 8 inputs for digital signals.
• Discrete outputs: 8 outputs for digital control.
• Analog inputs: 6 inputs for precise measurement.
• Analog outputs: 4 outputs for analog command signals.
• Operating temperature: 0 to 60 degrees Celsius.
• Storage temperature: -40 to 85 degrees Celsius.
• Maximum operating humidity: 95% relative humidity (non-condensing).
• Maximum storage humidity: 95% relative humidity (non-condensing).
• Maximum operating altitude: 5000 meters above sea level.
• Maximum storage altitude: 5000 meters above sea level.

One distinctive aspect of the 170ANR12091 is its combination of 6 analog inputs and 4 analog outputs alongside discrete channels. This mixed capability allows you to handle both on/off control and continuous process variables, such as temperature or pressure, without extra hardware. As a result, you can streamline your automation architecture and reduce spare parts inventory.

Applications & Use Cases

In manufacturing lines, the 170ANR12091 can manage conveyor interlocks using its discrete inputs and outputs, while simultaneously monitoring analog sensors for speed or position. For example, a packaging machine might use the discrete channels for limit switches and the analog inputs for tension sensors. Furthermore, the analog outputs can drive variable speed drives or proportional valves, giving you precise control over motion and flow.

Because the module operates at altitudes up to 5000 meters, it is also suitable for facilities located in high-altitude regions, such as mining operations or mountainous industrial plants. Additionally, its non-condensing humidity rating makes it dependable in areas with moderate moisture, as long as the environment remains clean and free of corrosive chemicals.

Installation & Setup

Mounting the 170ANR12091 is straightforward, as it is designed as a base unit for the Modicon Momentum platform. First, ensure the backplane or DIN rail is properly grounded and that the ambient temperature stays within the 0 to 60 degrees Celsius operating range. Next, connect the discrete and analog wiring according to your control schematic, taking care to respect polarity and signal types.

For analog inputs, use shielded cables to minimize electrical noise, especially in industrial environments with motors or drives. Additionally, verify that the power supply meets the module's requirements, as specified in the official Schneider Electric documentation. After installation, perform a continuity check on all connections before powering up the system.

Maintenance & Reliability

Regular inspection of the 170ANR12091 helps ensure long-term reliability. Check the module for dust accumulation, loose terminal connections, and signs of overheating. Because the unit is rated for clean indoor environments, keep it away from corrosive chemicals and excessive moisture. If the module is exposed to high humidity, verify that condensation does not form on the electronics.

From a maintenance engineer's perspective, the mixed I/O configuration reduces the number of spare modules needed on site. Consequently, you can stock fewer parts while still covering both digital and analog failures. Additionally, the wide storage temperature range allows you to keep a backup unit in a warehouse without special climate control, ensuring quick replacement when needed.

Compatibility & Integration

The 170ANR12091 is part of the Modicon Momentum series, which is known for its flexibility in distributed control systems. It can be integrated with Schneider Electric PLCs and other Momentum I/O modules, allowing you to build a scalable automation solution. However, for specific compatibility with your existing controller or network, always consult the official Schneider Electric documentation or contact Petro Auto Tech for guidance.

Since the provided data does not list communication protocols, you should verify the exact bus adapter or coupler required for your network. The base unit itself handles I/O, but a separate adapter may be needed for EtherNet/IP, Modbus, or other fieldbus connections. Therefore, review your system architecture to ensure seamless integration.

Troubleshooting & Common Issues

If the 170ANR12091 does not respond, first check the power supply and the status LEDs on the module. A lack of indication may point to a wiring issue or a blown fuse in the power path. For analog inputs, verify that the sensor wiring is correct and that the signal is within the module's input range. Similarly, for discrete outputs, confirm that the load is not short-circuited and that the output transistor is not damaged.

Another common issue is intermittent operation due to loose connectors. Therefore, periodically tighten all terminal screws and ensure that the module is firmly seated on the backplane. If problems persist, consult the Schneider Electric user manual or contact Petro Auto Tech for technical support.

FAQ about 170ANR12091

Q: What is the operating temperature range of the 170ANR12091?

A: The 170ANR12091 operates from 0 to 60 degrees Celsius, making it suitable for most industrial indoor environments.

Q: How many analog inputs and outputs does the 170ANR12091 have?

A: It has 6 analog inputs and 4 analog outputs, allowing precise monitoring and control of analog signals.

Q: Can the 170ANR12091 be used in high-humidity areas?

A: Yes, it can operate at up to 95% relative humidity (non-condensing), but it must be kept in a clean indoor environment without corrosive chemicals.

Q: What is the maximum altitude for operating the 170ANR12091?

A: The module can operate at altitudes up to 5000 meters above sea level, making it suitable for high-altitude installations.

Q: Does the 170ANR12091 support both digital and analog signals?

A: Yes, it provides 8 discrete inputs, 8 discrete outputs, 6 analog inputs, and 4 analog outputs in one base unit.

Product Support & Availability

The 170ANR12091 is available through Petro Auto Tech, an industrial automation parts supplier. We keep this model in stock and ready to ship, ensuring minimal downtime for your operations. For assistance with configuration or compatibility, contact our technical team.
