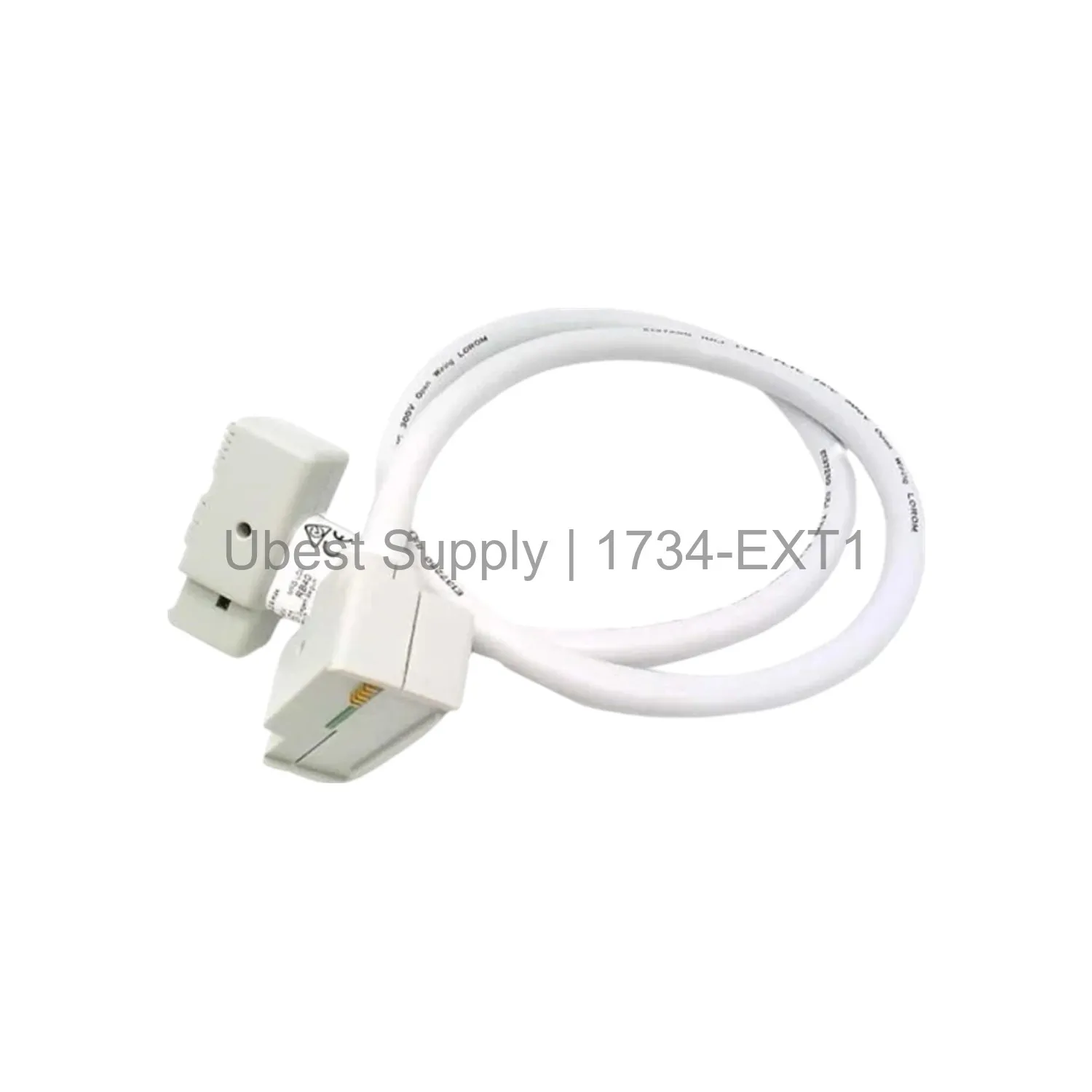

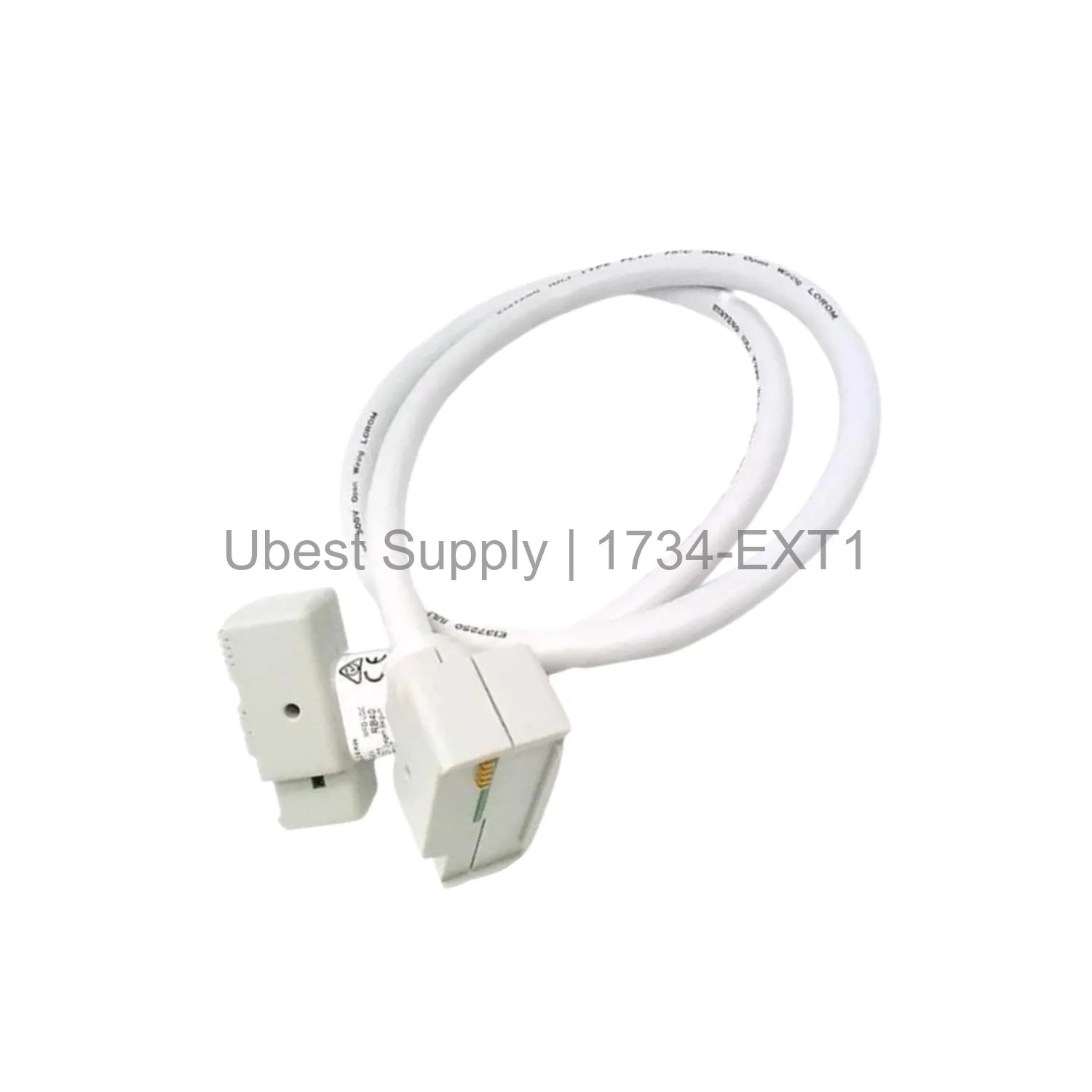

1734-EXT1 POINT I/O Extension Cable 1m by Allen-Bradley

Product Overview

The Allen-Bradley 1734-EXT1 is a POINT I/O extension cable. It measures 1 meter in length. This cable supports high-speed data transmission. It connects terminal bases and other accessories. The 1734-EXT1 is part of the 1734 Point I/O series. This series offers flexibility and low ownership cost.

Application Scenarios

The 1734-EXT1 cable suits many industrial processes. It handles plant management and data collection. It also supports control and manufacturing integration. Time-critical applications benefit from this cable. It allows multiple connection types at the same time. Engineers use this cable to ensure proper wiring of the I/O platform. The cable enables high-speed signal transport from sensors to display units. It withstands data flow that standard cables cannot handle.

Technical Specifications

General Specifications

• Manufacturer: Rockwell Automation
• Brand: Allen-Bradley
• Part Number: 1734-EXT1
• Series: POINT I/O
• Product Type: Extension Cable
• Length: 1 meter

Functionality

The cable transports digital signals from sensors to display units. It withstands high data flow that standard cables cannot. The 1734-EXT1 delivers reliable signal transmission. It connects sensors, adapters, encoders, and the main I/O system. This cable helps the in-cabinet modular I/O platform wire properly to fundamental parts of the process.

Installation & Maintenance Guide

Follow these steps for installation. First, ensure the system is powered off. Connect one end to the terminal base. Connect the other end to the accessory. Avoid sharp bends in the cable. Route the cable away from high-heat sources. Perform regular inspections for wear. Replace the cable if damage appears.

Packing List

• 1 x 1734-EXT1 POINT I/O Extension Cable (1 meter)
