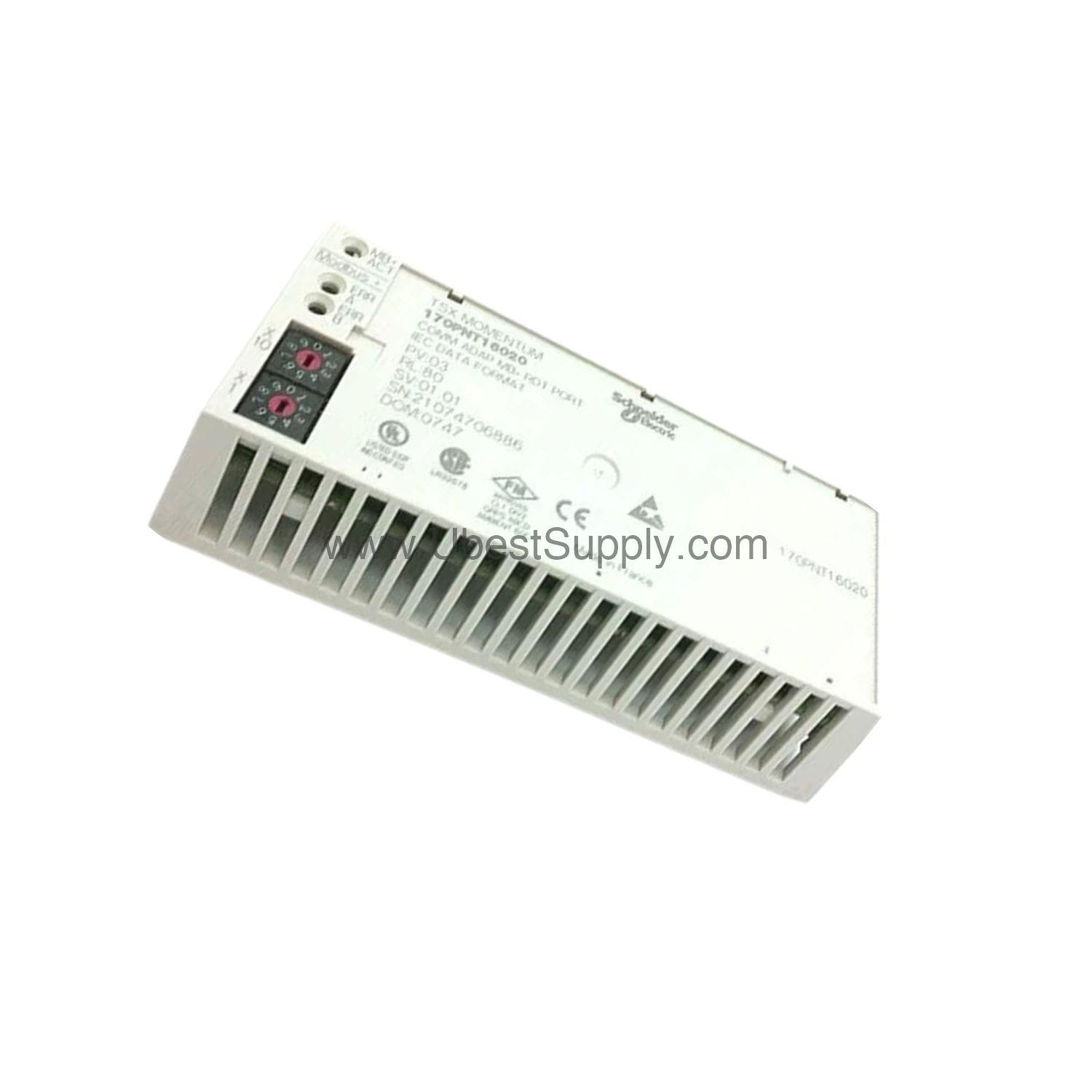

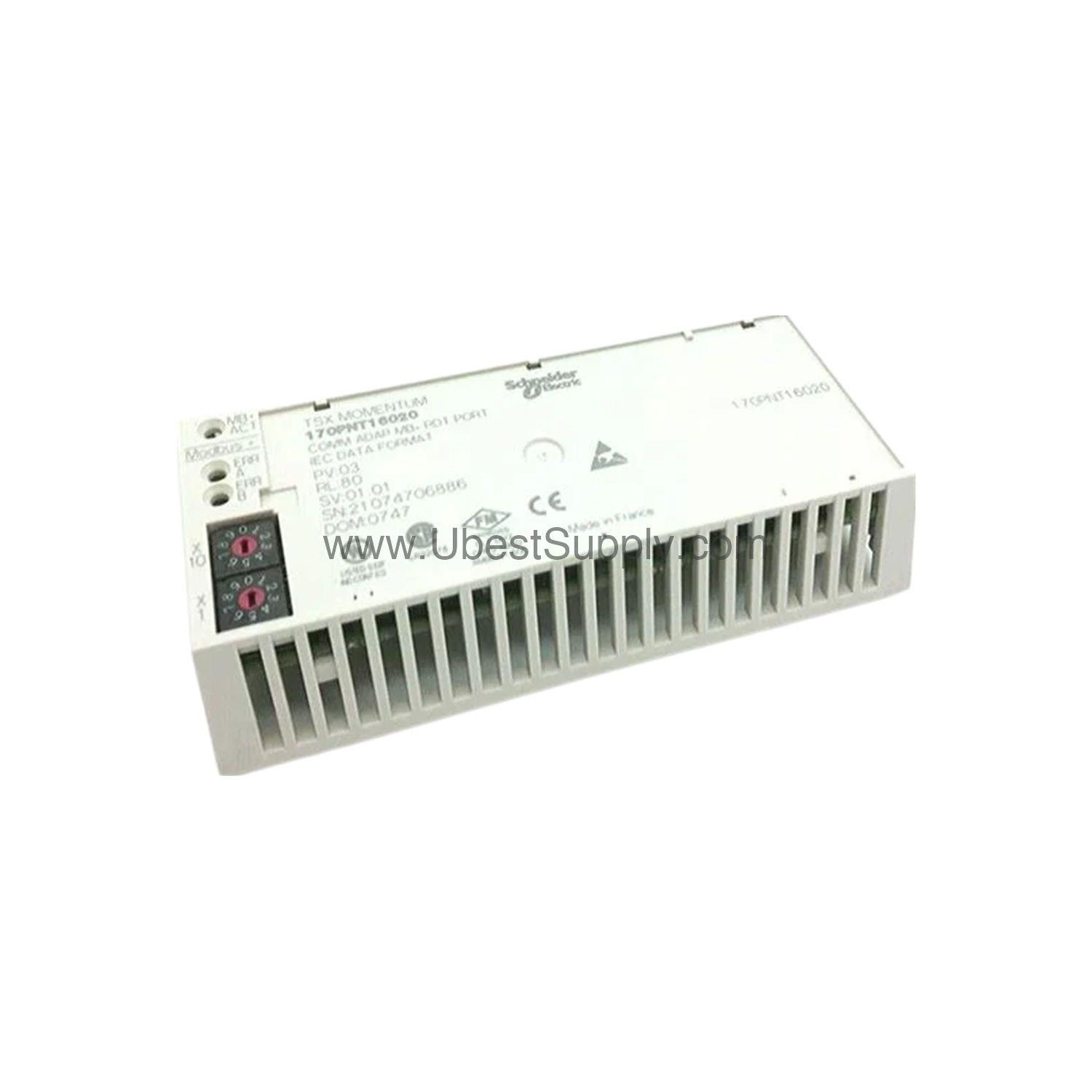

170PNT16020 | Schneider Modbus Plus Communication Adaptor

Introduction: Solving Industrial Network Integration Challenges

When a production line requires deterministic communication between controllers and field devices, the 170PNT16020 from Schneider Electric provides a robust solution. This communication adaptor is part of the Modicon Momentum series, engineered to integrate seamlessly into existing Modbus Plus networks. Its support for both token bus and peer-to-peer access methods ensures flexible and reliable data exchange, even in demanding industrial environments.

The 170PNT16020 operates at a transmission rate of 1 Mbit/s, enabling efficient data transfer for real-time control applications. With a compact design and lightweight construction, this adaptor fits easily into control panels without adding significant bulk.

Key Features and Technical Specifications

• Communication Option: Modbus Plus protocol for industrial networking.
• Access Methods: Supports both token bus and peer-to-peer configurations.
• Transmission Rate: 1 Mbit/s for efficient data transfer.
• Operating Temperature: 0 to 40 degrees Celsius.
• Storage Temperature: 0 to 50 degrees Celsius.
• Relative Humidity (Operation and Storage): Up to 80% non-condensing.
• Maximum Altitude: 1000 meters above sea level for both operation and storage.
• Operating Environment: Clean indoor environment with no corrosive substances.

The 170PNT16020 is designed for clean indoor use, ensuring stable performance without exposure to corrosive elements. Its ability to operate at altitudes up to 1000 meters adds flexibility for deployment in various industrial facilities.

Applications and Use Cases

In manufacturing plants, the 170PNT16020 enables reliable communication between PLCs, HMIs, and other Modbus Plus devices. For example, in a packaging line, this adaptor can coordinate multiple machines, ensuring synchronized operation. Its peer-to-peer access method allows direct device-to-device communication, reducing latency and improving response times. Meanwhile, token bus access ensures orderly data transmission across the network, making it suitable for applications requiring deterministic timing.

Installation and Setup

Installing the 170PNT16020 is straightforward. Mount the adaptor in a clean indoor panel, ensuring adequate ventilation and avoiding corrosive environments. Connect the Modbus Plus network cable to the designated port, and configure the access method (token bus or peer-to-peer) according to your network architecture. Always refer to the Schneider Electric user manual for detailed wiring and configuration instructions.

Maintenance and Reliability

Regular inspection of the 170PNT16020 helps maintain reliable operation. Periodically check connections for tightness and verify that the operating environment remains within specified limits—temperature between 0 and 40 degrees Celsius, and humidity below 80% non-condensing. Because the adaptor is designed for clean indoor use, keeping the area free of dust and corrosive substances will extend its service life. Following these simple practices minimizes downtime and ensures consistent network performance.

Compatibility and Integration

The 170PNT16020 is specifically designed for the Modicon Momentum series, ensuring seamless integration with other Momentum modules. It uses the Modbus Plus protocol, a widely adopted industrial network standard, making it compatible with a broad range of Schneider Electric controllers and third-party devices that support Modbus Plus. Whether you are building a new system or expanding an existing one, this adaptor provides a reliable communication link.

Troubleshooting and Common Issues

If communication issues arise, first verify that the network cable is properly connected and that the access method settings match your network configuration. Check that the operating temperature remains within the 0 to 40 degrees Celsius range, as extreme temperatures can affect performance. Also, ensure the environment is clean and free of corrosive substances, as specified. If problems persist, consult the Schneider Electric documentation or contact Petro Auto Tech for technical support.

FAQ about 170PNT16020

Q: What is the transmission rate of the 170PNT16020?

A: The 170PNT16020 operates at a transmission rate of 1 Mbit/s.

Q: What access methods does the 170PNT16020 support?

A: It supports both token bus and peer-to-peer access methods.

Q: What is the operating temperature range for the 170PNT16020?

A: The operating temperature range is 0 to 40 degrees Celsius.

Q: Can the 170PNT16020 be used in humid environments?

A: Yes, it can withstand relative humidity up to 80% non-condensing during operation and storage.

Q: What is the maximum altitude for the 170PNT16020?

A: The maximum altitude for both operation and storage is 1000 meters above sea level.

Product Support and Availability

The 170PNT16020 is available from Petro Auto Tech, an industrial automation parts supplier. Please verify current lifecycle status and availability with Petro Auto Tech before ordering. Our team can assist with product selection and technical inquiries.
