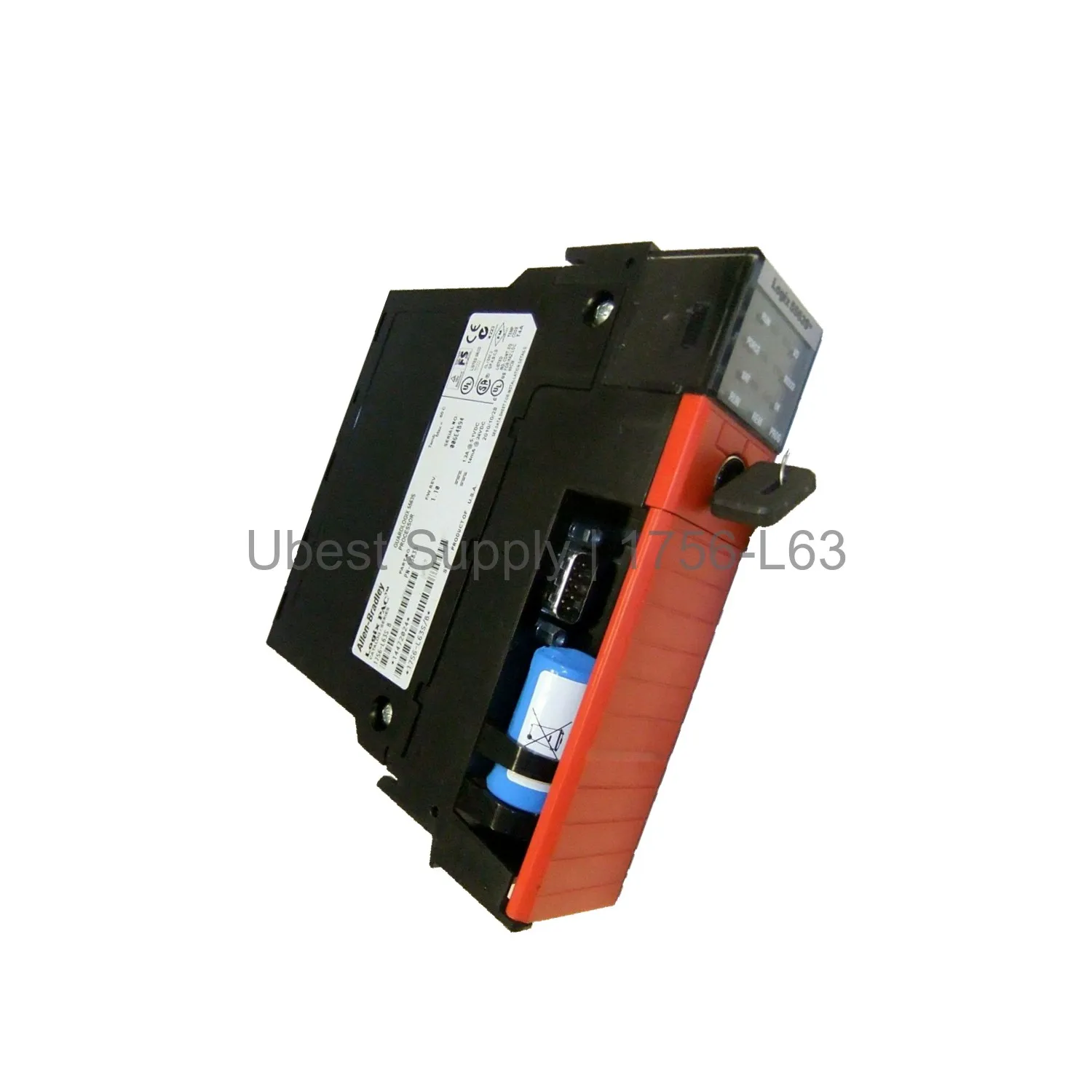

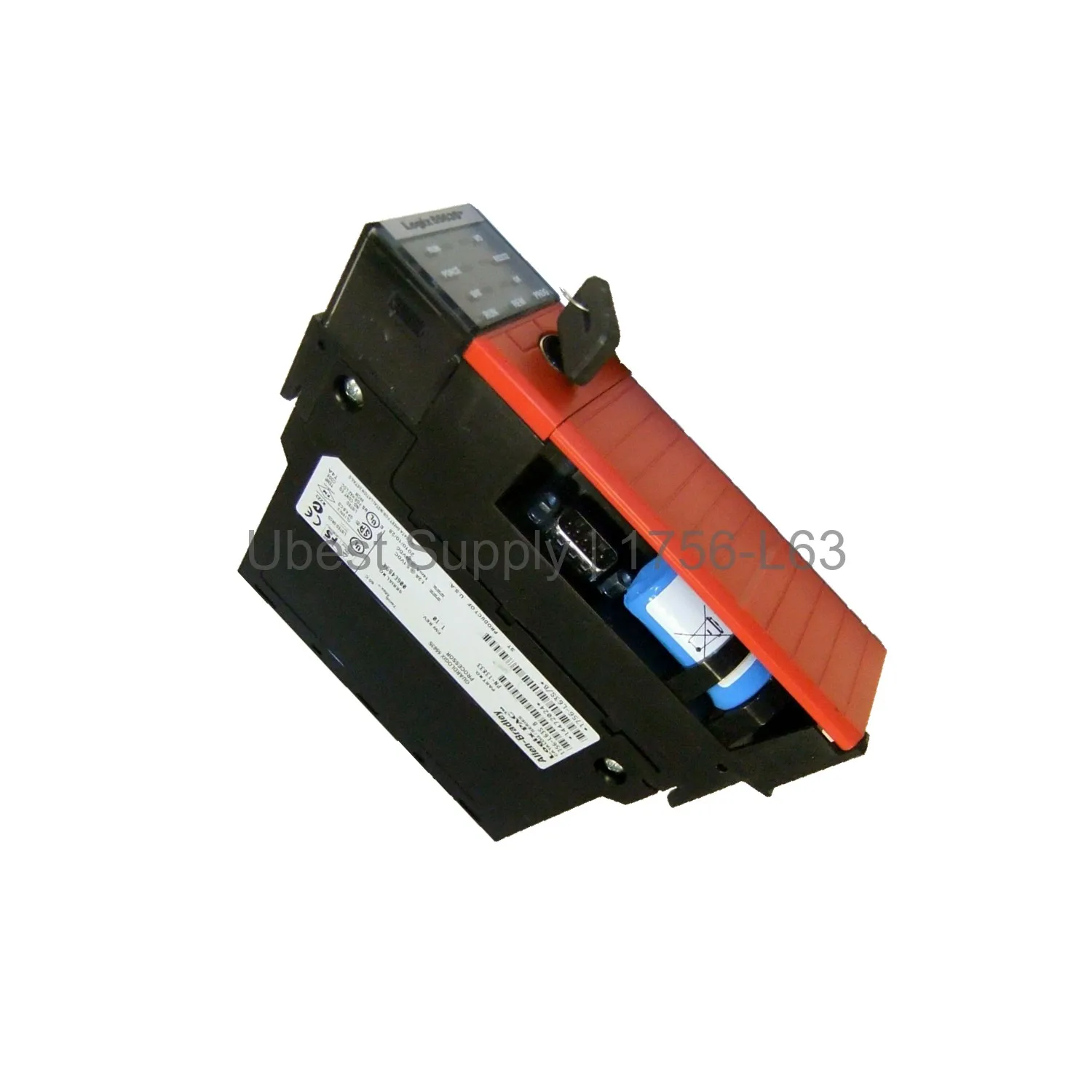

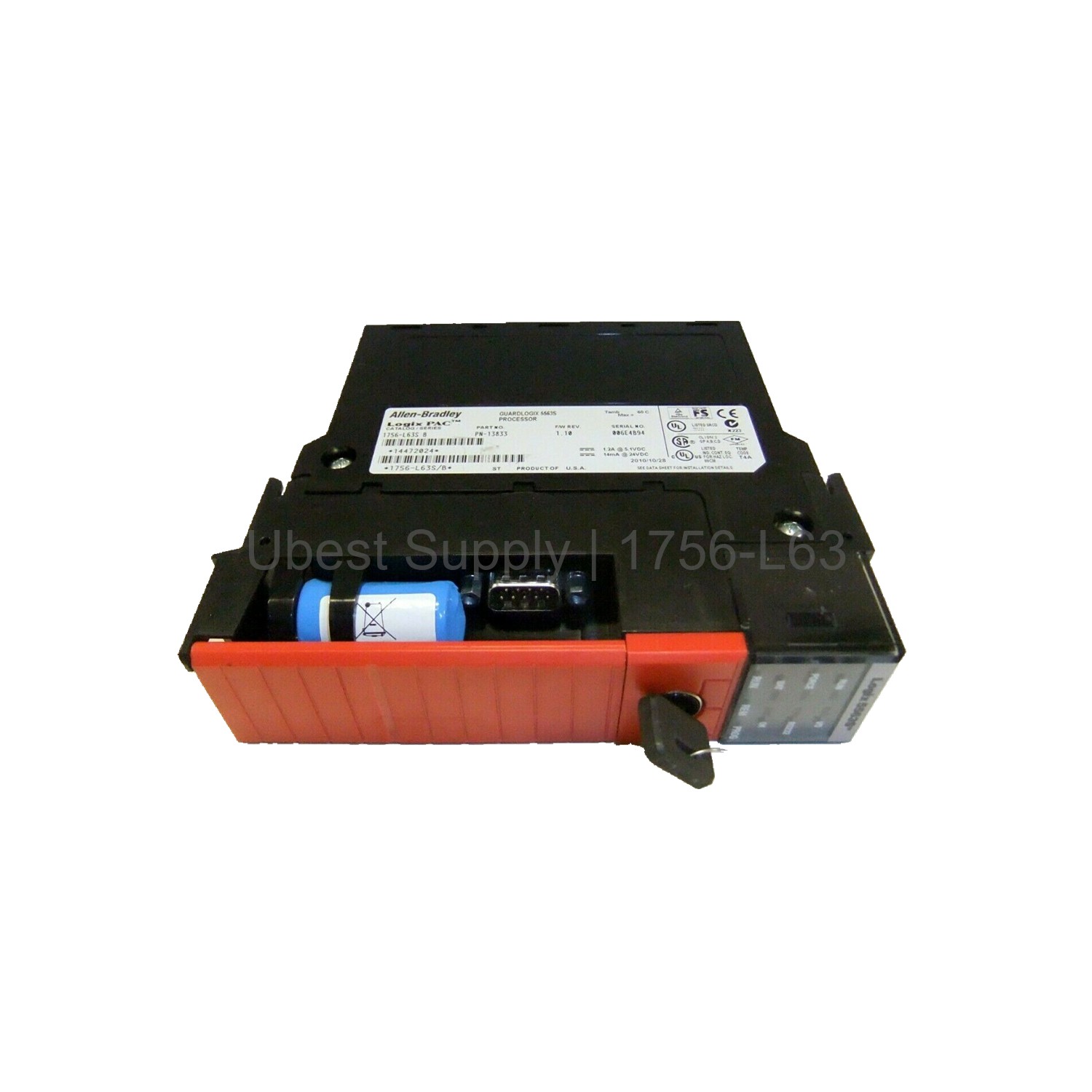

Allen-Bradley 1756-L63 ControlLogix PLC Controller 8MB

Product Overview

The Allen-Bradley 1756-L63 is a high-performance programmable automation controller. It belongs to the ControlLogix 5560 series. This unit has 8 MB of user memory. It also includes 478 KB of I/O memory. The controller supports up to 128,000 discrete I/O points. It can handle 4,000 analog I/O points as well. This module uses a battery-backed RAM design. It operates on a backplane current of 1.2 Amps at 5 Volts DC. The 1756-L63 draws 14 milliamps at 24 Volts DC.

Application Scenarios

This controller works well in large industrial automation systems. It is ideal for complex manufacturing processes. The 1756-L63 supports full controller redundancy. It integrates motion control using SERCOS or Ethernet/IP. This unit fits into standard ControlLogix chassis. Common chassis include the 1756-A4, 1756-A7, and 1756-A10. It works with standard and redundant power supplies. Engineers use it for discrete and analog control tasks.

Technical Specifications

The 1756-L63 has an operating temperature range of 0 to 60 degrees Celsius. Its non-operating range is -40 to 85 degrees Celsius. It handles vibration of 2 g at 10 to 500 Hertz. The operating shock rating is 30 g. The non-operating shock rating is 50 g. It has one RS-232 serial port. The unit supports 32 tasks with 100 programs per task. It uses a 1756-BA1 or 1756-BATM battery. The power dissipation is 3.5 W.

Installation & Maintenance Guide

Install the 1756-L63 into a ControlLogix chassis. Ensure the backplane power is off first. Slide the module into a slot until it locks. Connect the RS-232 cable for serial communication. Use optional modules for Ethernet/IP or ControlNet. Replace the battery every few years. The battery part numbers are 1756-BA1 or 1756-BATM. Keep the surrounding air temperature below 60 degrees Celsius.

Packing List

1 x Allen-Bradley 1756-L63 ControlLogix Controller. 1 x Battery (1756-BA1). 1 x Quick Start Guide. Shipping is via Fedex, UPS, or DHL.
