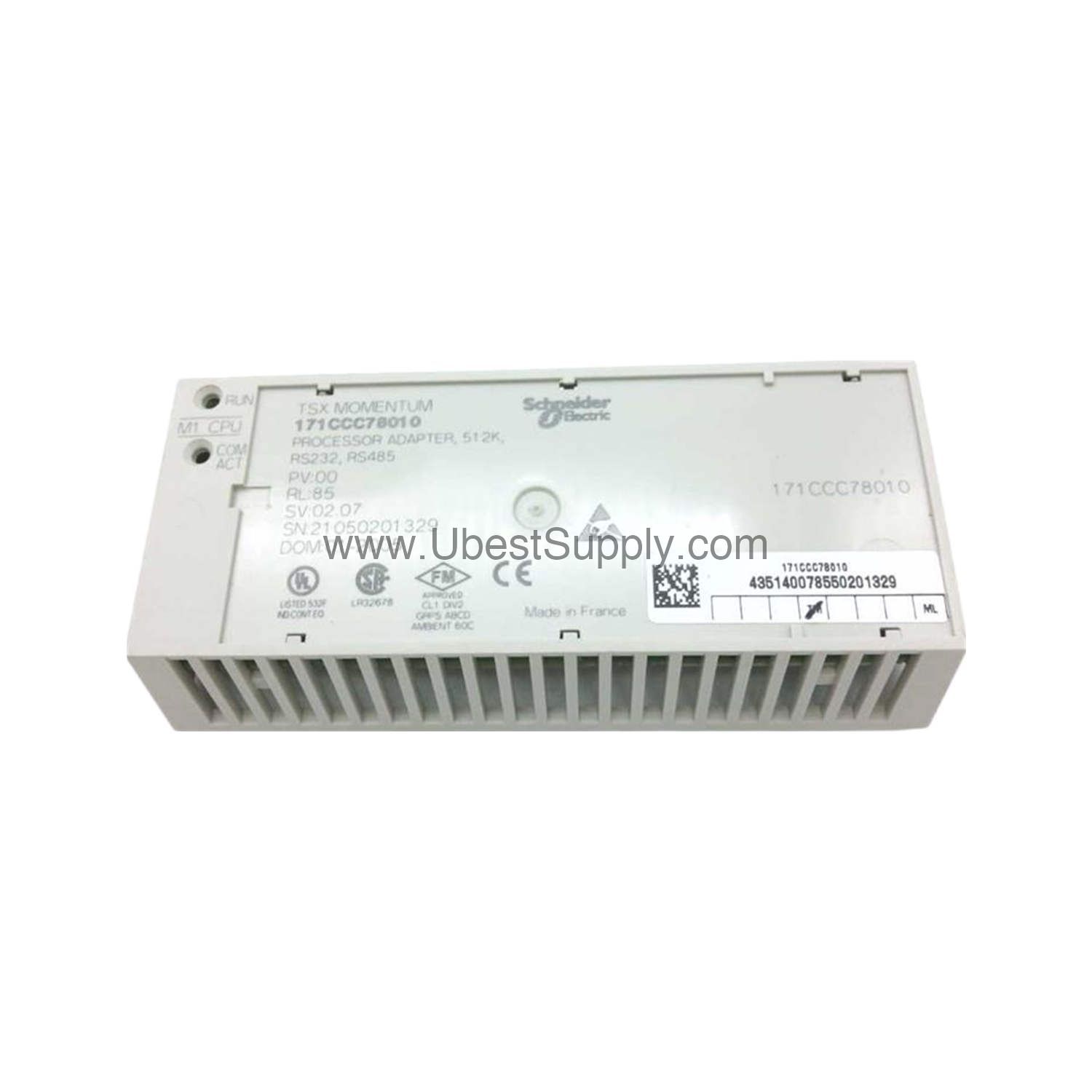

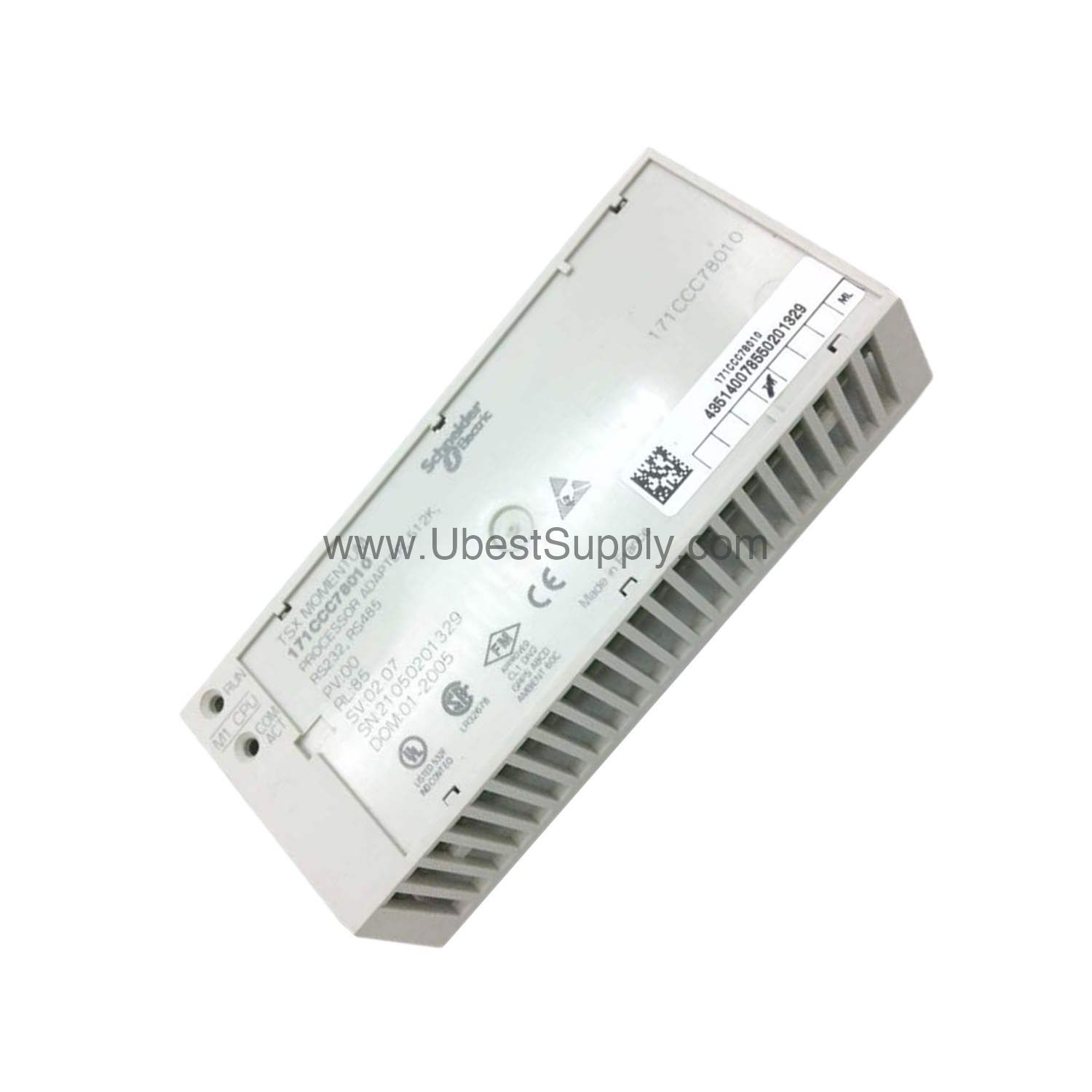

171CCC78010 | Schneider Modicon Momentum Processor Adapter Module

Introduction to the 171CCC78010

When your automation system demands reliable communication and robust processing, the 171CCC78010 from Schneider Electric delivers. This processor adapter module is part of the Modicon Momentum series, designed to handle both discrete and register I/O operations with ease. It operates using the Modbus protocol, ensuring compatibility across a wide range of industrial systems.

The 171CCC78010 is engineered for efficiency. With a 32 MHz clock frequency and a 16-bit word length, it processes data quickly and accurately. Whether you are upgrading an existing line or building a new one, this module provides the performance you need.

Key Features and Technical Specifications

• Manufacturer: Schneider Electric
• Product Type: M1/M1E Processor Adapter Module
• Product Line: Modicon Momentum
• Communication Protocol: Modbus
• Word Length: 16 bit
• Discrete I/O Processor Capacity: 8,192 bits maximum
• Register I/O Processor Capacity: 26,048 words maximum
• Memory Type: Flash memory and RAM
• Flash Memory Capacity: 512 kilobytes
• RAM Capacity: 512 kilobytes
• Clock Frequency: 32 megahertz
• Communication Ports: One non-isolated RS-232C port and one dedicated RS-485 Modbus port
• Rated Supply Voltage: 5 Volts DC
• Scan Time: 1 millisecond per kilobyte
• Storage Temperature: -40 to 85°C (non-condensing)
• Ambient Operating Temperature: 0 to 60°C (non-condensing)
• Weight: 1.00 lbs (0.45 kg)

One standout feature is the 1 ms per kilobyte scan time, which allows for rapid data processing. This speed is critical in applications where timing is everything, reducing delays and improving overall system responsiveness.

Applications and Use Cases

The 171CCC78010 is versatile, suitable for a variety of industrial automation tasks. It excels in environments where Modbus communication is standard, such as manufacturing plants, process control systems, and material handling operations. Its capacity to handle up to 8,192 discrete I/O bits and 26,048 register words makes it ideal for medium-to-large scale control applications.

Moreover, the module's wide operating temperature range of 0 to 60°C ensures it can function in demanding settings. Consequently, engineers can rely on it for continuous operation in production lines where downtime is not an option.

Installation and Setup

Installing the 171CCC78010 is straightforward. It is designed to be powered by a Momentum I/O base, simplifying the wiring process. The module features two communication ports: one non-isolated RS-232C and one dedicated RS-485 Modbus port. For setup, ensure the supply voltage is 5 VDC, as specified. Additionally, verify that the ambient temperature stays within the 0 to 60°C range to avoid performance issues.

For optimal performance, follow the guidelines in the official Schneider Electric documentation. Proper installation ensures reliable operation and longevity of the module.

Maintenance and Reliability

Routine maintenance of the 171CCC78010 is minimal but important. Periodically inspect the module for dust accumulation or loose connections. Since it operates in non-condensing environments, keep it away from moisture sources. The module's flash memory and RAM provide reliable data storage, but regular backups of your program are recommended to prevent data loss.

By adhering to a simple maintenance schedule, you can extend the life of the module and avoid unexpected failures. This proactive approach saves both time and money in the long run.

Compatibility and Integration

The 171CCC78010 is designed for the Modicon Momentum automation platform. It supports the Modbus protocol, making it compatible with a wide range of Schneider Electric and third-party devices that use Modbus. The dedicated RS-485 port ensures robust communication over longer distances, while the RS-232C port allows for direct connection to programming tools or HMI panels.

For programming, the module supports Concept V2.6, Modsoft >= V2.5, ProWORX NxT V2.0, and ProWORX 32. This flexibility makes integration into existing systems seamless.

Troubleshooting and Common Issues

If the 171CCC78010 fails to communicate, check the RS-485 wiring and ensure proper termination. Verify that the supply voltage is within the specified 5 VDC range. Also, confirm that the ambient temperature is within the operating limits. If issues persist, consult the Schneider Electric manual or contact Petro Auto Tech for assistance.

Regularly updating your programming software can prevent compatibility issues. Additionally, monitoring the module's status indicators can help identify problems early.

FAQ about 171CCC78010

Q: What is the scan time of the 171CCC78010?

A: The scan time is 1 millisecond per kilobyte, allowing for rapid data processing.

Q: What communication ports does the 171CCC78010 have?

A: It has one non-isolated RS-232C port and one dedicated RS-485 Modbus port.

Q: What is the rated supply voltage for the 171CCC78010?

A: The rated supply voltage is 5 Volts DC.

Q: What is the memory capacity of the 171CCC78010?

A: It has 512 kilobytes of flash memory and 512 kilobytes of RAM.

Q: What is the operating temperature range for the 171CCC78010?

A: The ambient operating temperature is 0 to 60°C in a non-condensing environment.

Product Support and Availability

The 171CCC78010 is available through Petro Auto Tech, an industrial automation parts supplier. We ensure genuine Schneider Electric products and reliable delivery. For inquiries about availability or technical support, contact Petro Auto Tech today.
