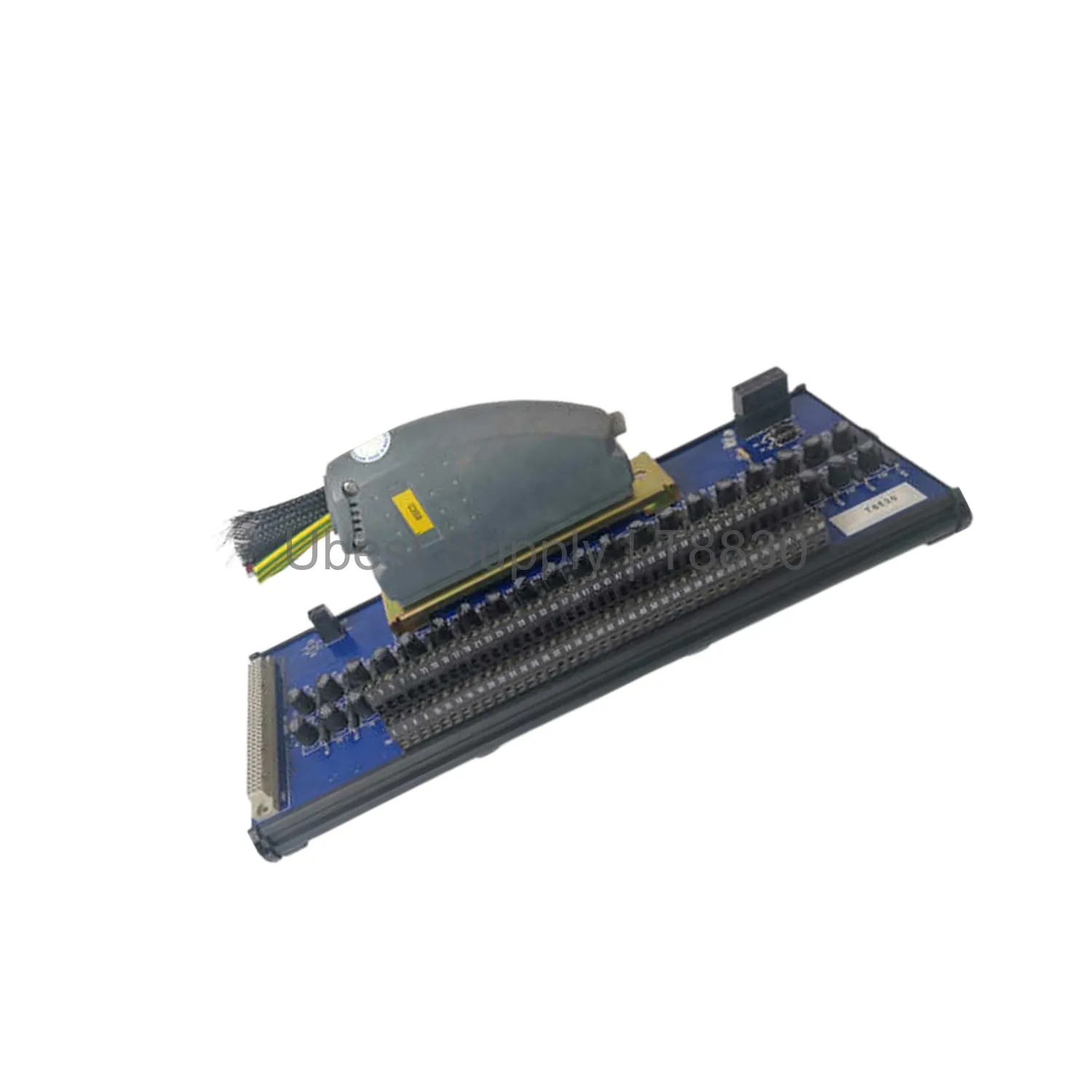

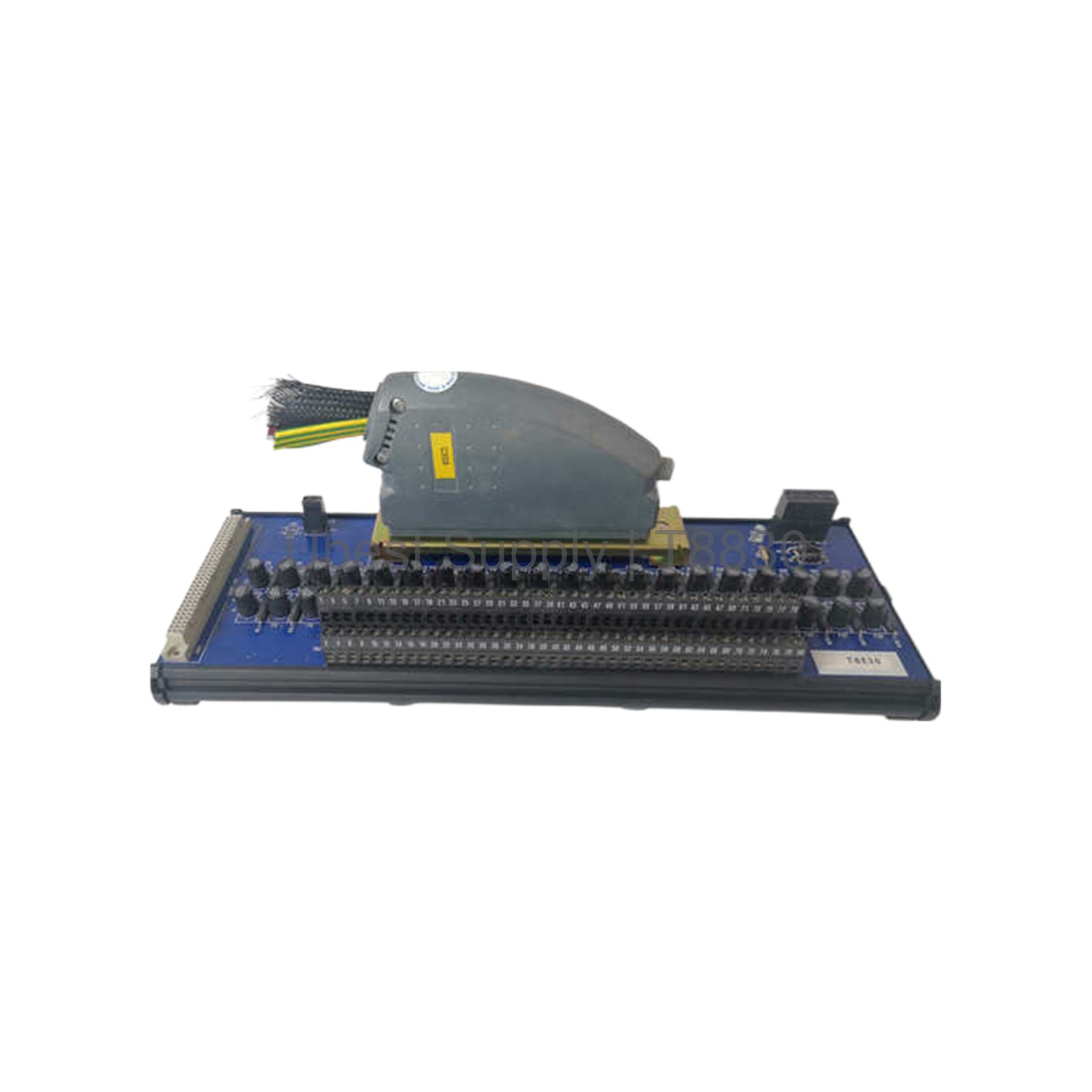

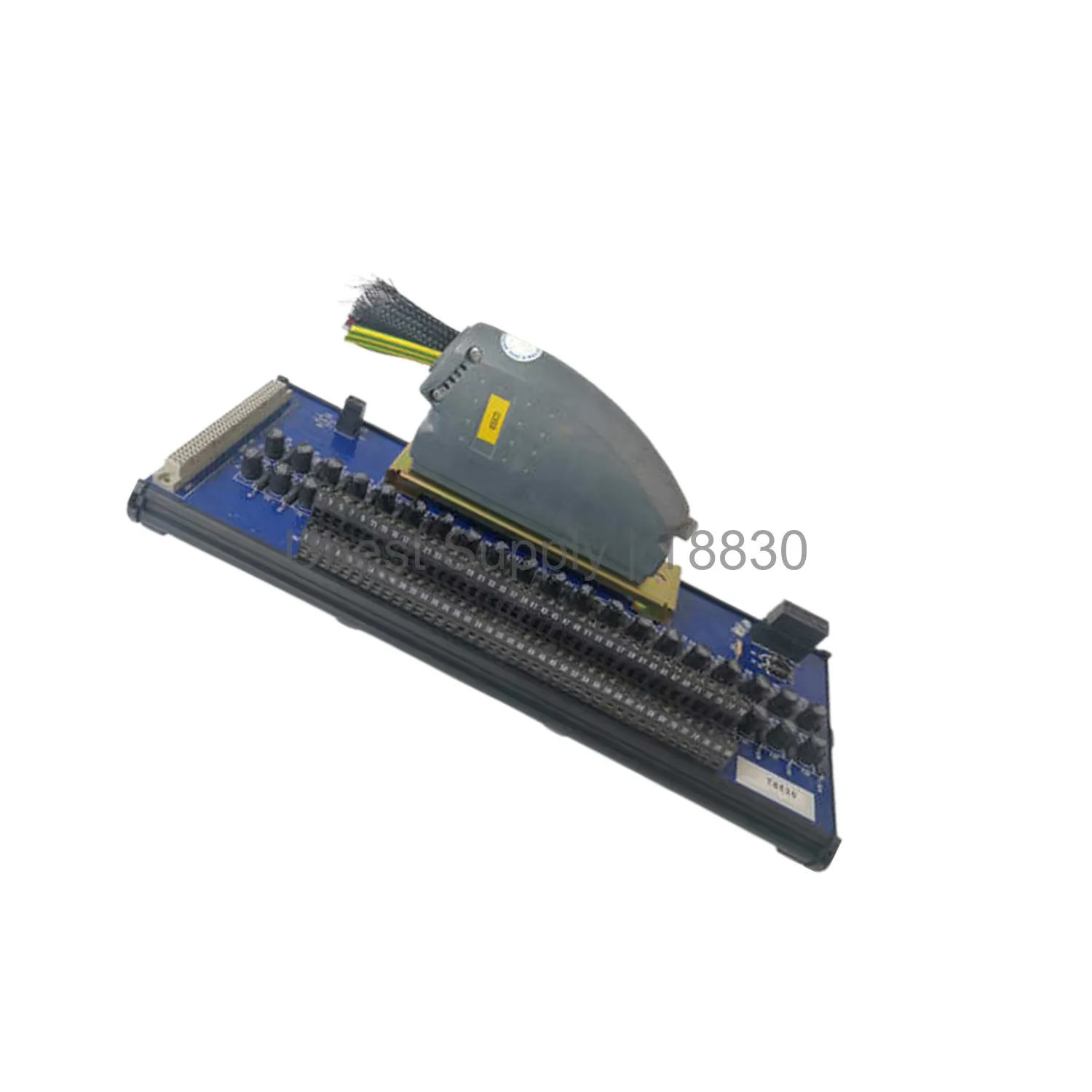

ICS Triplex T8830 Analog Input FTA 40 Channel Fused

Product Overview

The ICS Triplex T8830 is a 40-channel fused analog input FTA. It accepts 0-22 mA signals per channel. This unit works with 18-32 Vdc power. It consumes only 5 W. The device holds Ord/HazLoc/ATEX/IECEx certifications. It suits demanding industrial environments. Each channel has a TR5 fuse rated at 50 mA. This design protects your system from overcurrent. The T8830 ensures reliable data acquisition. It is a key part of your control system.

Application Scenarios

Use the T8830 in process control systems. It works well in oil and gas plants. It fits chemical processing facilities. It supports power generation units. The module handles hazardous area inputs. It connects to sensors and transmitters. It provides safe signal isolation. Use it in safety-critical applications. The T8830 is ideal for distributed control systems. It works with ICS Triplex platforms.

Technical Specifications

Input channels: 40. Input range: 0-22 mA per channel. Supply voltage: 18-32 Vdc. Power consumption: 5 W. Fuse type: TR5, 50 mA (qty 40). Certifications: Ord/HazLoc/ATEX/IECEx. Operating temperature: standard industrial range. The module offers high channel density. It supports field wiring directly. The T8830 meets strict safety standards.

Installation & Maintenance Guide

Mount the FTA on a DIN rail. Connect the power supply to 18-32 Vdc. Wire each field device to the correct channel. Insert the TR5 fuses before operation. Check fuses regularly for faults. Replace blown fuses with 50 mA TR5 types. Keep the module clean and dry. Follow the manual for wiring details. Use proper grounding techniques. Test each channel after installation.

Packing List

1 x ICS Triplex T8830 Analog Input FTA. 40 x TR5 50 mA fuses (pre-installed). 1 x product documentation. 1 x warranty card (if applicable). No other accessories are included. The unit is packed in anti-static material. Ensure you have all items before installation.
