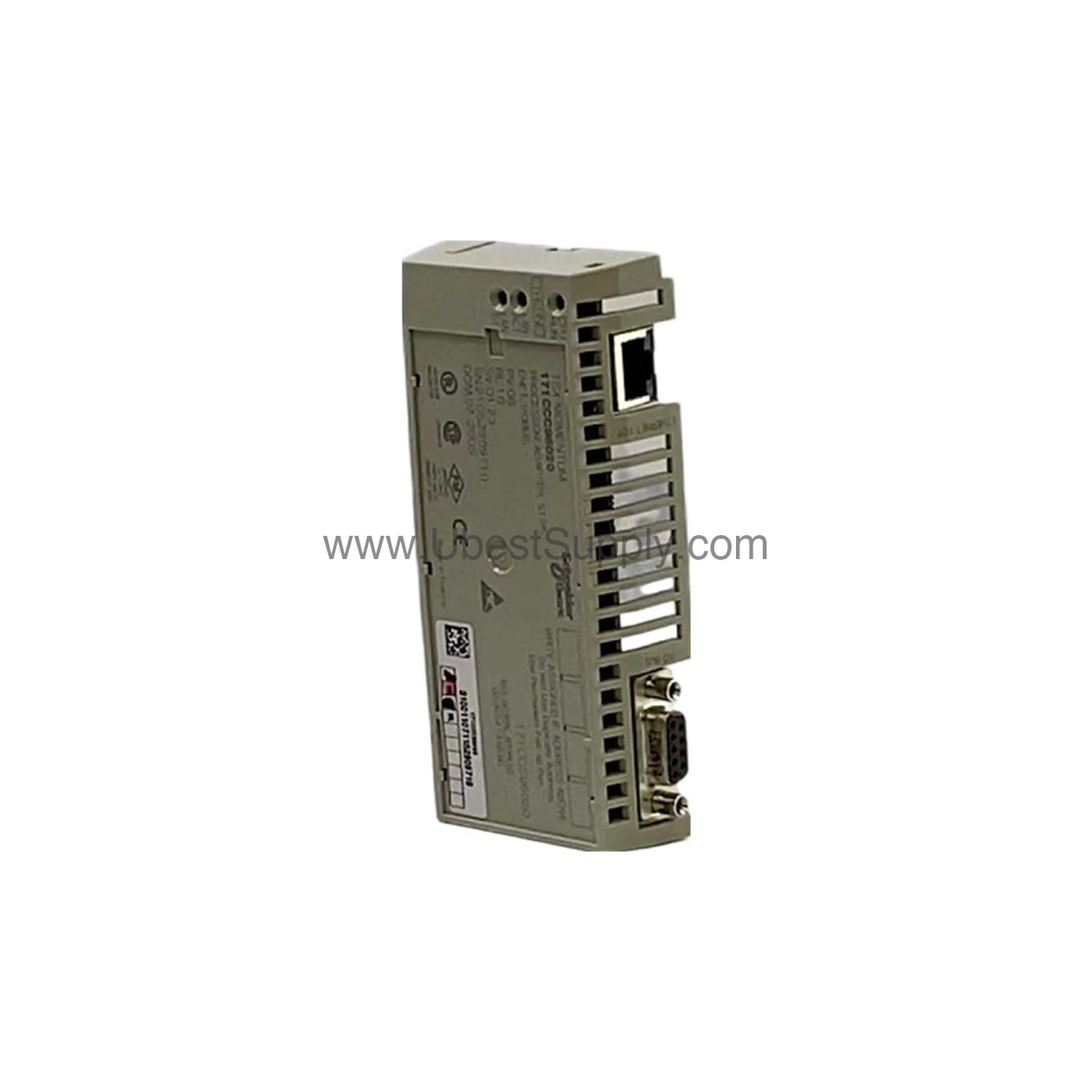

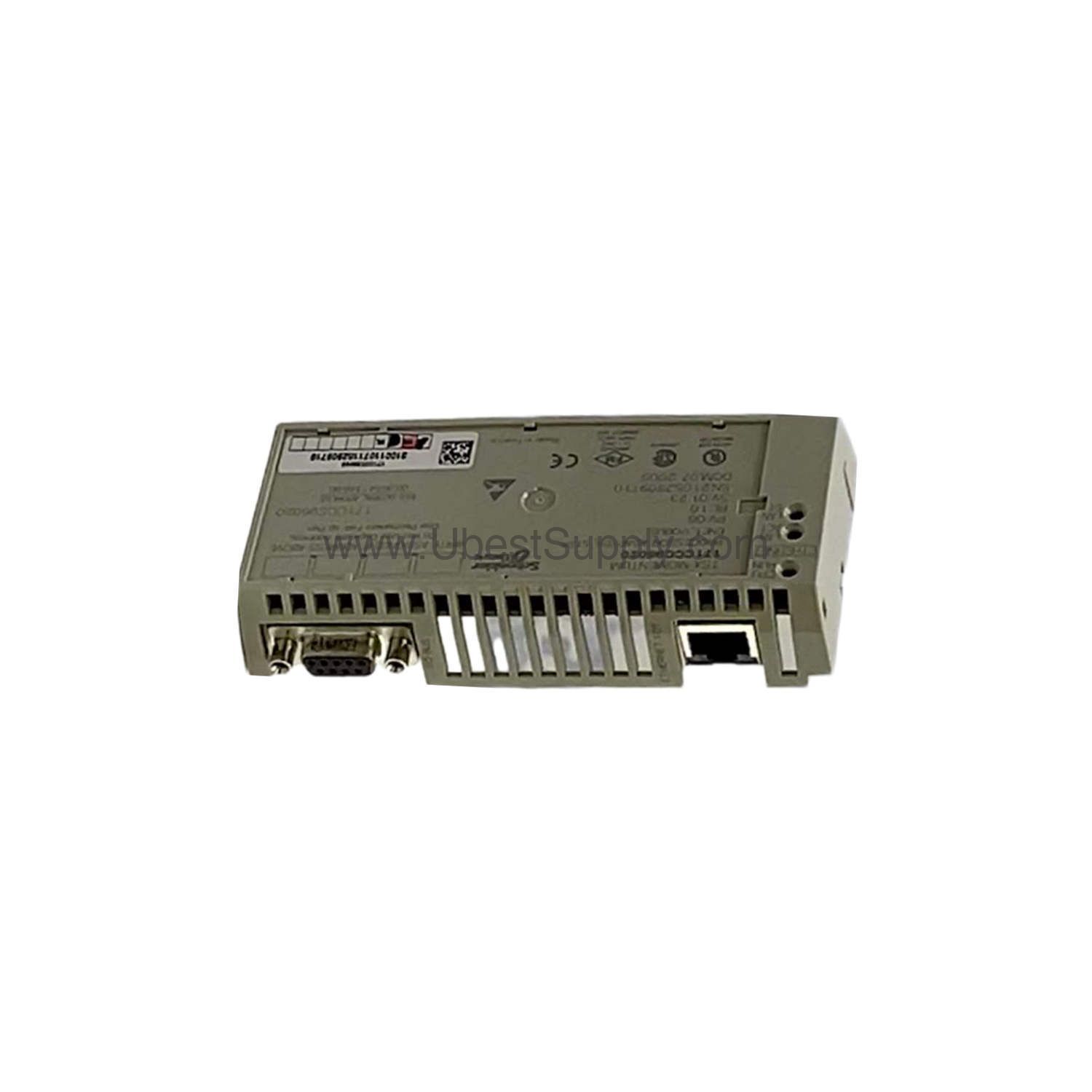

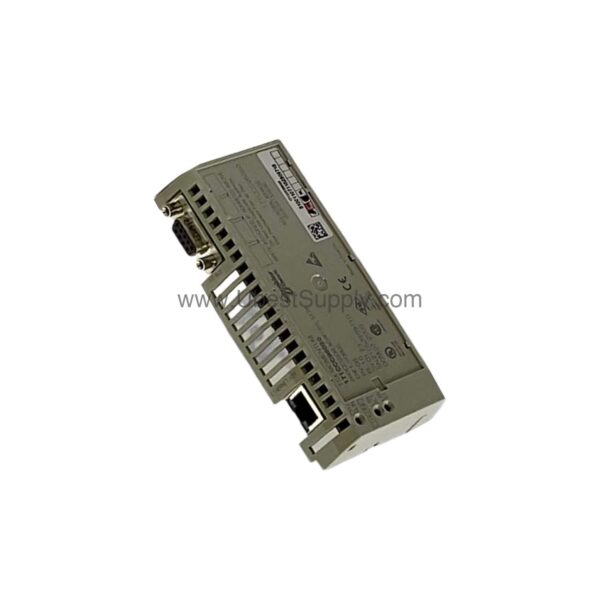

171CCC96020C | Schneider 50 MHz Modicon Momentum Processor Adaptor

Why Choose the 171CCC96020C for Your Automation Needs?

When your control system demands reliable processing and seamless integration, the 171CCC96020C from Schneider Electric stands ready. This processor adaptor, part of the Modicon Momentum series, is engineered to handle complex automation tasks with efficiency and precision. With a clock frequency of 50 MHz and an x86-based architecture, it provides the computational power needed for demanding applications.

Moreover, the 171CCC96020C is designed to work flawlessly with the Momentum I/O base, ensuring straightforward installation and dependable operation. Its conformal coating, Humiseal 1A33, adds a layer of protection against moisture and contaminants, enhancing durability in industrial environments.

Key Features and Technical Specifications

The 171CCC96020C boasts a robust set of specifications that make it a versatile choice for various automation projects. Here are the core features:

• Clock Frequency: 50 MHz for fast processing.
• CPU Architecture: x86-based for broad software compatibility.
• Memory: 512 KB Flash and 544 KB RAM for ample storage and execution space.
• Program Memory: 18 KB, supporting the LL984 programming language.
• Data Memory: 24 KB for critical data handling.
• I/O Capacity: 8192 discrete inputs and 8192 discrete outputs, plus 26048 register inputs and outputs.
• Communication Ports: 1 Ethernet port and 1 I/O bus for flexible connectivity.
• Protocol: Ethernet with Modbus TCP and I/O scan capabilities.
• Supply Voltage: 5 VDC ±5% for consistent power.
• Operating Temperature: 0°C to 60°C for reliable performance in varied conditions.

One standout feature is the 16-bit word length, which ensures efficient data processing and compatibility with legacy systems. This makes the 171CCC96020C a smart choice for upgrading existing Momentum installations.

Applications and Use Cases

The 171CCC96020C excels in discrete and process control applications, such as material handling, packaging, and water treatment. Its high I/O capacity allows it to manage large-scale operations with ease. For instance, in a bottling plant, the processor can coordinate multiple conveyor lines, ensuring smooth product flow and reducing downtime. Additionally, its Modbus TCP support enables seamless integration with modern SCADA systems, facilitating real-time monitoring and control.

Installation and Setup

Installing the 171CCC96020C is straightforward. Simply mount it onto a compatible Momentum I/O base, ensuring a secure connection. The processor requires a 5 VDC supply, so verify your power source matches the specification. For communication, connect an Ethernet cable to the dedicated port and configure the Modbus TCP settings as per your network requirements. Always refer to the official Schneider documentation for detailed wiring and configuration instructions.

Maintenance and Reliability

To ensure long-term reliability, inspect the processor periodically for signs of wear or environmental damage. The conformal coating helps protect against moisture, but it is still wise to keep the unit clean and dry. Check that all connections remain tight and free of corrosion. Following a routine maintenance schedule can extend the life of the 171CCC96020C and prevent unexpected failures.

Compatibility and Integration

The 171CCC96020C is designed for the Modicon Momentum platform, making it compatible with a wide range of Momentum I/O modules. Its Ethernet port supports Modbus TCP, allowing integration with other Schneider Electric devices and third-party systems that use this protocol. This flexibility simplifies system expansion and modernization.

Troubleshooting Common Issues

If the processor fails to communicate, first check the Ethernet cable and network settings. Ensure the supply voltage is within the 5 VDC ±5% range. If the unit does not start, verify that it is properly seated on the I/O base. For persistent issues, consult the Schneider manual or contact Petro Auto Tech for technical support.

Frequently Asked Questions

Q: What is the memory capacity of the 171CCC96020C?

A: The processor has 512 KB Flash and 544 KB RAM, plus 18 KB program memory and 24 KB data memory.

Q: Does the 171CCC96020C support Modbus TCP?

A: Yes, it has an Ethernet port that supports Modbus TCP and I/O scan protocols.

Q: What is the operating temperature range?

A: The 171CCC96020C operates reliably between 0°C and 60°C.

Q: How many I/O points can the 171CCC96020C handle?

A: It supports up to 8192 discrete inputs and outputs, and 26048 register inputs and outputs.

Product Support and Availability

The 171CCC96020C is available from Petro Auto Tech, an industrial automation parts supplier. We ensure fast shipping and competitive pricing. Contact our team for availability and lead times.
