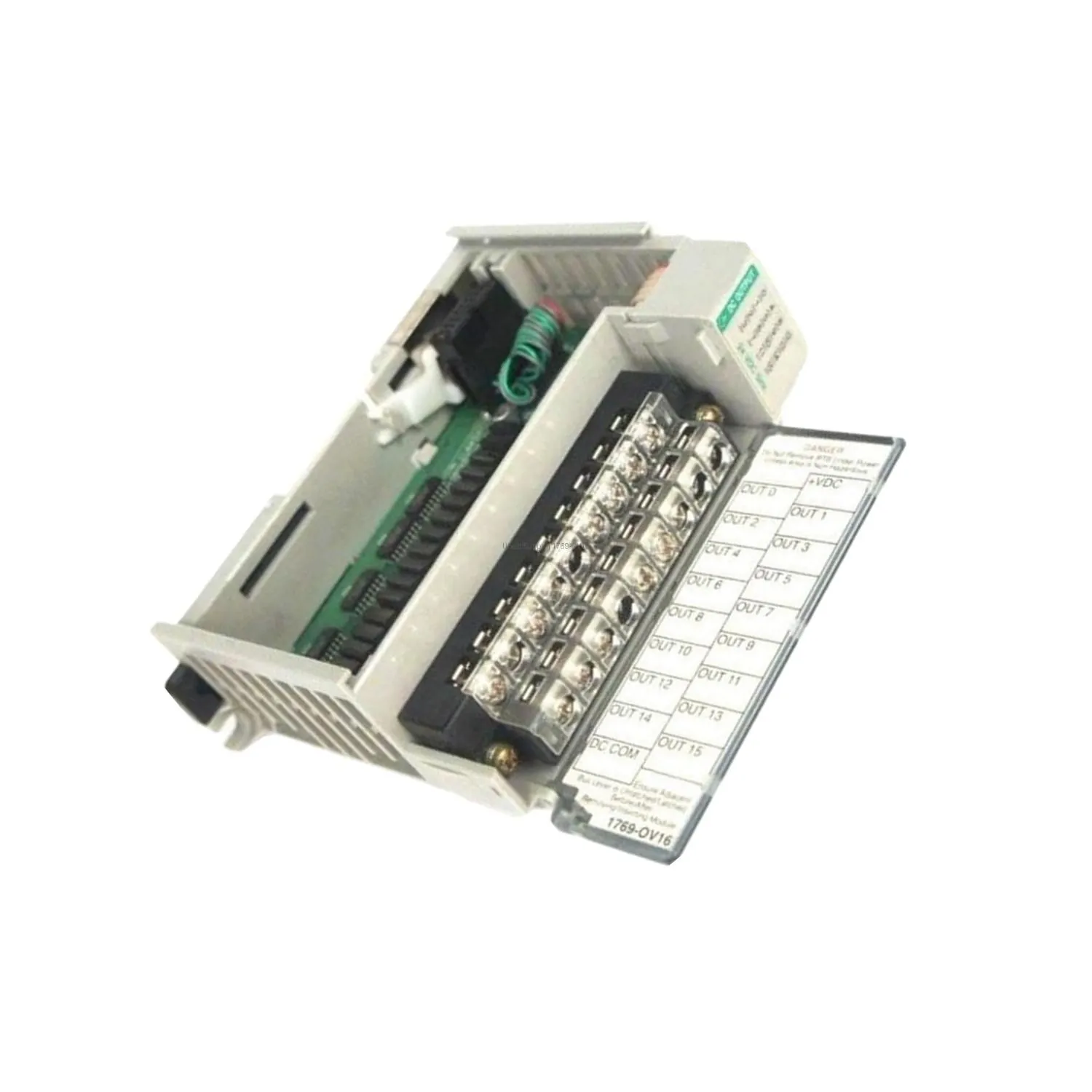

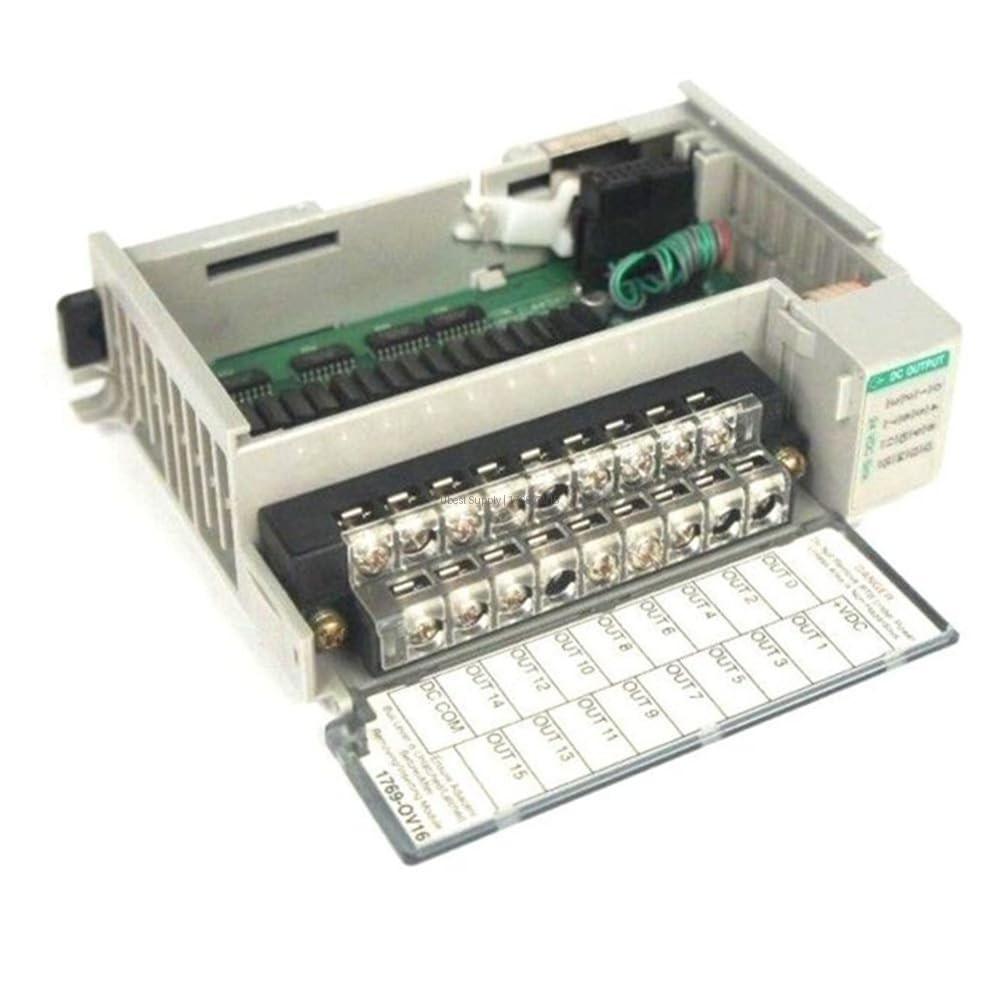

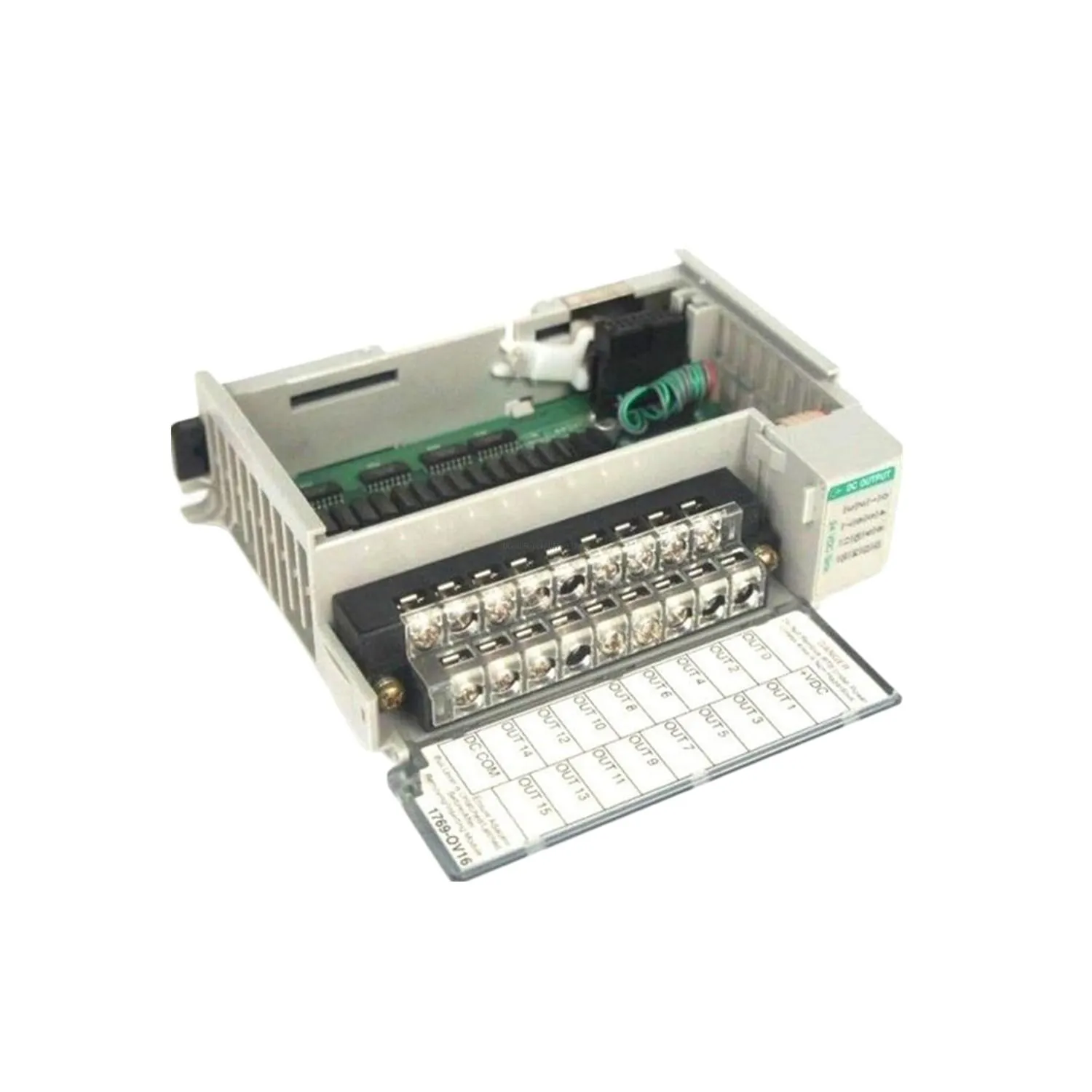

Allen-Bradley 1769-OV16 24 VDC Sink Output Module

Product Overview

The Allen-Bradley 1769-OV16 is a discrete output module. It belongs to the Compact I/O series. This module provides 16 sink outputs. It operates at 24 VDC. The output voltage range is 20.4 to 26.4 VDC. It delivers 0.5 A per point at 60 °C. At 30 °C, it delivers 1.0 A per point. The maximum module current is 4 A at 60 °C. This module is ideal for controlling actuators. It works with CompactLogix controllers. The 1769-OV16 uses a sinking wiring configuration.

Application Scenarios

This module controls DC loads in industrial settings. It drives solenoid valves and indicator lights. It also controls small motors and relays. Use it in material handling systems. It fits packaging machinery well. The module works in assembly lines. It is suitable for process control. The 1769-OV16 operates in harsh environments. It handles vibration up to 5 g. It withstands shock up to 30 g. This makes it reliable for factory floors.

Technical Specifications

The module has 16 output channels. It uses one output group. The off-state leakage current is 1 mA. The minimum on-state current is 1 mA. The maximum on-state voltage drop is 1 VDC. The module draws 200 mA at 5.1 V. It handles a surge current of 2 A. This surge lasts 10 ms. It repeats every 2 seconds. The output delay on is 0.1 ms. The output delay off is 1.0 ms. Maximum heat dissipation is 2.06 W. It operates in 5 to 95% humidity. It uses copper wire from 22 to 14 AWG.

Installation & Maintenance Guide

Mount the module on a DIN rail. You can also panel mount it. Use solid or stranded copper wire. Solid wire size is 22 to 14 AWG. Stranded wire size is 22 to 16 AWG. Ensure the enclosure is open type. Do not exceed 0.5 A per point at 60 °C. Keep the module in a non-condensing environment. Follow the manual for wiring. Always disconnect power before installation. Check connections for tightness regularly. Use proper grounding techniques.

Packing List

One Allen-Bradley 1769-OV16 module. One installation guide. No additional accessories are included. The module ships in a protective box. We ship via Fedex, UPS, or DHL. The shipping weight is 2 lbs. The shipping dimensions are 8x8x5 inches.
