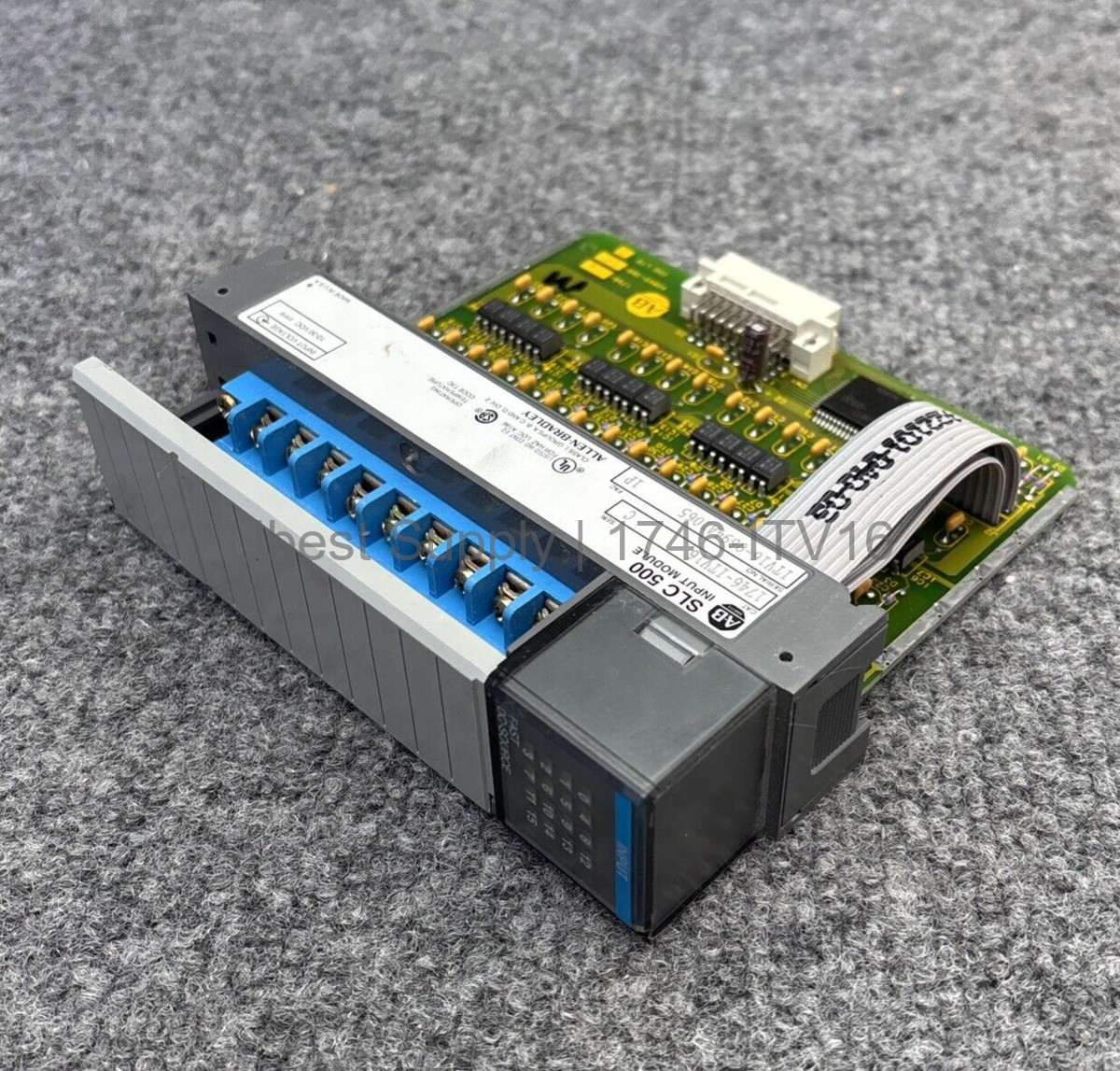

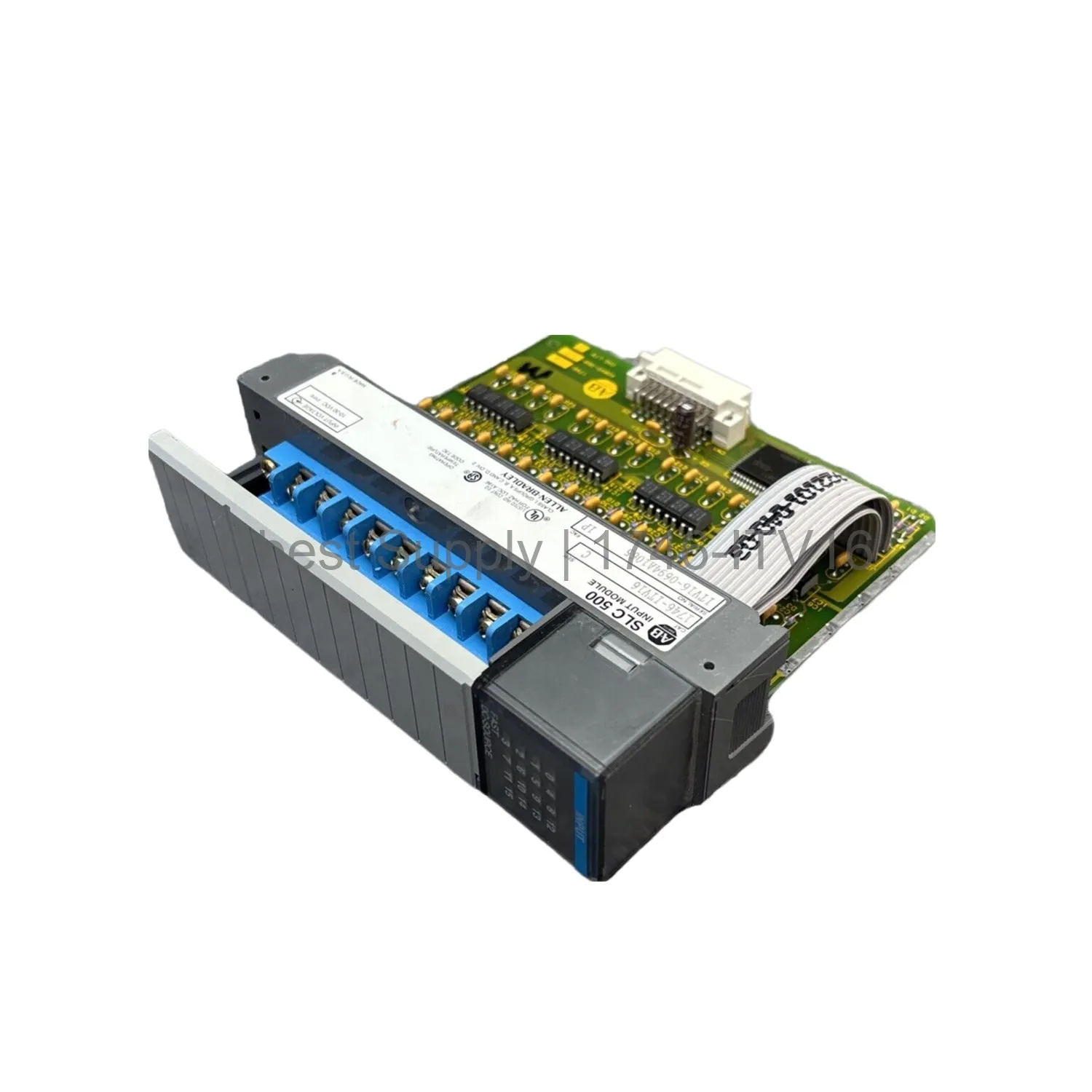

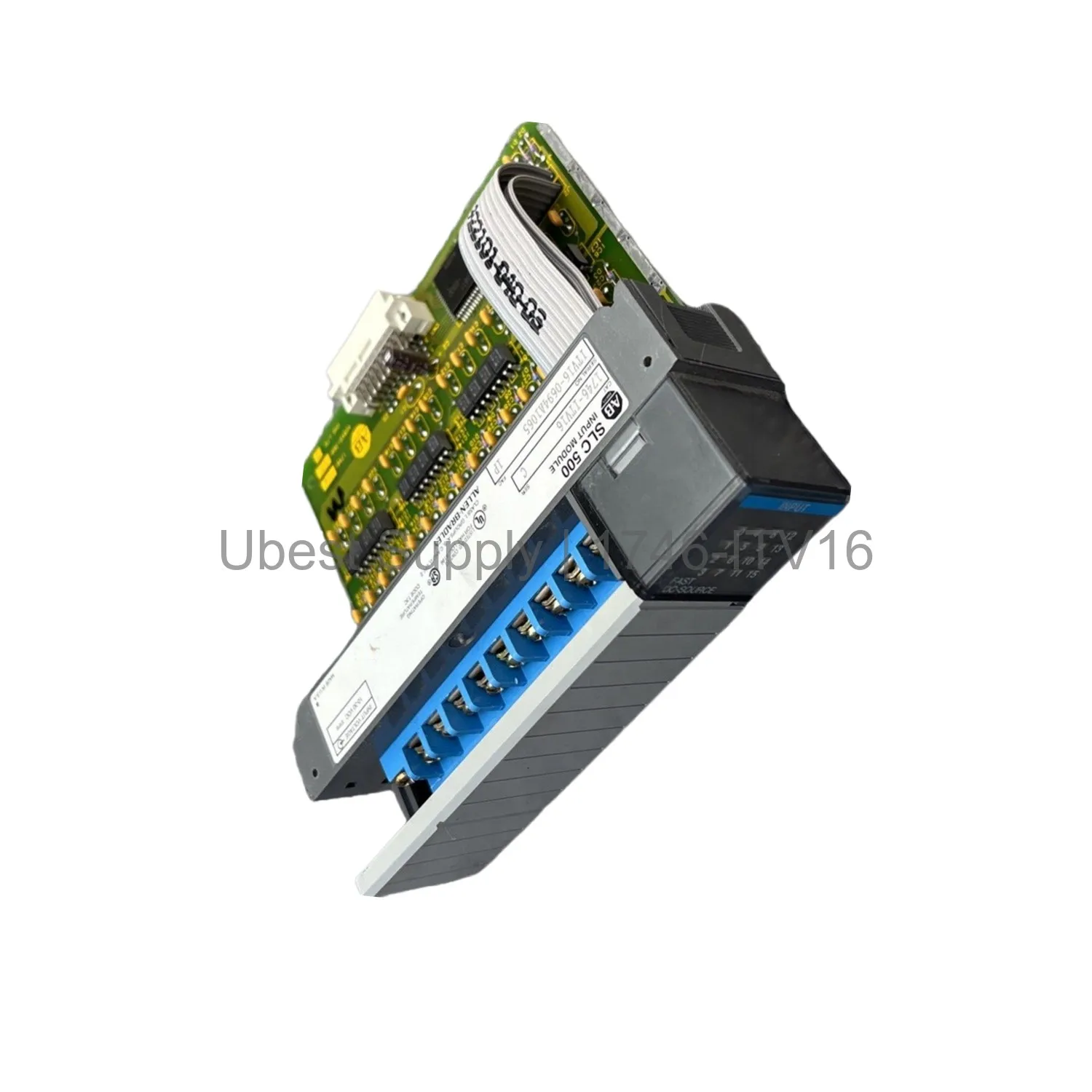

1746-ITV16 Allen-Bradley SLC 500 Fast Response Input Module

Product Overview

The Allen-Bradley 1746-ITV16 is a fast response discrete input module. It belongs to the SLC 500 series. This module offers 16 source inputs. It operates on a 24VDC nominal input voltage. The input voltage range is 10-30 VDC. It provides quick signal processing for industrial applications. The module consumes only 0.085 A from the backplane.

This input module uses a source wiring configuration. It is ideal for high-speed automation tasks. The 1746-ITV16 ensures reliable performance in harsh environments. It delivers precise data to the control system. Engineers trust this module for its durability and speed.

Application Scenarios

This module works well in manufacturing plants. It is perfect for conveyor systems. It handles fast sensor inputs with ease. Use it for packaging machinery. It also suits material handling equipment. The module fits into any SLC 500 chassis.

Automotive assembly lines benefit from its speed. It processes limit switch signals quickly. It also works with proximity sensors. The 1746-ITV16 is common in food processing. It supports high-speed sorting systems. Any 24VDC discrete input application can use it.

Technical Specifications

The module has 16 source inputs. Nominal input voltage is 24VDC. The input voltage range is 10-30 VDC. Nominal input current is 8 mA at 24VDC. Backplane current consumption is 0.085 A. Signal delay is 0.3 ms on and 0.5 ms off. Off-state voltage is 5 VDC maximum. Off-state current is 1.0 mA maximum.

It uses a source wiring configuration. The module is part of the SLC 500 family. It is manufactured by Rockwell Automation. It provides fast response for critical signals. The module is compact and easy to install.

Installation & Maintenance Guide

Install the module into any SLC 500 chassis. Ensure the backplane power is off. Align the module with the slot. Push it firmly until it clicks. Secure it with the locking screws. Connect the field wiring to the terminal block.

Use a 24VDC power supply for the inputs. Check the wiring for proper polarity. Maintain a clean environment around the module. Inspect connections regularly for tightness. Replace the module if it shows damage. Follow standard safety procedures during maintenance.

Packing List

1 x Allen-Bradley 1746-ITV16 fast response input module. 1 x installation manual. 1 x terminal block. No other accessories are included. The module is packed in an anti-static bag. It ships in a sturdy cardboard box. We use Fedex, UPS, or DHL for shipping.
