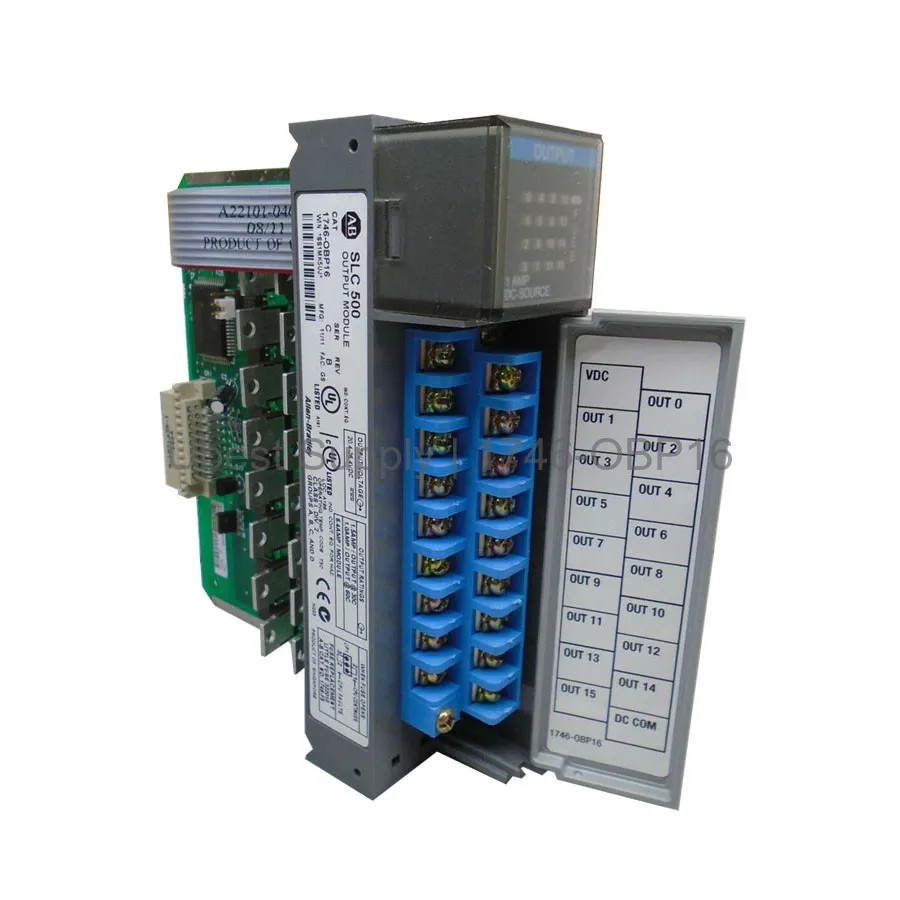

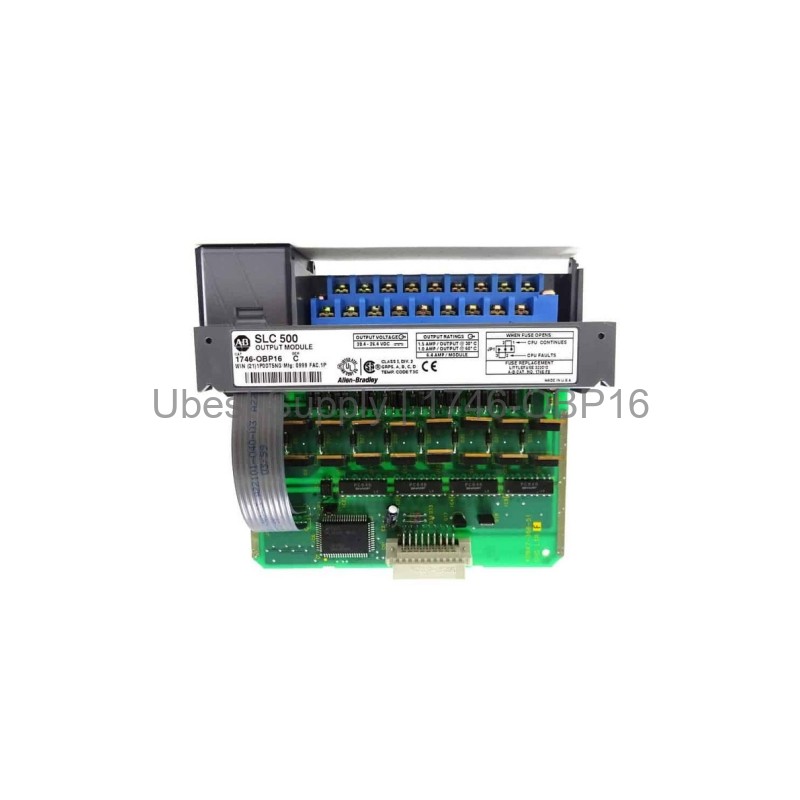

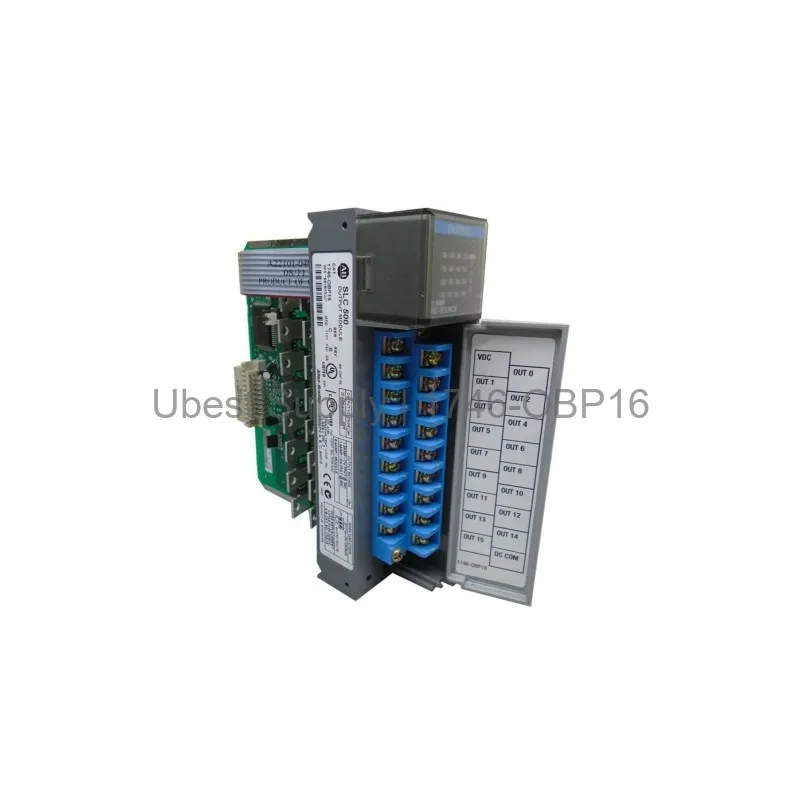

1746-OBP16 SLC 500 16-Point DC Output Module by Allen-Bradley

Product Overview

The 1746-OBP16 is a digital DC output module from Rockwell Automation. It belongs to the SLC 500 product family. This module provides sixteen discrete output channels. It uses a sourcing configuration for 24VDC loads. Each output can handle up to 1.5 amps. The total module current is 6.4 amps. A built-in fuse protects against short circuits. The module fits into a single slot of an SLC 500 chassis. It works with both fixed and modular hardware styles.

Application Scenarios

This module controls industrial actuators and relays. It is ideal for high-current DC loads. Use it in manufacturing and packaging lines. It works well in material handling systems. The 1746-OBP16 also suits automated assembly machines. Its fast response time supports precise control. The sourcing output is common in North American panels. The module integrates easily with existing SLC 500 systems.

Technical Specifications

Outputs: 16 channels. Voltage range: 20.4 to 26.4 VDC. Current per output: 1.5 or 1 amp. Current per module: 6.4 amps. Backplane current at 5V: 250 milliamps. Step response: 60 ms on, 2.5 ms off. Fuse protection: Yes. Compatible fuse: Littelfuse 322010 or 332010, 10A. Fuse kit part number: 1746-F8. Recommended wire size: 14 AWG maximum.

Installation & Maintenance Guide

Install the module into any SLC 500 chassis slot. Ensure the chassis power is off before insertion. Secure the module with the locking screws. Use proper wiring for signal wires. Do not exceed 14 AWG wire size. Connect loads to the output terminals. Check the fuse if outputs fail. Replace the fuse with the specified Littelfuse part. Keep the module free of dust and moisture. Ensure proper ventilation around the chassis.

Packing List

1 x 1746-OBP16 SLC 500 Output Module. 1 x Installation Instructions Document. The module ships in anti-static packaging. We ship via FedEx, UPS, or DHL. Contact us for bulk order options.
