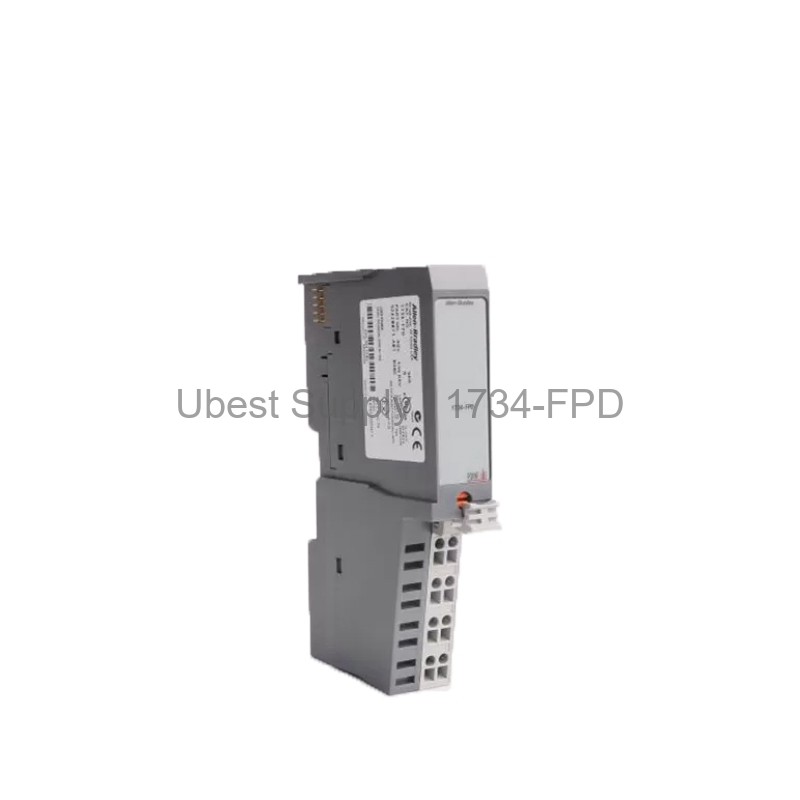

Allen-Bradley 1734-FPD POINT I/O Field Power Distributor

Product Overview

The 1734-FPD is a field-side voltage distribution module. It belongs to the Allen-Bradley POINT I/O series. This module breaks down field power distribution. It has no power consumption, thermal dissipation, or power dissipation. The unit works with AC or DC voltage. The working voltage ranges are 10-28.8V DC or 120-240V AC. The continuous isolation voltage is 50V tested at 2600V DC for 60s.

Application Scenarios

Use the 1734-FPD in industrial control panels. It distributes field power to I/O modules. It supports various networks like ControlNet, DeviceNet, and EtherNet/IP. The module is ideal for automation systems requiring reliable power distribution. It mounts horizontally or vertically. The open-style enclosure suits many environments.

Technical Specifications

• Power Supply Input: 12/24 Volts DC or 120/240 Volts AC
• Field Power Supply Current: 10 amps
• Isolation Voltage: 250 Volts Continuous
• Operating Temperature: -20 to 55 °C
• Dimensions: 76.2 mm x 25.4 mm x 133.4 mm
• Weight: 0.12 kg
• Wire Size: 0.25-2.5 mm² (22 AWG - 14 AWG)
• Terminal Base Screw Torque: 0.6 Nm (7 lb-in)
• Enclosure Type: Open-style

Installation & Maintenance Guide

Install the module on a DIN rail. Use horizontal or vertical orientation. Connect wires using a removable terminal block (RTB) with terminal handle. Use copper wire rated at 75 °C. Tighten screws to 0.6 Nm. The module draws power from the field power bus. No additional power supply needed. Regular inspection is recommended. Keep the environment clean and dry.

Packing List

• 1 x 1734-FPD Field Power Distributor
• 1 x Removable Terminal Block (RTB)
• 1 x Terminal Handle

Shipping via Fedex, UPS, or DHL.
