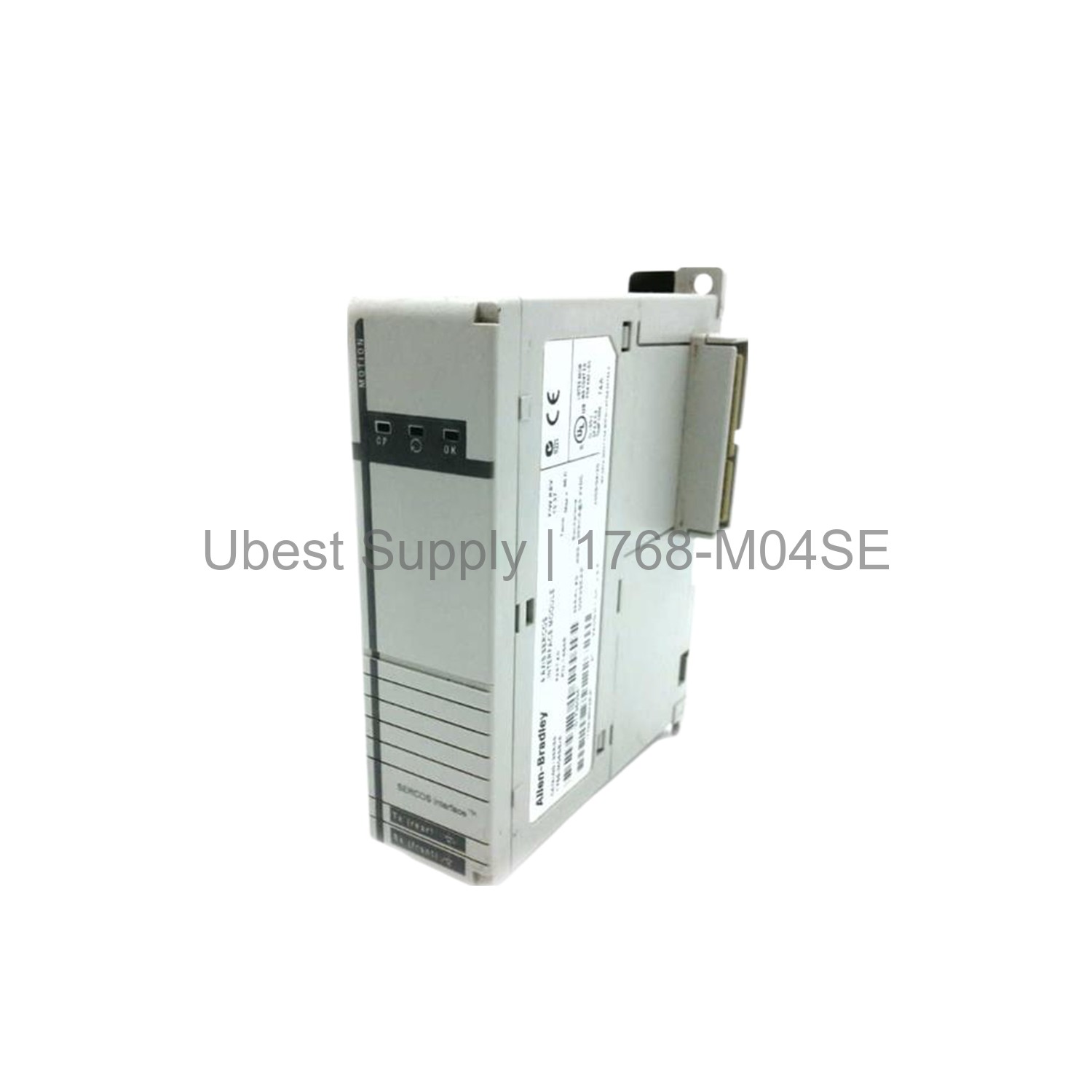

1768-M04SE Allen-Bradley CompactLogix SERCOS Interface Module

Product Overview

The 1768-M04SE is a SERCOS interface module from Allen-Bradley. It fits into the CompactLogix platform. This module controls up to four Kinetix drives. It supports 4 Mbps and 8 Mbps data rates. Cycle times range from 0.5 ms to 1 ms. The module uses fiber-optic cables for drive connections. It works with plastic or glass cables. The module supports position or velocity control modes. It draws 969 mA at 5.2 VDC. Power dissipation is 5.04 W. The module features electronic keying for safety.

Application Scenarios

Use this module for multi-axis motion control. Integrate it with Kinetix 2000, 6000, 7000, and Ultra 3000 drives. It synchronizes axes in packaging, printing, or material handling. The 1768-M04SE works with 1768-L43 and 1768-L45 controllers. It handles up to four drives with fast update times. This module suits applications needing high precision and speed.

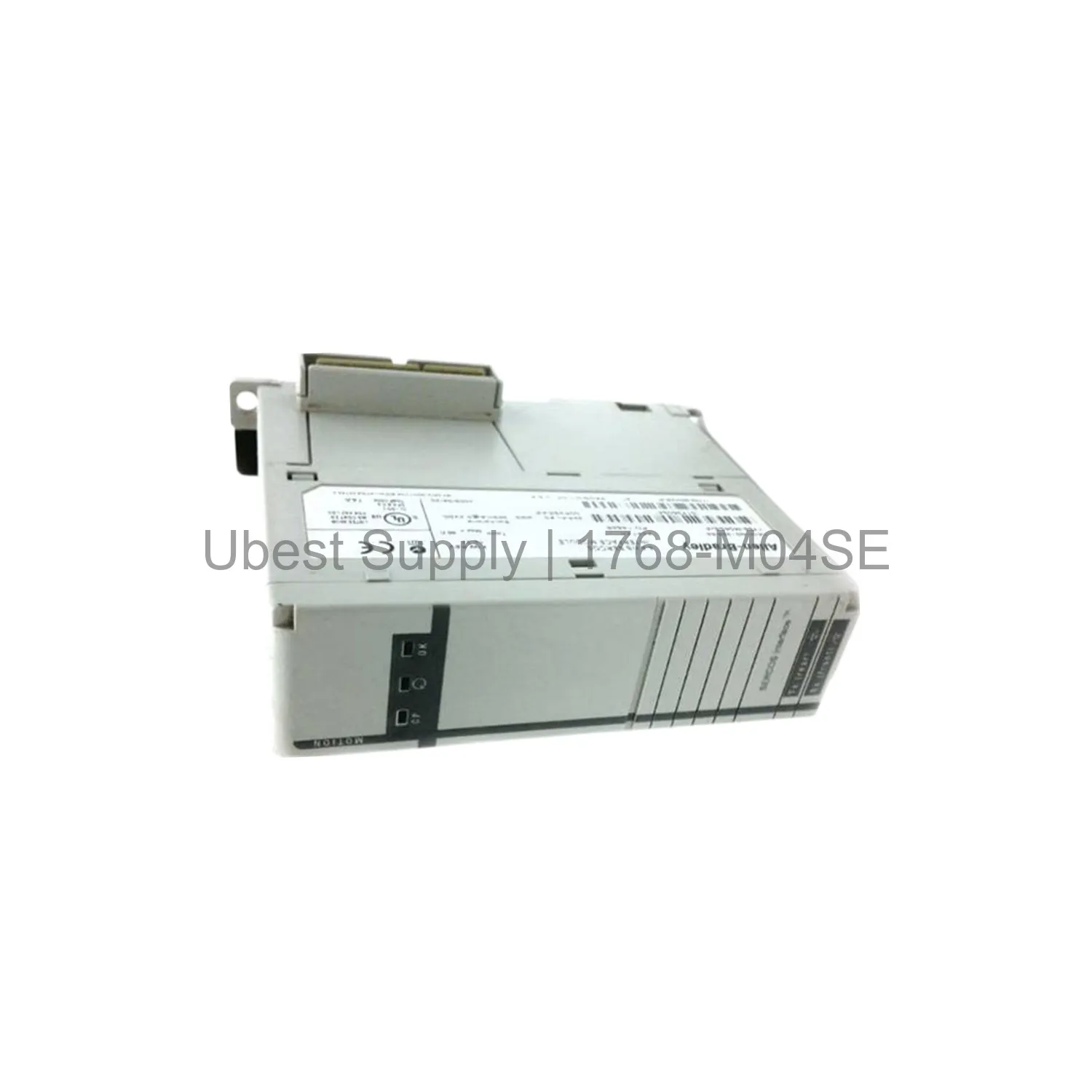

Technical Specifications

• Data Rates: 4 Mbps and 8 Mbps
• Cycle Times: 0.5 ms (2 drives @4M), 1 ms (4 drives @4M), 0.5 ms (4 drives @8M)
• Number of Drives: Up to 4
• Control Modes: Position or Velocity
• Backplane Current: 969 mA @5.2 VDC, 0 mA @24 VDC
• Power Dissipation: 5.04 W
• Fiber Optic Connector: F-SMA screw-type
• Slot Width: Single slot
• Weight: 0.2 kg
• Isolation Voltage: 30 V continuous
• Enclosure: Open
• UPC: 10612598307552

Installation & Maintenance Guide

Mount the module on a DIN rail or panel. Ensure proper grounding. Use compatible fiber-optic cables. Connect the transmit and receive fibers to the drives. Configure the module using RSLogix 5000 software. Set the data rate and cycle time. Verify communication with the drives. Keep fiber connections clean. Do not bend cables beyond listed radii. The module supports mounting hardware included in the package.

Packing List

One 1768-M04SE SERCOS interface module. Includes mounting hardware. No fiber-optic cables included. Order cables separately as needed. Shipping via FedEx, UPS, or DHL.
