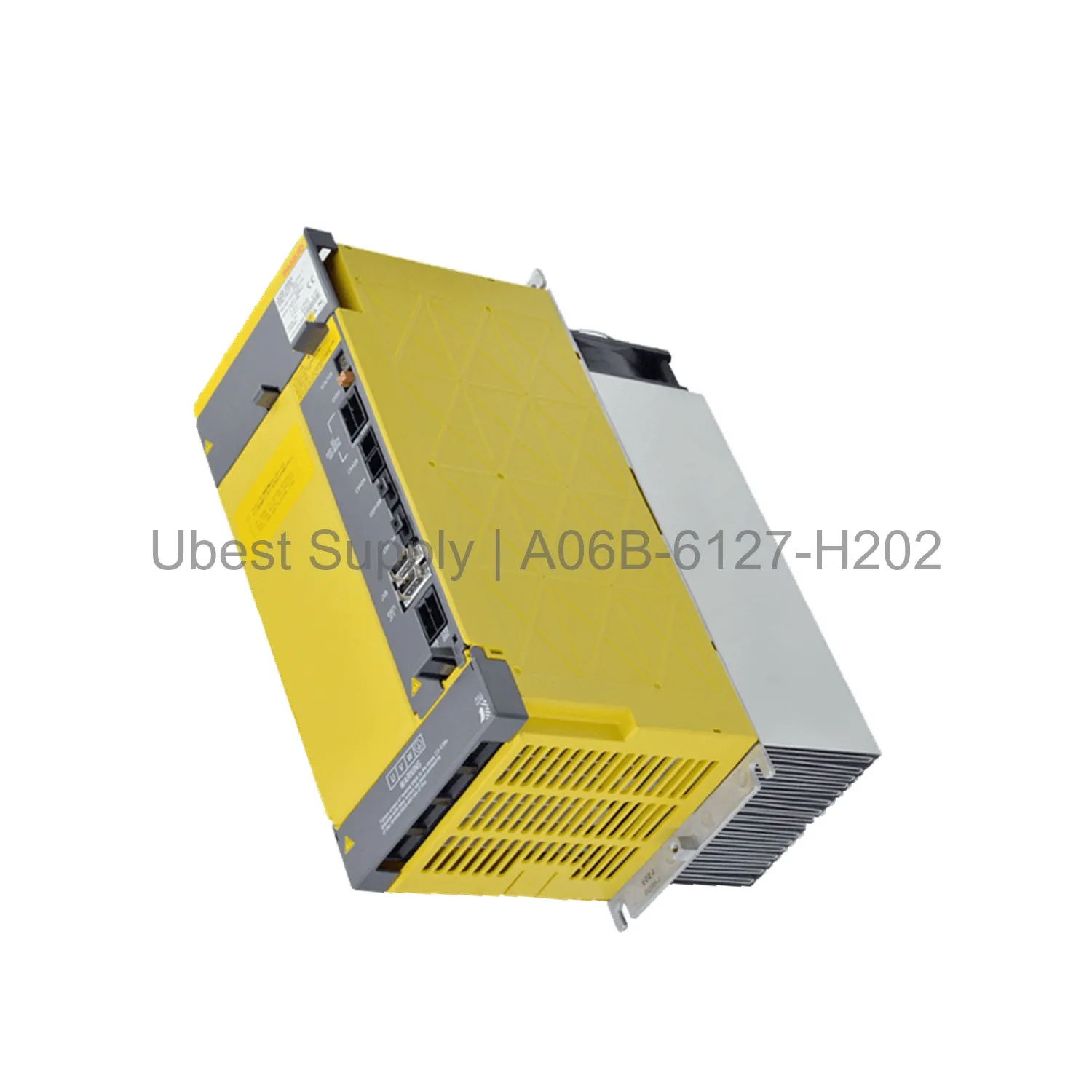

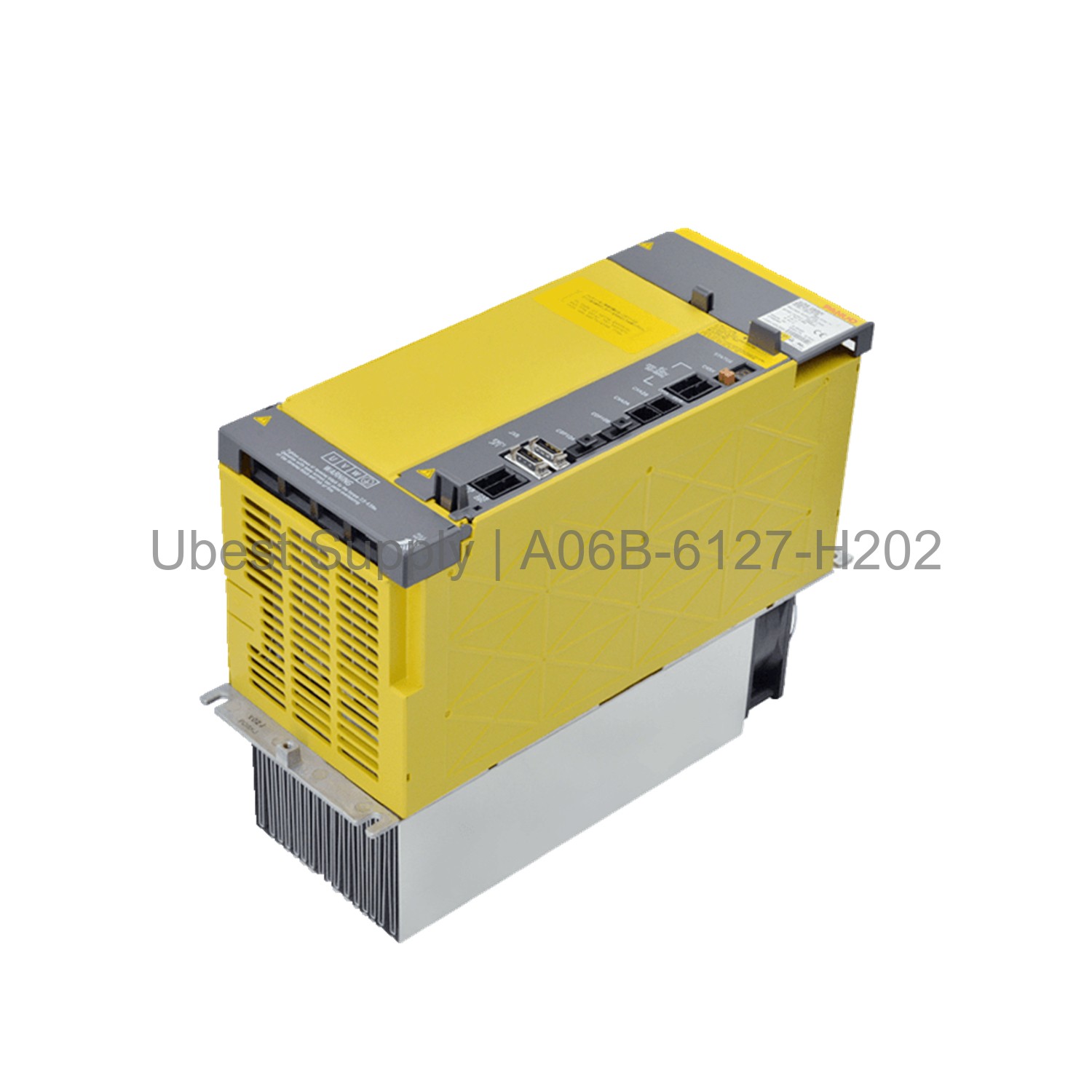

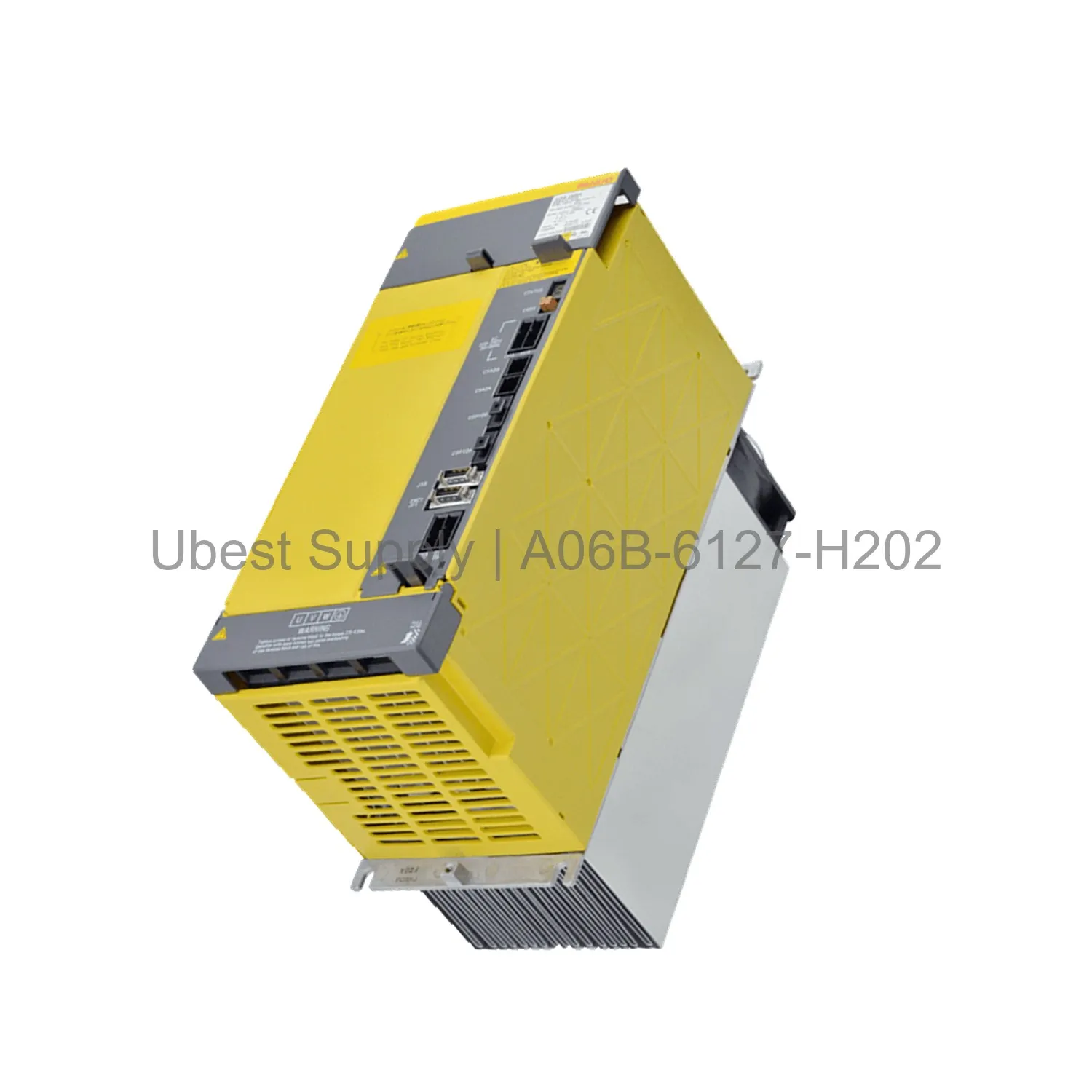

FANUC A06B-6127-H202 Dual Axis Servo Amplifier 3.1A 480V

Product Overview

The FANUC A06B-6127-H202 is a dual axis servo amplifier module. It provides precise control for industrial automation. This unit supports HRV2 and HRV3 communication protocols. You can use it with AC servo motors. The module operates at 480V input voltage. It delivers 3.1 amps per axis. The A06B-6127-H202 is a compact two-axis design. It fits many machine tool applications.

Application Scenarios

This servo amplifier works in CNC machines. It controls two axes simultaneously. You can use it in milling machines and lathes. It also suits robotic arms and pick-and-place systems. The HRV2 and HRV3 support ensures high-speed communication. The module handles dynamic loads with ease. Many factories rely on this FANUC model for motion control.

Technical Specifications

Input voltage: 400VAC three-phase. Output voltage: up to 480V. Rated output current: 3.1 A per axis. Supports HRV2 and HRV3 serial interfaces. The module is a two-axis servo amplifier. It is part of the FANUC AISV series. The model number is A06B-6127-H202. The unit weighs approximately 4.5 kg. Dimensions are standard for FANUC servo drives.

Installation & Maintenance Guide

Install the module in a dry, ventilated cabinet. Ensure the input power matches 400VAC. Connect the DC bus to the power supply. Attach the motor cables to the correct terminals. Do not expose the unit to condensation. Keep ambient temperature below 55°C. Check all connections before powering up.

Packing List

One FANUC A06B-6127-H202 servo amplifier module. Included are mounting screws and a manual. The package is sealed in an anti-static bag. Shipment uses FedEx, UPS, or DHL services. The unit is new and ready for installation.
