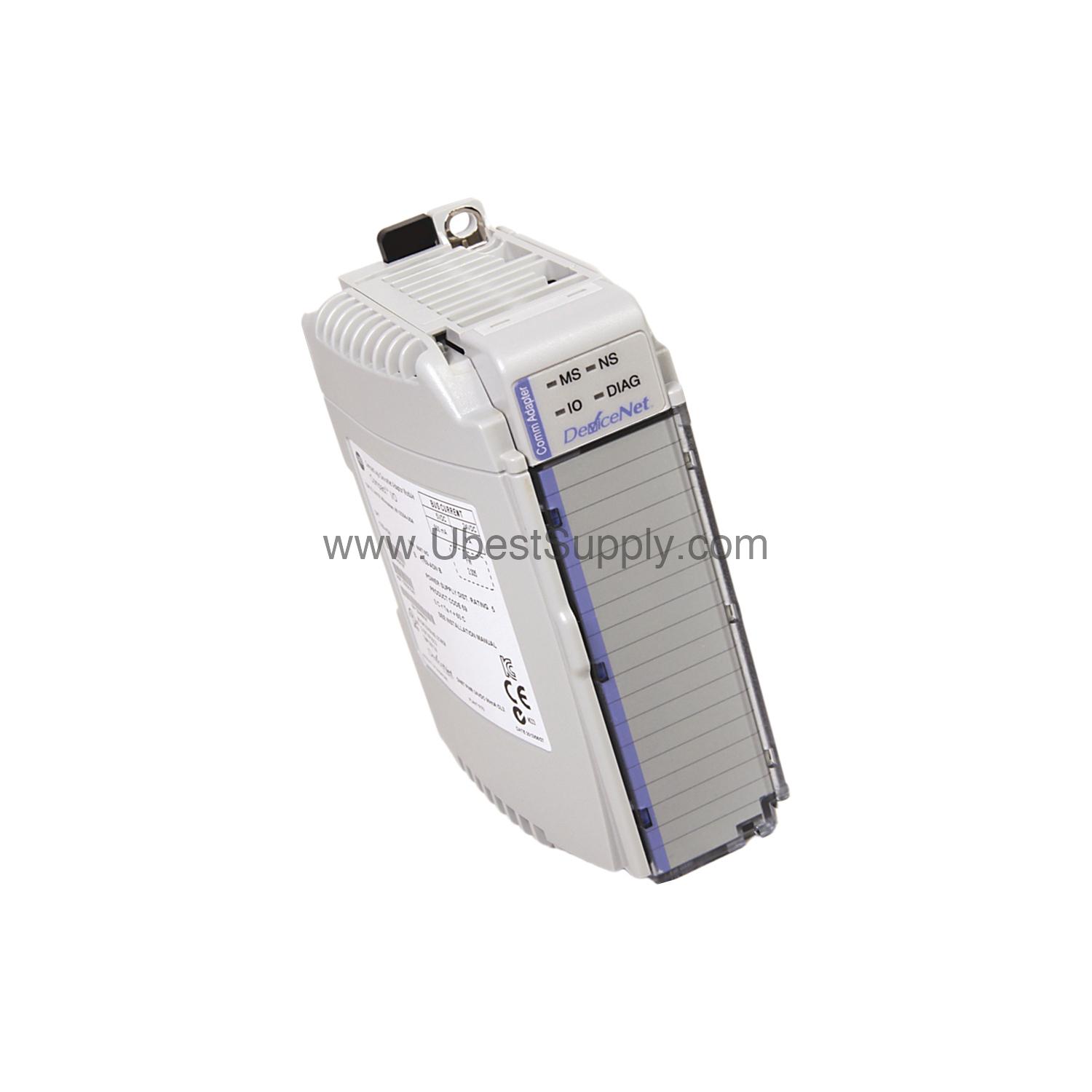

1769-IF8 | Allen-Bradley Analog Input Module Supplier

When Signal Integrity Demands Precision: The 1769-IF8 Solution

In industrial automation, analog signal degradation can lead to costly process errors. The 1769-IF8 from Allen-Bradley addresses this challenge directly. It is an analog input module with eight input channels that accept both differential and single-ended wiring. This module converts 0-21 mA current signals and ±10 VDC voltage signals into digital data for your control system. As a result, it ensures reliable communication between field devices and your CompactLogix or MicroLogix 1500 controller.

Core Specifications of the 1769-IF8

Every technical detail of the 1769-IF8 is engineered for accuracy. Below are the key parameters from the datasheet:

• Eight analog input channels, configurable as differential or single-ended.
• Current signal normal ranges: 0-20 mA and 4-20 mA.
• Voltage signal normal ranges: ±10V DC, 0-10V DC, 0-5V DC, and 1-5V DC.
• Resolution: 16 bits (unipolar) or 15 bits plus sign (bipolar).
• Backplane current draw: 120 mA at 5V DC and 70 mA at 24V DC.
• Heat dissipation: 3.64 Watts during operation.
• Overall accuracy: ±0.2% for voltage signals and ±0.35% for current signals.
• Channel diagnostics include over- or under-range bit reporting and process alarms.

These specs allow the module to capture analog data with minimal error, even in electrically noisy environments.

Real-World Applications for the 1769-IF8

Manufacturing plants frequently rely on analog sensors for temperature, pressure, and flow monitoring. The 1769-IF8 integrates seamlessly into these systems. For example, in a water treatment facility, it can read 4-20 mA signals from pressure transmitters. The module then converts these signals into digital values for the PLC. This setup reduces wiring complexity because each channel supports both differential and single-ended inputs. Moreover, the module’s 16-bit resolution ensures fine granularity for precise control loops.

Installation and Setup Guidance

Proper installation of the 1769-IF8 begins with power supply distance. The module has a distance rating of eight modules from the CompactLogix power supply. This ensures adequate backplane power delivery. Use copper wire rated for 90°C with sizes from 22 to 14 AWG (solid). For signal wiring, Belden 8761 shielded cable is recommended. The replacement terminal block is catalog number 1769-RTBN18. Always verify that the module is mounted securely in the chassis and that all connections are tight before powering up.

Maintenance and Reliability Tips

To maintain long-term accuracy, inspect the 1769-IF8 periodically. Check for signs of condensation, as the module operates at up to 95% relative humidity (non-condensing). The operating temperature range is 0 to 60°C. Keep the enclosure clean and free of dust. Because the module performs automatic self-diagnostics, monitoring the FAULT indicator light can alert you to over- or under-range conditions. Regular inspection helps prevent unexpected downtime.

Compatibility and Integration

The 1769-IF8 is part of the CompactLogix product line. It is compatible with CompactLogix controllers and the MicroLogix 1500. The module communicates over the backplane, so no external network configuration is needed. It supports both series A and B revisions. If you are upgrading an existing system, the 1769-IF8 can replace older analog input modules without major rewiring, thanks to its standard terminal block.

Frequently Asked Questions About the 1769-IF8

Q: How many input channels does the 1769-IF8 have?

A: The module has eight input channels that can be configured as differential or single-ended.

Q: What voltage ranges does the 1769-IF8 accept?

A: It accepts ±10V DC, 0-10V DC, 0-5V DC, and 1-5V DC as normal ranges.

Q: What is the resolution of the 1769-IF8?

A: The resolution is 16 bits for unipolar signals and 15 bits plus sign for bipolar signals.

Q: Can the 1769-IF8 be used with a MicroLogix 1500?

A: Yes, it is compatible with MicroLogix 1500 controllers and CompactLogix systems.

Q: What is the power supply distance rating for this module?

A: The distance rating is eight modules from the CompactLogix power supply.

Q: Does the 1769-IF8 provide channel diagnostics?

A: Yes, it reports over- or under-range conditions via bit reporting and can process alarms.

Product Support and Availability

The 1769-IF8 is in stock and ready to ship from Petro Auto Tech. As a trusted industrial automation parts supplier, Petro Auto Tech offers this module with fast delivery. For lifecycle status, please verify with Petro Auto Tech before ordering to ensure it meets your project requirements.
