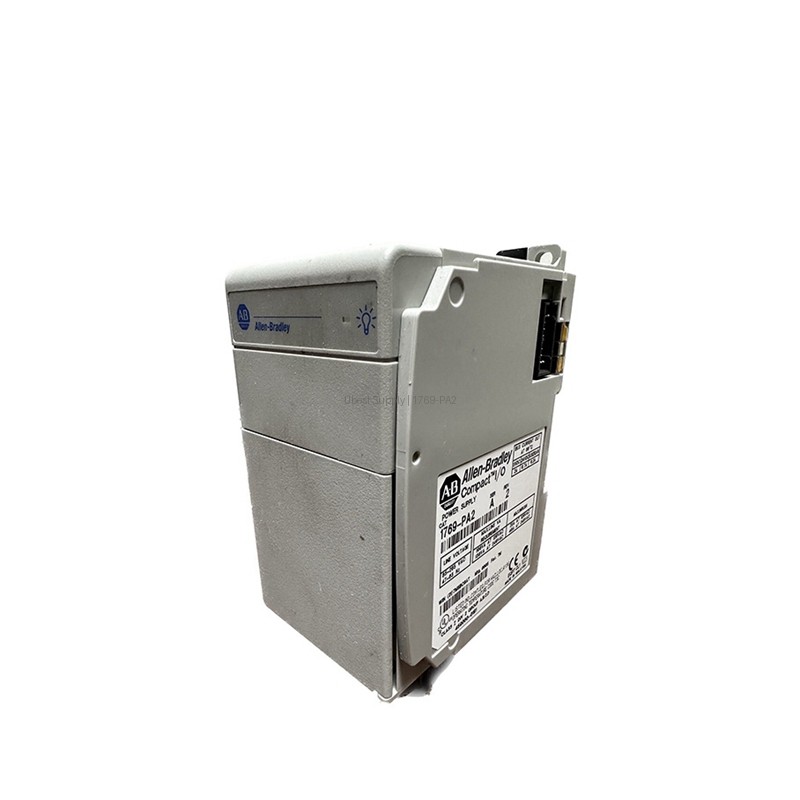

1769-PA2 AC Power Supply Module | Allen-Bradley CompactLogix

Product Overview

The Allen-Bradley 1769-PA2 is an AC power supply module. It belongs to the CompactLogix product line. This unit delivers reliable power to your I/O modules. It accepts a wide input voltage range. The module supports 85 to 265V AC. It provides stable 5V DC and 24V DC outputs. This power supply is an open-style device. It is designed for industrial control cabinets.

Application Scenarios

This power supply works in many industrial settings. Use it in factory automation systems. It powers CompactLogix I/O modules. It is ideal for material handling lines. It supports packaging machinery controls. It also works in process control applications. The wide input range suits global installations. It handles fluctuating power conditions well.

Technical Specifications

The 1769-PA2 has a power consumption of 100VA at 120V AC. It consumes 130VA at 240V AC. Its power dissipation is 8 W at 60 °C. The module delivers 2.0 A at 5V DC. It also provides 0.8 A at 24V DC. The maximum inrush current is 25 A at 132V AC. It uses a Littelfuse 02153.15MXP fuse. It also uses a Wickmann 19195-3.15A fuse. The unit weighs 525 grams. Its dimensions are 118 x 70 x 87 mm.

Installation & Maintenance Guide

Mount the module on a DIN rail. Use copper wire rated for 90 °C. Solid wire size can be 22 to 14 AWG. Stranded wire size can be 22 to 16 AWG. Use 14 AWG solid copper wire for best results. Ensure proper spacing for airflow. The power supply distance rating is 8. Check the fuse periodically. Replace it only with the specified type. Do not expose the unit to moisture.

Packing List

Your shipment includes one Allen-Bradley 1769-PA2 module. It also includes a quick start guide. No additional cables are included. The package weight is 2 pounds. The shipping dimensions are 8 x 8 x 5 inches. We ship via FedEx, UPS, or DHL.
