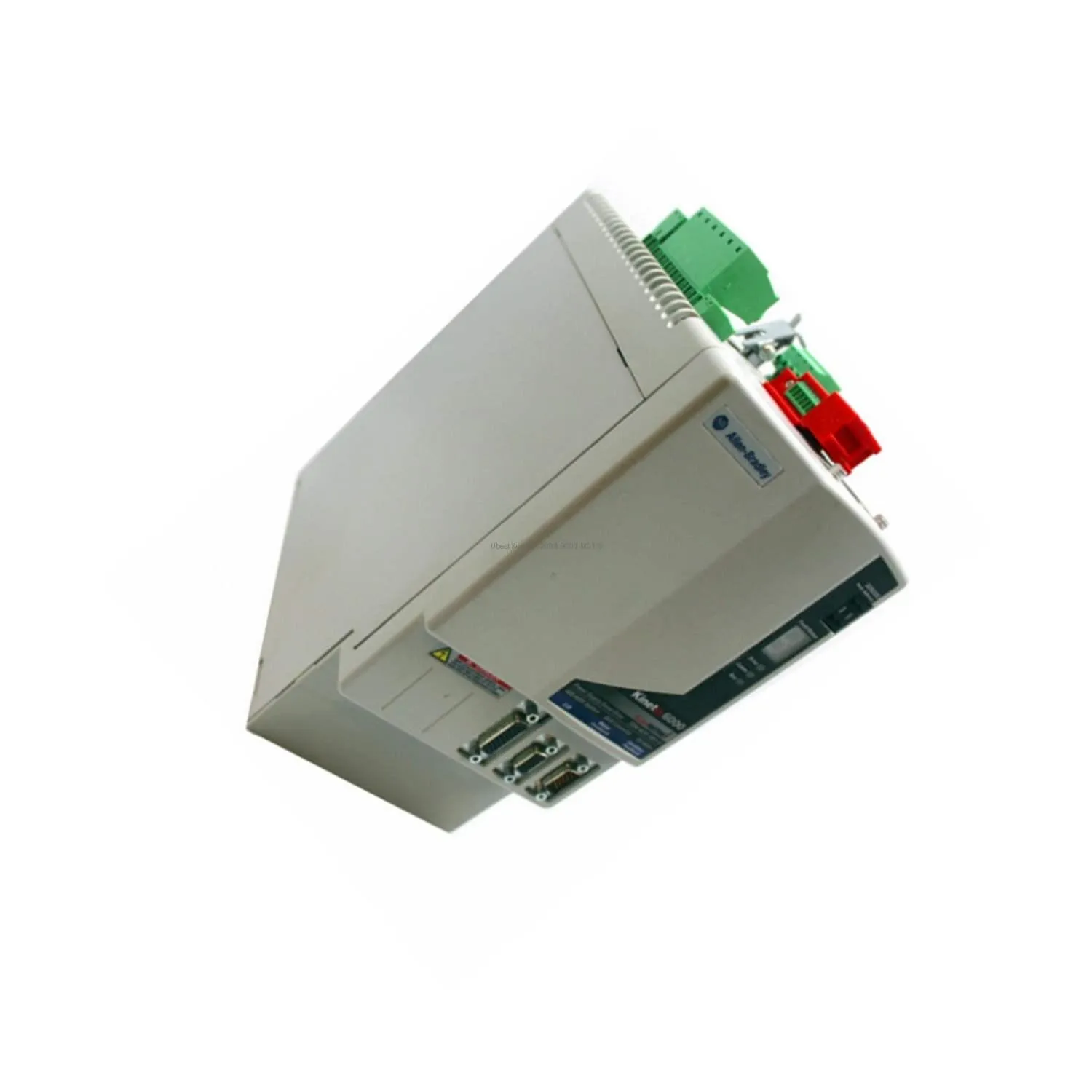

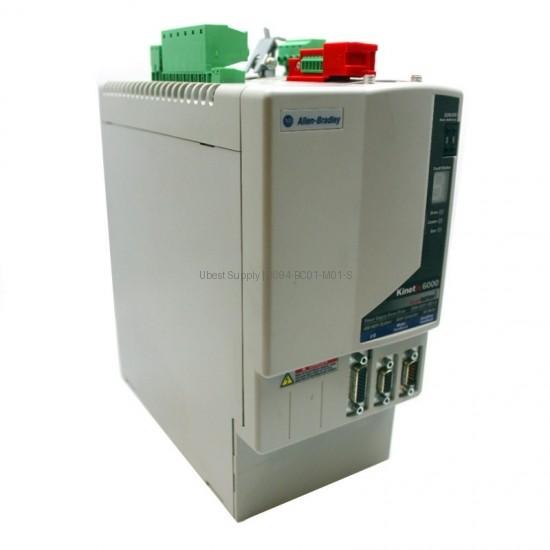

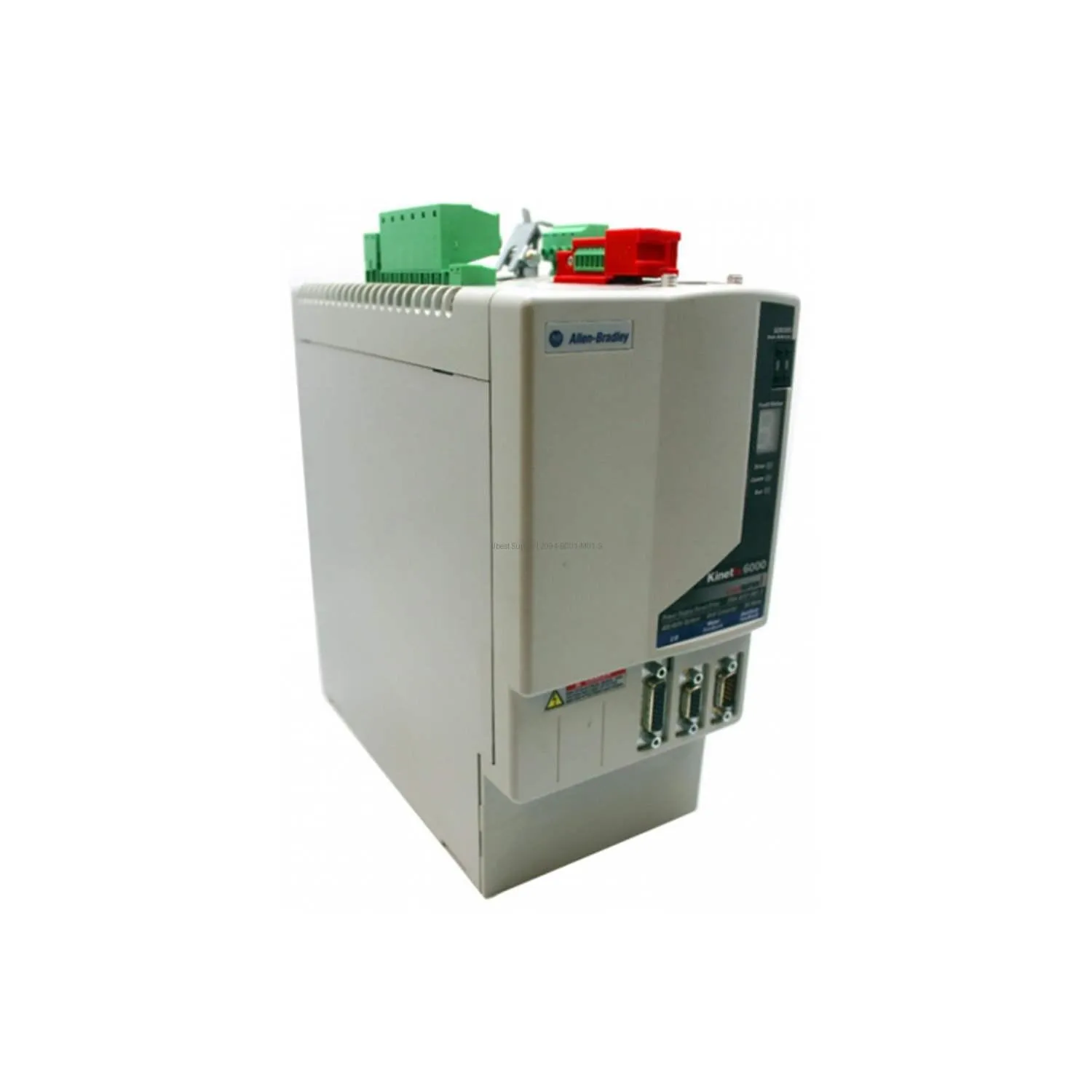

Integrated Axis Module Allen-Bradley 2094-BC01-M01-S Kinetix 6000

Product Overview

The Allen-Bradley 2094-BC01-M01-S is an Integrated Axis Module. It belongs to the Kinetix 6000 product line. This module is a multi-axis servo drive. It converts AC power to DC bus power. The device delivers 6 kW of continuous power. Its peak power output reaches 12 kW. The module supports a nominal input of 480 VAC. It offers a high efficiency rating of 97%. This unit includes Safe Torque-Off (STO) functionality. The STO meets ISO 13849-1 PLe/SIL3 standards. It is designed for reliable industrial motion control.

Application Scenarios

This module works in high-performance automation systems. It is ideal for packaging machinery applications. It also suits material handling equipment. The drive module powers multi-axis motion control. It is perfect for converting and distributing DC bus power. Use it in systems requiring precise speed and torque control. It fits seamlessly into Kinetix 6000 drive systems. The module supports demanding industrial environments.

Technical Specifications

The AC input voltage range is 324 to 528 Vrms. It requires a 3-phase power supply. The nominal AC input is 360 or 480 VAC. The DC input voltage ranges from 458 to 747 VDC. Continuous power output to the bus is 6 kW. Continuous output current to the bus is 9 A. Peak power output is 12 kW. The bus overvoltage threshold is 425V DC. The bus undervoltage threshold is 275V DC. The line frequency range is 47 to 63 Hz. The converter power rating is 6 kilowatts. The inverter power rating is 9 amperes. The wattage is 3.9 kW.

Installation & Maintenance Guide

Mount this module on a Power Rail. Ensure a minimum enclosure depth of 198 mm. Maintain a 50.8 mm clearance for airflow. The unit weighs 11.1 pounds. Use proper lifting techniques during installation. Follow all local electrical codes. Ensure the power is off before connecting wires. Check all connections for tightness regularly. Keep the module free from dust and debris. Do not block ventilation openings.

Packing List

The package includes one Integrated Axis Module. It also contains the installation manual. Standard mounting hardware is included. The unit is packed in anti-static material. All items are secured for safe transit.
