1792D-CB18 | Allen-Bradley I/O Cable Base - Petro Auto Tech

Product Overview

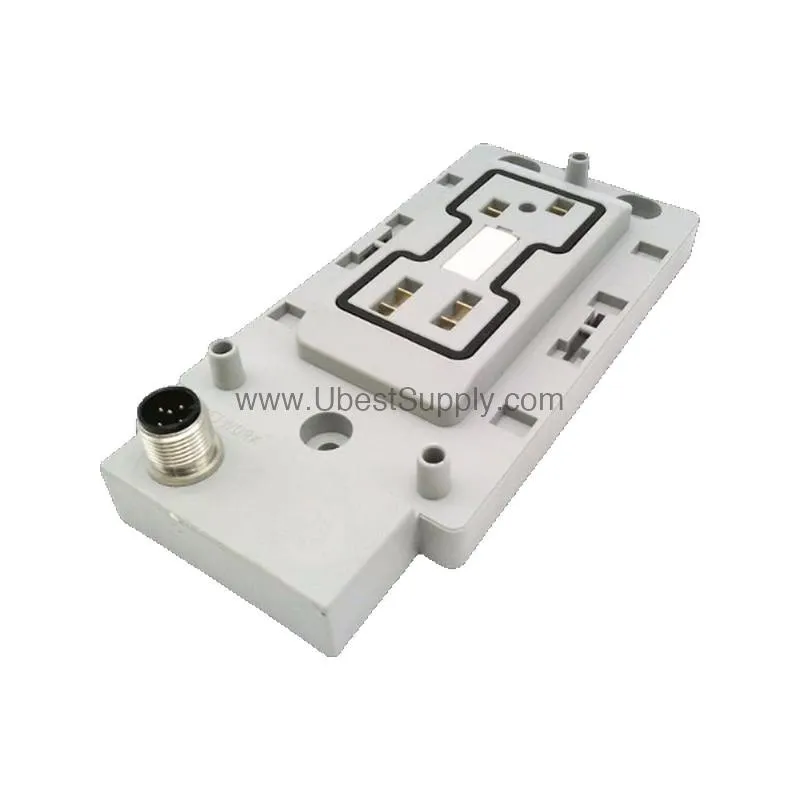

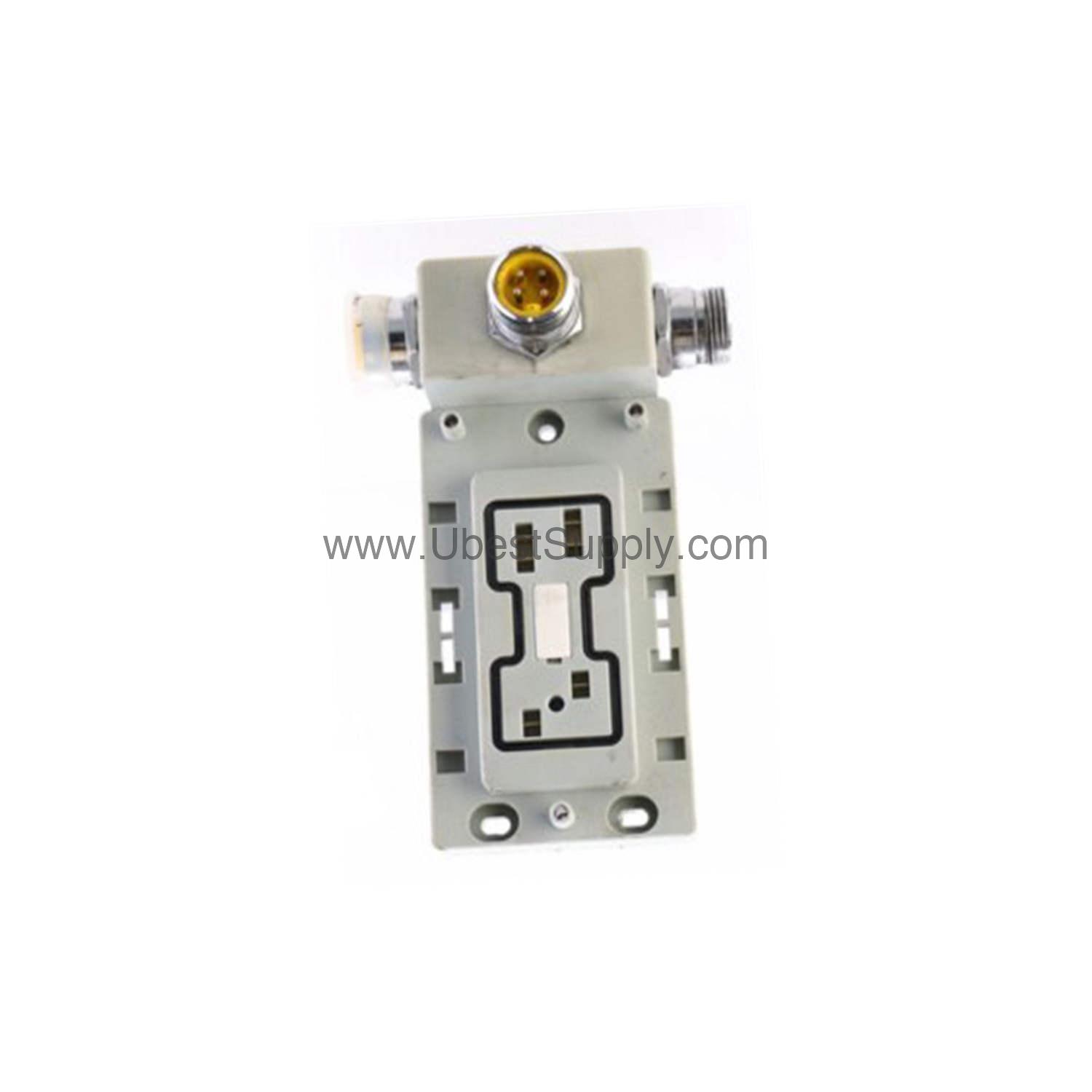

The 1792D-CB18 is an I/O cable base from Allen Bradley, part of the 1792D ArmorBlock MaXum I/O series. This base supports 4-point and 8-point I/O modules without requiring an enclosure, offering flexible installation options for industrial automation systems.

Technical Specifications Analysis

The 1792D-CB18 features an 18mm base structure and weighs 3.00 lbs (1.36 kg). It is compatible with both 4-point and 8-point modules, and supports trunk cable and drop cable installations. The base allows vertical or horizontal mounting using three mounting screws. Its design eliminates the need for an enclosure, simplifying setup.

Application Scenarios & Usage Methods

This I/O cable base suits discrete manufacturing lines where space is limited. Use it to connect sensors and actuators in packaging or material handling systems. For trunk cable setups, run the main cable along the machine frame and connect drop cables to each base. In drop cable configurations, link the base directly to a controller for point-to-point wiring. The 1792D-CB18 works well in both fixed and moving equipment sections due to its flexible mounting options.

Installation Guide & Packing List

Mount the base on a flat surface using three screws. Ensure the mounting surface is clean and free of debris. For vertical mounting, position the base with the cable entry facing downward to prevent moisture ingress. For horizontal mounting, align the base parallel to the cable path. The package includes the 1792D-CB18 I/O cable base and mounting screws. No additional enclosure is required.

Purchasing Advice

Select the 1792D-CB18 if you need a compact I/O base for 4-point or 8-point modules in harsh environments. Its 18mm base and enclosure-free design reduce installation complexity. Petro Auto Tech offers this base with reliable sourcing and fast delivery. Verify compatibility with your existing ArmorBlock MaXum modules before ordering.

Repair & Maintenance Tips

Inspect the base regularly for loose screws or cable connections. Clean the base with a dry cloth to remove dust and debris. Avoid exposing the base to excessive moisture or corrosive chemicals. Replace damaged cables promptly to maintain signal integrity. Store spare bases in a dry, temperature-controlled environment.

Frequently Asked Questions (FAQs)

Q: What modules are compatible with the 1792D-CB18?

A: The base supports both 4-point and 8-point I/O modules from the ArmorBlock MaXum series.

Q: Does the 1792D-CB18 require an enclosure?

A: No, the base is designed to operate without an enclosure, simplifying installation.

Q: How do I mount the 1792D-CB18?

A: Use three screws to mount the base vertically or horizontally on a flat surface.

Q: What cable types does the base support?

A: It supports both trunk cable and drop cable installations.

Q: What is the weight of the 1792D-CB18?

A: The base weighs 3.00 lbs (1.36 kg).
