Product Overview

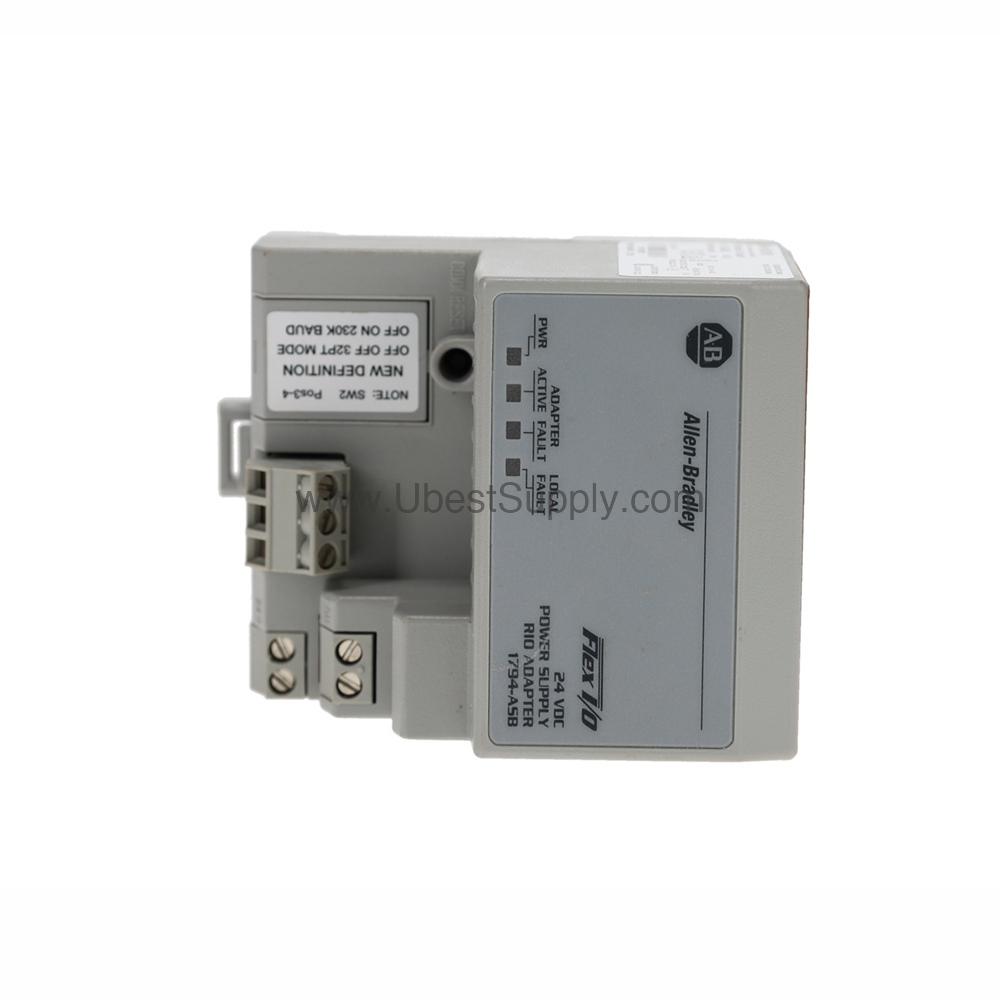

The 1794-ASB is an Allen-Bradley Flex I/O communication adapter designed for remote I/O applications. This DIN rail-mounted device connects Flex I/O racks to RIO-capable controllers, supporting legacy and modern automation platforms. With a compact form factor and robust communication capabilities, the 1794-ASB enables efficient distributed I/O architectures in industrial environments.

Technical Specifications Analysis

The 1794-ASB operates with an input voltage of 19.2 - 31.2 VDC and consumes 330 mA at 24V DC. It supports communication rates of 57.6 Kbps, 115.2 Kbps, and 230.4 Kbps via a single RIO port. The adapter dissipates 4.6 W at 31.2V DC and has a thermal dissipation of 15.7 BTU/hr at 24V DC. It operates in temperatures from 0 to 55 C and stores from -40 to 85 C. The enclosure is IP20, open type, requiring installation in a protective cabinet. The module weighs 0.38 lbs (0.17 kg) and mounts on a standard DIN rail.

Application Scenarios & Usage Methods

In a manufacturing plant, the 1794-ASB connects remote I/O modules to a PLC-5 controller over RIO network, enabling real-time data acquisition from sensors and actuators. For a water treatment facility, it links Flex I/O modules to a ControlLogix system, supporting up to 8 modules per adapter for distributed monitoring. Use Block Transfer Read (BTR) and Block Transfer Write (BTW) instructions to exchange data packets simultaneously or sequentially, depending on speed requirements.

Installation Guide & Packing List

Mount the 1794-ASB on a standard DIN rail inside an appropriate enclosure to protect against industrial contaminants. Connect the RIO port using Belden 9463 or equivalent cable. Ensure the external power supply provides 450 mA at 24 Volts DC. The package typically includes the 1794-ASB adapter module only; Flex I/O modules, power supply, and cables are sold separately.

Purchasing Advice

When selecting the 1794-ASB, verify compatibility with your controller platform (e.g., FlexLogix, PLC-5, SLC 500) and confirm the required communication rate. The adapter supports up to 8 modules, so plan your I/O count accordingly. Petro Auto Tech offers genuine Allen-Bradley 1794-ASB units with fast shipping and expert support. Choose series D or later for use with Flex Integral analog modules.

Repair & Maintenance Tips

Regularly inspect the 1794-ASB for dust accumulation and ensure the enclosure remains sealed. Check the RIO cable for wear or damage, replacing with Belden 9463 or equivalent if needed. Verify the power supply voltage stays within 19.2 - 31.2 VDC to avoid damage. Store spare units in a clean, dry environment within the storage temperature range of -40 to 85 C.

Frequently Asked Questions (FAQs)

Q: What communication protocols does the 1794-ASB support?

A: The 1794-ASB supports the RIO protocol with communication rates of 57.6 Kbps, 115.2 Kbps, and 230.4 Kbps.

Q: How many Flex I/O modules can the 1794-ASB support?

A: The 1794-ASB supports installation of up to eight Flex I/O modules.

Q: What is the operating temperature range of the 1794-ASB?

A: The 1794-ASB operates in temperatures from 0 to 55 C (32 to 131 F).

Q: Does the 1794-ASB require an external power supply?

A: Yes, the 1794-ASB requires an external power supply of 450 mA at 24 Volts DC.

Q: What type of cable is recommended for the RIO connection?

A: The recommended cable is Belden 9463 or equivalent.
