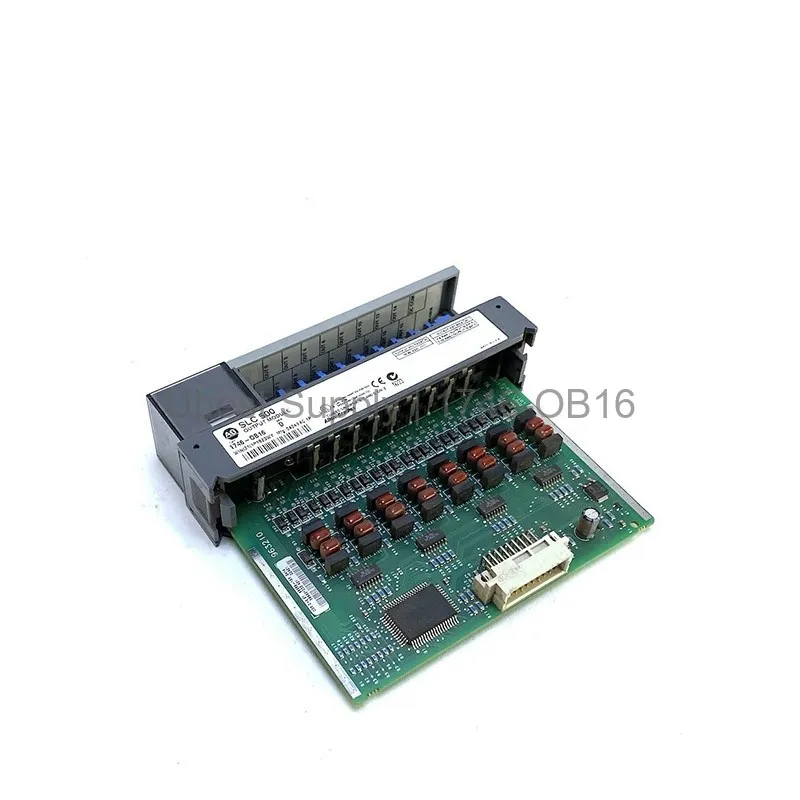

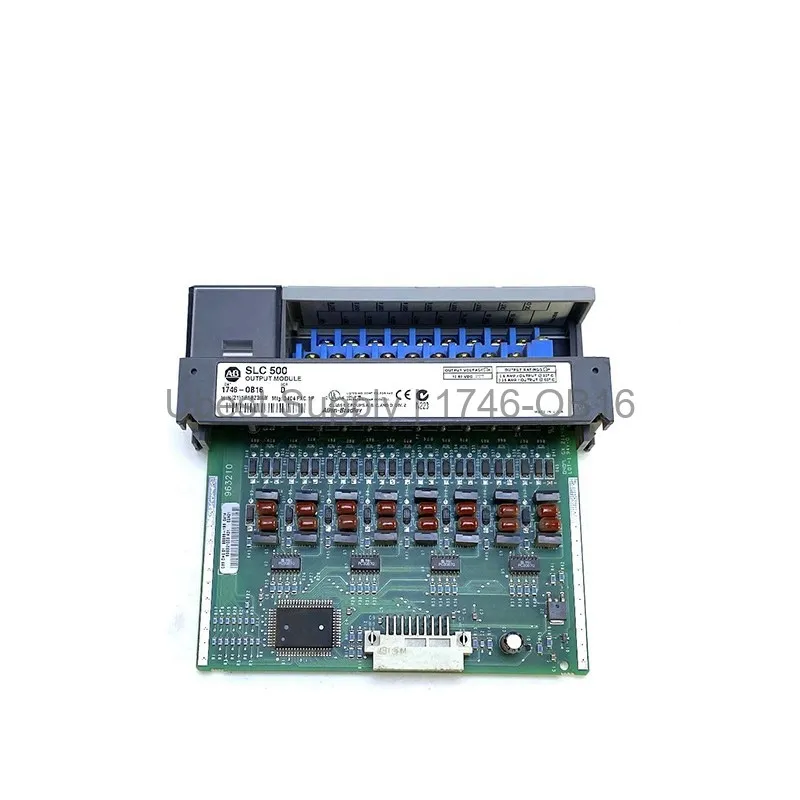

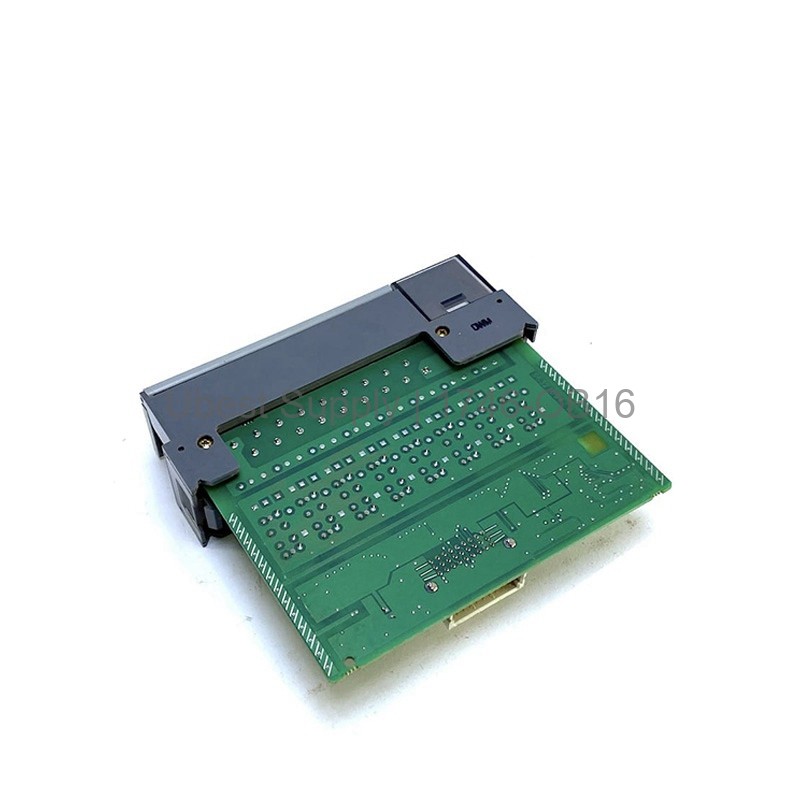

Discrete Output Module Allen-Bradley 1746-OB16 SLC500 16 Outputs

Product Overview

The Allen-Bradley 1746-OB16 is a digital DC output module. It belongs to the SLC500 series. This module has sixteen source outputs. It operates at 24VDC. The module handles high current applications. It offers fast step response. The step response is 60 milliseconds in. The step response is 2.5 milliseconds out. This module provides reliable performance. It is a key part of your control system. The 1746-OB16 is built for industrial environments.

Application Scenarios

Use this module in factory automation. It works for machine control. It is ideal for material handling. Use it for packaging systems. It controls conveyors and actuators. It manages solenoids and valves. It fits in SLC500 racks. This module suits high-speed applications. It handles high current loads. The 1746-OB16 is perfect for demanding tasks.

Technical Specifications

This module has sixteen outputs. The output voltage is 24VDC. The operating voltage range is 10-30VDC. The output delay from OFF to ON is 1.0 ms. The output delay from ON to OFF is 0.1 ms. The OFF state leakage current is 1 mA. The backplane current at 5.1 Volts is 0.135 A. The continuous current per point is 1.5 A at 30 °C. It is 1.0 A at 55 °C. The continuous current per module is 6.4 A. The voltage range is 10-50 Volts DC. It has 16 source outputs. The current per output is 0.5 or 0.25 amps. The current per module is 8 or 4 amps. The backplane current at 5 Volts is 280 milliamps. The current per module at 30 Celsius is 9 amps. The heat dissipation is 7.6 Watts. The UPC is 10662468067055. The UNSPSC is 32151705.

Installation & Maintenance Guide

Install the module into an SLC500 chassis. Ensure power is off before installation. Align the module with the slot. Press firmly until it locks. Connect the wiring to the terminal block. Use proper wire gauges. Follow the manual for wiring. Check all connections regularly. Keep the module clean and dry. Replace it if damaged. Use only authorized parts. Test the module after installation.

Packing List

The package includes one module. It includes the Allen-Bradley 1746-OB16. It does not include cables. It does not include the terminal block. It comes in anti-static packaging. The package is ready for shipping. We ship via Fedex, UPS, or DHL. Contact us for bulk orders.
