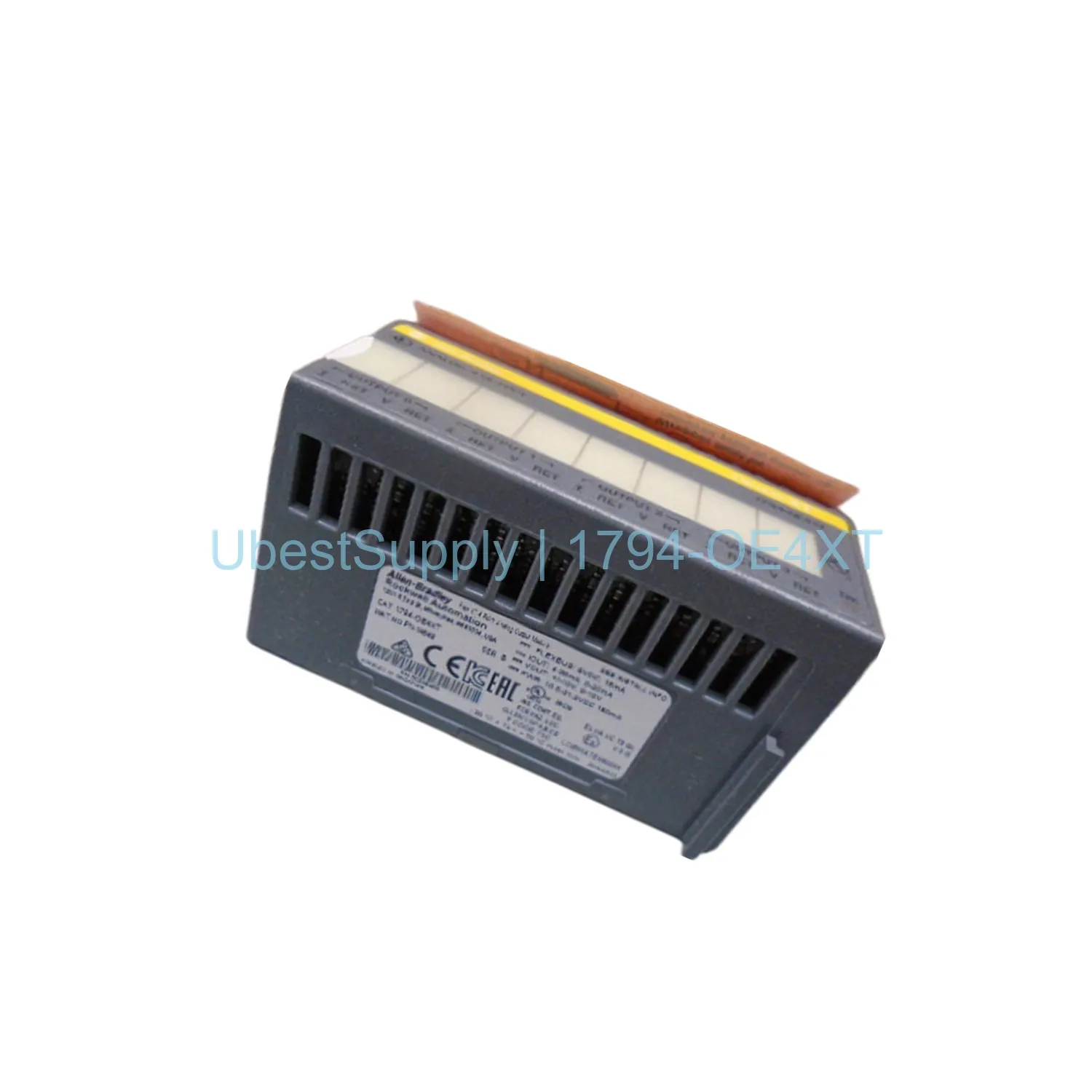

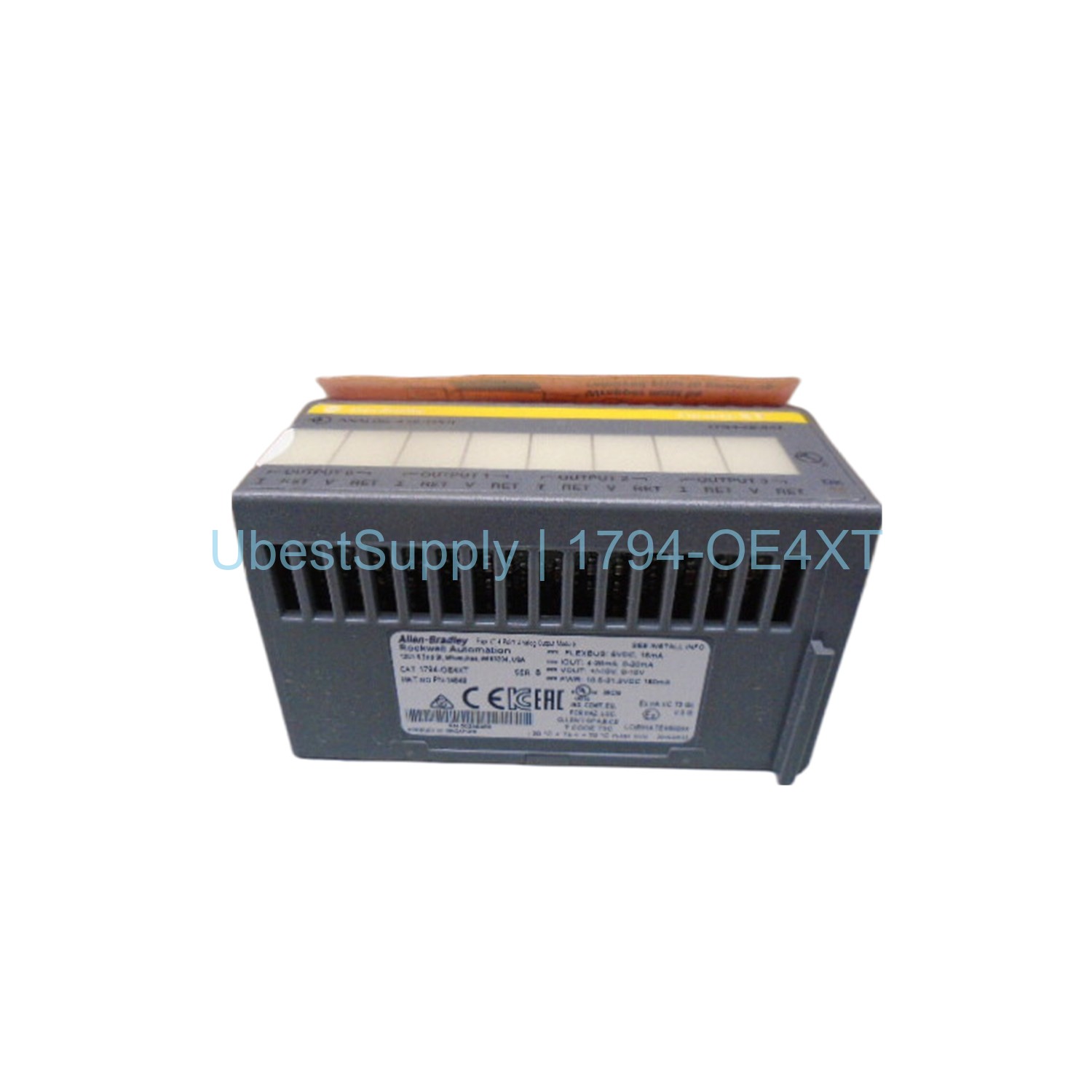

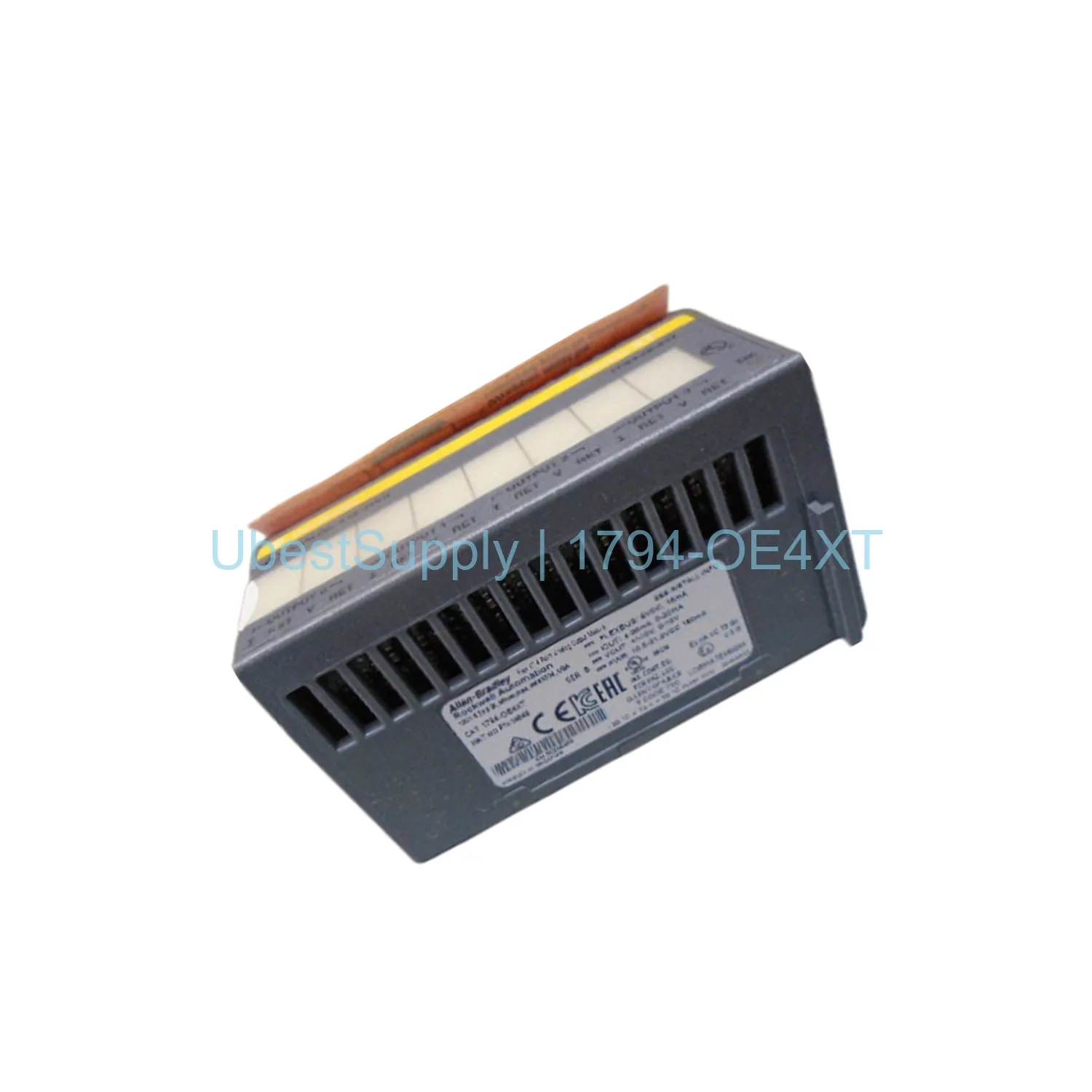

1794-OE4XT Allen-Bradley Flex I/O Analog Output Module

Product Overview

The Allen Bradley 1794-OE4XT is a high-density analog output module. It belongs to the Flex I/O 1794 series. This module provides four single-ended outputs. These outputs are non-isolated. It works under extended temperature conditions. This makes it suitable for harsh environments. The device supports both voltage and current outputs. Voltage range is -10 to 10V. Current range is 0 to 20 mA. It handles resistive loads from 15 to 750 ohms at 24V DC. The module needs an external 24V DC power supply. The input range is 19.2V DC to 31.2V DC. This flexibility ensures easy system integration.

Application Scenarios

Use this module in industrial automation systems. It works well for process control applications. It can control actuators, valves, and transmitters. The extended temperature rating allows use in outdoor cabinets. It fits into oil and gas, chemical, and manufacturing plants. The module integrates with PLCs and DCS systems. It sends precise analog signals to field devices. This ensures accurate process regulation.

Technical Specifications

Output channels: 4, single-ended, non-isolated. Voltage output: -10 to 10V DC. Current output: 0 to 20 mA. Load resistance: 15 to 750 ohms at 24V DC. Power supply: external 24V DC nominal. Input voltage range: 19.2 to 31.2V DC. Operating temperature: extended range (refer to manual). Module type: high-density analog output. The module is part of the Flex I/O family. It uses a compact form factor.

Installation & Maintenance Guide

Mount the module onto a compatible Flex I/O base. Connect the field wiring to the terminal block. Ensure power supply meets voltage requirements. Use proper shielding for signal cables. Do not exceed voltage or current limits. Periodically check connections for tightness. Keep the module clean and dry. Replace if any damage occurs. Always follow local electrical codes.

Packing List

1 x Allen Bradley 1794-OE4XT analog output module. 1 x installation manual (if included). No additional accessories are standard. Shipping is via FedEx, UPS, or DHL.
