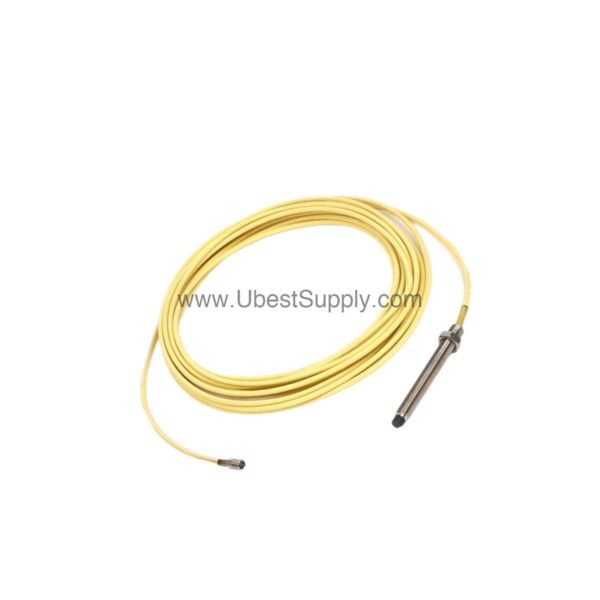

21504-20-32-10-02 | Bently Nevada 8mm Proximity Probe

Precision Vibration Monitoring with the Bently Nevada 21504-20-32-10-02

When rotating machinery begins to vibrate unexpectedly, the 21504-20-32-10-02 from Bently Nevada provides the precise measurements you need to diagnose issues before they become failures. This 8 mm proximity probe is engineered for continuous operation in demanding industrial environments, offering a calibrated range of 80 mils (2.0 mm) that begins at approximately 10 mils (0.25 mm) from the probe face. With a scale factor of 200 mV/mil (7.87 V/mm) and a frequency response from 0 to 10 kHz (0 to 600,000 cpm), this sensor delivers accurate, real-time data for critical asset protection.

Part of the 7200 Proximity Transducer Systems family, the 21504-20-32-10-02 is built to withstand harsh conditions. Its operating temperature range for the probe and extension cable spans from -30°F to +350°F (-34°C to +177°C), while the Proximitor operates from -60°F to +212°F (-51°C to +100°C). The system handles relative humidity up to 95% noncondensing, and for 8 mm probes, direct contact with air, water, lube oil, ammonium hydroxide, sulfuric acid (10%), MEK, or DMF does not affect operation. This rugged design ensures dependable performance in rotating machinery monitoring applications.

Key Features and Technical Specifications

• Model: Probe Proximity Vibration from Bently Nevada.
• Total Length: 1.0 metre (39 inches) with tolerance of +.25 metre, -.10 metre (+10 inches, -4 inches).
• Power Requirement: -17.5 Vdc to -26 Vdc at 12 mA maximum consumption.
• Calibrated Range: 80 mils (2.0 mm), beginning at approximately 10 mils (0.25 mm) from probe face.
• Scale Factor: 200 mV/mil (7.87 V/mm), ±4% when calibrated as a system.
• Linearity: Within 0.8 mils (0.02 mm) of a 200 mV/mil straight line when calibrated as a system.
• Frequency Response: 0 to 10 kHz (0 to 600,000 cpm); -5% at 10 kHz.
• Temperature Sensitivity: Typically -3% change in scale factor at +150°F (+65°C) at 50 mils gap (1.27 mm).
• System Weight: 1.3 lbs (0.59 kg).

One distinctive spec is the calibrated range of 80 mils, which allows monitoring of larger vibration amplitudes without losing signal linearity. This is particularly valuable for machines that experience transient shaft displacements during startup or upset conditions.

Real-World Applications and Use Cases

In petrochemical plants, power generation facilities, and other process industries, the 21504-20-32-10-02 is commonly used for radial vibration monitoring of pumps, compressors, turbines, and motors. Its ability to operate in direct contact with lube oil and water makes it suitable for wet environments where other sensors might fail. For example, a refinery using this probe on a critical centrifugal compressor can detect early signs of rotor rub or bearing wear, enabling planned maintenance rather than unexpected shutdowns. Similarly, in a power plant, the probe helps monitor turbine shaft vibration to prevent catastrophic failure and extend equipment life.

Installation and Setup Considerations

Proper installation is essential for accurate readings. The 21504-20-32-10-02 features a 3/8-24 thread configuration and an unthreaded length option of 200 mm. When mounting, ensure the probe face is positioned at the recommended gap (approximately 10 mils from the target surface) to operate within the calibrated range. The miniature male coaxial connector option (option 02) provides a secure connection to the extension cable and Proximitor. Always follow the manufacturer's installation manual for precise gap setting and cable routing to avoid signal interference.

Maintenance and Reliability Tips

To maintain reliable performance, periodically inspect the probe and cable for physical damage, especially in high-vibration areas. Verify that the connector remains tight and free of corrosion. Because the probe is exposed to process fluids, check for any buildup or coating that could affect the gap. The system's robust design minimizes maintenance needs, but regular checks per the manufacturer's guidelines help ensure long-term accuracy. By catching issues early, you reduce downtime and avoid costly repairs—a direct benefit to your bottom line.

Compatibility and Integration

The 21504-20-32-10-02 is part of the Bently Nevada 7200 series, designed to work with compatible Proximitors and extension cables. It outputs a proportional DC voltage signal (200 mV/mil) that can be fed into vibration monitors, data acquisition systems, or PLCs. For seamless integration, use Bently Nevada's recommended system components to maintain calibration accuracy. Contact Petro Auto Tech for assistance in selecting the right Proximitor and accessories for your setup.

Troubleshooting Common Issues

If you encounter erratic readings, first check the power supply—ensure it is within -17.5 Vdc to -26 Vdc. Next, inspect the probe tip for damage or contamination, and verify the gap is within the calibrated range. If the signal is noisy, check cable shielding and grounding. For persistent issues, consult the official Bently Nevada documentation or reach out to Petro Auto Tech for technical support.

Frequently Asked Questions

Q: What is the calibrated range of the 21504-20-32-10-02?

A: The calibrated range is 80 mils (2.0 mm), beginning at approximately 10 mils (0.25 mm) from the probe face.

Q: What power supply does this probe require?

A: It operates on -17.5 Vdc to -26 Vdc at 12 mA maximum consumption.

Q: What is the frequency response of this probe?

A: The frequency response is 0 to 10 kHz (0 to 600,000 cpm), with -5% at 10 kHz.

Q: Can the probe withstand exposure to chemicals?

A: Yes, for 8 mm probes, direct contact with air, water, lube oil, ammonium hydroxide, sulfuric acid (10%), MEK, or DMF does not affect operation.

Product Support and Availability

The 21504-20-32-10-02 is available from Petro Auto Tech as new, original factory-packed equipment. With a 12-month factory warranty, you can order with confidence. Please verify current lifecycle status and availability with Petro Auto Tech before ordering.
