200150-01-05 | Bently Nevada 100 mV/g Accelerometer General Purpose Trendmaster

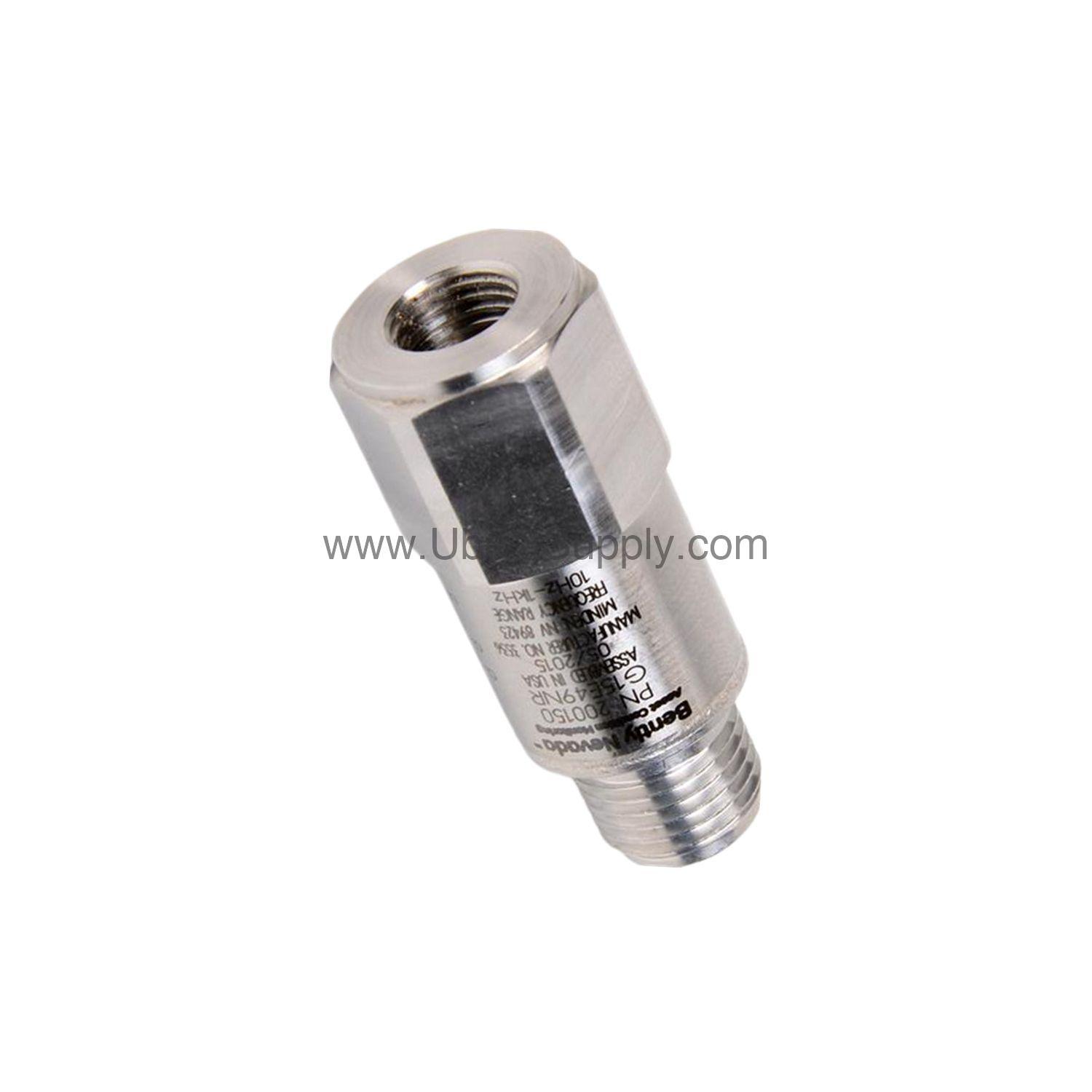

Introduction to the Bently Nevada 200150-01-05

When machinery vibration threatens uptime, the 200150-01-05 from Bently Nevada delivers precise measurement. This General Purpose Trendmaster 2000 or Trendmaster Pro Accelerometer is engineered for continuous monitoring in industrial environments. With a sensitivity of 10.2 mV/(m/s²) (100 mV/g) at 80 Hz, it captures critical vibration data. The accelerometer supports applications requiring ±245 m/s² (±25 g) measurement range. Its compact design and robust construction make it a reliable choice for predictive maintenance programs.

Key Features & Technical Specs of the 200150-01-05

• Sensitivity: 10.2 mV/(m/s²) (100 mV/g) at 80 Hz, ±12%.
• Measurement Range: ±245 m/s² (±25 g) peak.
• Frequency Range: 10 to 1000 Hz (600 to 60,000 cpm), referenced to 80 Hz.
• Mounted Resonant Frequency: >20 kHz (>1200 kcpm).
• Amplitude Linearity: ±2% (1 to 10 g pk).
• Transverse Sensitivity: ≤7%.
• Settling Time: ≤300 ms (within 5% of bias).
• Excitation Voltage: 4.7 to 5.5 Vdc.
• Quiescent Current: <800 µA.
• Output Bias Voltage: +2.5 ± 0.23 Vdc.

One distinctive spec is the hermetic sealing at 5×10⁻⁸ atm•cc/s maximum, ensuring reliable operation in harsh environments. This feature directly extends sensor life in humid or corrosive conditions.

Real-World Applications for the 200150-01-05

In rotating machinery monitoring, the 200150-01-05 excels at detecting early bearing faults and imbalance. It is commonly used in pumps, fans, compressors, and motors within oil and gas, power generation, and manufacturing. The accelerometer's wide temperature range (-40 °C to +105 °C) allows deployment in outdoor or high-temperature areas. Its multiple approvals (CSA, ATEX, IECEx) make it suitable for hazardous locations where safety is critical.

Installation & Setup Guide

Mount the 200150-01-05 using the 3/8-24 female thread with a torque of 2.7 to 6.8 N•m (2 to 5 ft•lbf). The mounting stud option 01 includes two adhesive mount frames with adhesive. Ensure the mounting surface is clean and flat for optimal coupling. Connect the excitation voltage between 4.7 and 5.5 Vdc, observing correct polarity (SIG+ positive with respect to SIG-). Allow 24 hours cure time for adhesive mounts before operation.

Maintenance & Reliability Tips

Regular inspection of the accelerometer and its cable connections helps prevent signal degradation. Check for physical damage or corrosion on the 316L stainless steel housing. The hermetic seal maintains integrity under high humidity (100% condensing). Periodically verify output bias voltage (2.5 ± 0.23 Vdc) to confirm proper operation. Following these steps reduces unplanned downtime and extends sensor life.

Comparison with Similar Accelerometers

Compared to standard industrial accelerometers, the 200150-01-05 offers higher sensitivity (100 mV/g) and a wider frequency range (10-1000 Hz). Many general-purpose sensors have lower resonant frequencies or narrower temperature limits. The Bently Nevada unit provides superior linearity (±2%) and low transverse sensitivity (≤7%). Its multiple certifications (CSA, ATEX, IECEx) are often absent in competing models, making it a preferred choice for hazardous area installations.

Frequently Asked Questions about the 200150-01-05

Q: What is the sensitivity of the 200150-01-05?

A: The sensitivity is 10.2 mV/(m/s²) (100 mV/g) at 80 Hz, with a tolerance of ±12%.

Q: What is the operating temperature range?

A: The accelerometer operates from -40 °C to +105 °C (-40 °F to +221 °F).

Q: What approvals does the 200150-01-05 carry?

A: It has multiple approvals including CSA, ATEX, and IECEx for hazardous locations.

Q: What is the mounting thread size?

A: The mounting thread is 3/8-24 female, with a recommended torque of 2.7 to 6.8 N•m (2 to 5 ft•lbf).

Q: What is the quiescent current draw?

A: The quiescent current is less than 800 µA.

Product Support & Availability

The Bently Nevada 200150-01-05 is in stock and ready to ship from Petro Auto Tech. Contact our team for pricing and lead time. We provide genuine, factory-new parts with full traceability.
