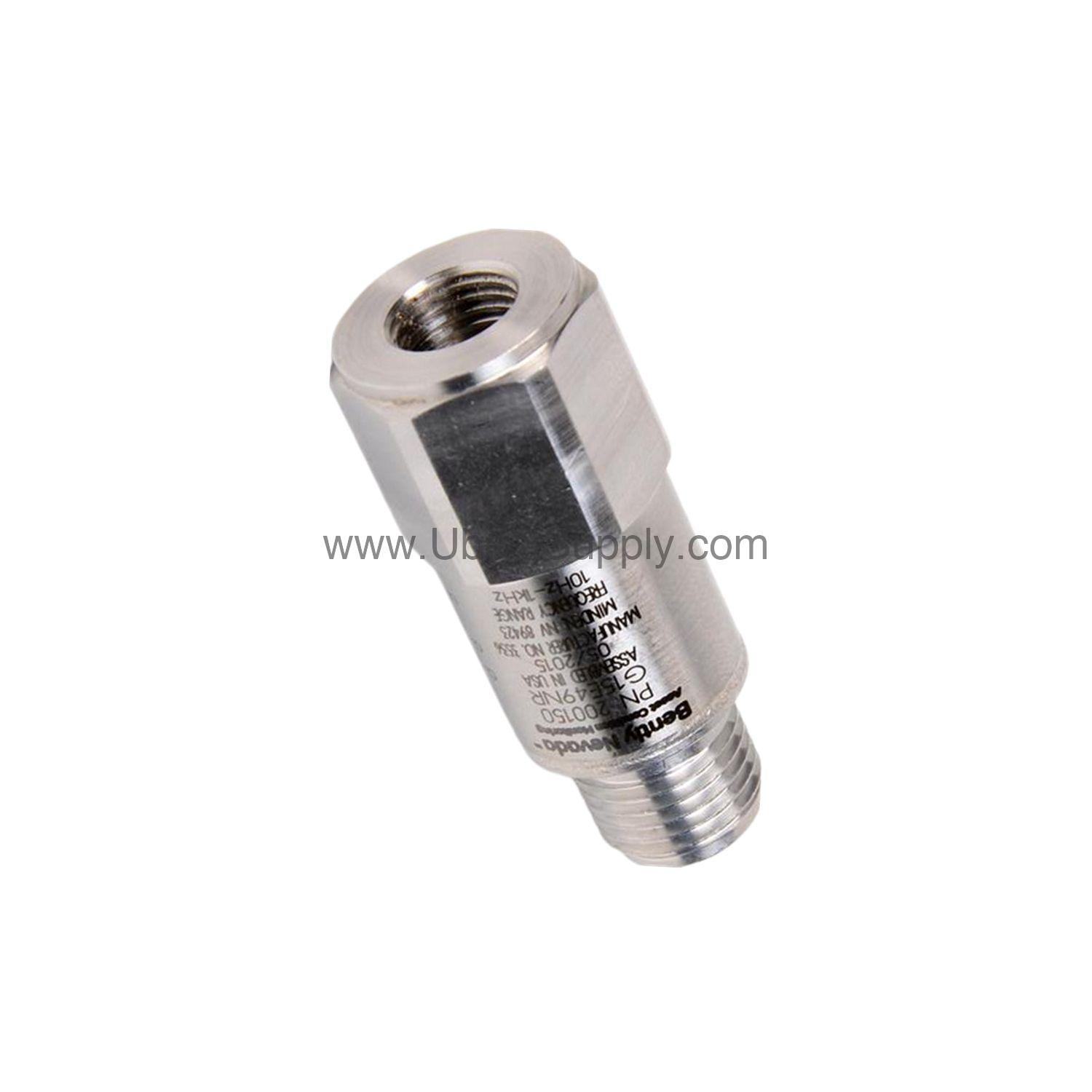

200150-23-05 | Bently Nevada 100 mV/g Accelerometer Trendmaster

Introduction: The 200150-23-05 in Modern Vibration Monitoring

As industrial machinery evolves, so does the need for precise vibration monitoring. The 200150-23-05 from Bently Nevada represents a key component in this evolution, offering engineers a robust solution for general-purpose acceleration measurement. Designed for use with Trendmaster 2000 or Trendmaster Pro systems, this accelerometer provides the data needed to predict failures and optimize maintenance schedules.

With a sensitivity of 10.2 mV/(m/s²) (100 mV/g) at 80 Hz, the 200150-23-05 captures subtle vibrations across a frequency range of 10 to 1000 Hz (600 to 60,000 cpm). This makes it suitable for a wide variety of rotating and reciprocating machinery.

Key Features & Technical Specs of the 200150-23-05

• Sensitivity: 10.2 mV/(m/s²) (100 mV/g) at 80 Hz, ±12%.
• Measurement Range: ±245 m/s² (±25 g) for acceleration.
• Frequency Range: 10 to 1000 Hz (600 to 60,000 cpm), referenced to 80 Hz.
• Mounted Resonant Frequency: >20 kHz (>1200 kcpm).
• Amplitude Linearity: ±2% from 1 to 10 g pk.
• Transverse Sensitivity: ≤7%.
• Excitation Voltage: 4.7 to 5.5 Vdc.
• Output Bias Voltage: +2.5 ± 0.23 Vdc.
• Quiescent Current: <800 µA.
• Temperature Range: -40 °C to +105 °C (-40 °F to +221 °F).

A standout feature is its hermetic sealing of 5x10⁻⁸ atm•cc/s maximum, ensuring reliable operation in harsh, humid environments. This directly supports long-term reliability and reduced maintenance costs.

Real-World Applications

In industries like oil and gas, power generation, and manufacturing, the 200150-23-05 excels at monitoring pumps, compressors, fans, and motors. Its wide frequency range captures both low-speed and high-speed vibrations, enabling early detection of bearing wear, imbalance, or misalignment. For example, in a petrochemical plant, this accelerometer can help avoid unplanned downtime by providing continuous data to a Trendmaster system.

With multiple approvals (CSA, ATEX, and IECEx), the 200150-23-05 is certified for use in hazardous locations, making it a versatile choice for safety-critical environments.

Installation & Setup Guidance

Mount the 200150-23-05 using its 3/8-24 female thread and apply a torque of 2.7 to 6.8 N•m (2 to 5 ft•lbf). The mounting stud option 23 includes a 3/8-24 to M16x2.0 1-3/8 inch hex plate stud. Ensure the mounting surface is clean and flat to achieve optimal frequency response. The accelerometer uses a 4.7 to 5.5 Vdc excitation supply, with signal positive relative to signal negative.

For best results, follow the manufacturer's installation manual and verify the output bias voltage is within +2.5 ± 0.23 Vdc after setup.

Maintenance & Reliability Tips

Routine inspection of the 200150-23-05 should focus on cable integrity and mounting tightness. The 316L stainless steel housing resists corrosion, and the hermetic seal protects internal components. Periodically verify the output bias voltage and quiescent current (<800 µA) to detect any drift. This proactive approach minimizes downtime and extends sensor life.

Compatibility & Integration

The 200150-23-05 is designed for use with Bently Nevada Trendmaster 2000 or Trendmaster Pro systems. It works with the ProTIM option Standard Acceleration-to-Velocity channel type (-01) for velocity data. The accelerometer's 100 mV/g sensitivity integrates seamlessly with standard monitoring modules.

FAQ about 200150-23-05

What is the sensitivity of the 200150-23-05?

The sensitivity is 10.2 mV/(m/s²) (100 mV/g) at 80 Hz, with a tolerance of ±12%.

What is the measurement range of this accelerometer?

The measurement range is ±245 m/s² (±25 g) for acceleration, and 14.7 mm/s² (1.5 mg) for low-level measurements.

What temperature range can the 200150-23-05 withstand?

The operating temperature range is -40 °C to +105 °C (-40 °F to +221 °F).

What certifications does the 200150-23-05 have?

It carries multiple approvals: CSA, ATEX, and IECEx, as indicated by the 05 approval option.

What is the mounting thread size for this accelerometer?

The mounting thread is 3/8-24 female, and the recommended mounting torque is 2.7 to 6.8 N•m (2 to 5 ft•lbf).

Product Support & Availability

The 200150-23-05 is available from Petro Auto Tech. Please verify current lifecycle status and availability with Petro Auto Tech before ordering. In-stock units ship promptly to minimize your project delays.
