200151-20-02-10 | Bently Nevada 2.0m Accelerometer Standard Cable

Overview of the Bently Nevada 200151-20-02-10 Accelerometer Standard Cable

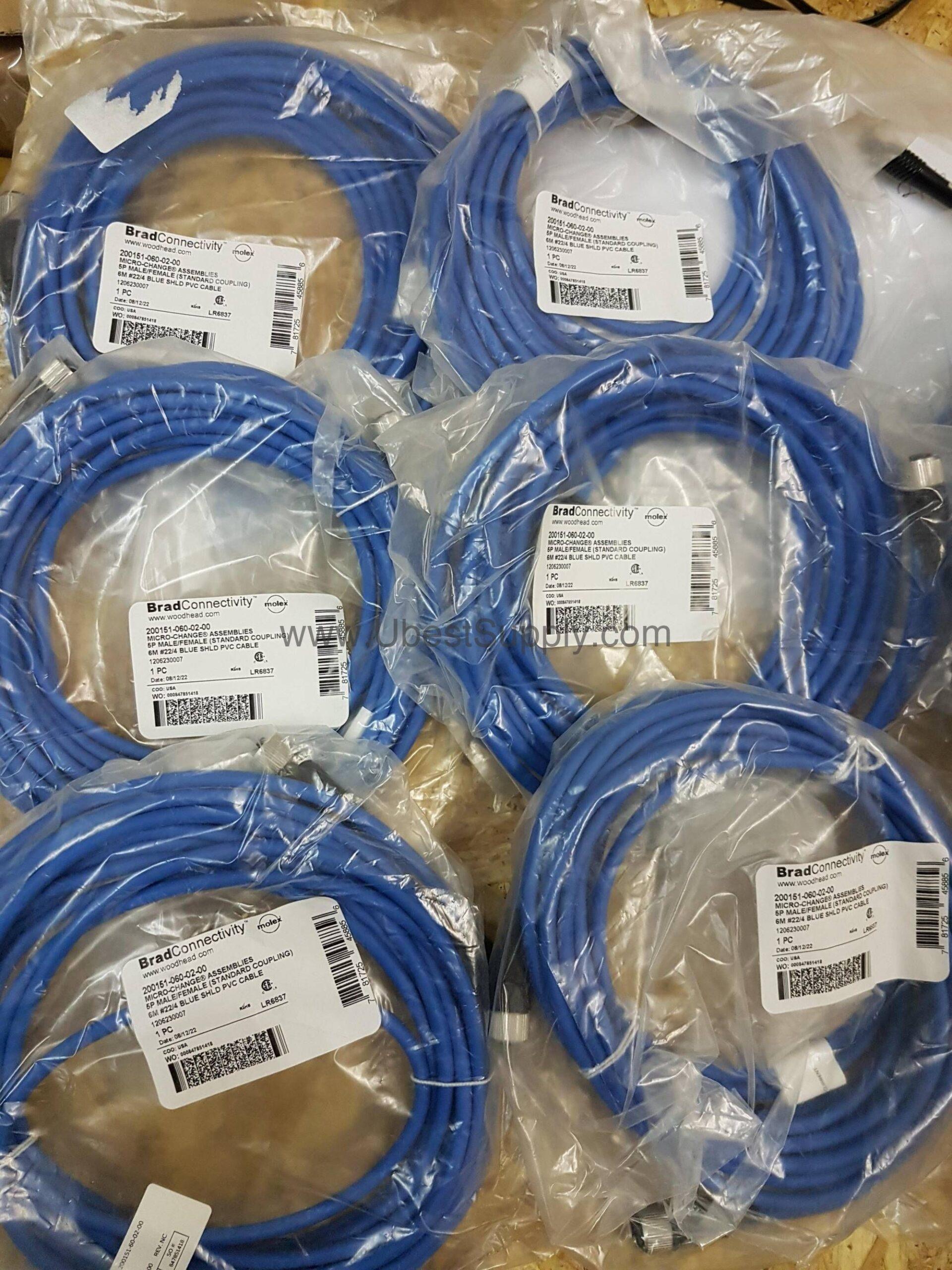

When vibration monitoring demands a robust connection between transducer and system, the 200151-20-02-10 from Bently Nevada provides a purpose-built solution. This accelerometer interface standard cable features connectors on both ends, a 2.0-meter length, and a blue cable without armor. Engineers rely on its braided shield and drain wire to maintain signal integrity in harsh settings.

Key Features and Technical Specifications

• Model: 200151 – Accelerometer Interface Standard Cable with connectors on both ends.
• Cable length: 2.0 meters (specified by -20 in the part number).
• Armor option: -02 = Blue cable without armor.
• Coupling nut: -10 = Enhanced coupling nut for better grip on both ends.
• Minimum bend radius: 63.5 mm (2.5 in).
• Operating temperature range: -20 ºC to +100 ºC (-4 ºF to +212 ºF).
• Construction: 4-conductor, 22 AWG with braided shield and drain wire (85% coverage, minimum), PVC outer jacket, nickel-plated coupling nuts.
• Seal: Connectors provide an IP67 seal to transducers and mating hardware; connectors are molded to the cable.

A distinctive feature of this cable is the enhanced coupling nut, which offers a superior grip for tightening to the accelerometer, reducing the risk of loosening under vibration.

Installation and Setup Guidance

For best results, install the 200151-20-02-10 cable with a minimum bend radius of 63.5 mm to avoid damaging the internal conductors. The IP67 sealing ensures reliable operation in dusty or wet conditions. If the cable must be used below -20 ºC (-4 ºF), ensure it does not flex or bend, as flexing at low temperatures may cause damage. Always follow the manufacturer's manual for proper connector mating and torque values.

Maintenance and Reliability

Regular inspection of the cable jacket and connectors helps maintain long-term performance. The PVC outer jacket resists common industrial chemicals, and the nickel-plated coupling nuts resist corrosion. Periodically verify that the enhanced coupling nuts remain tight. For environments with thermal shock, the addition of DC4 electrical insulating compound in the connectors provides extra moisture protection.

Frequently Asked Questions about the 200151-20-02-10

Q: What is the operating temperature range of the 200151-20-02-10?

A: The cable operates from -20 ºC to +100 ºC (-4 ºF to +212 ºF).

Q: What type of shield does this cable use?

A: It uses a braided shield with a drain wire, providing minimum 85% coverage.

Q: Does the 200151-20-02-10 come with connectors on both ends?

A: Yes, the model 200151 includes connectors on both ends.

Q: What is the minimum bend radius for this cable?

A: The minimum bend radius is 63.5 mm (2.5 in).

Q: Is the cable armored?

A: No, the -02 option indicates a blue cable without armor.

Product Support and Availability

The 200151-20-02-10 is available from Petro Auto Tech, an industrial automation parts supplier. In stock and ready to ship, this cable supports critical vibration monitoring applications. Contact Petro Auto Tech for current lifecycle status and ordering details.
