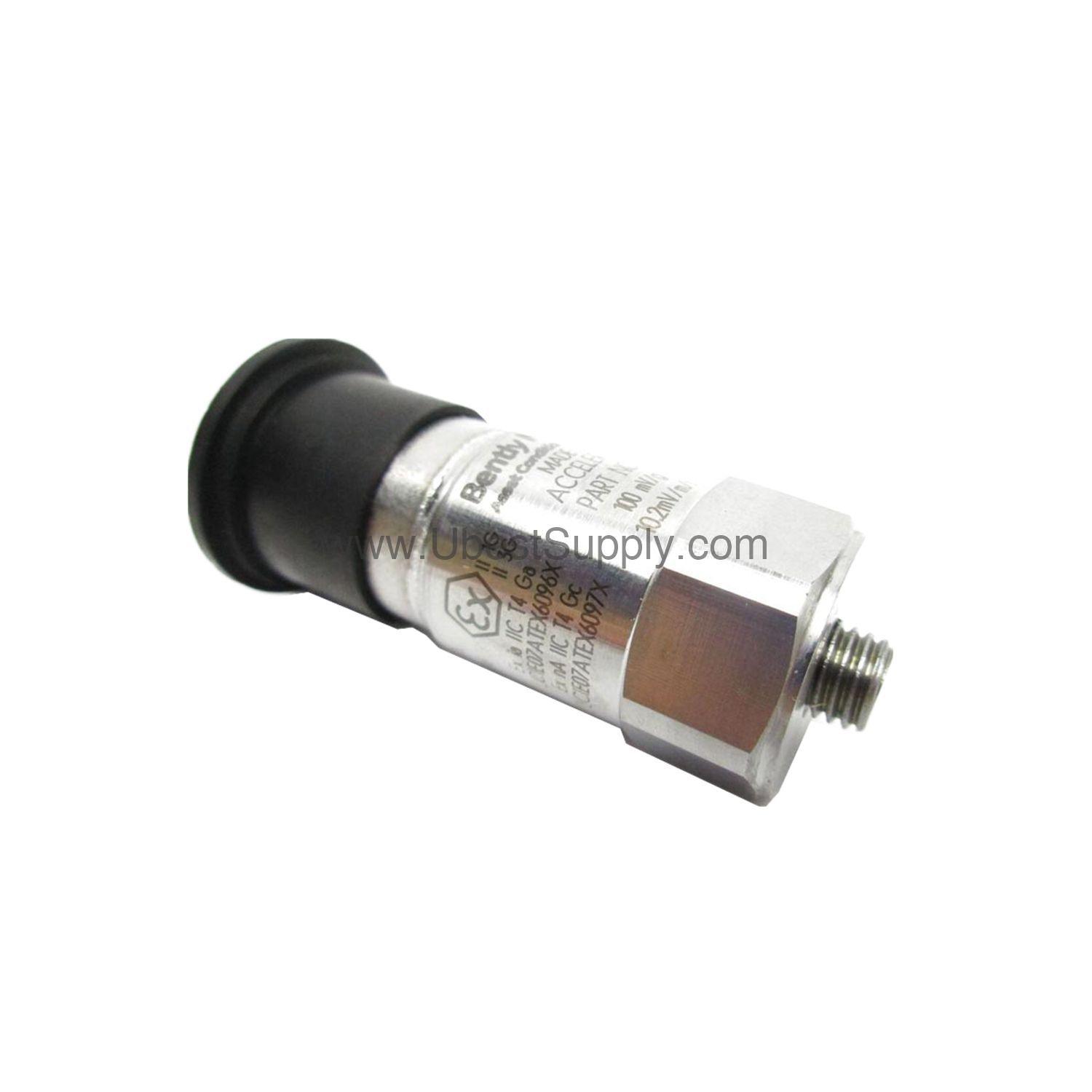

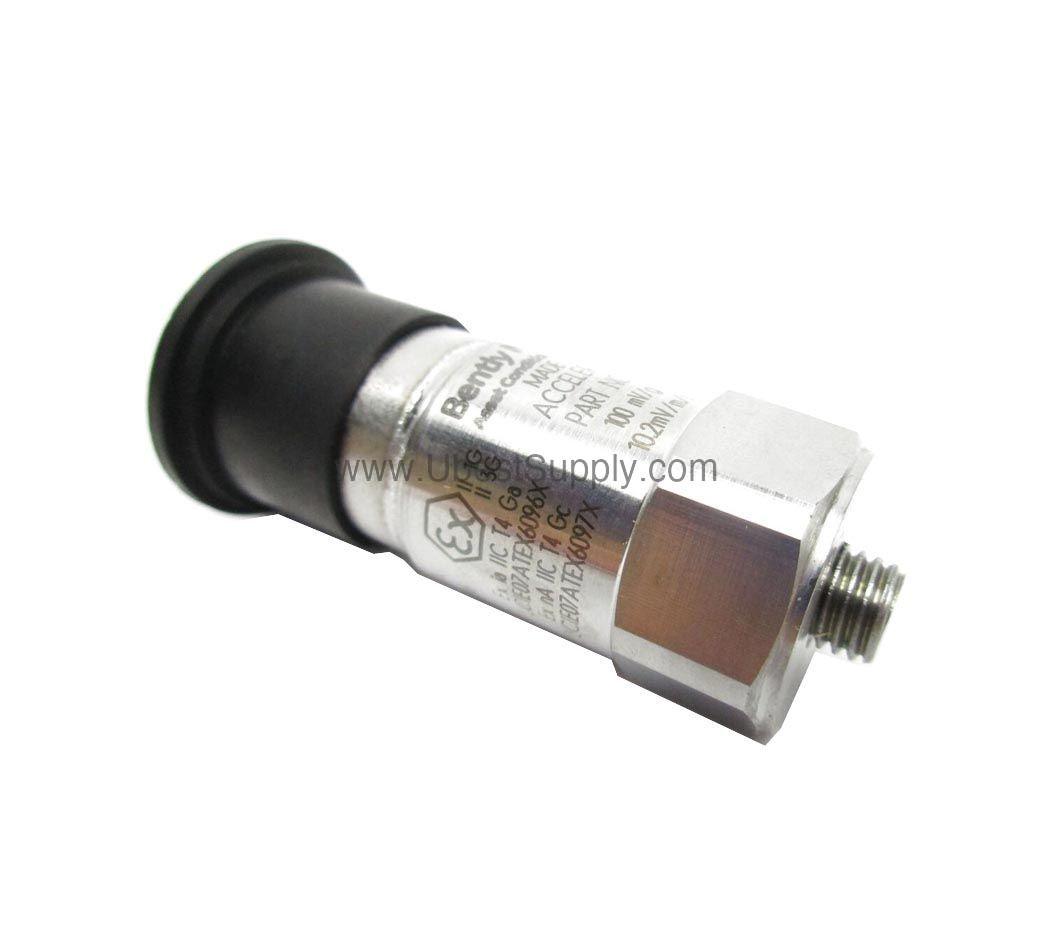

200350-02-00-CN | Bently Nevada 100 mV/g Accelerometer

Introduction to the Bently Nevada 200350-02-00-CN

When machinery vibration threatens uptime, the 200350-02-00-CN provides precise measurement. This Bently Nevada accelerometer offers 100 mV/g sensitivity. It is designed for demanding industrial environments. The sensor helps detect early signs of bearing wear and imbalance. Engineers trust it for continuous condition monitoring.

Key Features and Technical Specifications

• Sensitivity: 100 mV/g ±20% (10.2 mV/m/s² ±20%).
• Frequency Range: 30-600,000 cpm (0.5-10,000 Hz).
• Measurement Range: ±50 g.
• Output Bias Voltage: 8 to 12 VDC.
• Excitation Voltage: 18 to 28 VDC.
• Constant Current Excitation: 2 to 20 mA.
• Operating Temperature: -65°F to +250°F (-54°C to +121°C).
• Enclosure Rating: IP68.
• Housing Material: Stainless steel with welded hermetic sealing.
• Electrical Connector: 2-Pin Mil-C-5015, top exit.

One distinctive spec is the broadband electrical noise of only 350 μg (3,434 μm/s²) from 1-10 kHz. This low noise floor ensures accurate readings even in electrically noisy environments.

Installation and Mounting Guidance

Mount the 200350-02-00-CN using the ¼-28 to M8 x 1.25 BeCu stud. Apply a mounting torque of 2 to 5 ft-lb (2.7 to 6.8 N-m). The sensor has a 1/4-28 female mounting thread. Ensure the surface is clean and flat. Use the recommended torque to avoid signal distortion. The top-mounted 2-pin connector simplifies cable routing.

Maintenance and Reliability

Periodically inspect the cable and connector for damage. The stainless steel housing and welded hermetic seal protect against moisture and dust. With an IP68 rating, the sensor withstands continuous immersion. This design reduces maintenance frequency. It extends service life in harsh conditions.

Common Questions About the 200350-02-00-CN

What is the sensitivity of the 200350-02-00-CN?

The sensitivity is 100 mV/g ±20% (10.2 mV/m/s² ±20%).

What is the operating temperature range?

It operates from -65°F to +250°F (-54°C to +121°C).

What type of electrical connector does it use?

It uses a 2-Pin Mil-C-5015 connector located at the top.

Is the sensor suitable for outdoor use?

Yes, the IP68 enclosure rating allows continuous submersion, making it suitable for wet or dusty environments.

Product Support and Availability

The Bently Nevada 200350-02-00-CN is in stock and ready to ship from Petro Auto Tech. Contact our team for current pricing and lead times. We are your trusted source for industrial automation parts.
