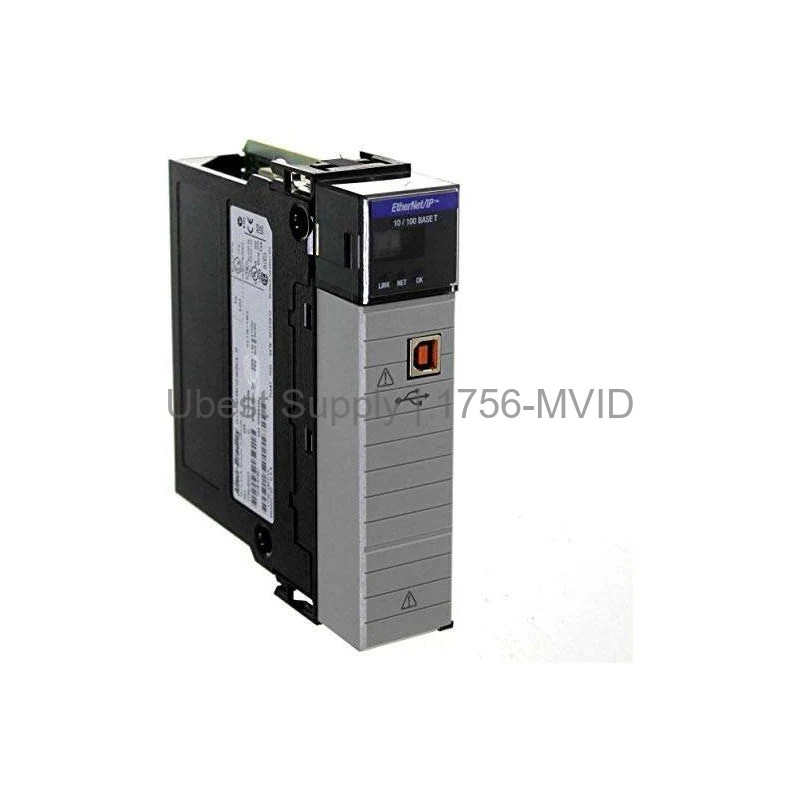

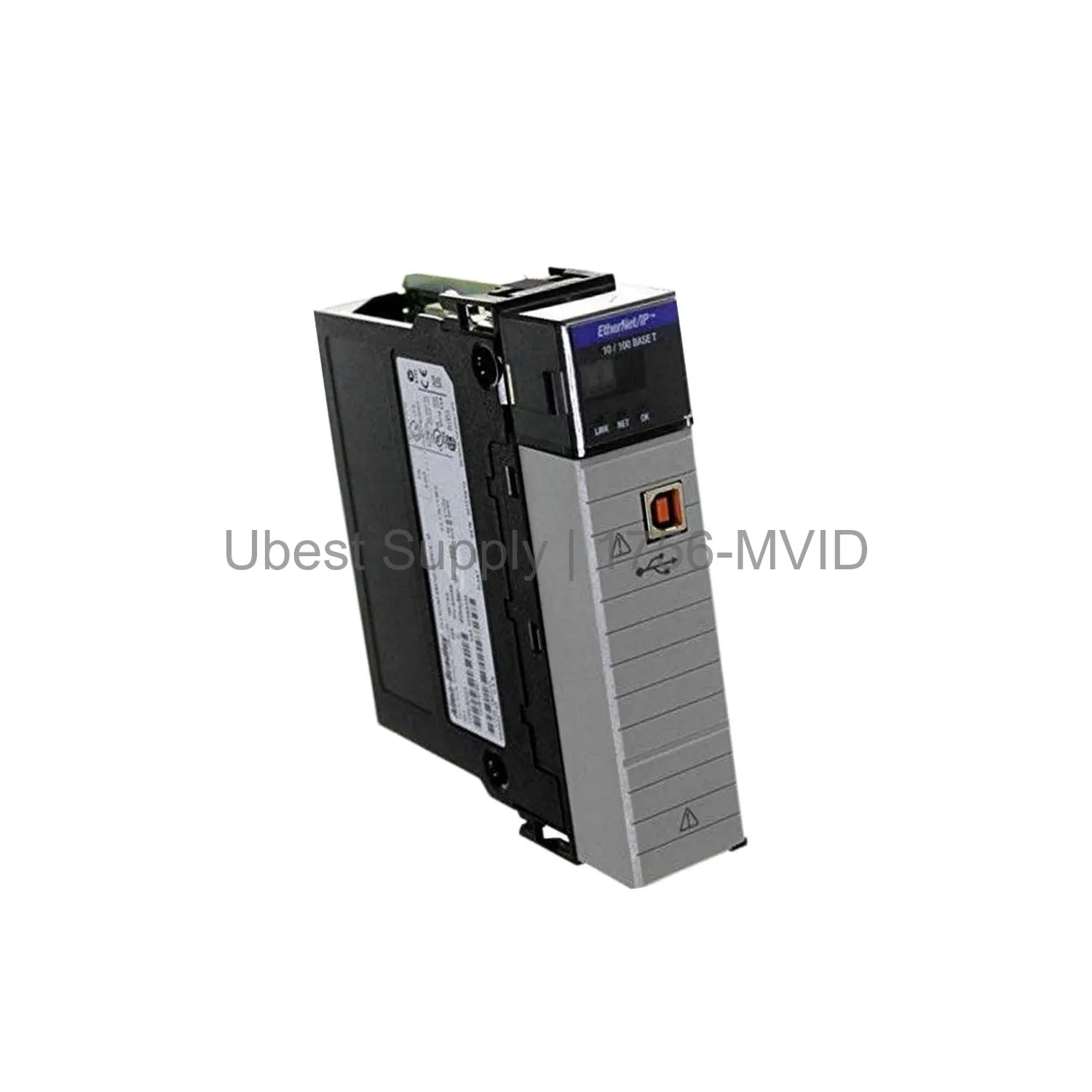

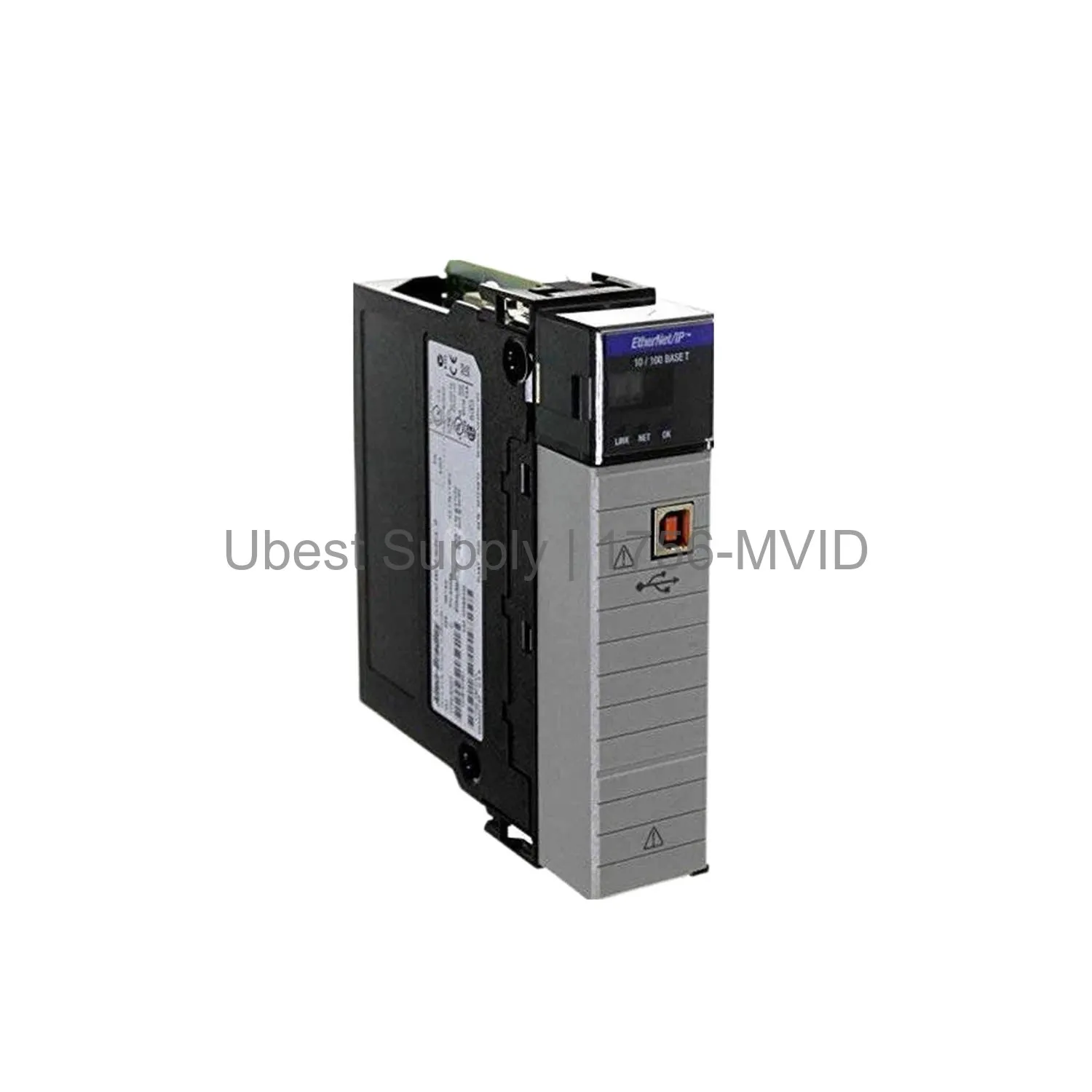

1756-MVID Multi-Vendor Interface Module by Allen-Bradley

Product Overview

The Allen-Bradley 1756-MVID is a multi-vendor interface module. It works within the ControlLogix platform. This module lets you connect different brands of devices. It handles data exchange between systems. The 1756-MVID uses minimal power. It draws only 4 Watts. The backplane current is 800 milliAmps at 5.1 Volts DC. It also draws 30 milliAmps at 24 Volts DC. This unit is open-style with no enclosure. It is built for industrial environments.

Application Scenarios

Use this module in complex automation lines. It links ControlLogix to other vendor drives. It connects to smart sensors and actuators. It works in assembly plants. It is perfect for material handling systems. It supports batch processing operations. It helps in oil and gas facilities. It is ideal for water treatment plants. It bridges different communication protocols. This makes system integration easier.

Technical Specifications

The operating temperature range is 0 to 60 degrees Celsius. The storage temperature range is -40 to 85 degrees Celsius. It handles relative humidity from 5 to 95 percent. It is non-condensing. The module resists shock up to 30 G. It withstands vibration at 2 G from 10 to 500 Hertz. It holds certifications like c-UL-us, CE, and N223I. These ensure safety and compliance. The 1756-MVID is a reliable choice for your network.

Installation & Maintenance Guide

Install the module into a ControlLogix chassis. Ensure the power is off before insertion. Secure it firmly into the slot. Wire the interface cables correctly. Check all connections for tightness. Use proper grounding techniques. Keep the area clean and dry. Monitor the module status indicators. Replace the module if faults appear. Regular inspection helps maintain performance. Always follow the user manual steps.

Packing List

Your shipment includes one 1756-MVID module. It comes with a static-safe packaging. You will receive a quick reference guide. No cables are included. No mounting hardware is included. The package is sealed and protected. We ship via FedEx, UPS, or DHL. This ensures fast and safe delivery. Inspect the package upon arrival. Report any damage immediately.
