Product Overview

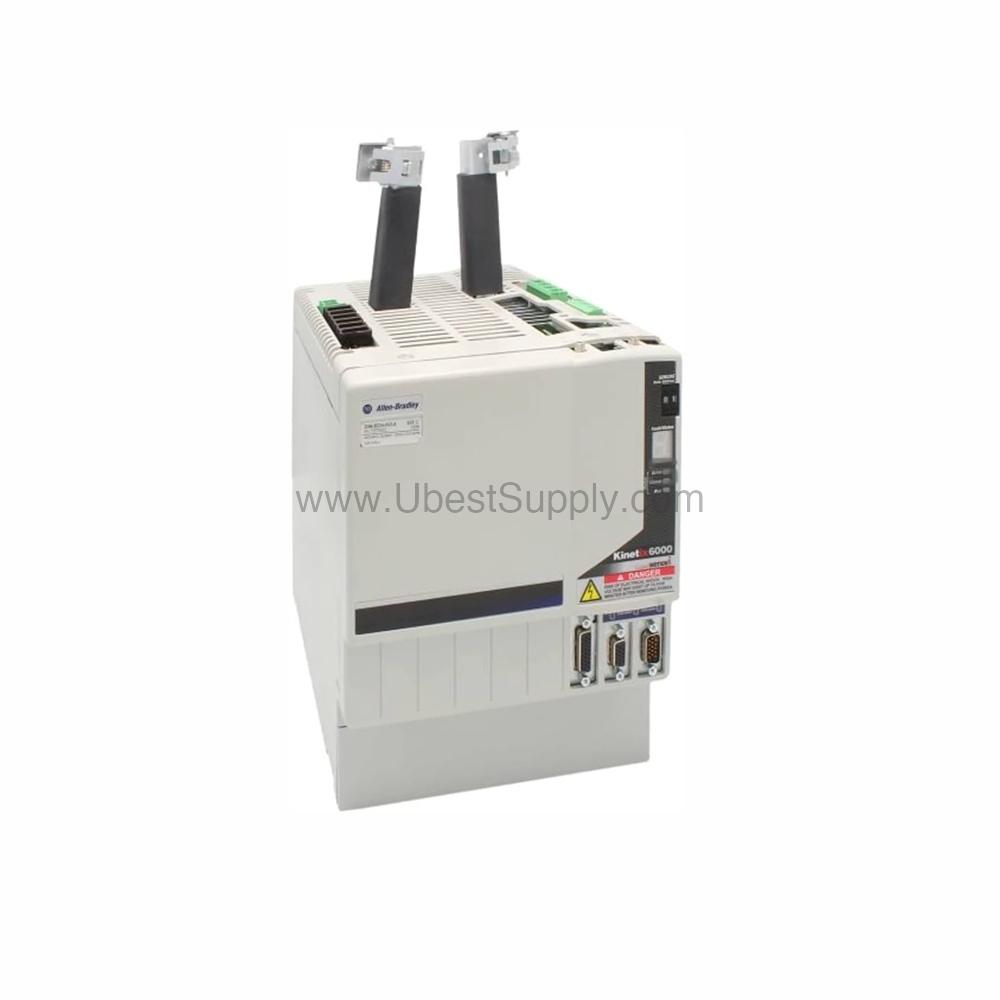

The 2094-BC02-M02-M is an Allen-Bradley Integrated Axis Power Module (IAM) designed for high-performance motion control systems. Manufactured by Rockwell Automation, this module integrates both inverter and converter sections in a single unit. It requires one control module for operation. The 2094-BC02-M02-M delivers reliable power conversion and inversion for demanding industrial automation applications.

Technical Specifications Analysis

The 2094-BC02-M02-M operates at a voltage rating of 400/460VAC with a nominal drive voltage of 360-480 Volts (3 Phase). It provides a converter section output of 15kW and an inverter section output of 72 Watts. The output current is 15 A (0-pk). Power dissipation ranges from 36 to 75 Watts. Heat dissipation for the converter section is 44 W at 20%, while the inverter section dissipates 72 W at 40%. The module has a max bus capacitance of 8955 Microfarads and a wattage of 6.6 kWatts. Operating temperature is 32-122 F (0-50 C). Dimensions are 4.9 x 11.9 x 13.2 in (125 x 302 x 336 mm) with a weight of 13.0 lbs (5.90 kg). Installation clearance requires 80 mm (3.10 in.) and minimum enclosure depth is 302 mm (11.9 in.). The control input fuse is FNQ-R-10 (10 A) or FNQ-R-7.5 (7.5 A).

Application Scenarios & Usage Methods

This Integrated Axis Power Module is ideal for multi-axis servo drive systems in packaging, material handling, and assembly lines. Use the 2094-BC02-M02-M to power multiple servo drives from a single DC bus, reducing wiring and cabinet space. In a typical setup, connect the module to a 400/460VAC three-phase supply and pair it with compatible Kinetix 6000 servo drives. The module’s 15kW converter section supports high-torque applications like conveyors and rotary tables. Always ensure the control module is properly installed to manage communication and safety functions.

Installation Guide & Packing List

Mount the module in a clean, dry enclosure with adequate ventilation. Maintain the specified installation clearance of 80 mm (3.10 in.) around the module for airflow. The minimum enclosure depth must be 302 mm (11.9 in.). Use the recommended control input fuse: FNQ-R-10 (10 A) or FNQ-R-7.5 (7.5 A). Secure the module using appropriate hardware and follow Rockwell Automation wiring guidelines. The packing list includes the Integrated Axis Power Module unit only. Control modules and fuses are sold separately.

Purchasing Advice

When selecting the 2094-BC02-M02-M, verify your system voltage matches the 400/460VAC rating and that your load requirements stay within the 15kW converter output and 15A inverter current. This module is a genuine Allen-Bradley product from Rockwell Automation. For reliable sourcing and competitive pricing, consider Petro Auto Tech as your trusted industrial automation parts supplier.

Repair & Maintenance Tips

Periodically inspect the module for dust accumulation and clean using dry compressed air. Check all connections for tightness and signs of corrosion. Monitor operating temperature to stay within 32-122 F (0-50 C). Ensure the enclosure ventilation is unobstructed. Replace the control input fuse only with the specified FNQ-R-10 or FNQ-R-7.5 type. Do not attempt internal repairs; contact a qualified service center for any faults.

Frequently Asked Questions (FAQs)

Q: What is the input voltage requirement for the 2094-BC02-M02-M?

A: The module has a voltage rating of 400/460VAC and a nominal drive voltage of 360-480 Volts (3 Phase).

Q: What is the output power of the converter section?

A: The converter section output is 15kW.

Q: What fuse type is required for the control input?

A: Use either an FNQ-R-10 (10 A) or FNQ-R-7.5 (7.5 A) fuse.

Q: What are the dimensions and weight of this module?

A: Dimensions are 4.9 x 11.9 x 13.2 in (125 x 302 x 336 mm) and weight is 13.0 lbs (5.90 kg).

Q: Does the module include a control module?

A: No, the 2094-BC02-M02-M requires one control module, which is sold separately.
