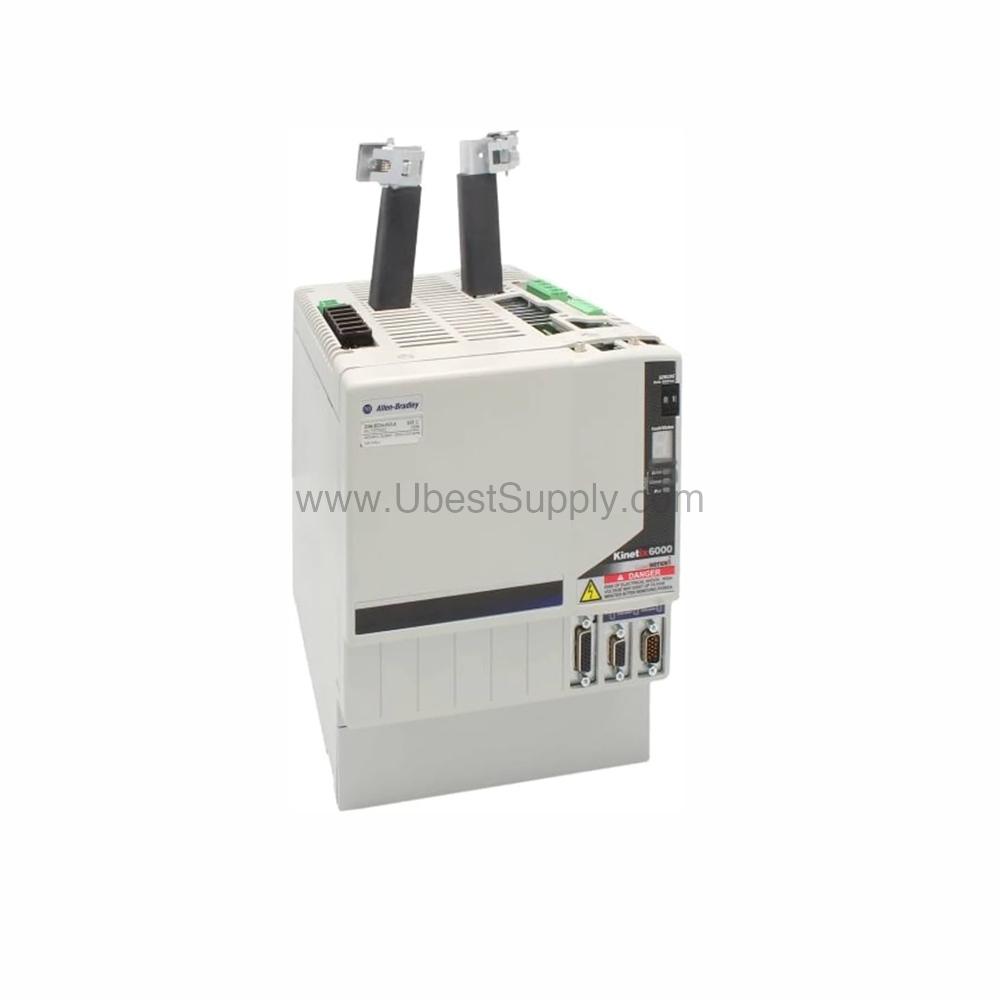

2094-BC02-M02-M | Allen-Bradley Integrated Axis Power Module - Petro Auto Tech

Product Overview

The 2094-BC02-M02-M is an Allen-Bradley Integrated Axis Power Module (IAM) from Rockwell Automation. It integrates an inverter and converter section and requires one control module. This module is rated for 460V AC input and delivers 15kW converter output power, making it a core component for multi-axis servo drive systems in industrial automation.

Technical Specifications Analysis

The 2094-BC02-M02-M operates at a nominal drive voltage of 360-480 Volts (3 Phase) and a voltage rating of 400/460VAC. It provides an output current of 15 A (0-pk) and a converter section output of 15kW. The inverter section output is 72 Watts, with total power dissipation ranging from 36 to 75 Watts. Heat dissipation is 44 W at 20% for the converter section and 72 W at 40% for the inverter section. The module weighs 13.0 lbs (5.90 kg) and has dimensions of 4.9 x 11.9 x 13.2 in (125 x 302 x 336 mm). It requires an installation clearance of 80 mm (3.10 in.) and a minimum enclosure depth of 302 mm (11.9 in.). The maximum bus capacitance is 8955 microfarads, and the control input fuse is FNQ-R-10 (10 A) or FNQ-R-7.5 (7.5 A). The operating temperature range is 32-122 F (0-50 C).

Application Scenarios & Usage Methods

This Integrated Axis Power Module is designed for high-performance motion control applications in industries such as automotive assembly, packaging, and material handling. In a typical setup, the 2094-BC02-M02-M powers multiple servo drives in a Kinetix 6000 system, providing regulated DC bus voltage. For example, in a packaging line, it supplies 15kW of converter power to synchronize cutting and sealing axes. Users must ensure the input voltage matches the 400/460VAC rating and that the control input fuse (FNQ-R-10 or FNQ-R-7.5) is correctly installed. The module's 15A inverter current supports high-torque servo motors for precise positioning.

Installation Guide & Packing List

Install the 2094-BC02-M02-M in a clean, dry enclosure with adequate ventilation. Maintain an 80 mm clearance around the module for airflow. Use the specified control input fuse (FNQ-R-10 or FNQ-R-7.5) and connect the 3-phase power supply within the 360-480 Volt range. The package includes one Integrated Axis Power Module and a documentation set. Verify the module's dimensions (4.9 x 11.9 x 13.2 in) fit the enclosure before mounting.

Purchasing Advice

When selecting the 2094-BC02-M02-M, confirm your system requires a 15kW converter section and 15A inverter current. Check compatibility with your control module and servo drives. Petro Auto Tech offers genuine Allen-Bradley modules with fast delivery. Ensure your application's ambient temperature stays within 32-122 F (0-50 C) for reliable operation.

Repair & Maintenance Tips

Regularly inspect the 2094-BC02-M02-M for dust accumulation and ensure cooling vents are unobstructed. Monitor the power dissipation (36-75 Watts) and heat dissipation values to prevent overheating. Check the control input fuse periodically and replace with the correct FNQ-R type. Store the module in a static-safe environment when not in use.

Frequently Asked Questions (FAQs)

Q: What is the input voltage range for the 2094-BC02-M02-M?

A: The nominal drive voltage is 360-480 Volts (3 Phase), with a voltage rating of 400/460VAC.

Q: What is the output current of this module?

A: The output current is 15 A (0-pk).

Q: What are the dimensions and weight of the 2094-BC02-M02-M?

A: The dimensions are 4.9 x 11.9 x 13.2 in (125 x 302 x 336 mm) and it weighs 13.0 lbs (5.90 kg).

Q: What type of control input fuse does this module require?

A: It requires either an FNQ-R-10 (10 A) or FNQ-R-7.5 (7.5 A) fuse.

Q: What is the operating temperature range for this module?

A: The operating temperature is 32-122 F (0-50 C).
