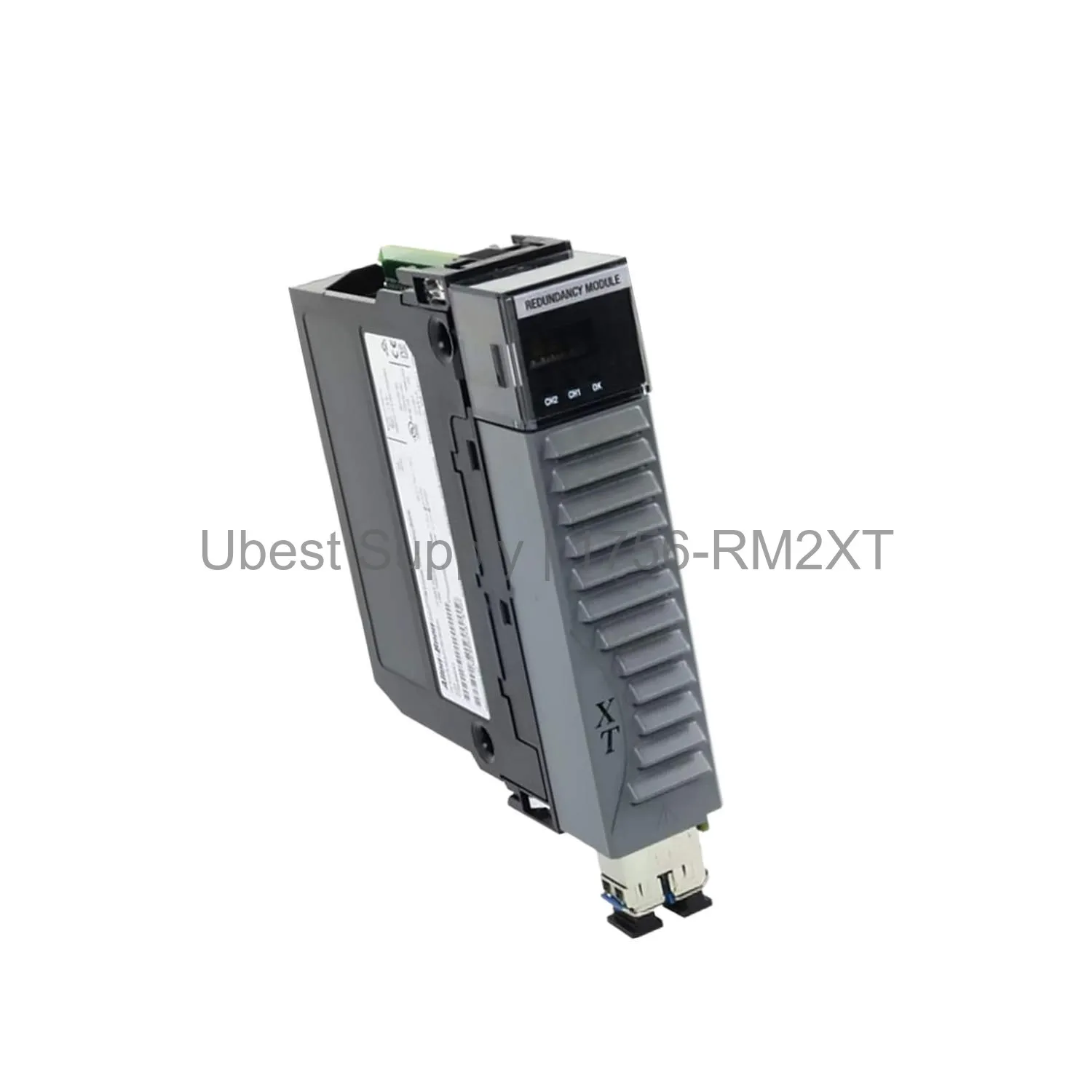

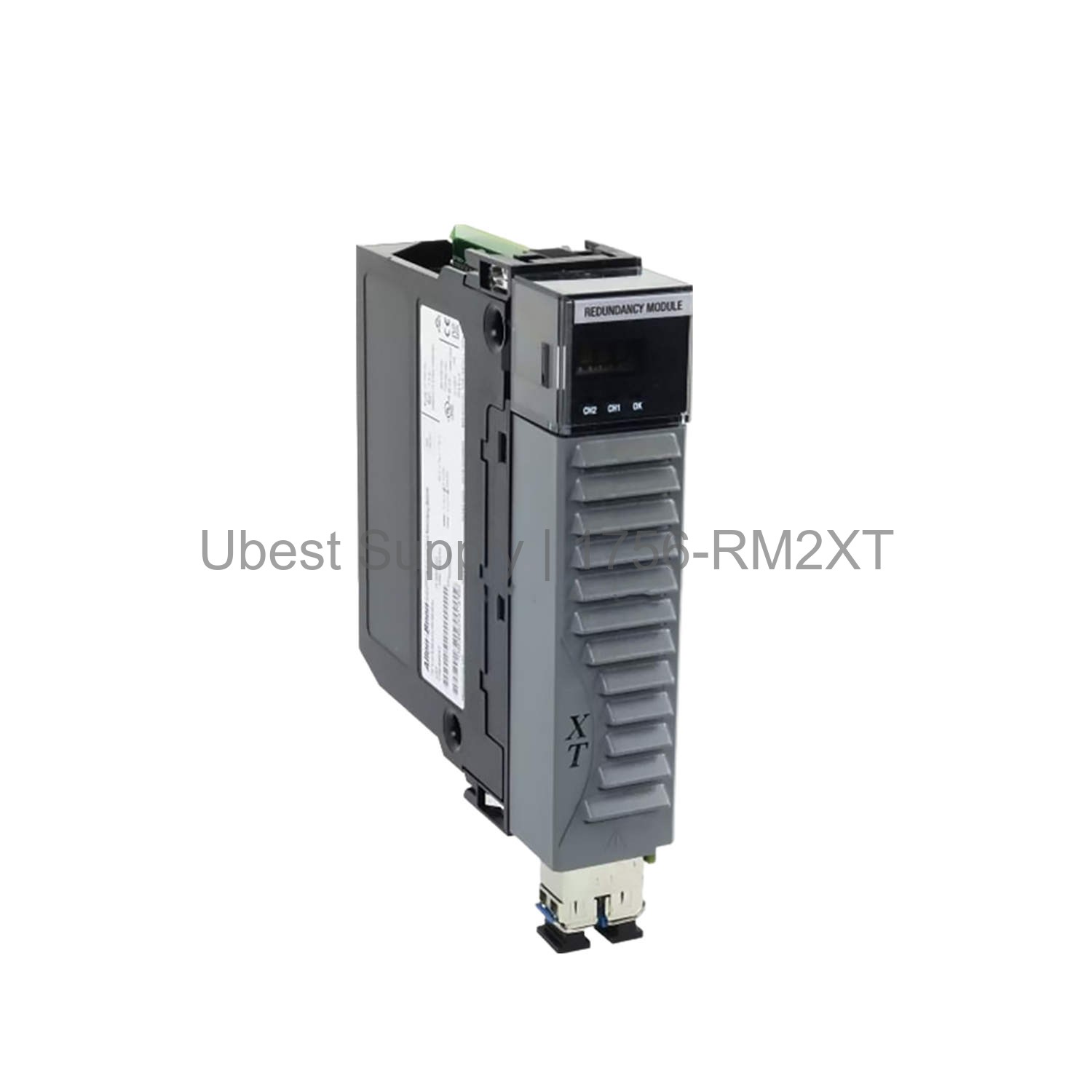

Allen-Bradley 1756-RM2XT Enhanced Redundancy Module ControlLogix

Product Overview

The Allen-Bradley 1756-RM2XT is an enhanced redundancy module. It belongs to the ControlLogix series. This module supports extended temperature ranges. It ensures high system availability. The module uses fiber optic communication. It covers distances up to 4 kilometers. This makes it ideal for distributed control systems.

Application Scenarios

This module works well in harsh industrial environments. It suits applications with wide temperature swings. Use it in oil and gas facilities. It is also good for power generation plants. The module supports critical process control. It maintains system uptime during failures. It connects remote racks over long distances.

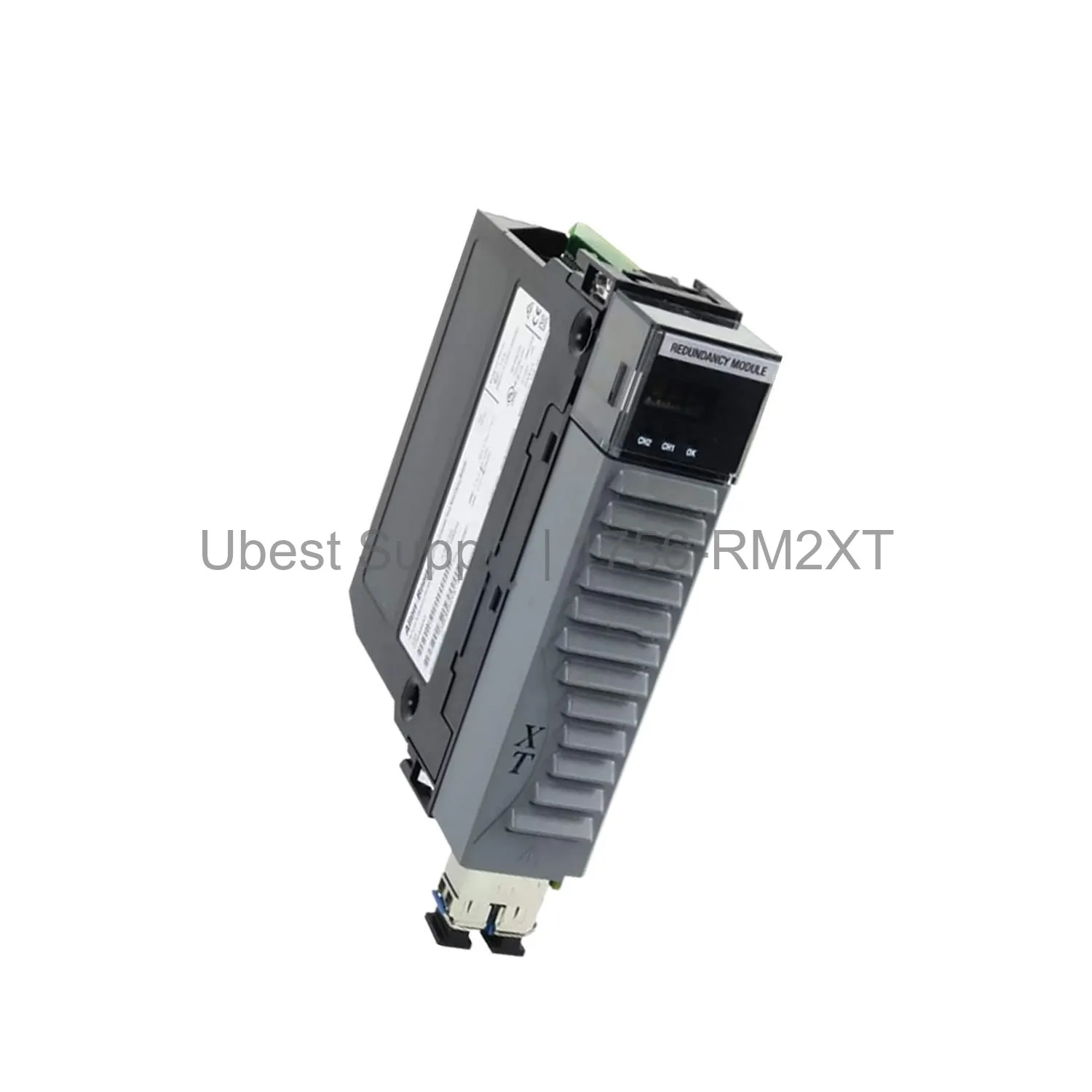

Technical Specifications

The 1756-RM2XT operates at 1300 Newton Meters wavelength. It transmits data at less than 1000 MB-Second. It has one channel for communication. The operating temperature is 32-140 Fahrenheit. That is 0-60 Celsius. The module comes without an enclosure. It uses 20 AWG wire size. Its dimensions are 5.51 x 4.41 x 5.71 inches.

Installation & Maintenance Guide

Install the module in a ControlLogix chassis. Ensure proper grounding before use. Use fiber optic cables for connection. Follow the user manual for configuration. The module supports hot-swapping. Regular cleaning of fiber ports is recommended. Check the status indicators for errors.

Packing List

The package includes one enhanced redundancy module. It includes a quick start guide. No cables or accessories are included. The module is packed in anti-static material. Shipping is done via Fedex, UPS, or DHL.
