Product Overview

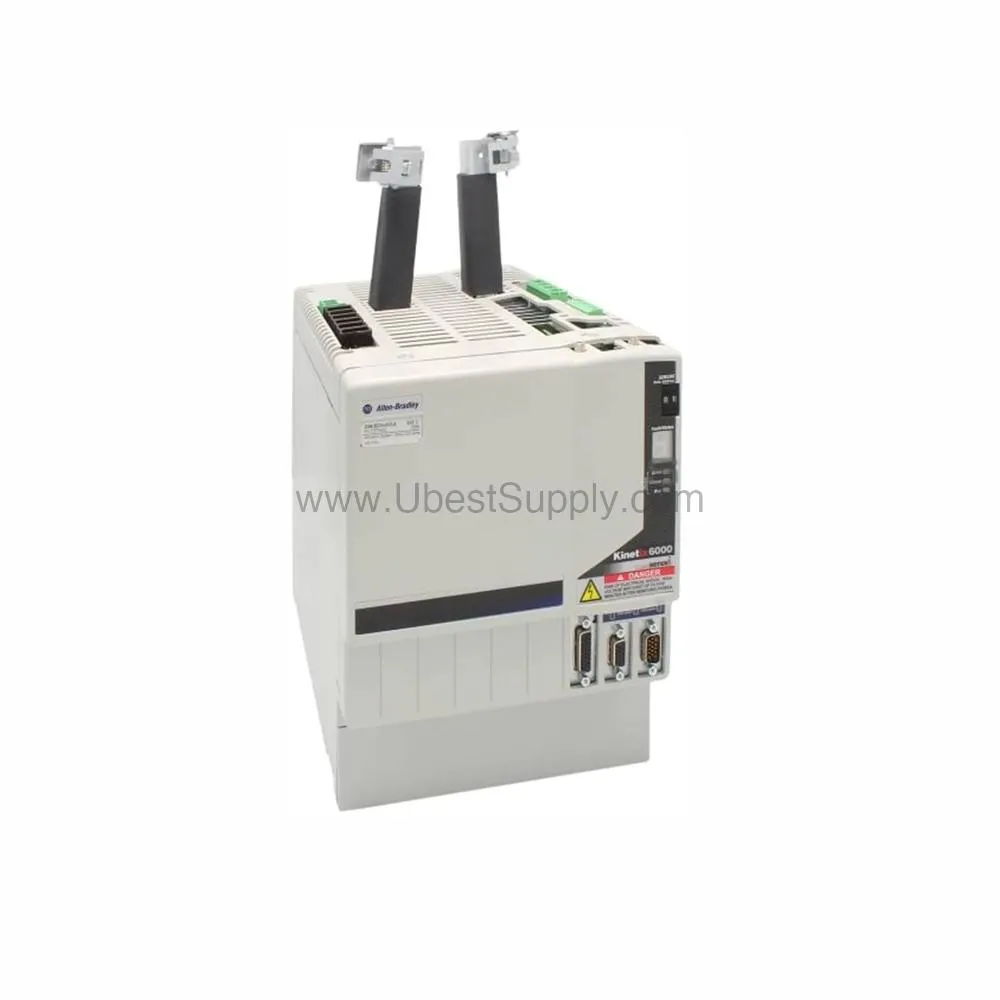

The 2094-BC07-M05-M is a Kinetix 6000 Integrated Axis Module from Allen-Bradley, manufactured by Rockwell Automation. This power module combines a converter and inverter in a single unit, designed for demanding motion control applications. It delivers a converter section output of 45kW and an inverter section output of 49 A, with a power dissipation range of 71-226 Watts. The module operates on a nominal drive voltage of 360-480 Volts (3 Phase) and provides an output current of 45 Amperes.

Technical Specifications Analysis

The 2094-BC07-M05-M operates within a temperature range of 32-122 F (0-50 C). Its voltage rating is 400/460VAC, with an input voltage range of 324-528V rms 3-phase and an acceptable AC input range of 360-480VAC. The continuous output current to the bus is 67.7 A. The module has a maximum bus capacitance of 17,915 Microfarads. Dimensions are 7.7 x 11.9 x 16.7 in (196 x 302 x 426 mm) and it weighs 22.0 lbs (9.98 kg). Installation requires a minimum bottom clearance of 80 mm (3.10 in.) and a minimum enclosure depth of 302 mm (11.9 in.). Control input fuse options include FNQ-R-10 (10 A) or FNQ-R-7.5 (7.5 A), and control input breaker options are 1492-SPM2D060 or 1492-SPM1D150. The DC bus power fuse is a Bussmann FWJ-125A or Mersen equivalent.

Application Scenarios & Usage Methods

This integrated axis module is ideal for high-performance motion control in packaging, material handling, and assembly lines. Use it to drive servo motors in multi-axis systems where precise speed and position control are critical. The module's modular design simplifies wiring and reduces spare parts inventory. For example, in a packaging machine, the 2094-BC07-M05-M can control a conveyor axis with its 45 kW converter and 49 A inverter, ensuring smooth operation at varying loads. Its built-in safety features, such as Safe Speed and Safe Maximum Speed monitoring, protect personnel and equipment.

Installation Guide & Packing List

Install the module in a clean, dry enclosure with proper ventilation. Mount it vertically with the specified minimum clearance of 80 mm (3.10 in.) below and an enclosure depth of at least 302 mm (11.9 in.). Connect the 3-phase AC input within 360-480VAC range. Use the recommended control input fuse and breaker. The packing list typically includes the 2094-BC07-M05-M integrated axis module, a user manual, and mounting hardware. Verify the part number matches your order before installation.

Purchasing Advice

When selecting this module, confirm your system voltage matches the 360-480VAC 3-phase input. Ensure your load requirements fall within the 45 kW converter and 49 A inverter ratings. The 2094-BC07-M05-M is a reliable choice for new installations or as a replacement in Kinetix 6000 systems. Petro Auto Tech offers genuine Allen-Bradley products with fast shipping and expert support.

Repair & Maintenance Tips

Regularly inspect the module for dust buildup and clean with a dry, low-pressure air stream. Check all connections for tightness and signs of corrosion. Monitor operating temperature to stay within 32-122 F (0-50 C). Replace control input fuses only with the specified FNQ-R-10 or FNQ-R-7.5 types. Store the module in a static-safe environment when not in use.

Frequently Asked Questions (FAQs)

Q: What is the input voltage range for the 2094-BC07-M05-M?

A: The nominal drive voltage is 360-480 Volts (3 Phase), with an acceptable AC input range of 360-480VAC and an input voltage range of 324-528V rms 3-phase.

Q: What are the converter and inverter ratings?

A: The converter section output is 45kW, and the inverter section output is 49 A.

Q: What is the weight and dimensions of this module?

A: It weighs 22.0 lbs (9.98 kg) and measures 7.7 x 11.9 x 16.7 in (196 x 302 x 426 mm).

Q: What safety features does this module include?

A: It includes Safe Speed, Safe Maximum Speed, Safe Maximum Acceleration Monitoring, Safe Direction Monitoring, Zero Speed Monitoring, Enabling Switch Control, and Door Monitoring and Control.

Q: What is the operating temperature range?

A: The operating temperature range is 32-122 F (0-50 C).
