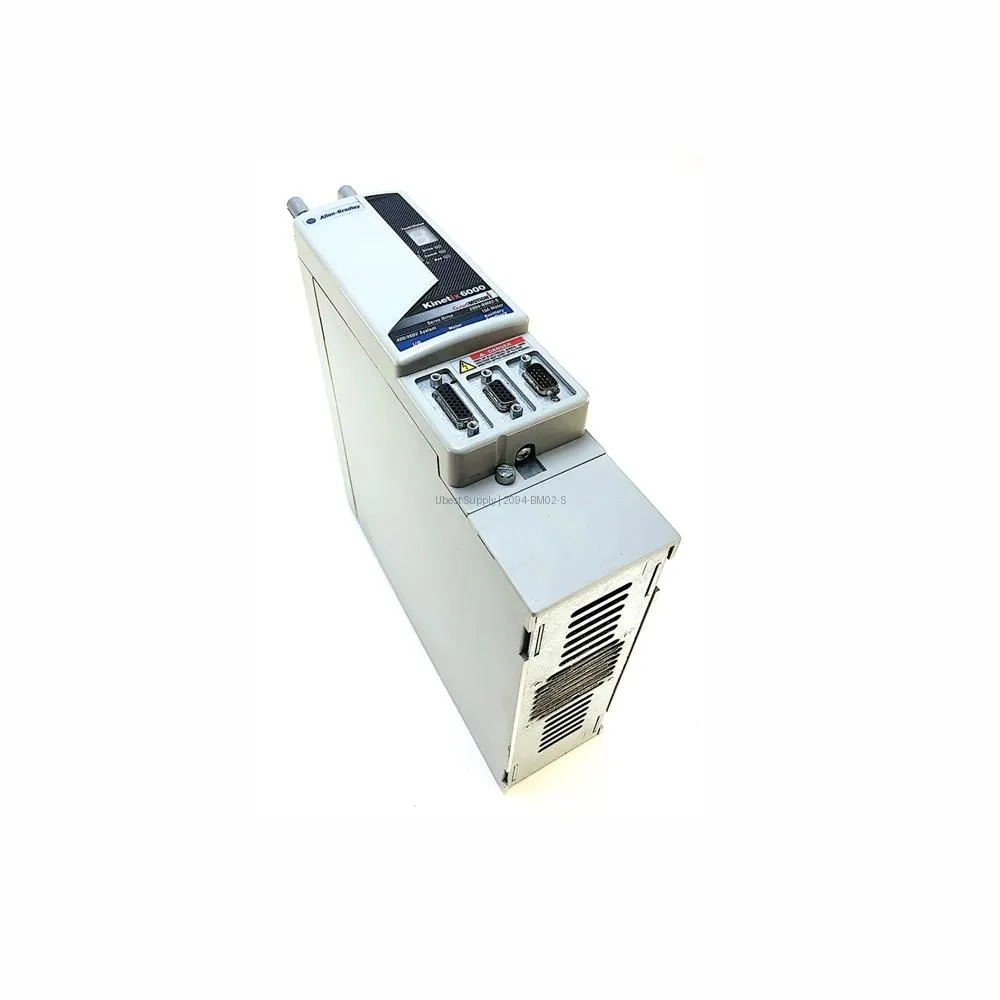

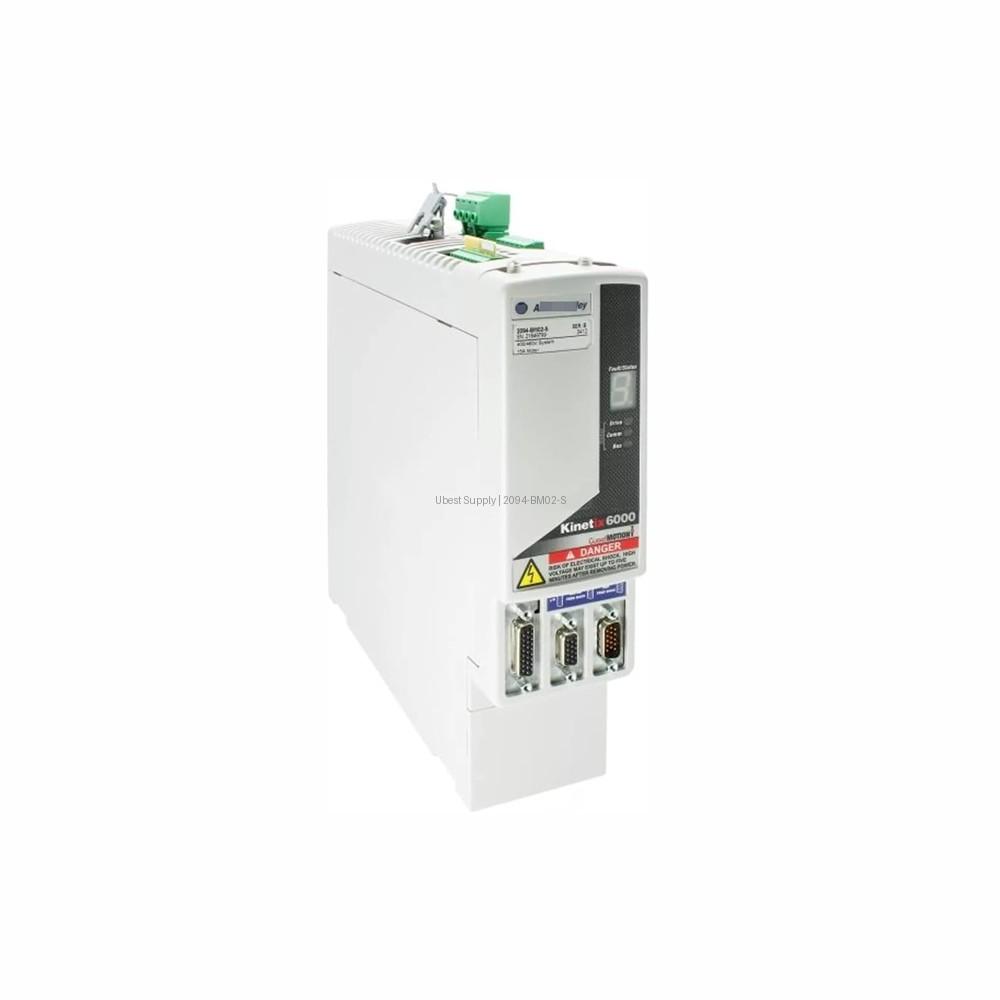

2094-BM02-S Kinetix 6000 Integrated Axis Module by Allen-Bradley

Product Overview

The Allen-Bradley 2094-BM02-S is a high-performance Integrated Axis Module from the Kinetix 6000 series. It operates on a 400V voltage class. This module delivers a continuous output current of 10.3 A. Its peak current reaches 25.8 A for demanding tasks. The unit achieves 98% efficiency to reduce energy loss. It includes a 115 Ohm internal shunt resistor. This design supports reliable multi-axis servo drive applications. The module weighs only 5.6 pounds (2.54 kilograms). It is built for industrial automation environments.

Application Scenarios

This module fits complex motion control systems. It works well in packaging, printing, and material handling. The 2094-BM02-S supports multi-axis coordination in manufacturing lines. It handles high-speed positioning with precision. The drive manages continuous power output up to 6.6 kW. It suits applications requiring peak power up to 5.6 kW. Use it in assembly robots or conveyor systems. The module integrates seamlessly with Kinetix 6000 drives.

Technical Specifications

The module has a nominal drive voltage of 360-480 Volts (3 Phase). It provides 10.3 A continuous output current. The sine continuous output current is 14.6 A. Peak current capability is 25.8 A. The internal shunt resistor is rated at 115 Ohms. It handles 50 W continuous power and 5.6 kW peak power. Heat dissipation is 93 Watts. Capacitance is 270 µF. The brake current value is 1 or 3 Amps. Efficiency is 98%.

Installation & Maintenance Guide

Mount the module in a clean, dry cabinet. Ensure proper ventilation for heat dissipation. Connect the 3-phase power supply correctly. Use shielded cables for signal wiring. Check the internal shunt resistor periodically. Verify brake current settings during setup. Keep the module free from dust and debris. Follow all local electrical codes. Use only qualified technicians for installation. Regular inspections help maintain peak performance.

Packing List

The package includes one Allen-Bradley 2094-BM02-S Integrated Axis Module. It comes with a user manual. Standard mounting hardware is included. No additional cables are provided. The product is securely packed for shipping. We ship via Fedex, UPS, or DHL. Contact us for expedited shipping options.
