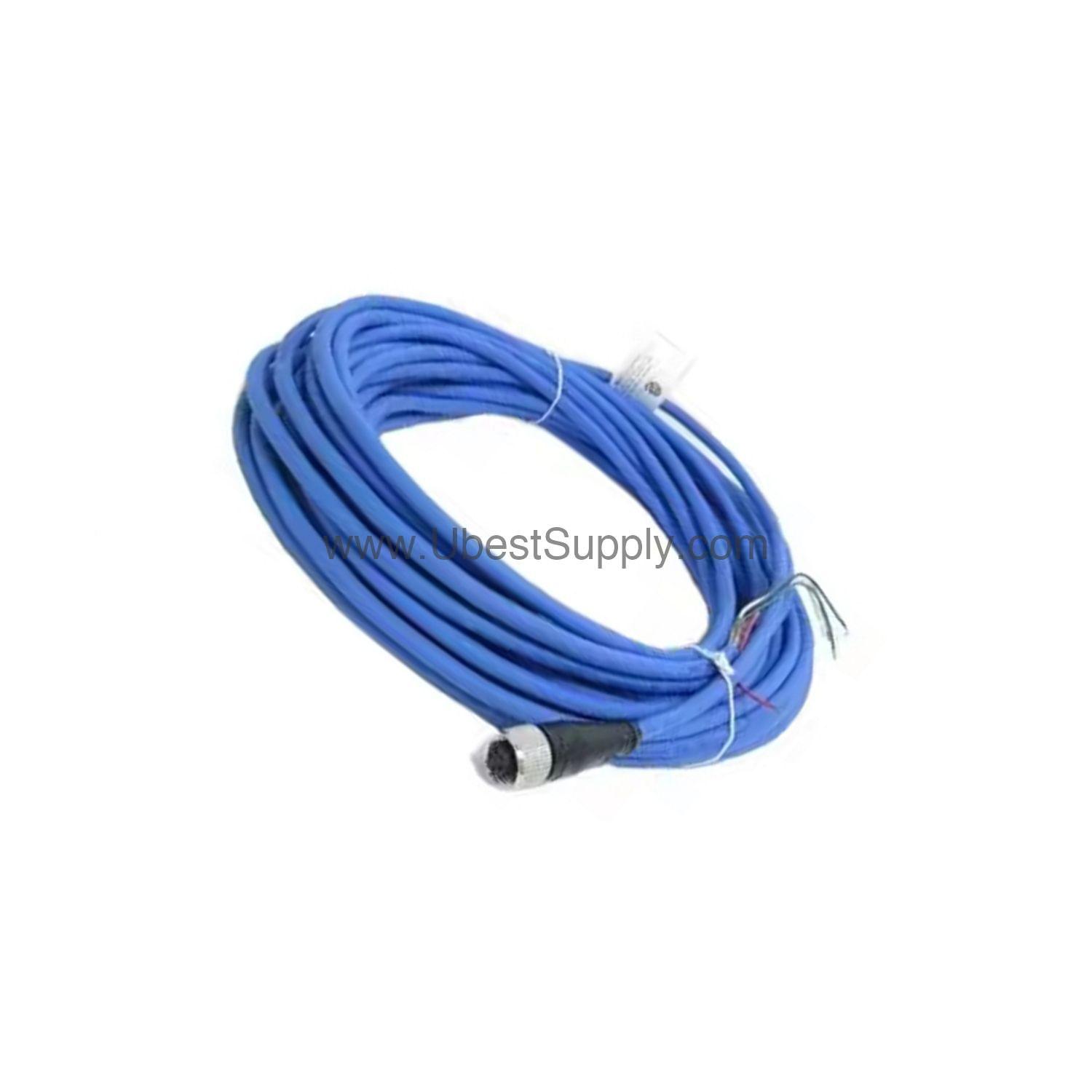

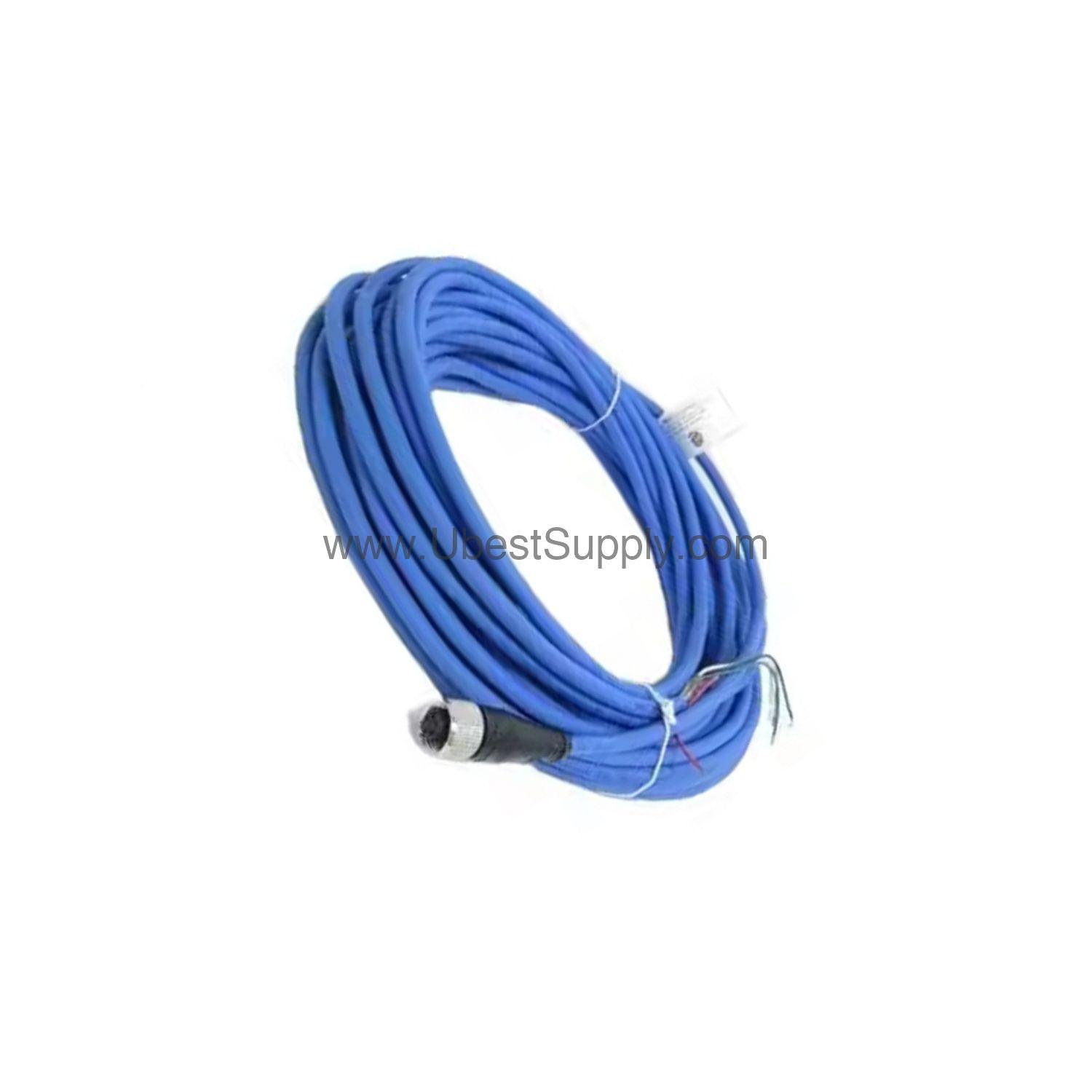

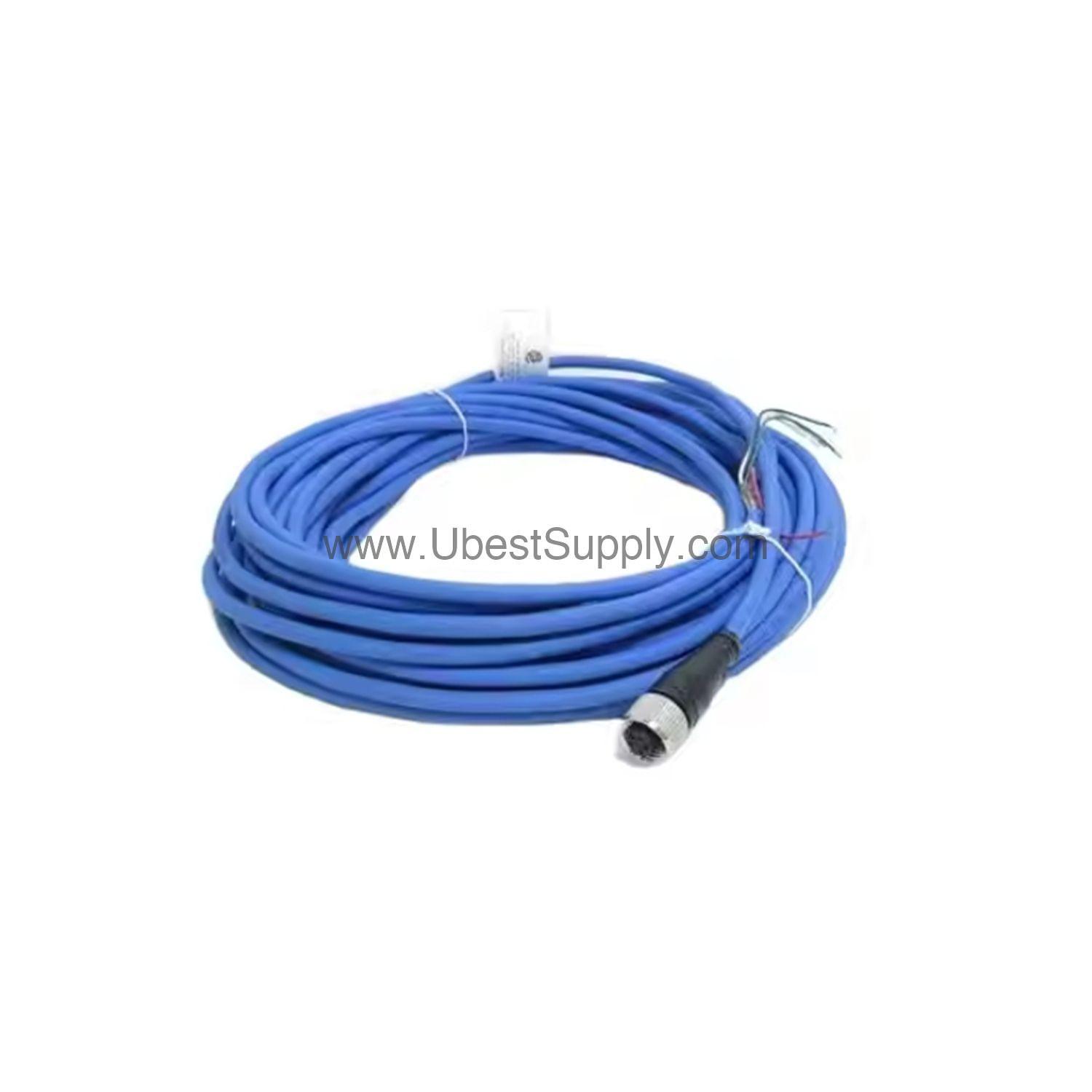

200152-04-CN | Bently Nevada 4.0 Meter Accelerometer Interface Cable

Introduction to the Bently Nevada 200152-04-CN

When cable reliability directly impacts uptime, the 200152-04-CN from Bently Nevada delivers a robust solution. This accelerometer interface cable, part of the 200151 model family, features a 4.0 meter length and a connector on the accelerometer end only. Its nickel-plated coupling nuts and molded connectors ensure a secure IP67 seal against moisture and dust, making it a trusted choice for demanding industrial environments.

Key Features and Technical Specifications

• Cable length: 4.0 meters, as indicated by the -04 suffix.
• Coupling nut variant: -CN for country-specific requirements.
• Minimum bend radius: 73.7 mm (2.9 in) to prevent cable damage during installation.
• Operating temperature range: -20 ºC to +100 ºC (-4 ºF to +212 ºF).
• Construction: 4-conductor, 22 AWG with braided shield and drain wire (85% coverage, minimum), PVC outer jacket.
• Connectors provide an IP67 seal to transducers and mating hardware, molded to the cable.
• Additional moisture protection via DC4 electrical insulating compound in connectors during thermal shock.

A distinctive feature is the IP67 seal, which directly prevents moisture ingress in washdown or outdoor installations. This reduces unexpected failures and extends service life.

Applications and Use Cases

The 200152-04-CN is ideal for vibration monitoring on rotating machinery such as pumps, fans, compressors, and motors. Its rugged construction suits harsh environments where dust, water, or temperature extremes are present. For example, in a steel mill where coolant sprays and high temperatures are common, this cable maintains signal integrity and connector reliability. Additionally, its 4.0 meter length offers flexibility for routing in tight spaces without sacrificing performance.

Installation and Setup

Install the 200152-04-CN by connecting the molded connector to the accelerometer and routing the cable to the monitoring system. Ensure the bend radius does not exceed 73.7 mm to avoid internal damage. The nickel-plated coupling nuts should be hand-tightened to achieve the IP67 seal. For installations below -20 ºC, avoid flexing the cable to prevent cracking the PVC jacket. Always verify connector alignment before tightening to maintain the seal.

Maintenance and Reliability

Regularly inspect the cable jacket for cuts, abrasion, or signs of moisture ingress at the connector. The IP67 seal reduces maintenance intervals, but periodic checks every six months are recommended in harsh environments. The braided shield and drain wire provide excellent noise rejection, ensuring reliable data transmission. By following bend radius and temperature guidelines, users can maximize cable lifespan and minimize unplanned downtime.

Compatibility and Integration

The 200152-04-CN is designed for Bently Nevada accelerometers with compatible connectors. It works with standard monitoring systems that accept 4-conductor shielded cables. For integration, ensure the system supports the cable's 22 AWG conductors and braided shield termination. No special adapters are required for most Bently Nevada transducers.

Troubleshooting and Common Issues

If signal loss occurs, first check the connector seal for moisture. The IP67 rating prevents this, but thermal shock can compromise the compound. Inspect the cable for kinks exceeding the 73.7 mm bend radius. For intermittent readings, verify the drain wire connection at both ends. If the cable operates below -20 ºC and was flexed, replace it to avoid internal conductor damage.

Frequently Asked Questions

What is the cable length of the 200152-04-CN?

The cable length is 4.0 meters, as indicated by the -04 suffix in the part number.

What temperature range can this cable withstand?

It operates from -20 ºC to +100 ºC (-4 ºF to +212 ºF). Lower temperatures are possible if the cable is not flexed.

Does the 200152-04-CN provide an IP67 seal?

Yes, the connectors provide an IP67 seal to transducers and mating hardware, with molded construction and DC4 insulating compound for added moisture protection.

What is the minimum bend radius?

The minimum bend radius is 73.7 mm (2.9 in) to prevent cable damage.

How many conductors does this cable have?

It has 4 conductors, 22 AWG, with a braided shield and drain wire (85% coverage, minimum) and a PVC outer jacket.

Product Support and Availability

The 200152-04-CN is available from Petro Auto Tech, an industrial automation parts supplier. Check current stock and lifecycle status before ordering. For technical support, consult the official Bently Nevada documentation or contact Petro Auto Tech directly.
