21000-16-05-15-114-03-02 | Bently Nevada 8 mm Probe Housing Assembly

Introduction to the 21000-16-05-15-114-03-02

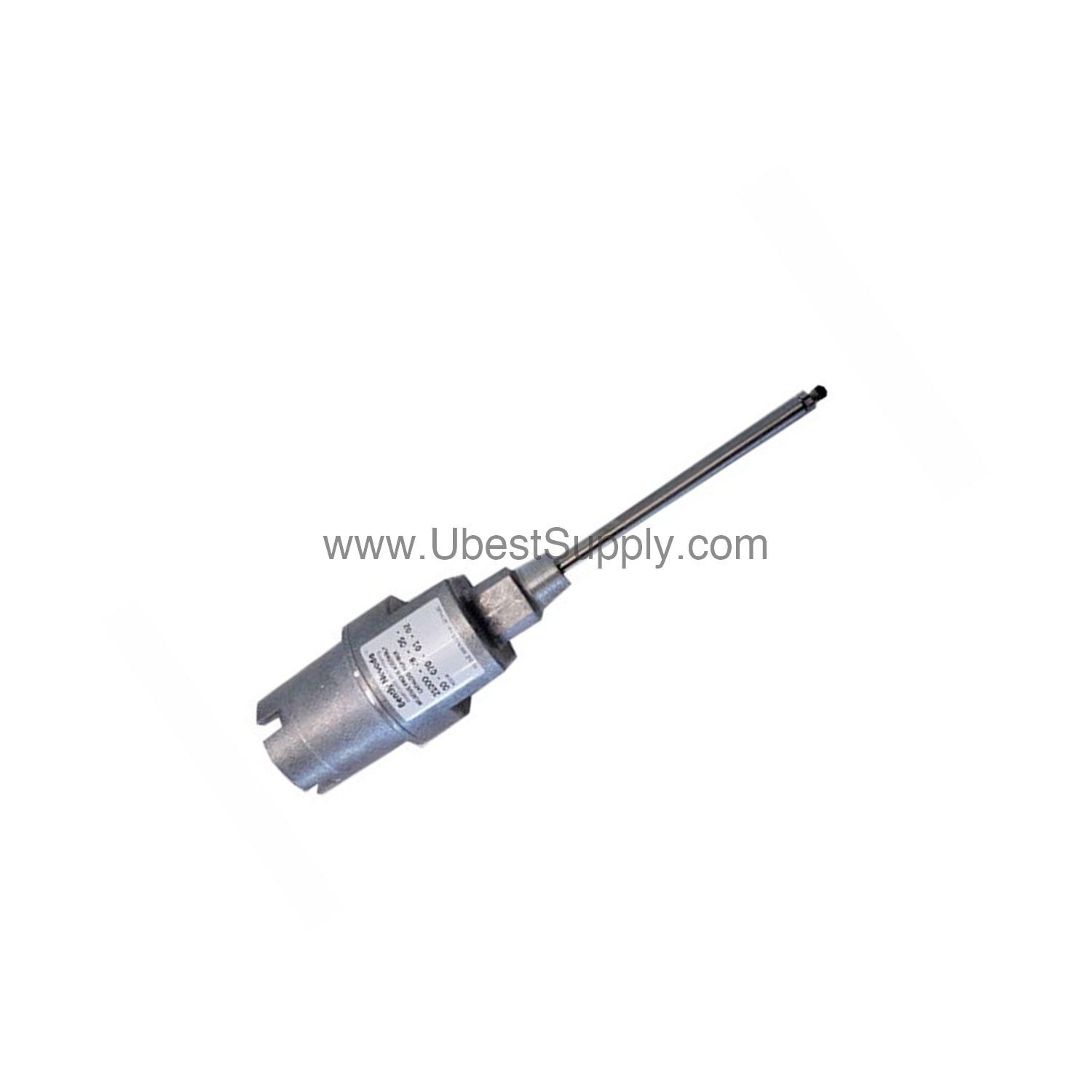

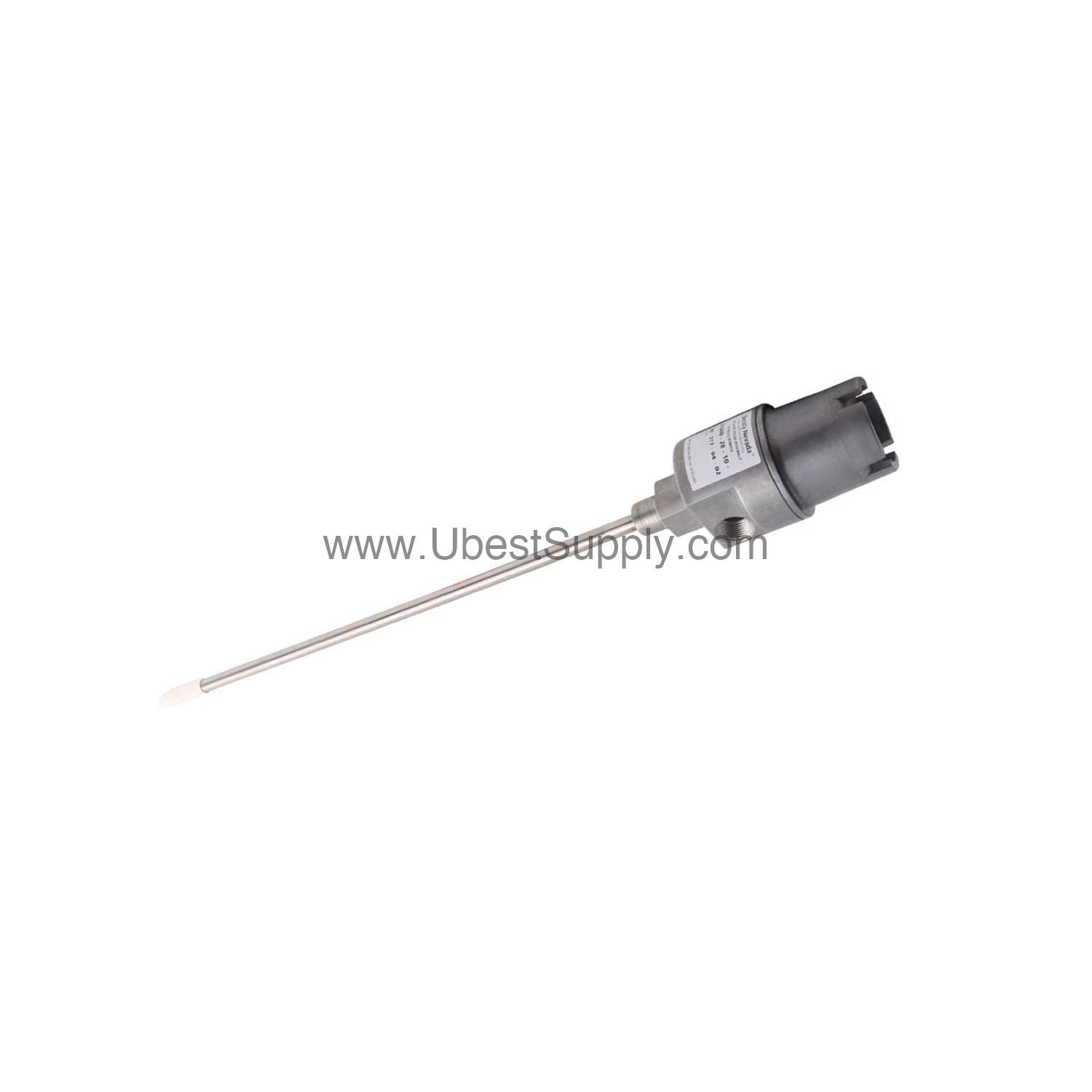

When machine vibration threatens uptime, the 21000-16-05-15-114-03-02 from Bently Nevada provides a robust solution. This proximity probe housing assembly is designed for externally mounted probes in industrial environments. It combines an aluminum body with a 304 stainless steel sleeve for durability. The assembly includes a 3300 XL 8 mm probe with a 0.5 m cable. It also features a 1.5 in (38 mm) standoff adapter and a probe penetration of 11.4 in. This product is new and comes in original factory packing with a 12-month warranty.

Key Features and Technical Specs

• Probe Option: 3300 XL 8 mm probe with connector.
• Cable Length: 0.5 m (20 in).
• Standoff Adapter: 1.5 in (38 mm).
• Probe Penetration: 11.4 in.
• Mounting Thread: 3/4-14 NPT.
• Fittings: One 3/4-14 NPT plug, one 3/4-14 to 1/2-14 NPT reducer, and a cable seal grip with grommets for cable sizes from 1/8 to 3/8 inches.
• Material: Aluminum body with 304 stainless steel sleeve.
• Weight: 1.1 kg (2.4 lb) typical, without fittings.

A distinctive feature is the 3300 XL 8 mm probe, which provides reliable proximity sensing for vibration monitoring in rotating machinery. This ensures accurate data for predictive maintenance.

Industry Applications

Engineers use the 21000-16-05-15-114-03-02 in applications such as turbine monitoring, compressor protection, and pump vibration analysis. It is suitable for hazardous areas with CSA explosion-proof certification. The housing meets CSA Type 4 enclosure standards and complies with API 670 for externally mounted probes. This makes it a trusted choice for oil and gas, power generation, and heavy industrial plants.

Installation and Setup

Mount the assembly using the 3/4-14 NPT thread. For probe penetration lengths between 1.0 and 2.0 inches, counter boring the machine case may reduce side view effects. If the total probe penetration (C plus D) exceeds 300 mm (12 in), add sleeve support near the probe to prevent resonance. The adjustment range for option D is 13 mm (± 0.5 in). Use the supplied fittings to secure conduit connections.

Maintenance and Reliability

Regular inspection of the housing and probe cable helps maintain accuracy. Check O-rings and thread seals during routine maintenance. The aluminum and stainless steel construction resists corrosion in harsh environments. Following these practices extends service life and reduces unplanned downtime, supporting cost-effective operations.

Compatibility and Integration

The 21000-16-05-15-114-03-02 works with Bently Nevada monitoring systems and other compatible vibration monitoring equipment. It is designed for use with 3300 XL series probes. The housing is available with CSA approvals for hazardous areas, making it suitable for integrated safety systems. For specific system compatibility, refer to the official Bently Nevada documentation.

Common Questions About the 21000-16-05-15-114-03-02

Q: What probe is included with this assembly?

A: The assembly includes a 3300 XL 8 mm probe with a connector.

Q: What is the cable length of the probe?

A: The probe cable length is 0.5 m (20 in).

Q: What mounting thread does the housing use?

A: The housing uses a 3/4-14 NPT mounting thread.

Q: Is this assembly suitable for hazardous areas?

A: Yes, it has CSA explosion-proof certification for Class 1 Divisions 1 and 2 Groups C and D, and Class 2 Divisions 1 and 2 Groups E, F, and G.

Q: What is the weight of the assembly?

A: The typical weight is 1.1 kg (2.4 lb) without fittings.
