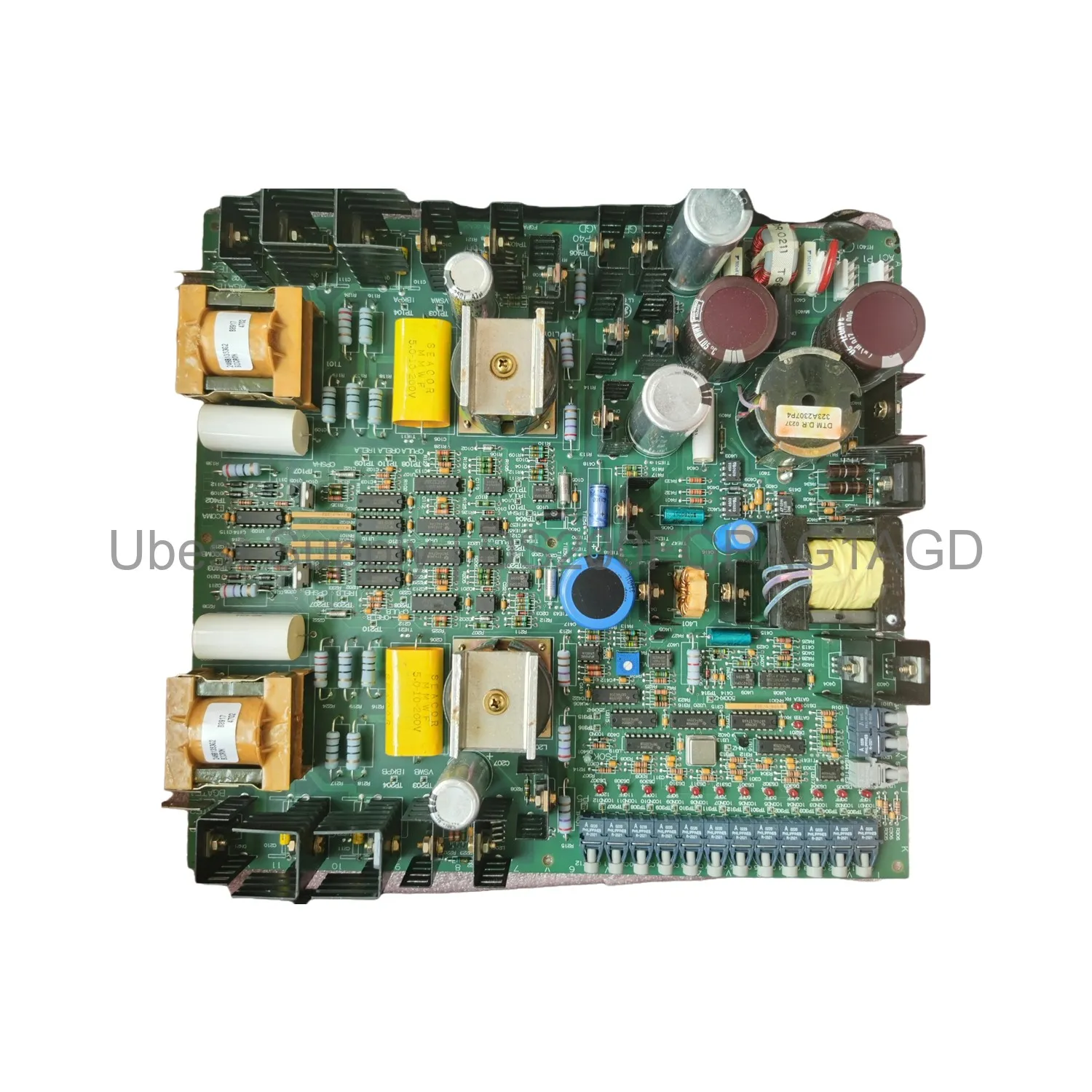

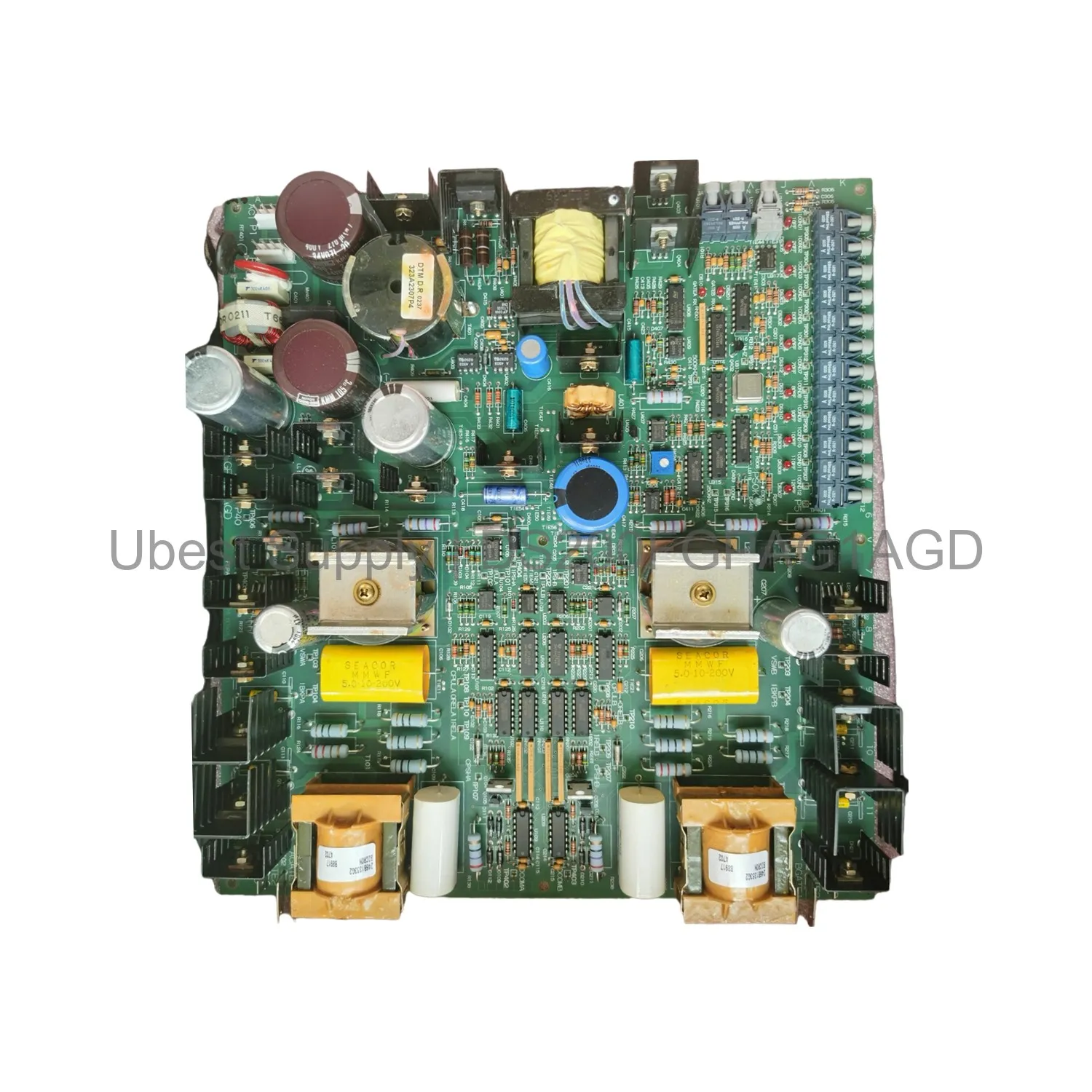

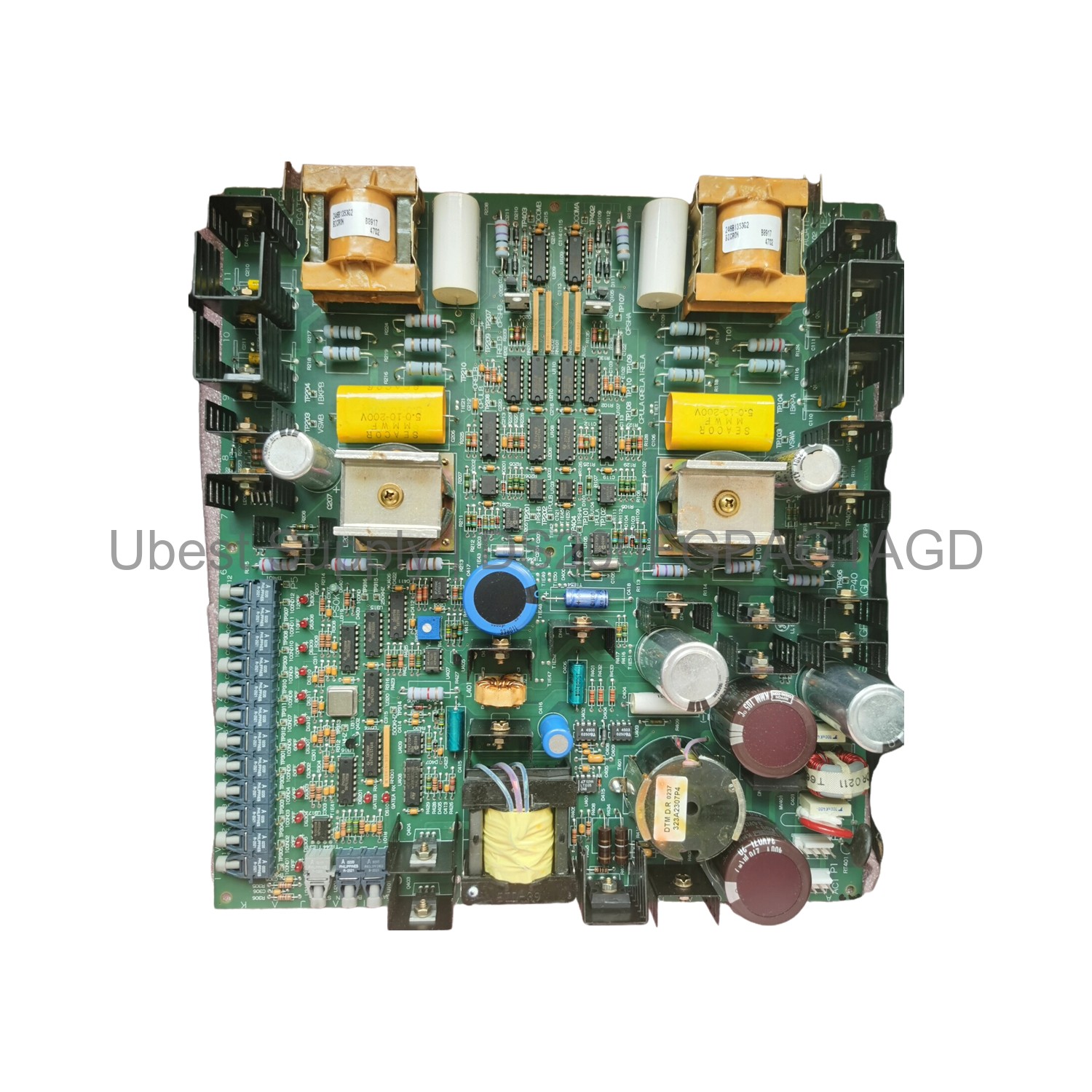

GE Energy DS200FGPAG1AGD Gate Pulse Amplifier Board for LS2100

Product Overview

The GE Energy DS200FGPAG1A is a Gate Pulse Amplifier Board. It belongs to the LS2100 series. This board provides two gate driver circuits. It uses fiber-optic communication for reliable signal transmission. The unit supports a twelve-pulse converter supply voltage. That voltage can be 2080 or 3300 VAC. The board is not backwards compatible with older systems.

Application Scenarios

This board works in industrial drive systems. It controls gate pulses for power converters. It suits high-voltage motor control applications. The fiber-optic connectors ensure noise immunity. This makes it ideal for harsh factory environments. Use it in steel mills or mining operations.

Technical Specifications

The DS200FGPAG1A has 30 test points. Nine test points serve Gate A. Nine test points serve Gate B. Twelve test points monitor cell status. The board includes 15 fiber-optic connectors. One connector is a transmitter. Fourteen connectors are receivers. The twelve-pulse converter uses 2080 or 3300 VAC. Two gate driver circuits manage the output.

Installation & Maintenance Guide

Turn off all power before installation. Mount the board in a clean, dry cabinet. Connect fiber-optic cables to the correct ports. Use the test points for diagnostics. Check for loose connections regularly. Keep the board free of dust.

Packing List

One GE Energy DS200FGPAG1A board. No additional cables or manuals are included. The board is packaged in an anti-static bag. It ships in a sturdy cardboard box.
