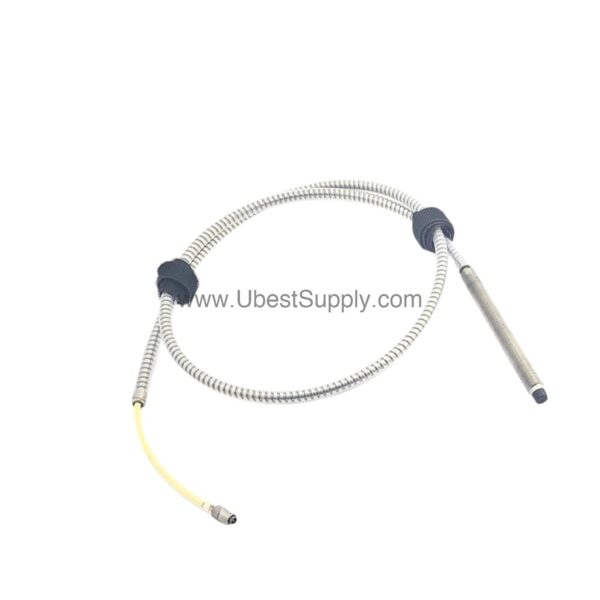

21505-00-32-10-02 | Bently Nevada 8 mm Proximity Probe

Introduction to the Bently Nevada 21505-00-32-10-02

When unplanned downtime threatens your rotating machinery, the 21505-00-32-10-02 from Bently Nevada provides the precise vibration data you need. This 8 mm proximity probe is part of the 7200 series, engineered for continuous monitoring in harsh industrial environments. With a calibrated range of 80 mils (2.0 mm), it detects shaft vibration and displacement with high accuracy, helping you spot problems before they escalate.

As a new, factory-packed unit, this probe offers a 12-month warranty, ensuring dependable performance from day one. Whether you are upgrading an existing system or installing new monitoring points, the 21505-00-32-10-02 delivers the measurement integrity your plant relies on.

Key Features and Technical Specifications

The 21505-00-32-10-02 is built to deliver consistent, repeatable measurements. Here are the core specifications you can count on:

• Calibrated Range: 80 mils (2.0 mm), starting at approximately 10 mils (0.25 mm) from the probe face.
• Scale Factor: 200 mV/mil (7.87 V/mm), ±4% when calibrated as a system.
• Linearity: Within 0.8 mils (0.02 mm) of a 200 mV/mil straight line (system calibrated).
• Frequency Response: 0 to 10 kHz (0 to 600,000 cpm); -5% at 10 kHz.
• Power Requirement: -17.5 Vdc to -26 Vdc at 12 mA maximum consumption.
• Operating Temperature (Proximitor): -60°F to +212°F (-51°C to +100°C).
• Operating Temperature (Probe and Extension Cable): -30°F to +350°F (-34°C to +177°C).
• Relative Humidity: Up to 95%, noncondensing.
• System Weight: 1.3 lbs (0.59 kg).

One standout feature is the frequency response—from 0 to 10 kHz, this probe captures both slow shaft movements and high-speed vibrations, making it suitable for a wide range of machinery speeds. This broad bandwidth ensures you do not miss critical events that could indicate bearing wear or misalignment.

Applications and Use Cases

The 21505-00-32-10-02 is ideal for monitoring turbines, compressors, pumps, and other rotating equipment. In petrochemical plants, it helps detect shaft vibration that could lead to costly failures. Similarly, in power generation, this probe provides the data needed to schedule maintenance before a breakdown occurs. Because it operates reliably in humid conditions (up to 95% noncondensing), it suits environments where moisture is a concern.

Furthermore, the probe's corrosion resistance—unaffected by air, water, lube oil, ammonium hydroxide, sulfuric acid (10%), MEK, or DMF—makes it a robust choice for chemical processing areas. By integrating this probe into your condition monitoring system, you gain early warning of developing faults, reducing unplanned downtime and extending machinery life.

Installation and Setup

Proper installation is critical for accurate readings. The 21505-00-32-10-02 features a 3/8-24 thread configuration and a standard case, allowing secure mounting. The total length option is 1.0 metre (39 inches) with a tolerance of +0.25 metre / -0.10 metre, giving you flexibility in positioning. The connector option includes a miniature male coaxial connector, simplifying wiring to your monitoring system.

When installing, ensure the probe face is positioned within the calibrated range—approximately 10 mils (0.25 mm) from the shaft surface. Use the provided stainless steel lead armor to protect the cable in harsh environments. Always follow the manufacturer's guidelines for torque and gap settings to achieve optimal performance.

Maintenance and Reliability

To maintain long-term accuracy, periodic inspection of the probe and cable is recommended. Check for physical damage, such as cuts or abrasions on the lead armor, and verify that the connector remains tight. Because the probe is designed for continuous operation, routine checks every six months are generally sufficient in clean environments. In more demanding settings, quarterly inspections may be prudent.

The 21505-00-32-10-02 is built to withstand temperature extremes and corrosive agents, reducing the frequency of replacements. By investing in this reliable probe, you minimize maintenance costs and avoid the expense of unexpected failures. Regular monitoring with this device helps you plan maintenance activities, ultimately saving money over the equipment's lifespan.

Compatibility and Integration

This probe is designed to work with Bently Nevada 7200 series monitoring systems. It provides a standard 200 mV/mil output, which is compatible with most vibration monitors and data collectors. For seamless integration, pair it with a compatible proximitor and extension cable from the same series. The probe's output can be fed into PLCs or DCS systems for real-time analysis, enabling predictive maintenance strategies.

If you are unsure about compatibility with your existing system, consult the official Bently Nevada documentation or contact Petro Auto Tech for guidance. Our team can help you select the right components for your specific application.

Troubleshooting Common Issues

If you encounter erratic readings, first check the gap between the probe face and the shaft. An incorrect gap—outside the calibrated range—can cause inaccurate output. Next, inspect the cable and connector for damage; a loose or broken connection can interrupt the signal. Also, verify that the power supply is within the specified range of -17.5 Vdc to -26 Vdc.

Another common issue is electromagnetic interference from nearby equipment. Ensure that the probe cable is routed away from high-voltage lines and that the shield is properly grounded. If problems persist, refer to the manufacturer's troubleshooting guide or contact Petro Auto Tech for technical support.

Frequently Asked Questions

Q: What is the calibrated range of the 21505-00-32-10-02?

A: The calibrated range is 80 mils (2.0 mm), beginning at approximately 10 mils (0.25 mm) from the probe face.

Q: What power supply does this probe require?

A: It requires -17.5 Vdc to -26 Vdc at 12 mA maximum consumption.

Q: Can this probe be used in high-humidity environments?

A: Yes, it operates in relative humidity up to 95% noncondensing.

Q: What is the frequency response of this probe?

A: The frequency response is 0 to 10 kHz (0 to 600,000 cpm), with -5% at 10 kHz.

Q: What is the total length of the probe?

A: The total length is 1.0 metre (39 inches), with a tolerance of +0.25 metre / -0.10 metre.

Product Support and Availability

The 21505-00-32-10-02 is available from Petro Auto Tech, your trusted source for industrial automation parts. We offer new, original factory-packed units with a 12-month warranty. Contact us for current availability and pricing. Our knowledgeable team is ready to assist with your order and any technical questions you may have.
