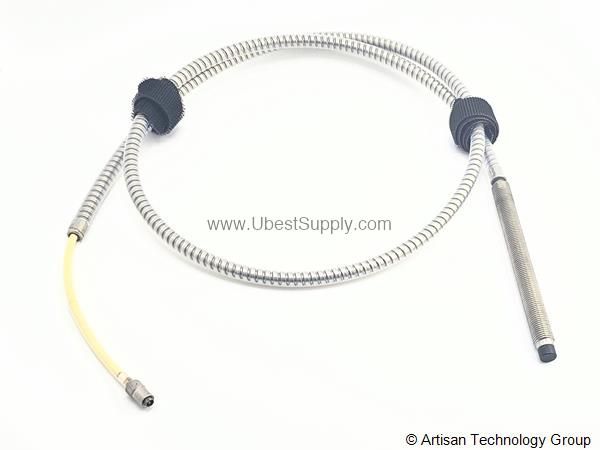

21505-00-52-10-02 | Bently Nevada 80 mils Proximity Probe

Introduction to the Bently Nevada 21505-00-52-10-02

In the evolving landscape of industrial automation, reliable vibration monitoring has become essential for protecting rotating machinery. The 21505-00-52-10-02 from Bently Nevada addresses this need with precision and durability. As part of the 7200 proximity transducer system, this probe delivers accurate displacement measurements that help operators detect early signs of mechanical wear.

Manufactured by Bently Nevada, a trusted name in condition monitoring, the 21505-00-52-10-02 is supplied new and in original factory packing. With a 12-month factory warranty, it offers confidence for critical applications. This article explores its specifications, applications, and maintenance considerations to help you make an informed purchasing decision.

Key Features and Technical Specifications

The 21505-00-52-10-02 is engineered for high accuracy and reliability. Below are the core specifications extracted directly from the datasheet:

• Calibrated Range: 80 mils (2.0 mm), beginning at approximately 10 mils (0.25 mm) from the probe face.
• Scale Factor: 200 mV/mil (7.87 V/mm), ±4% when calibrated as a system.
• Linearity: Within 0.8 mils (0.02 mm) of a 200 mV/mil straight line when calibrated as a system.
• Frequency Response: 0 to 10 kHz (0 to 600,000 cpm), with -5% at 10 kHz.
• Power Requirement: -17.5 Vdc to -26 Vdc at 12 mA maximum consumption.
• Total Length: 1.0 metre (39 inches), with tolerance of +0.25 metre, -0.10 metre.
• Probe Diameter: 8 mm, with standard case and 3/8-24 threads.
• Lead Armor: Yes, stainless steel.
• System Weight: 1.3 lbs (0.59 kg).

One distinctive feature is the temperature sensitivity. Typically, the scale factor changes by -3% at +150°F (+65°C) at a 50 mils gap (1.27 mm). This means that in high-temperature environments, the probe maintains consistent performance, reducing the risk of false readings.

Applications and Use Cases

The 21505-00-52-10-02 is ideal for monitoring shaft vibration and position in turbines, compressors, pumps, and other rotating equipment. Its 80 mil range covers typical clearance measurements, while the 8 mm diameter allows installation in tight spaces. For example, in a steam turbine, this probe can detect shaft eccentricity, helping maintenance teams schedule repairs before catastrophic failure occurs.

Moreover, the probe's corrosion resistance to air, water, lube oil, ammonium hydroxide, sulfuric acid (10%), MEK, and DMF makes it suitable for harsh industrial environments. Whether in a chemical plant or a power generation facility, this sensor provides reliable data for predictive maintenance programs.

Installation and Setup

Proper installation is crucial for accurate readings. The 21505-00-52-10-02 features a 3/8-24 threaded case, allowing secure mounting. Ensure the probe face is positioned within the calibrated range—typically 10 to 80 mils from the target surface. Use the provided connector option (miniature male coaxial) for a secure electrical connection.

When routing the extension cable, avoid sharp bends and excessive tension. The total length of 1.0 metre provides flexibility for most mounting configurations. Always follow the manufacturer's guidelines for gap setting and torque specifications to prevent damage.

Maintenance and Reliability

Regular inspection of the probe and cable is recommended to ensure long-term reliability. Check for physical damage, such as cracks or wear on the armor, and verify that the connector remains tight. The stainless steel lead armor protects against mechanical stress, but periodic checks are still advisable.

Given the probe's wide operating temperature range—from -60°F to +212°F for the Proximitor and -30°F to +350°F for the probe and cable—it can withstand extreme conditions. However, avoid exposing the probe to temperatures beyond these limits, as that could affect accuracy. Following a routine maintenance schedule helps extend service life and reduce downtime.

Compatibility and Integration

The 21505-00-52-10-02 is designed to work with Bently Nevada 7200 proximity transducer systems. It connects to a Proximitor, which conditions the signal for monitoring systems. The probe's output is a voltage proportional to displacement, making it compatible with standard vibration monitoring equipment.

For integration, ensure the system's power supply meets the -17.5 Vdc to -26 Vdc requirement. The probe's frequency response of 0 to 10 kHz covers most machinery vibration frequencies, from slow-speed rotors to high-speed spindles. Consult the official Bently Nevada documentation for detailed wiring diagrams and system setup.

Troubleshooting Common Issues

If the probe produces erratic readings, first check the gap setting. An incorrect gap can cause the output to be outside the calibrated range. Also, verify that the cable is not damaged and that the connector is clean and secure. Environmental factors, such as extreme temperatures, can affect performance, but the probe's design minimizes these effects.

Another common issue is electrical noise. Ensure that the probe cable is routed away from high-voltage lines and that the system is properly grounded. If problems persist, consult the Bently Nevada manual or contact Petro Auto Tech for technical support.

Frequently Asked Questions

Q: What is the calibrated range of the 21505-00-52-10-02?

A: The calibrated range is 80 mils (2.0 mm), starting at approximately 10 mils (0.25 mm) from the probe face.

Q: What power supply is required for this probe?

A: The probe requires -17.5 Vdc to -26 Vdc at 12 mA maximum consumption.

Q: What is the frequency response of the 21505-00-52-10-02?

A: The frequency response is 0 to 10 kHz (0 to 600,000 cpm), with -5% at 10 kHz.

Q: What is the total length of the probe?

A: The total length is 1.0 metre (39 inches), with a tolerance of +0.25 metre, -0.10 metre.

Q: Is the probe resistant to corrosive substances?

A: Yes, for 8 mm probes, operation is not affected by direct contact with air, water, lube oil, ammonium hydroxide, sulfuric acid (10%), MEK, or DMF.

Product Support and Availability

The 21505-00-52-10-02 is available through Petro Auto Tech, an industrial automation parts supplier. It is in stock and ready to ship, ensuring minimal lead time for your maintenance needs. Contact Petro Auto Tech for pricing and delivery options.
