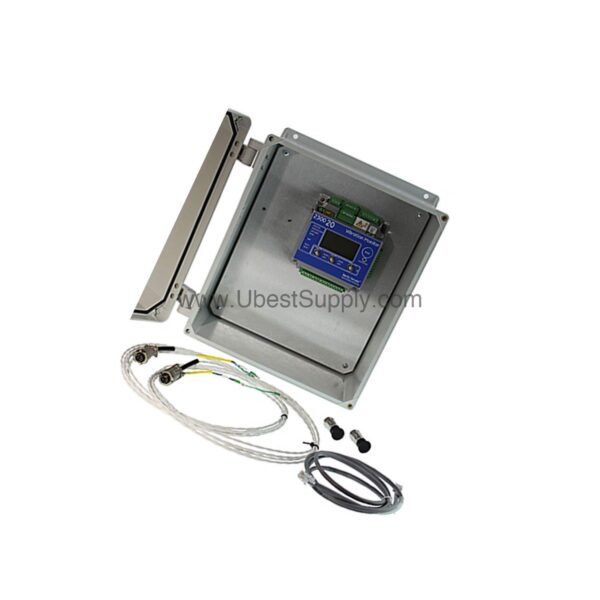

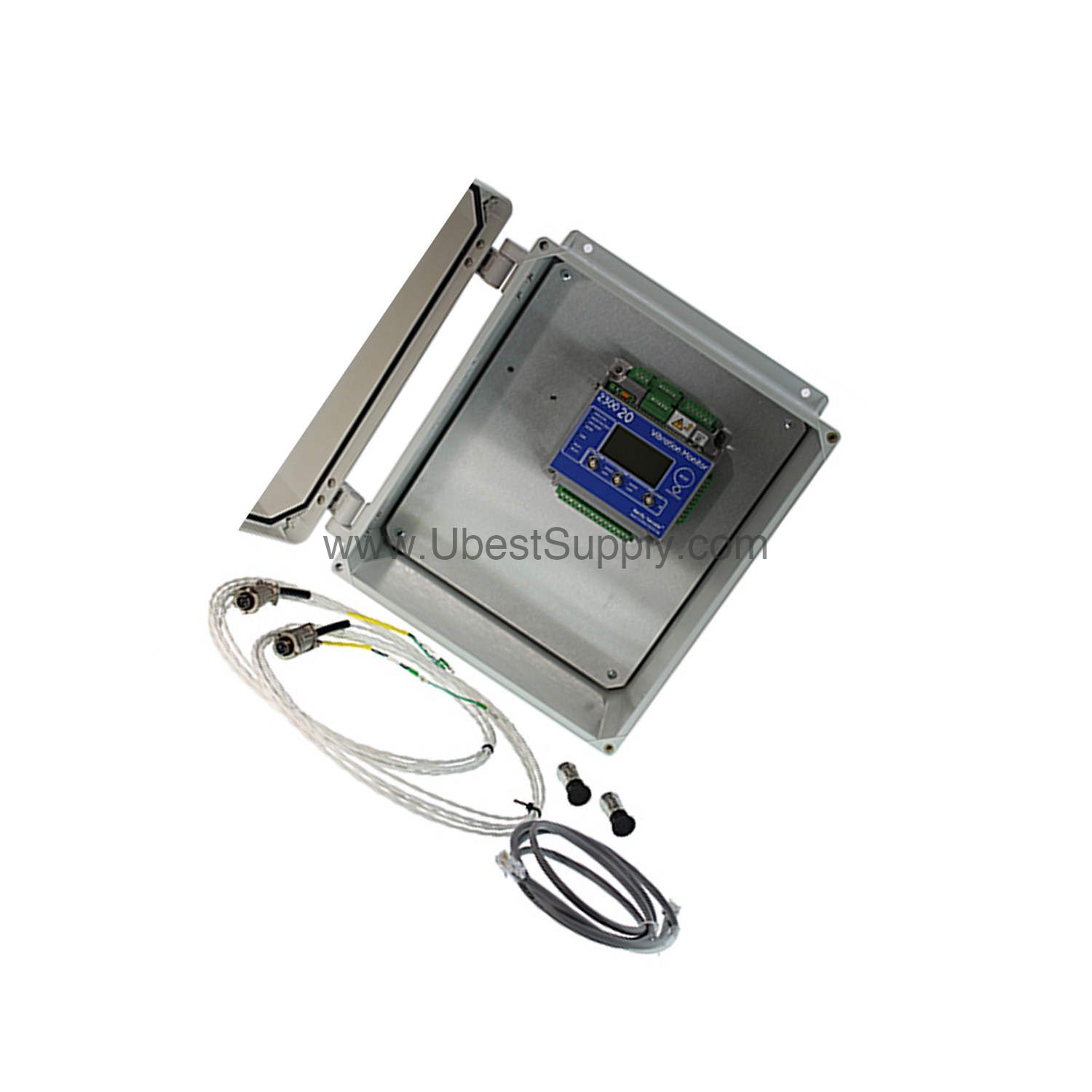

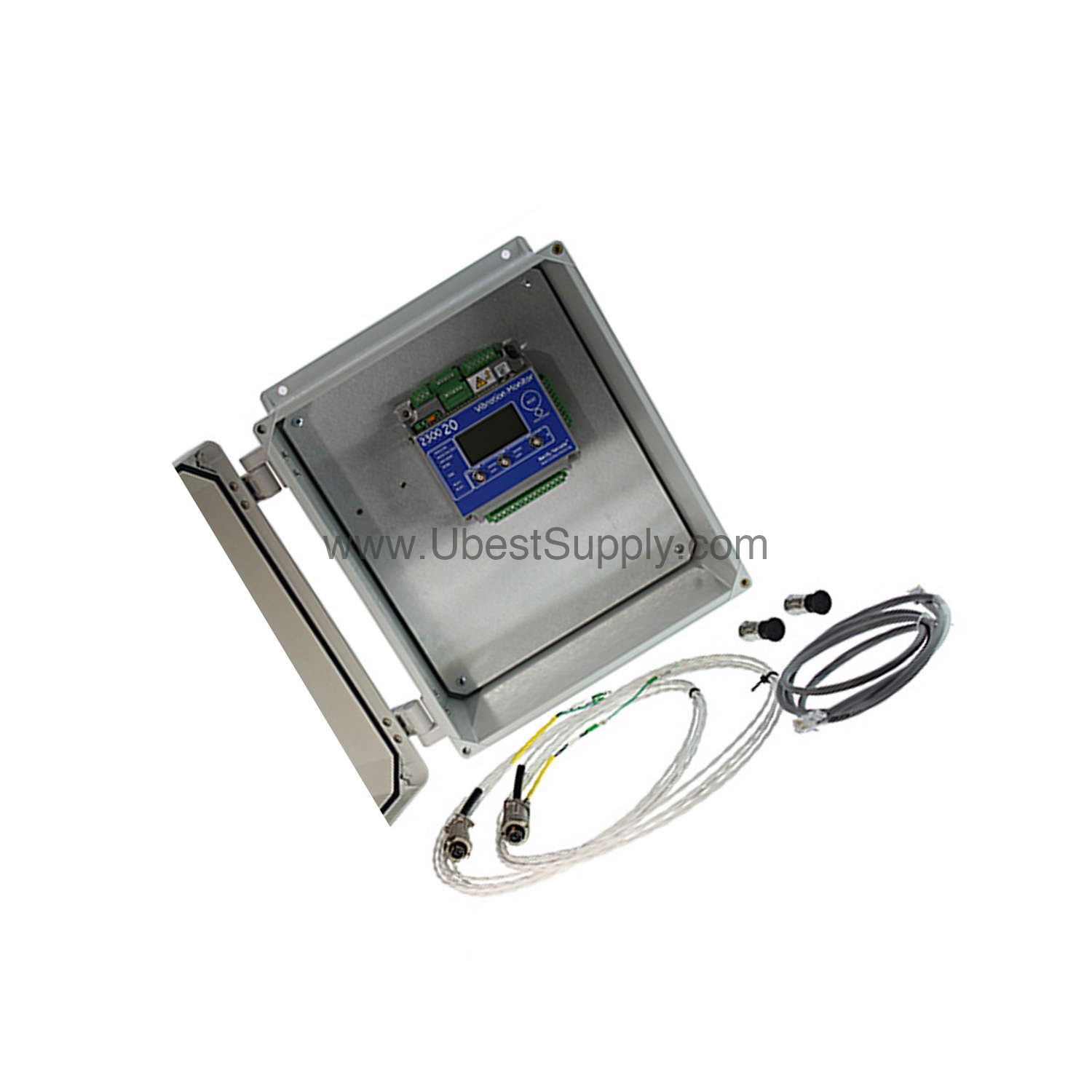

2300/25-00 | Bently Nevada Monitor with SPA Outputs

Introduction to the Bently Nevada 2300/25-00

When machinery reliability is critical, the 2300/25-00 from Bently Nevada provides a robust monitoring solution. This monitor with SPA outputs is designed to track vibration, speed, and process variables with high accuracy. It helps you detect issues early, reducing unplanned downtime and maintenance costs.

Built for continuous operation, the 2300/25-00 supports a wide range of input types, including accelerometers, velocity sensors, and proximity transducers. Its flexible configuration allows you to tailor it to your specific machinery protection needs.

Key Features and Technical Specifications

The 2300/25-00 offers several standout features that make it a valuable addition to any predictive maintenance program:

• Accuracy of ±1% of full scale range ensures reliable measurements.
• Configurable bandpass filters from 0.2 Hz to 20 kHz for versatile signal processing.
• Scale factor range of 5 to 1000 mV/g for accelerometers.
• Full scale range of 2 to 80 g peak for acceleration measurements.
• Velocity measurements with full scale range of 0 to 50 in/s peak.
• Radial vibration full scale range of 0 to 160 mil peak-peak.
• Independent 24-bit ADCs on input channels for precise data acquisition.
• Supports Bently transducers or 2/3 wire custom transducers.
• Speed/Keyphasor inputs support up to 20 kHz with threshold voltage resolution of 0.1 Vdc.
• Three buffered outputs (2 vibration, 1 speed) via BNC connectors.
• Two dry-contact relays with configurable normally energized or de-energized states.
• Ethernet communication (10Base-T and 100Base-TX) conforming to IEEE802.3.

One distinctive feature is the SPA output, which provides high AC (8 Vpp), low AC (1.6 Vpp), and DC gap (0 to -20 Vdc) signals. This allows integration with external systems for advanced analysis.

Applications and Use Cases

The 2300/25-00 is ideal for monitoring rotating machinery such as turbines, compressors, pumps, and motors. In these applications, it continuously tracks vibration and speed, helping you identify developing faults before they cause failures. For example, in a petrochemical plant, the monitor can detect bearing wear early, allowing scheduled maintenance instead of emergency shutdowns.

Furthermore, its ability to store alarm data during network disruptions ensures no critical information is lost. This is especially valuable in remote or harsh environments where connectivity may be intermittent.

Installation and Setup

Mounting the 2300/25-00 is straightforward, with options for panel mount or DIN rail (adapter included). The monitor comes with a manual and configuration software, simplifying setup. When installing, ensure proper grounding and follow the manufacturer's guidelines for wiring to avoid signal interference.

For optimal performance, position the monitor away from high-vibration sources and extreme temperatures. The operating temperature range is -30°C to +65°C, so plan the installation location accordingly.

Maintenance and Reliability

Regular inspection of the monitor and its connections is recommended to ensure long-term reliability. Check for loose wiring, corrosion, or physical damage periodically. The unit's real-time clock battery has a powered life of 38 years at 50°C, minimizing maintenance needs.

Additionally, the monitor's LEDs provide clear status indications, including OK, protection fault, user inhibit, bypass, relay status, and Ethernet communication. These indicators help you quickly assess the health of the monitoring system.

Compatibility and Integration

The 2300/25-00 integrates seamlessly with Bently Nevada's System 1 platform. In the event of a network disruption, the monitor can store at least 5 alarm data captures, requiring System 1 Evolution 21.1 or newer and firmware release 3.2 or newer. This ensures data continuity and simplifies troubleshooting.

With Ethernet connectivity, you can remotely access configuration and measurement data, enhancing operational efficiency.

Common Questions About the 2300/25-00

Q: What is the accuracy of the 2300/25-00?

A: The monitor offers accuracy of ±1% of full scale range for input channels.

Q: Can the 2300/25-00 store data during a network failure?

A: Yes, it can store up to at least 5 alarm data captures during network disruptions.

Q: What communication protocols does the 2300/25-00 support?

A: It supports Ethernet 10Base-T and 100Base-TX, conforming to IEEE802.3.

Support and Availability

The Bently Nevada 2300/25-00 is available through Petro Auto Tech. Contact our team to check current availability and lifecycle status. We are ready to assist with your machinery protection needs.
