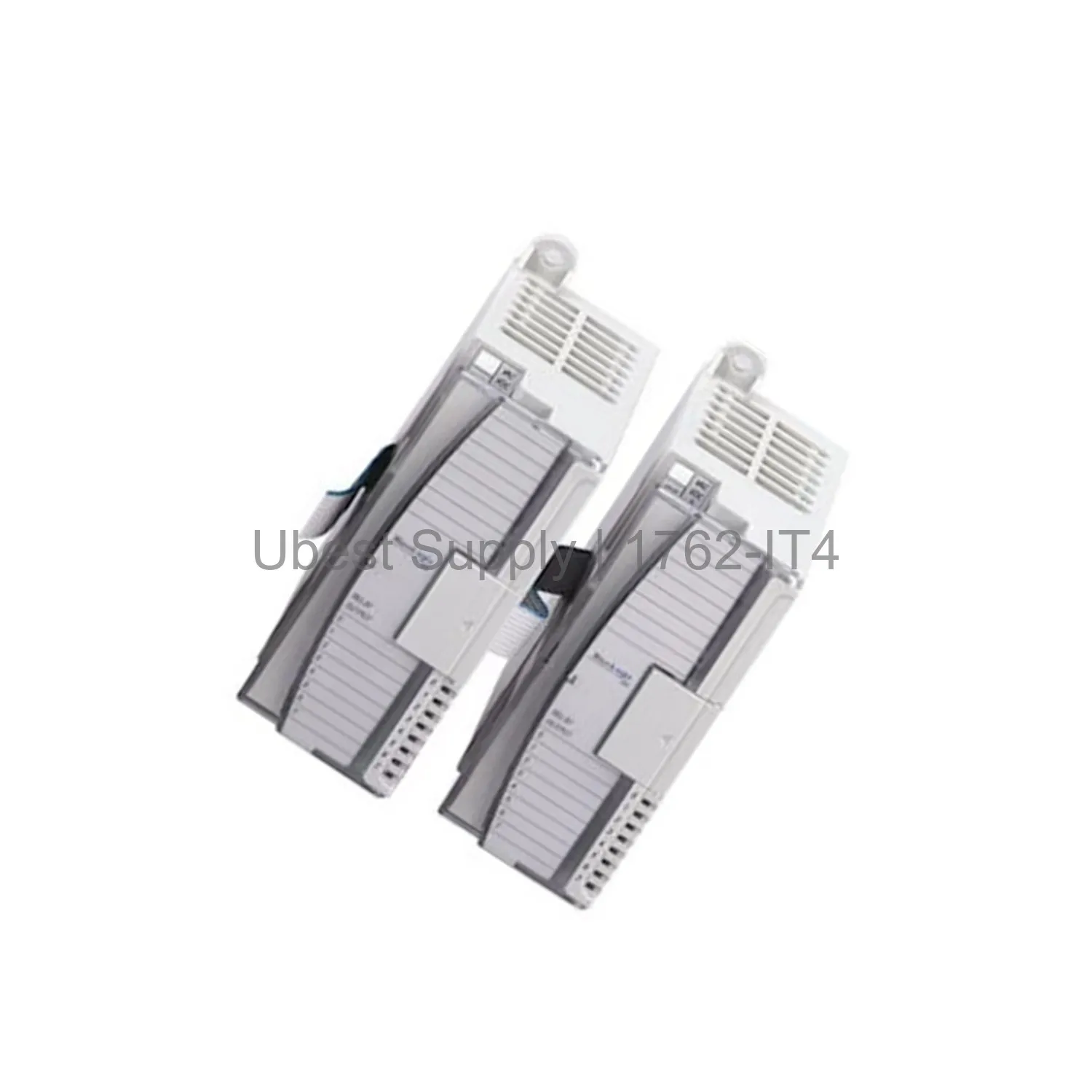

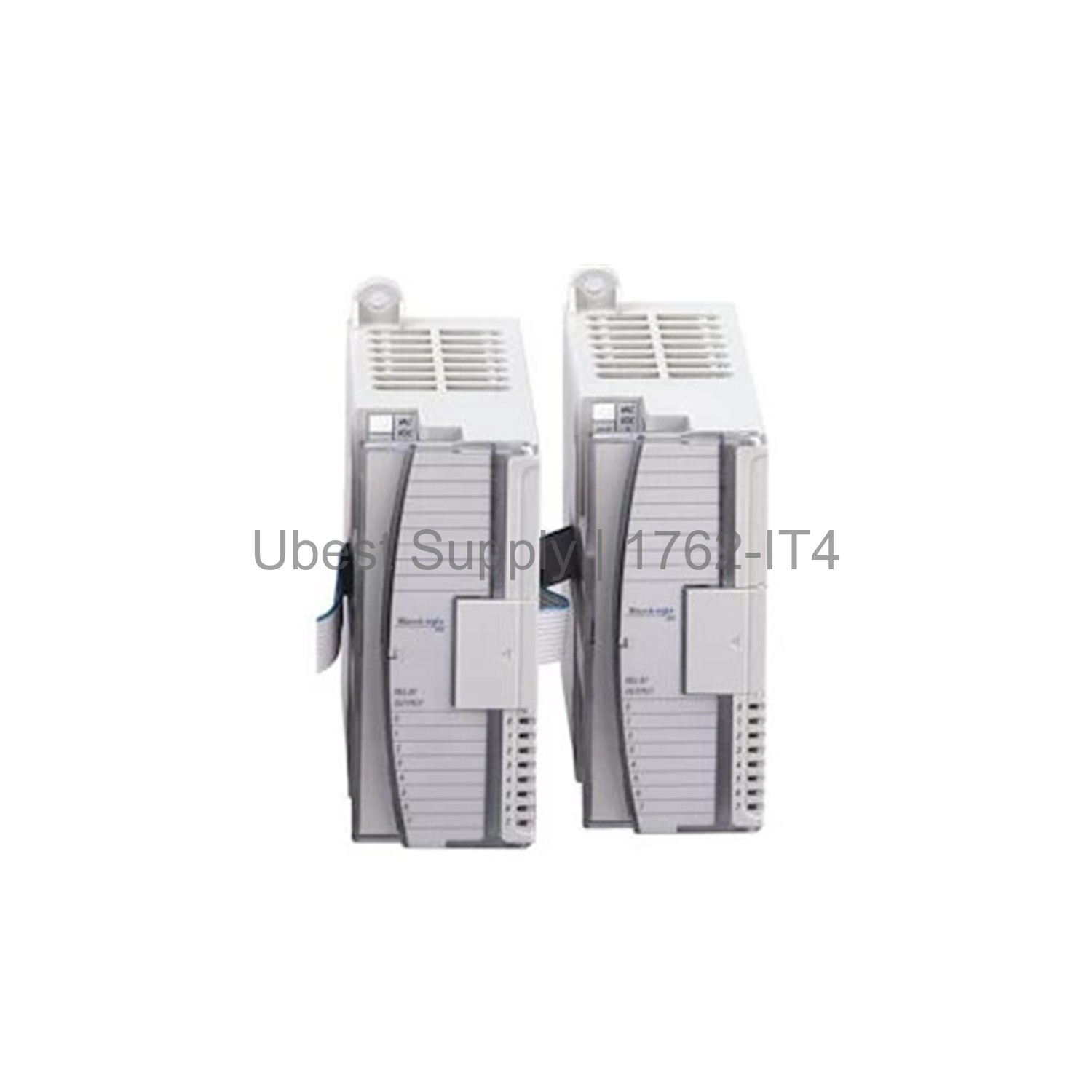

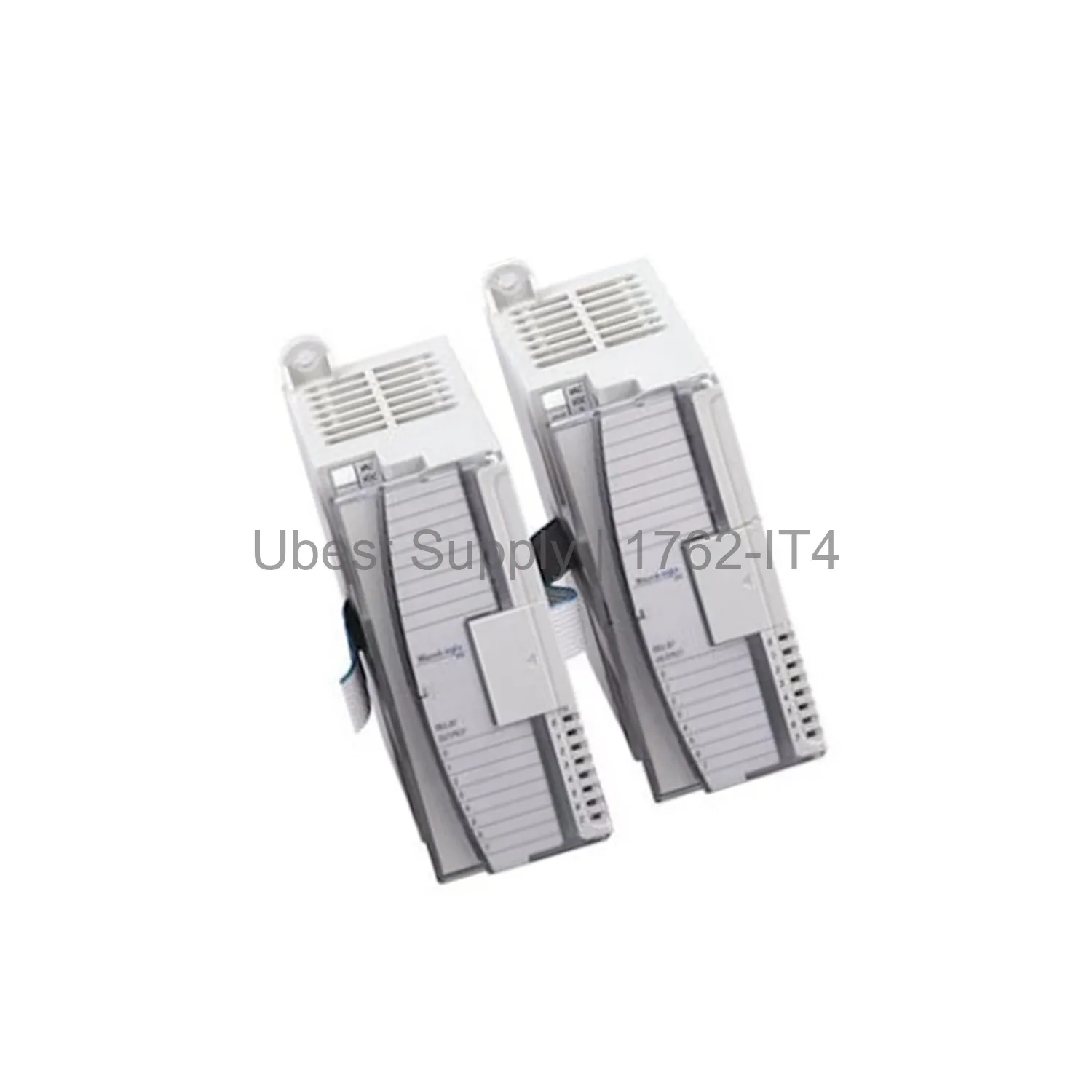

Allen-Bradley 1762-IT4 Thermocouple Input Module

Product Overview

The Allen-Bradley 1762-IT4 is a MicroLogix 1200 analog input module. It accepts thermocouple and millivolt signals. This module has four channels plus a CJC sensor. It supports thermocouple types J, K, T, E, R, N, S, B, and C. It also accepts +/-50 mV and +/-100 mV signals. The 1762-IT4 uses a sigma-delta converter with 15-bit resolution plus sign. It autocalibrates during power-up. The module fits in a MicroLogix 1200 system. It measures temperature from -210 to 2315 degrees Celsius.

Application Scenarios

Use the 1762-IT4 in temperature monitoring applications. It works with furnaces, ovens, and process lines. Connect type J, K, or T thermocouples for industrial heating. Use it for cold junction compensation with mV transducers. Ideal for plastic molding, food processing, and chemical reactors. It also suits laboratory data acquisition.

Technical Specifications

Number of inputs: 4. Compatible sensors: J, K, T, E, R, N, S, B, C. Millivolt signals: +/-50 mV and +/-100 mV. Resolution: 15 bits plus sign. Converter type: Delta-Sigma. Filter frequencies: 10 Hz, 50 Hz, 60 Hz, 250 Hz, 500 Hz, 1 kHz. Update time per channel: 303 ms, 63 ms, 53 ms, 15 ms, 9 ms, 7 ms. Heat dissipation: 1.5 W. Current draw: 40 mA at 5.1V, 50 mA at 24V. Operating temperature: 0 to 55 C. Storage temperature: -40 to 85 C. Vibration: 5 g at 10 to 500 Hz. Shock: 30 g. Dimensions: 3.54 x 3.43 x 1.58 inches. Enclosure: open type. Mounting: DIN rail.

Installation & Maintenance Guide

Mount the module on a DIN rail beside the MicroLogix 1200 controller. Use the snap-on lever to lock it. Wire thermocouples using differential inputs. For mV signals, use Belden 8761 cable. Do not exceed 55 C ambient temperature. Ensure proper airflow for heat dissipation. No routine calibration needed; autocalibration runs at power-up. Replace the module if the CJC sensor error exceeds +/-1.3 degrees C.

Packing List

1 x Allen-Bradley 1762-IT4 module. 1 x installation guide. 1 x CJC sensor (built-in). The module is shipped in an anti-static bag. Shipping methods include FedEx, UPS, and DHL.
