31000-16-05-00-65-03-02 | Bently Nevada 8 mm Proximity Probe Housing

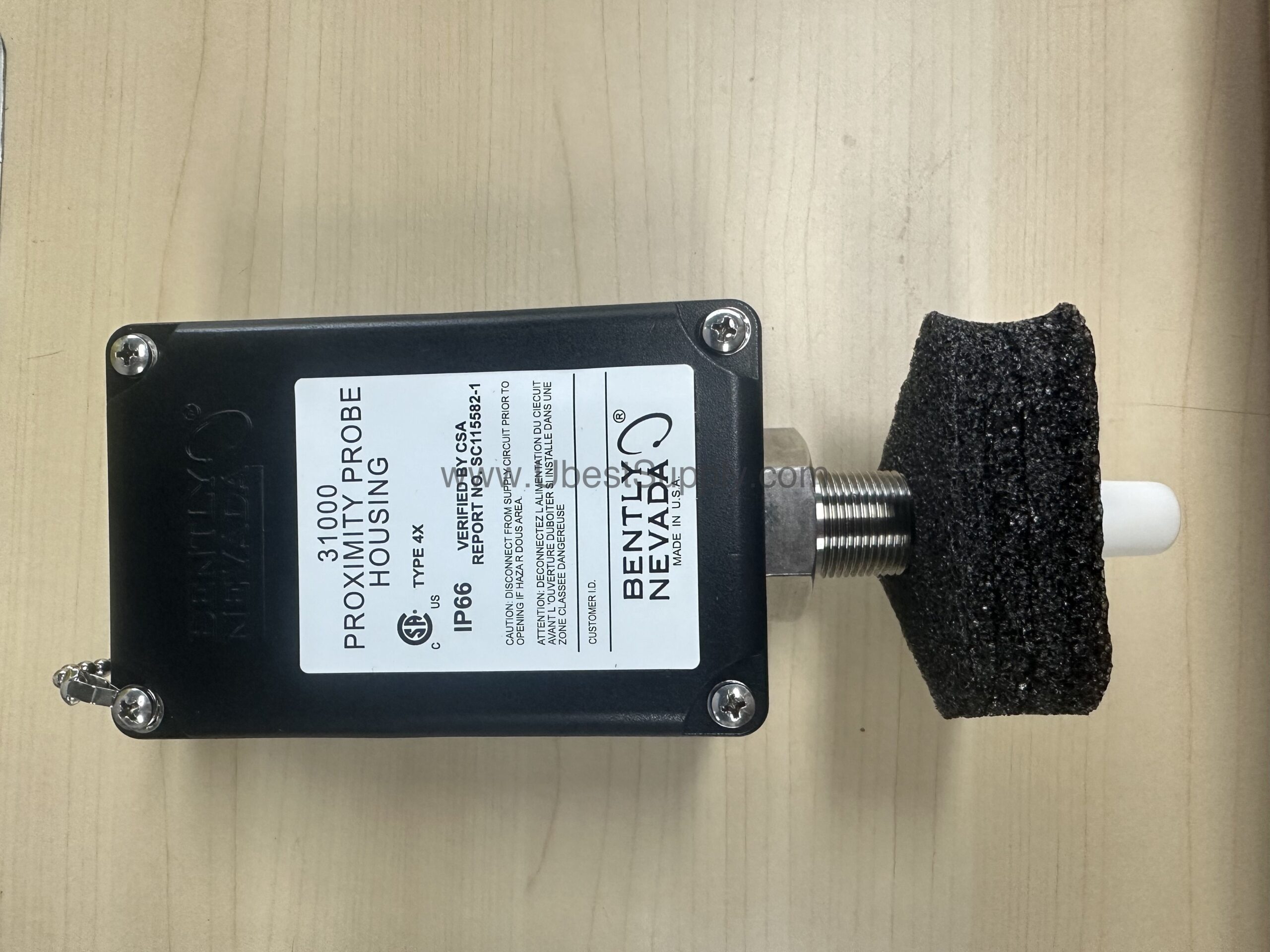

Introduction to the Bently Nevada 31000-16-05-00-65-03-02

In the ever-evolving world of industrial automation, reliable vibration monitoring is critical for protecting rotating machinery. The 31000-16-05-00-65-03-02 from Bently Nevada addresses this need with a robust proximity probe housing. This component is part of the 31000 series, specifically designed to house and protect 3300 XL 8 mm proximity probes. It ensures accurate measurements, even in demanding environments.

This housing is engineered with a glass-reinforced Polyphenylene Sulfide (PPS) thermoplastic that contains conductive fibers. This material choice provides excellent strength and electrostatic dissipation, making it suitable for hazardous areas. The housing also includes a stainless steel sleeve and retaining chain, ensuring long-term durability and secure mounting.

Key Features and Technical Specifications

The 31000-16-05-00-65-03-02 is built to perform under pressure. Its specifications highlight its capability and versatility. Here are the key features that set it apart:

• Probe Option: Designed for 3300 XL 8 mm probes with connector.
• Cable Length: Includes a 0.5 m (20 in) probe cable.
• Standoff Adapter: No standoff adapter required (option 00).
• Probe Penetration: Supports a 6.5 in probe penetration depth.

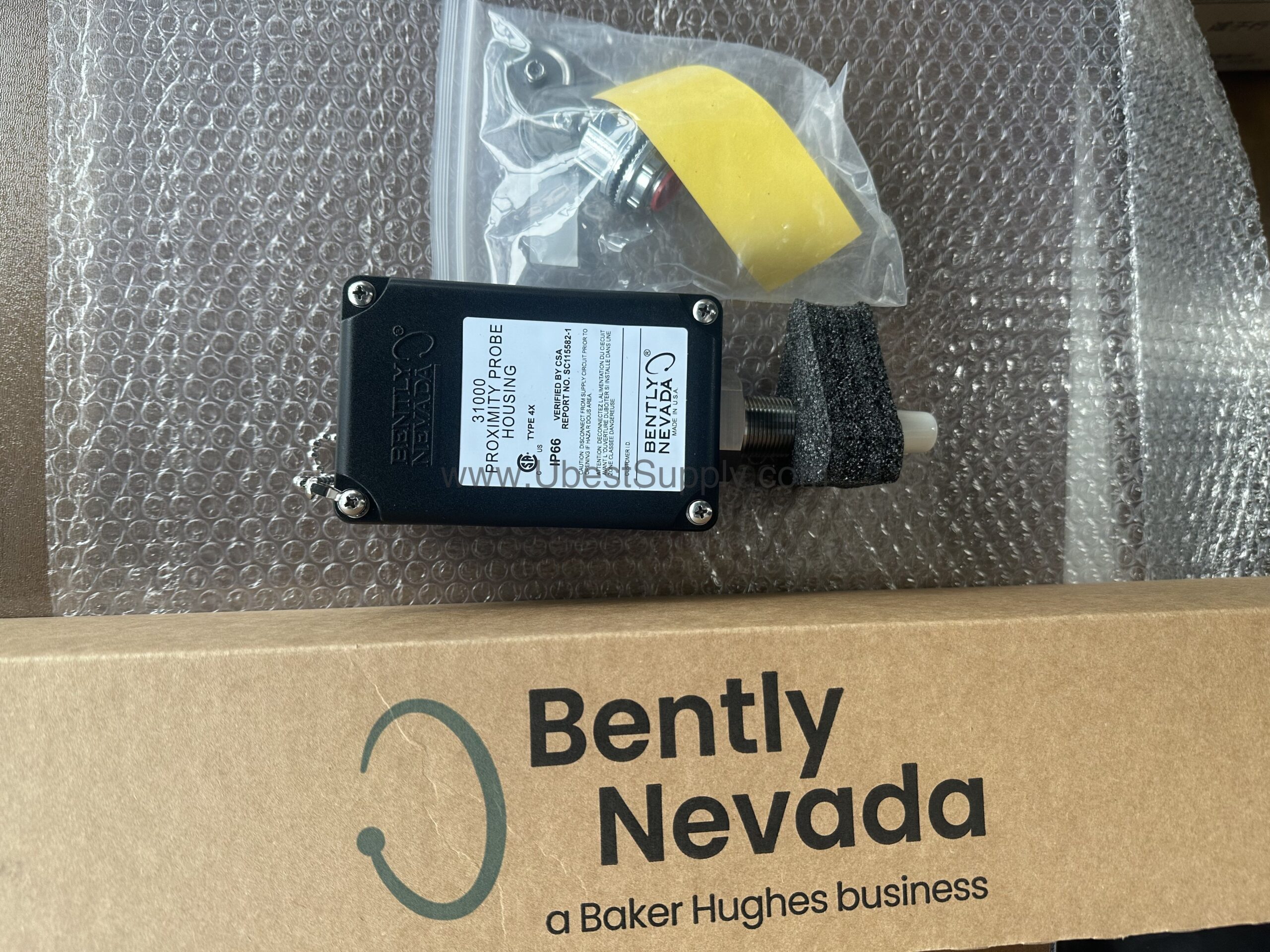

• Fittings: Includes two plugs, one 3/4-14 NPT fitting, one 3/4-14 to 1/2-14 NPT SST reducer, and a cable seal grip with grommets for various cable sizes.
• Mounting Thread: Features a 3/4-14 NPT mounting thread.
• Temperature Rating: Operates reliably from -51°C to +105°C (-60°F to +221°F).
• Weight: Weighs approximately 1.2 kg (2.6 lb).

These specifications ensure that the housing can withstand harsh industrial conditions while maintaining precise probe alignment. The robust construction minimizes the risk of damage from impact or environmental stress.

Durability and Protection Ratings

Industrial environments can be unforgiving. The 31000-16-05-00-65-03-02 is designed to withstand these challenges. It carries a Type 4X rating certified by CSA, ensuring protection against water, dust, and corrosion. Additionally, it meets IP66 standards, verified by SC115582-1 (e) 106, meaning it is dust-tight and protected against powerful water jets.

Furthermore, the housing meets CENELEC standard EN50014 for electrostatic dissipation of plastic materials in hazardous areas. This is crucial for preventing static buildup that could ignite flammable atmospheres. The housing impact strength is certified by BASEEFA to withstand two separate 4 Joule impacts at extreme temperatures, and CSA verified a 7 Joule impact resistance at room temperature. This level of durability ensures long service life and reduced downtime.

Installation and Mounting

Proper installation is key to accurate vibration monitoring. The 31000-16-05-00-65-03-02 simplifies this process with a 3/4-14 NPT mounting thread. This standard thread allows for secure attachment to existing machine ports. The recommended torque for the retaining nut is 29.4 N·m (260 in·lb), which ensures a firm hold without damaging the housing.

When installing, it is important to verify that the probe penetration depth matches the 6.5 in specification. This ensures optimal gap settings for accurate readings. The included fittings allow for flexible cable routing, accommodating various cable diameters from 1/8 to 3/8 inches. This adaptability makes installation straightforward, even in tight spaces.

Maintenance and Reliability

Routine maintenance is essential for maximizing the lifespan of the 31000-16-05-00-65-03-02. The housing is designed to be low-maintenance, but periodic inspection is recommended. Check the O-ring material, Neoprene, for signs of wear or cracking. This ensures the seal remains effective against moisture and contaminants.

Additionally, inspect the stainless steel sleeve and retaining chain for any signs of corrosion or damage. The outer sleeve and exterior screws are made from AISI 303 stainless steel, providing excellent resistance to rust. By following a simple inspection schedule, you can prevent unexpected failures and maintain reliable operation.

Applications and Use Cases

The 31000-16-05-00-65-03-02 is ideal for a wide range of industrial applications. It is commonly used in turbomachinery, pumps, compressors, and other rotating equipment where vibration monitoring is critical. The housing protects the probe from environmental factors, ensuring consistent data collection.

For example, in a chemical processing plant, this housing can safeguard the probe in areas with high humidity or corrosive vapors. Its IP66 rating and Type 4X certification make it suitable for washdown environments. Moreover, the electrostatic dissipation feature makes it safe for use in potentially explosive atmospheres, such as those found in oil and gas facilities.

Compatibility and Integration

The 31000-16-05-00-65-03-02 is specifically designed for use with Bently Nevada 3300 XL 8 mm proximity probes. This ensures seamless integration with existing Bently Nevada monitoring systems. The housing is a critical component in the overall vibration monitoring chain, providing the necessary protection for the probe.

It is important to note that this housing does not include a standoff adapter, so it is best suited for applications where the probe can be mounted directly. The 3/4-14 NPT thread is a common standard, allowing for compatibility with many mounting fixtures. For detailed integration guidance, refer to the official Bently Nevada documentation.

Troubleshooting and Common Issues

While the 31000-16-05-00-65-03-02 is highly reliable, occasional issues may arise. One common problem is improper probe gap due to incorrect installation depth. Always verify the probe penetration depth matches the 6.5 in specification to avoid measurement errors.

Another issue could be cable damage from sharp bends or excessive tension. The included cable seal grip helps protect the cable, but it is essential to route cables with adequate clearance. If you encounter signal interference, check the grounding of the housing. The conductive fibers in the PPS material help with electrostatic dissipation, but proper grounding is still necessary.

Frequently Asked Questions

Q: What is the temperature range for the 31000-16-05-00-65-03-02?

A: The housing operates from -51°C to +105°C (-60°F to +221°F), making it suitable for extreme environments.

Q: What type of probe is compatible with this housing?

A: It is designed for Bently Nevada 3300 XL 8 mm proximity probes with a connector.

Q: Does this housing include a standoff adapter?

A: No, the standoff adapter option is 00, meaning no adapter is included.

Q: What is the mounting thread size?

A: The mounting thread is 3/4-14 NPT, which is standard for many industrial applications.

Q: What is the weight of the housing?

A: The housing weighs approximately 1.2 kg (2.6 lb).

Product Support and Availability

The 31000-16-05-00-65-03-02 is available from Petro Auto Tech, your trusted source for industrial automation parts. We ensure genuine Bently Nevada products and offer competitive pricing. Contact us today for availability and lead times.
